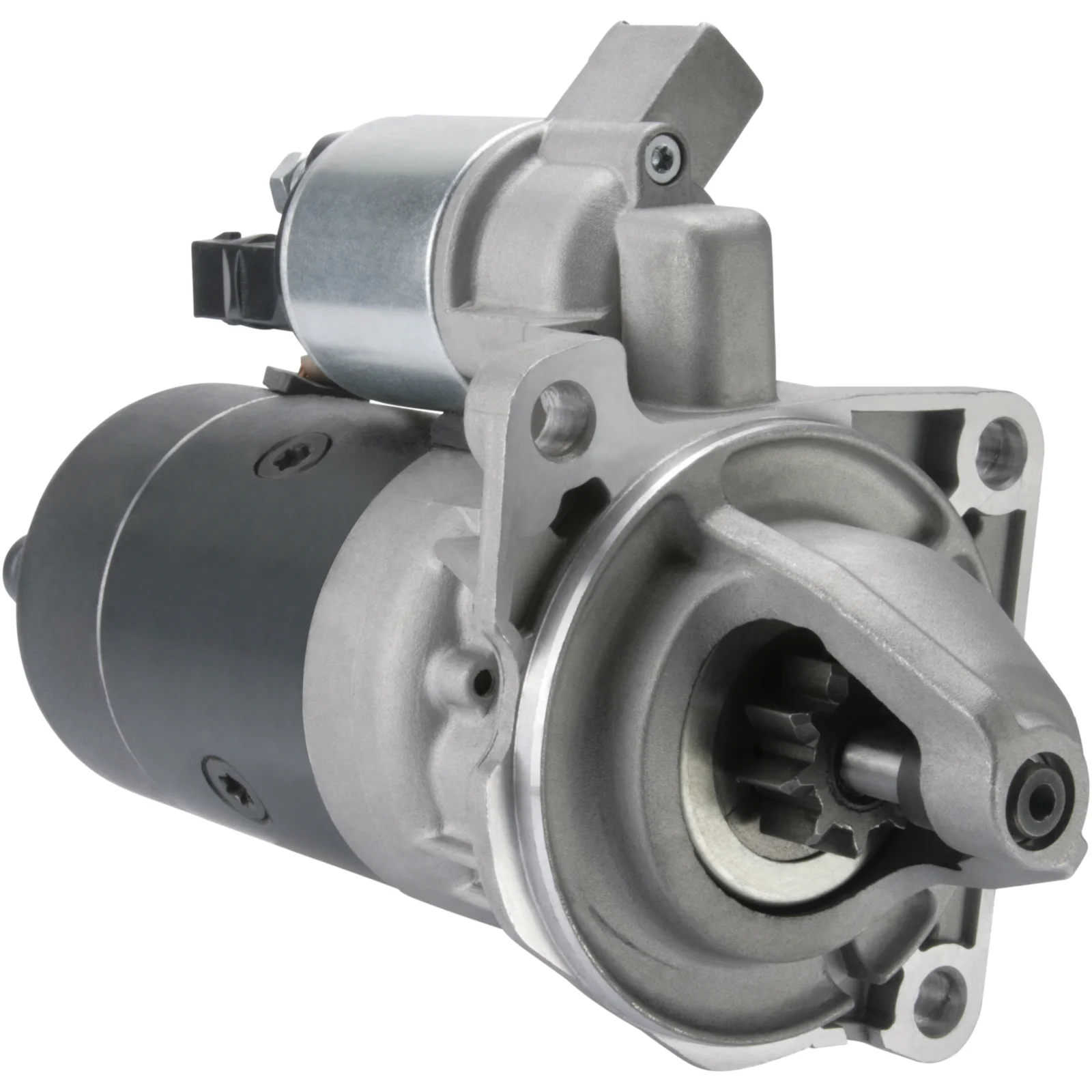

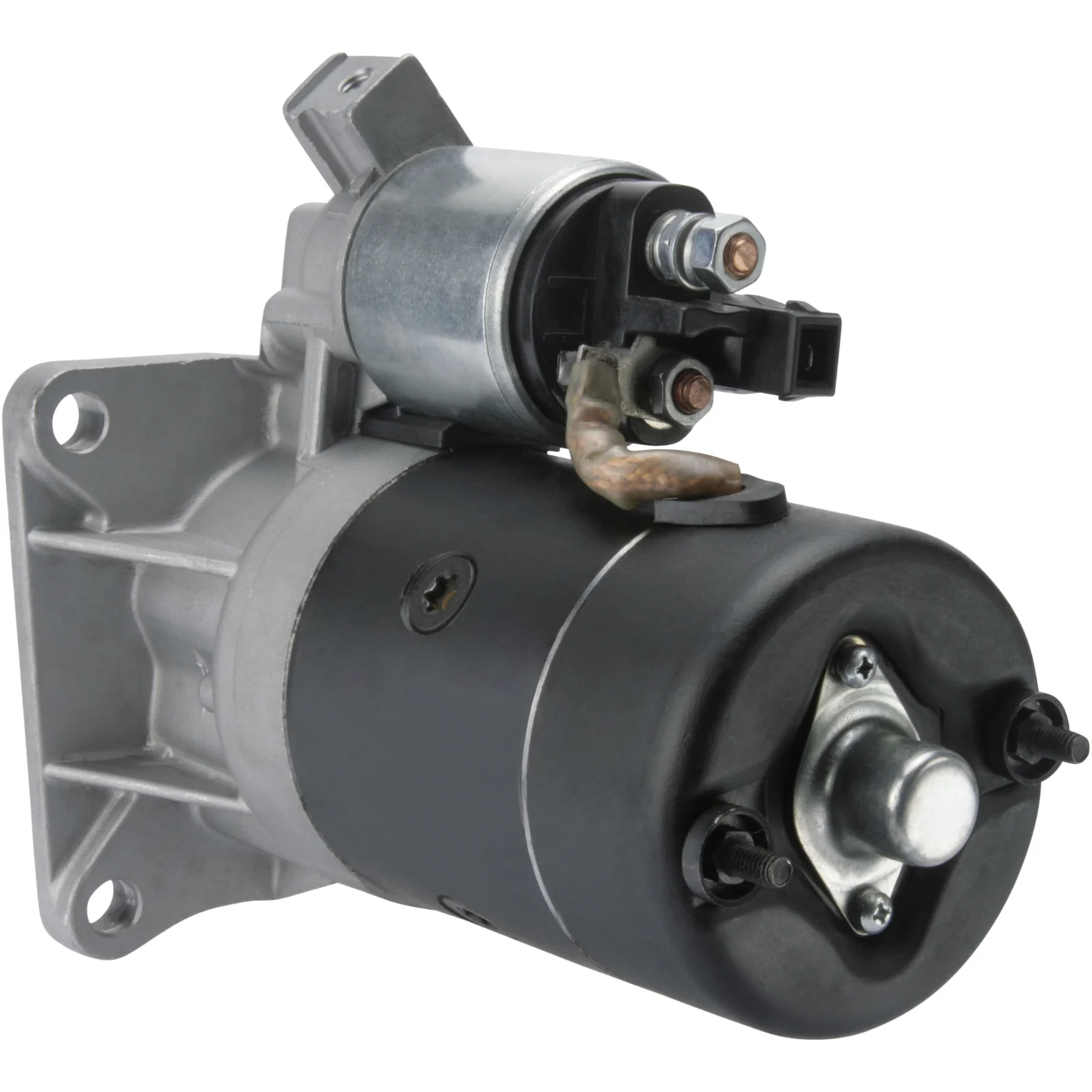

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032114304

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 2.3, No./tænder: 9, Rotation: CW

Beskrivelse

VW LT 2.8 TDI Start. 12V-2.3kW 12V - 2.3kW, 9k 12V - 2.3kW, 9k Til Yourex produkt ordre 91-620-6223

Spænding: 12
kW: 2.3
Montageflange: 110.00
Drevafstand: 27.00
Montagehul 3 mm: 12.00
Montagehul 2 mm: 12.00
Montagehul 1 mm: 12.00
Afstand/bag: 205.00
Afstand/frem: 67.00
Antal/tenner: 9
B+: M8
Position/50: 20
Terminal 50: 5.00
Gear-type: GR
Afstand 2: 146.00
Afstand 3: 103.00
Afstand mm: 103.00
Rotation: uret
Samlet længde mm: 272.00
Koblingstype: Tør
Drevetype: Stål
Antal/montagehuller: 3 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 110.00
No./mount. holes 3 (0)
Position/50 20
Clutch type Dry
Dist. 2 146.00
Dist. 3 103.00
Rotation CW
Dist./back 205.00
Dist./front 67.00
Drive dist. 27.00
Drive type Steel
Gear type GR
kW 2.3
Terminal 50 5.00
Voltage 12
Total length 272.00 mm
Dist. 103.00 mm
Mount. hole 3 12.00 mm
Mount. hole 2 12.00 mm
Mount. hole 1 12.00 mm

  • OEM
    F032114304, RGO 114304, 0001 218 822, 062 911 023, 0986 023 860, 0986 B05 500, 6033 AB1 J00, 6033ab1j00, 114304, 0001109417, 0001218822, 062911023, 062911023X, 905720100082

  • Konkurrentreferens
    CST10380, DRS0044, S0153, S0588, 25-3265, 3111, 32710R, 254148, 460220, 11090142, 0986023860

  • Bilmärken
    VW Trucks & Vans

  • NormaliseratArtNr
    cst10380, drs0044, f032114304, rgo114304, s0153, s0588, 0986b05500, 3111, 6033ab1j00, 32710r, 114304, 253265, 254148, 460220, 0001109417, 0001218822, 11090142, 062911023, 062911023x, 0986023860, 905720100082

  • Passar modeller
    VW Model: LT 28-35 Model series: LT 28-35 Type of engine: TDi Size of motor: 2.8 Brand of engine: AGK Type description: 2DM Body: Bus From date: 01-07-1997 To date: 01-05-2003 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.8 Brand of engine: AGK Body: Platform / Chassis From date: 01-07-1997 To date: 01-01-2002 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.8 Brand of engine: AGK Body: Van From date: 01-07-1997 To date: 01-01-2002 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.8 Brand of engine: ATA Body: Platform / Chassis From date: 01-01-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.8 Brand of engine: ATA Body: Van From date: 01-01-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.8 Brand of engine: ATA Type description: 2DM Body: Bus From date: 01-01-1999 To date: 01-01-2002 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.8 Brand of engine: AUH Body: Platform / Chassis From date: 01-04-2002 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.8 Brand of engine: AUH Body: Van From date: 01-04-2002 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.8 Brand of engine: BCQ Body: Platform / Chassis From date: 01-04-2002 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.8 Brand of engine: BCQ Body: Van From date: 01-04-2002 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.8 Brand of engine: BCQ Type description: 2DM Body: Bus From date: 01-05-2001 To date: 01-06-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.8 Brand of engine: AGK Body: Platform / Chassis From date: 01-07-1997 To date: 01-01-2002 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.8 Brand of engine: AGK Body: Van From date: 01-07-1997 To date: 01-01-2002 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.8 Brand of engine: ATA Body: Platform / Chassis From date: 01-01-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.8 Brand of engine: ATA Body: Van From date: 01-01-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.8 Brand of engine: AUH Body: Platform / Chassis From date: 01-04-2002 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.8 Brand of engine: AUH Body: Van From date: 01-04-2002 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.8 Brand of engine: BCQ Body: Platform / Chassis From date: 01-04-2002 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.8 Brand of engine: BCQ Body: Van From date: 01-04-2002 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Trucks & Vans Series: LT 28-46 II Buss Model: 2.8 TDI Engine volume: 2.8 Engine type: BCQ Year: 05.01-06.06
    VW Trucks & Vans Series: LT 28-46 II Flak Model: 2.8 TDI Engine volume: 2.8 Engine type: ATA Year: 01.99-01.02
    VW Trucks & Vans Series: LT 28-46 II Flak Model: 2.8 TDI Engine volume: 2.8 Engine type: AUH / BCQ Year: 04.02-04.06
    VW Trucks & Vans Series: LT 28-46 II Skåp Model: 2.8 TDI Engine volume: 2.8 Engine type: AGK Year: 06.97-12.98
    VW Trucks & Vans Series: LT 28-46 II Skåp Model: 2.8 TDI Engine volume: 2.8 Engine type: ATA Year: 01.99-12.02
    VW Trucks & Vans Series: LT 28-46 II Skåp Model: 2.8 TDI Engine volume: 2.8 Engine type: AUH / BCQ Year: 04.02-04.06
    VW Trucks & Vans Series: LT 28-46 II Buss Model: 2.8 TDI Engine volume: 2.8 Engine type: AUH Year: 01.99-01.02
    VW Trucks & Vans Series: LT 28-46 II Model: 2.8 TDI Engine volume: 2.8 Engine type: AGK Year: 07.97-12.98
