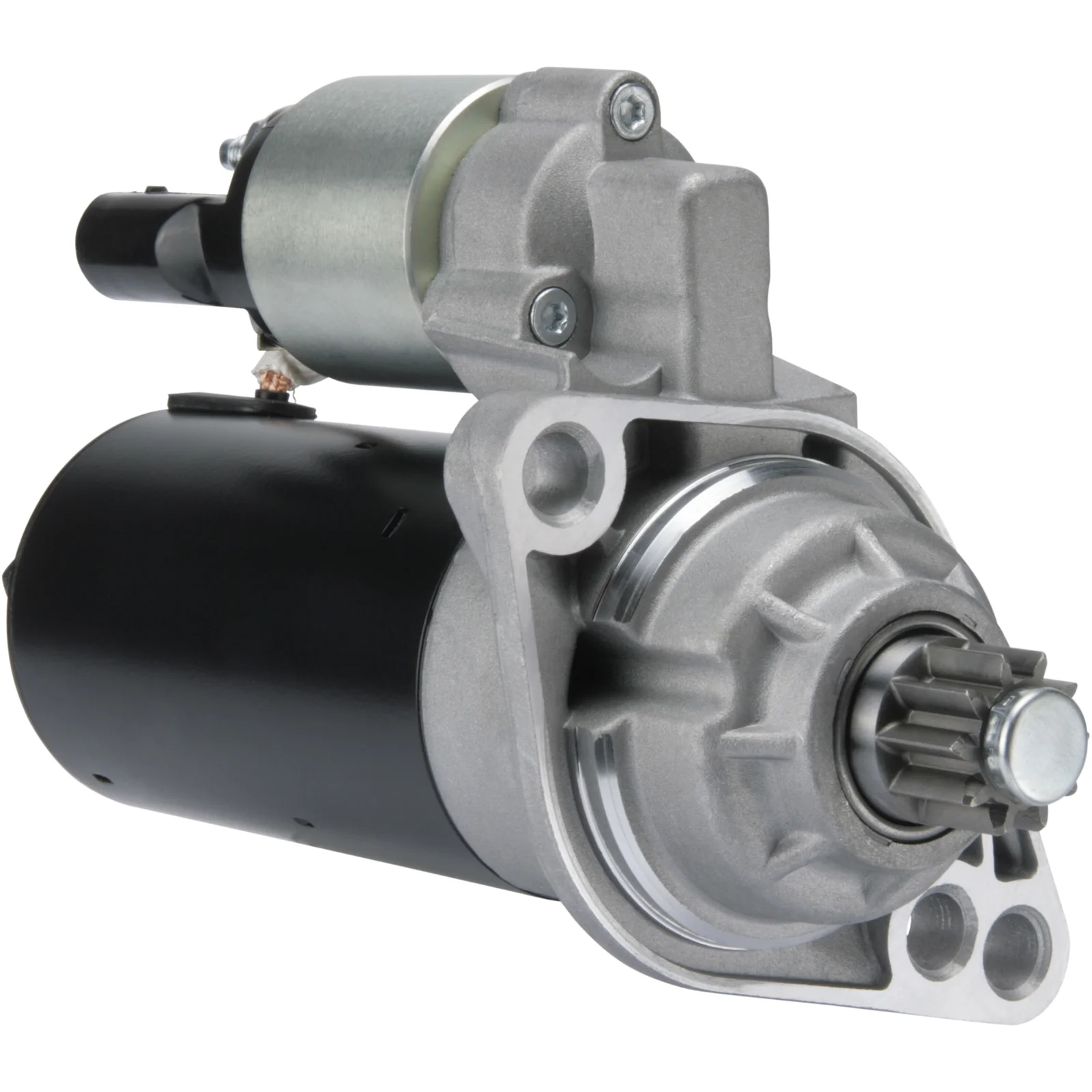

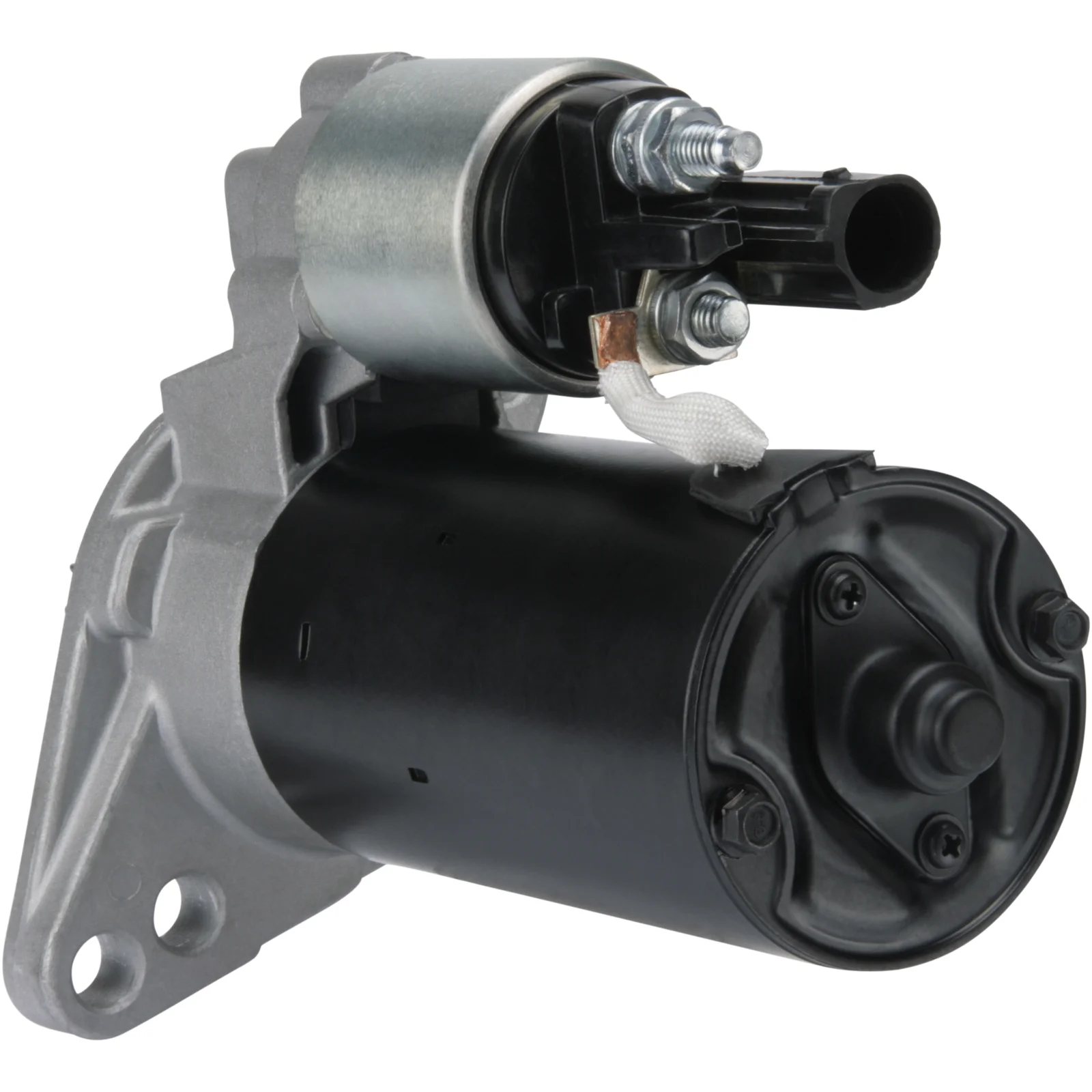

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032114173

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 1,7, Antal / tænder: 10, Rotation: CCW

Beskrivelse

VW Caddy Startmotor 12V-1.7kW 12V - 1,7kW, 10k, CCW A - 76mm, B - 57 For Yourex produkt ordre 91-620-2032

Spænding: 12
kW: 1,7
Monteringsflange: 76,00
Drive afstand: 58,00
Monteringshull 2 mm: 11,00
Monteringshull 1 mm: 11,00
Afstand/bagud: 168,00
Afstand/frem: 63,00
Antal/tænder: 10
B+: M8
Position/50: 15
Terminal 50: Stik
Gearsæts type: GR
Afstand mm: 111,00
Rotation: CCW
Total længde mm: 244,00
Koblingstype: Tør
Drive type: Stål
Antal/monteringshuller: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 76.00
No./mount. holes 2 (0)
Position/50 15
Clutch type Dry
Rotation CCW
Dist./back 168.00
Dist./front 63.00
Drive dist. 58.00
Drive type Steel
Gear type GR
kW 1.7
Terminal 50 Plug
Voltage 12
Total length 244.00 mm
Dist. 111.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    0AH 911 023B, 0AH911023B, 0AH911023BX, cs1397, F032114173, RGO 114173, 0001 123 020, 0001 123 021, 0986 020 320, 1986S00800, 114173, 0001123020, 0001123021

  • Konkurrentreferens
    CST10445, DRT0320, DRT0320X, F042S0H096, LRS02473, S0229, S0229PR, STR-H096, 8EA012528-051, 25-4145, 311.264.102, 3043, 32688N, 101397, 105510, 458875, 8213300, 11020320, 0986020320

  • Bilmärken
    VW

  • NormaliseratArtNr
    0ah911023b, 0ah911023bx, cs1397, cst10445, drt0320, drt0320x, f032114173, f042s0h096, lrs02473, rgo114173, s0229, s0229pr, strh096, 8ea012528051, 1986s00800, 3043, 32688n, 101397, 105510, 114173, 254145, 458875, 0001123020, 0001123021, 8213300, 11020320, 311264102, 0986020320

  • Passar modeller
    VW Model: Caddy Model series: Caddy Type of engine: SDi Size of motor: 2.0 Brand of engine: BDJ Type description: 2KA, 2KH Body: Van From date: 01-03-2004 To date: 01-08-2010 Fuel: Diesel Approved: Yes
    VW Model: Caddy Model series: Caddy Type of engine: SDi Size of motor: 2.0 Brand of engine: BDJ Type description: 2KB, 2KJ Body: Estate From date: 01-03-2004 To date: 01-08-2010 Fuel: Diesel Approved: Yes
    VW Model: Caddy Model series: Caddy Type of engine: SDi Size of motor: 2.0 Brand of engine: BST Type description: 2KA, 2KH Body: Van From date: 01-03-2004 To date: 01-08-2010 Fuel: Diesel Approved: Yes
    VW Model: Caddy Model series: Caddy Type of engine: SDi Size of motor: 2.0 Brand of engine: BST Type description: 2KB, 2KJ Body: Estate From date: 01-03-2004 To date: 01-08-2010 Fuel: Diesel Approved: Yes
    VW Series: Caddy III Skåp (2K_) Model: 2.0 SDI Skåp Engine volume: 2.0 Engine type: BDJ / BST Year: 03.04-05.08
    VW Series: Caddy III Variant Model: 2.0 SDI Engine volume: 2.0 Engine type: BDJ / BST Year: 03.04-05.08
    VW Series: Caddy III Variant Model: 2.0 SDI Engine volume: 2.0 Engine type: BDJ / BST Year: 06.05-05.08
    1 / 2
  • Beskrivelse
    VW Caddy Startmotor 12V-1.7kW 12V - 1,7kW, 10k, CCW A - 76mm, B - 57 For Yourex produkt ordre 91-620-2032

    Spænding: 12
    kW: 1,7
    Monteringsflange: 76,00
    Drive afstand: 58,00
    Monteringshull 2 mm: 11,00
    Monteringshull 1 mm: 11,00
    Afstand/bagud: 168,00
    Afstand/frem: 63,00
    Antal/tænder: 10
    B+: M8
    Position/50: 15
    Terminal 50: Stik
    Gearsæts type: GR
    Afstand mm: 111,00
    Rotation: CCW
    Total længde mm: 244,00
    Koblingstype: Tør
    Drive type: Stål
    Antal/monteringshuller: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 10
    Mount. flange 76.00
    No./mount. holes 2 (0)
    Position/50 15
    Clutch type Dry
    Rotation CCW
    Dist./back 168.00
    Dist./front 63.00
    Drive dist. 58.00
    Drive type Steel
    Gear type GR
    kW 1.7
    Terminal 50 Plug
    Voltage 12
    Total length 244.00 mm
    Dist. 111.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Køretøjsmatchning

    • OEM
      0AH 911 023B, 0AH911023B, 0AH911023BX, cs1397, F032114173, RGO 114173, 0001 123 020, 0001 123 021, 0986 020 320, 1986S00800, 114173, 0001123020, 0001123021

    • Konkurrentreferens
      CST10445, DRT0320, DRT0320X, F042S0H096, LRS02473, S0229, S0229PR, STR-H096, 8EA012528-051, 25-4145, 311.264.102, 3043, 32688N, 101397, 105510, 458875, 8213300, 11020320, 0986020320

    • Bilmärken
      VW

    • NormaliseratArtNr
      0ah911023b, 0ah911023bx, cs1397, cst10445, drt0320, drt0320x, f032114173, f042s0h096, lrs02473, rgo114173, s0229, s0229pr, strh096, 8ea012528051, 1986s00800, 3043, 32688n, 101397, 105510, 114173, 254145, 458875, 0001123020, 0001123021, 8213300, 11020320, 311264102, 0986020320

    • Passar modeller
      VW Model: Caddy Model series: Caddy Type of engine: SDi Size of motor: 2.0 Brand of engine: BDJ Type description: 2KA, 2KH Body: Van From date: 01-03-2004 To date: 01-08-2010 Fuel: Diesel Approved: Yes
      VW Model: Caddy Model series: Caddy Type of engine: SDi Size of motor: 2.0 Brand of engine: BDJ Type description: 2KB, 2KJ Body: Estate From date: 01-03-2004 To date: 01-08-2010 Fuel: Diesel Approved: Yes
      VW Model: Caddy Model series: Caddy Type of engine: SDi Size of motor: 2.0 Brand of engine: BST Type description: 2KA, 2KH Body: Van From date: 01-03-2004 To date: 01-08-2010 Fuel: Diesel Approved: Yes
      VW Model: Caddy Model series: Caddy Type of engine: SDi Size of motor: 2.0 Brand of engine: BST Type description: 2KB, 2KJ Body: Estate From date: 01-03-2004 To date: 01-08-2010 Fuel: Diesel Approved: Yes
      VW Series: Caddy III Skåp (2K_) Model: 2.0 SDI Skåp Engine volume: 2.0 Engine type: BDJ / BST Year: 03.04-05.08
      VW Series: Caddy III Variant Model: 2.0 SDI Engine volume: 2.0 Engine type: BDJ / BST Year: 03.04-05.08
      VW Series: Caddy III Variant Model: 2.0 SDI Engine volume: 2.0 Engine type: BDJ / BST Year: 06.05-05.08
      1 / 2
