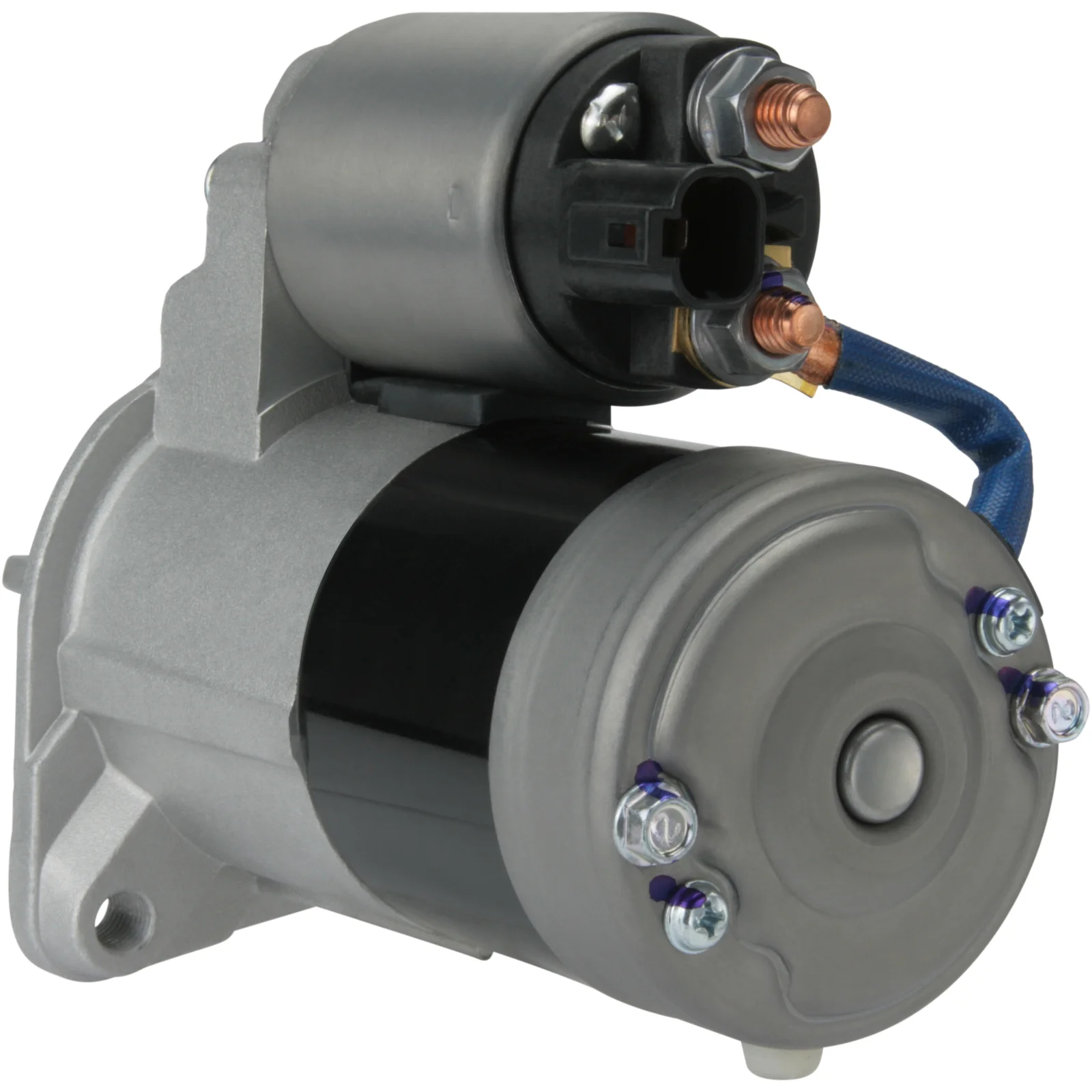

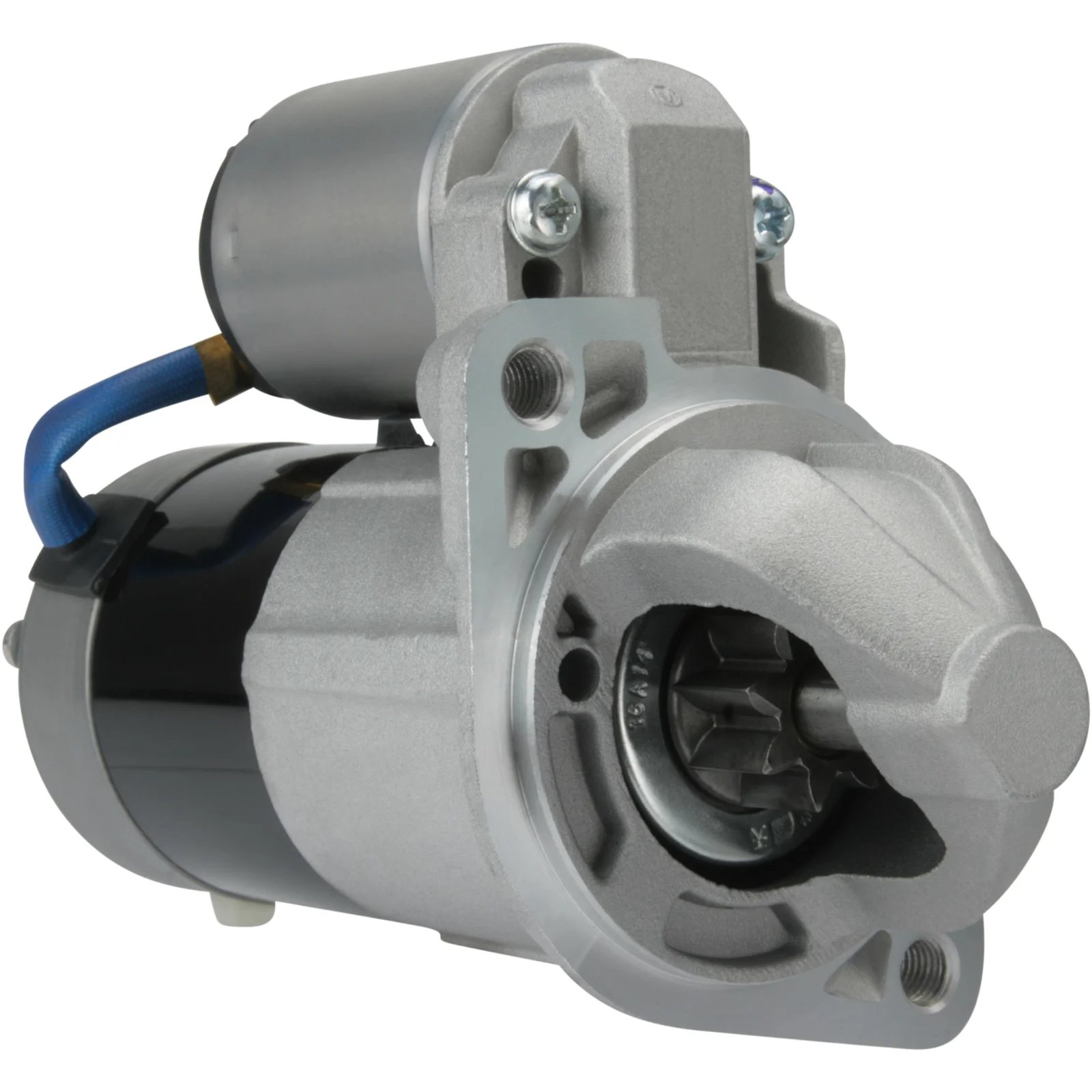

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032114820

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 1.2, No./tænder: 8, Rotation: CW

Beskrivelse

Hyundai/Kia Startmotor 12V-1.2kW 12V - 1.2kW, 8k A - 77mm, B - 17mm For Yourex produktbestilling 91-228-2317

Spænding: 12
kW: 1.2
Monteringsflange: 77.00
Driveafstand: 17.00
Afstand/bag: 138.00
Afstand/front: 53.00
Nr./tænder: 8
B+: M8
Position/B+: 60
Position/50: 45
Terminal 50: Stik
Geartype: GR
Afstand mm: 105.00
Rotation: CW
Total længde mm: 194.00
Produktinfo: BN
Nr./monteringshuller: 2 (2)

Filer

Specifikation

B+ M8
No./teeth 8
Mount. flange 77.00
No./mount. holes 2 (2)
Position/50 45
Position/B+ 60
Prod. info BN
Rotation CW
Dist./back 138.00
Dist./front 53.00
Drive dist. 17.00
Gear type GR
kW 1.2
Terminal 50 Plug
Voltage 12
Total length 194.00 mm
Dist. 105.00 mm

  • OEM
    cs1433, F032114820, RGO 114820, TM000 A38001, tm000a38001, 1986S01378, 36100-23170, 36100-23171, 114820, 1195921

  • Konkurrentreferens
    CST32131, DRS0130, DRS0130N, J5210521, LRS02305, MSN2626, S3196S, S9314S, 8EA011611-441, 8EA738258-881, 25-3477, 150.559.082, 324.060.082, 9782, 17988, 17988N, 101433, 106902, 220384, 220384A, 600158, 600164, 8023750, 8212833, 11040789, 063522626, 0986023750, 063522626010

  • Bilmärken
    Hyundai, Kia

  • NormaliseratArtNr
    cs1433, cst32131, drs0130, drs0130n, f032114820, j5210521, lrs02305, msn2626, rgo114820, s3196s, s9314s, tm000a38001, 8ea011611441, 8ea738258881, 1986s01378, 9782, 17988, 17988n, 101433, 106902, 114820, 220384, 220384a, 253477, 600158, 600164, 1195921, 8023750, 8212833, 11040789, 063522626, 150559082, 324060082, 0986023750, 3610023170, 3610023171, 063522626010

  • Passar modeller
    Hyundai Model: Elantra Model series: Elantra Size of motor: 2.0 Brand of engine: G4GC Body: Estate Fuel: Petrol Approved: Yes Manufacture type: Estate
    Hyundai Model: i30 Model series: i30 CW Size of motor: 2.0 Brand of engine: G4GC-G Body: Estate From date: 01-02-2008 To date: 01-06-2012 Fuel: Gasoline Approved: Yes Manufacture type: kombi
    Hyundai Model: i30 Model series: i30 Size of motor: 2.0 Brand of engine: G4GC Type description: FD Body: Hatchback From date: 01-09-2008 To date: 01-11-2011 Fuel: Petrol Approved: Yes
    Hyundai Model: i30 Model series: i30 Size of motor: 2.0 Brand of engine: G4GC-G Body: Hatchback From date: 01-10-2007 To date: 01-11-2011 Fuel: Gasoline Approved: Yes
    Hyundai Model: Tiburon Model series: Tiburon Type of engine: CVVT Size of motor: 2.0 Brand of engine: G4GC Body: Coupe From date: 01-10-2006 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
    Hyundai Series: Coupe Model: 2.0 GLS Engine volume: 2.0 Engine type: G4GC-G Year: 03.06-
    Hyundai Series: i30 CW Kombi Model: 2.0 Engine volume: 2.0 Engine type: G4GC-G Year: 02.08-
    Hyundai Series: i30 Model: 2.0 Engine volume: 2.0 Engine type: G4GC-G Year: 10.07-
    Kia Model: Cee'd Model series: Cee'd Size of motor: 2.0 Brand of engine: G4GC Body: Estate From date: 01-09-2007 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Kia Model: Cee'd Model series: Cee'd Size of motor: 2.0 Brand of engine: G4GC Body: Hatchback From date: 01-12-2006 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Kia Model: Cee'd Model series: Pro Cee'd Size of motor: 2.0 Brand of engine: G4GC Body: Hatchback From date: 01-02-2008 To date: 01-09-2012 Fuel: Gasoline Approved: Yes
    Kia Model: Pro Cee'd Model series: Pro Cee'd Model type: LPG Type of engine: BiFuel Size of motor: 2.0 Brand of engine: G4GC Type description: ED Body: Hatchback From date: 01-01-2009 To date: 01-12-2009 Fuel: Bi-Fuel Approved: Yes
    Kia Model: Sportage Model series: Sportage Model type: 4WD Type of engine: 16V Size of motor: 2.0 Brand of engine: G4GC Type description: JE_ From date: 01-09-2004 Fuel: Gasoline Approved: Yes
    Kia Model: Sportage Model series: Sportage Type of engine: 16V Size of motor: 2.0 Brand of engine: G4GC Type description: JE_ From date: 01-09-2004 Fuel: Gasoline Approved: Yes
    Kia Series: CEE´D Model: 2.0 Engine volume: 2.0 Engine type: G4GC Year: 12.06-
    Kia Series: CEE´D SW Model: 2.0 Engine volume: 2.0 Engine type: G4GC Year: 09.07-
    Kia Series: Sportage Model: 2.0 16V 4WD Engine volume: 2.0 Engine type: G4GC Year: 09.04-05.10
    Kia Series: Sportage Model: 2.0 16V Engine volume: 2.0 Engine type: G4GC Year: 09.04-
    1 / 4
  • Beskrivelse
    Hyundai/Kia Startmotor 12V-1.2kW 12V - 1.2kW, 8k A - 77mm, B - 17mm For Yourex produktbestilling 91-228-2317

    Spænding: 12
    kW: 1.2
    Monteringsflange: 77.00
    Driveafstand: 17.00
    Afstand/bag: 138.00
    Afstand/front: 53.00
    Nr./tænder: 8
    B+: M8
    Position/B+: 60
    Position/50: 45
    Terminal 50: Stik
    Geartype: GR
    Afstand mm: 105.00
    Rotation: CW
    Total længde mm: 194.00
    Produktinfo: BN
    Nr./monteringshuller: 2 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 8
    Mount. flange 77.00
    No./mount. holes 2 (2)
    Position/50 45
    Position/B+ 60
    Prod. info BN
    Rotation CW
    Dist./back 138.00
    Dist./front 53.00
    Drive dist. 17.00
    Gear type GR
    kW 1.2
    Terminal 50 Plug
    Voltage 12
    Total length 194.00 mm
    Dist. 105.00 mm
  • Køretøjsmatchning

    • OEM
      cs1433, F032114820, RGO 114820, TM000 A38001, tm000a38001, 1986S01378, 36100-23170, 36100-23171, 114820, 1195921

    • Konkurrentreferens
      CST32131, DRS0130, DRS0130N, J5210521, LRS02305, MSN2626, S3196S, S9314S, 8EA011611-441, 8EA738258-881, 25-3477, 150.559.082, 324.060.082, 9782, 17988, 17988N, 101433, 106902, 220384, 220384A, 600158, 600164, 8023750, 8212833, 11040789, 063522626, 0986023750, 063522626010

    • Bilmärken
      Hyundai, Kia

    • NormaliseratArtNr
      cs1433, cst32131, drs0130, drs0130n, f032114820, j5210521, lrs02305, msn2626, rgo114820, s3196s, s9314s, tm000a38001, 8ea011611441, 8ea738258881, 1986s01378, 9782, 17988, 17988n, 101433, 106902, 114820, 220384, 220384a, 253477, 600158, 600164, 1195921, 8023750, 8212833, 11040789, 063522626, 150559082, 324060082, 0986023750, 3610023170, 3610023171, 063522626010

    • Passar modeller
      Hyundai Model: Elantra Model series: Elantra Size of motor: 2.0 Brand of engine: G4GC Body: Estate Fuel: Petrol Approved: Yes Manufacture type: Estate
      Hyundai Model: i30 Model series: i30 CW Size of motor: 2.0 Brand of engine: G4GC-G Body: Estate From date: 01-02-2008 To date: 01-06-2012 Fuel: Gasoline Approved: Yes Manufacture type: kombi
      Hyundai Model: i30 Model series: i30 Size of motor: 2.0 Brand of engine: G4GC Type description: FD Body: Hatchback From date: 01-09-2008 To date: 01-11-2011 Fuel: Petrol Approved: Yes
      Hyundai Model: i30 Model series: i30 Size of motor: 2.0 Brand of engine: G4GC-G Body: Hatchback From date: 01-10-2007 To date: 01-11-2011 Fuel: Gasoline Approved: Yes
      Hyundai Model: Tiburon Model series: Tiburon Type of engine: CVVT Size of motor: 2.0 Brand of engine: G4GC Body: Coupe From date: 01-10-2006 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
      Hyundai Series: Coupe Model: 2.0 GLS Engine volume: 2.0 Engine type: G4GC-G Year: 03.06-
      Hyundai Series: i30 CW Kombi Model: 2.0 Engine volume: 2.0 Engine type: G4GC-G Year: 02.08-
      Hyundai Series: i30 Model: 2.0 Engine volume: 2.0 Engine type: G4GC-G Year: 10.07-
      Kia Model: Cee'd Model series: Cee'd Size of motor: 2.0 Brand of engine: G4GC Body: Estate From date: 01-09-2007 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
      Kia Model: Cee'd Model series: Cee'd Size of motor: 2.0 Brand of engine: G4GC Body: Hatchback From date: 01-12-2006 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
      Kia Model: Cee'd Model series: Pro Cee'd Size of motor: 2.0 Brand of engine: G4GC Body: Hatchback From date: 01-02-2008 To date: 01-09-2012 Fuel: Gasoline Approved: Yes
      Kia Model: Pro Cee'd Model series: Pro Cee'd Model type: LPG Type of engine: BiFuel Size of motor: 2.0 Brand of engine: G4GC Type description: ED Body: Hatchback From date: 01-01-2009 To date: 01-12-2009 Fuel: Bi-Fuel Approved: Yes
      Kia Model: Sportage Model series: Sportage Model type: 4WD Type of engine: 16V Size of motor: 2.0 Brand of engine: G4GC Type description: JE_ From date: 01-09-2004 Fuel: Gasoline Approved: Yes
      Kia Model: Sportage Model series: Sportage Type of engine: 16V Size of motor: 2.0 Brand of engine: G4GC Type description: JE_ From date: 01-09-2004 Fuel: Gasoline Approved: Yes
      Kia Series: CEE´D Model: 2.0 Engine volume: 2.0 Engine type: G4GC Year: 12.06-
      Kia Series: CEE´D SW Model: 2.0 Engine volume: 2.0 Engine type: G4GC Year: 09.07-
      Kia Series: Sportage Model: 2.0 16V 4WD Engine volume: 2.0 Engine type: G4GC Year: 09.04-05.10
      Kia Series: Sportage Model: 2.0 16V Engine volume: 2.0 Engine type: G4GC Year: 09.04-
