Vare nr.: F032112435

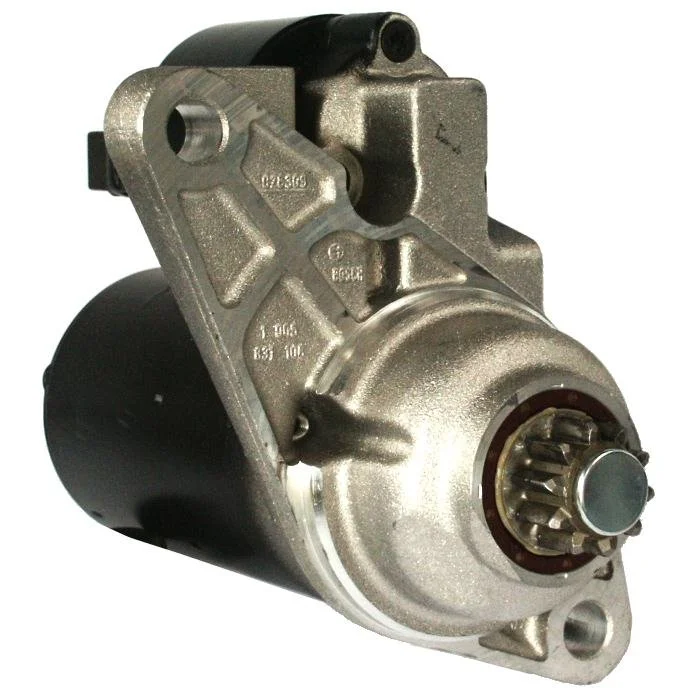

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kV: 1,1, No./tænder: 10, Rotation: CCW

Beskrivelse

Spænding: 12
kW: 1.1
Monteringsflange: 76.00
Drevafstand: 52.50
Monteringshuls 2 mm: 11.00
Monteringshuls 1 mm: 11.00
Afstand/bag: 153.50
Afstand/foran: 56.50
Antal/tænder: 10
B+: M8
Position/50: 20
Terminal 50: 4.80
Gear type: GR
Afstand mm: 150.00
Rotation: mod uret
Samlet længde mm: 210.50
Koblingstype: Tør
Drev type: Stål
Produktion info: BN
Vandtæt: Nej
Olielukket: Nej
Antal/monteringshuls: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 76.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 20
Clutch type Dry
Prod. info BN
Rotation CCW
Dist./back 153.50
Dist./front 56.50
Drive dist. 52.50
Drive type Steel
Gear type GR
kW 1.1
Terminal 50 4.80
Voltage 12
Total length 210.50 mm
Waterproof No
Dist. 150.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    cs1197, F032112435, RGO 112435, 02T911023A, 02t911023e, 02T911023EX, 0001121016, 0001121017

  • Konkurrentreferens
    CST10139, CST15129, DRS8430, DRS8430X, F042S0H044, LRT00220, PBNS3018, S0032, S0032PR, S3090, STR-H044, STR50183, 8EA012527-401, 25-2485, 311.078.102, 31220N, 31220R, 101197, 103740, 201035, 220124, 220124A, 438438, 457403, 726178, 726978, 8018430, 8212348, 11018430, 20513018, 42018430, 0986018430, 063521210160, 943253157010

  • NormaliseratArtNr
    cs1197, cst10139, cst15129, drs8430, drs8430x, f032112435, f042s0h044, lrt00220, pbns3018, rgo112435, s0032, s0032pr, s3090, str50183, strh044, 02t911023a, 02t911023e, 02t911023ex, 8ea012527401, 31220n, 31220r, 101197, 103740, 201035, 220124, 220124a, 252485, 438438, 457403, 726178, 726978, 0001121016, 0001121017, 8018430, 8212348, 11018430, 20513018, 42018430, 311078102, 0986018430, 063521210160, 943253157010

  • Passar modeller
    Audi Model: A2 Model series: A2 Size of motor: 1.4 Brand of engine: AUA Body: Hatchback From date: 01-02-2000 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
    Audi Model: A2 Model series: A2 Size of motor: 1.4 Brand of engine: BBY Body: Hatchback From date: 01-02-2000 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
    Seat Model: Cordoba Model series: Cordoba Size of motor: 1.6 Brand of engine: BAH Type description: 6L2 From date: 01-04-2003 To date: 01-11-2009 Fuel: Gasoline Approved: Yes
    Seat Model: Ibiza Model series: Ibiza Size of motor: 1.2 Brand of engine: AZQ Type description: 6L Body: Hatchback From date: 01-02-2002 To date: 01-06-2006 Fuel: Gasoline Approved: Yes
    Seat Model: Ibiza Model series: Ibiza Size of motor: 1.2 Brand of engine: BME Type description: 6L Body: Hatchback From date: 01-02-2002 To date: 01-06-2006 Fuel: Gasoline Approved: Yes
    Seat Model: Ibiza Model series: Ibiza Type of engine: 16V Size of motor: 1.4 Brand of engine: BBY Type description: 6L Body: Hatchback From date: 01-02-2002 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
    Seat Model: Ibiza Model series: Ibiza Type of engine: 16V Size of motor: 1.4 Brand of engine: BBZ Type description: 6L Body: Hatchback From date: 01-02-2002 To date: 01-11-2009 Fuel: Gasoline Approved: Yes
    Seat Model: Ibiza Model series: Ibiza Type of engine: 16V Size of motor: 1.4 Brand of engine: BKY Type description: 6L Body: Hatchback From date: 01-02-2002 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
    Seat Model: Ibiza Model series: Ibiza Type of engine: SDi Size of motor: 1.9 Brand of engine: ASY Type description: 6L Body: Hatchback From date: 01-02-2002 To date: 01-12-2005 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: 16V Size of motor: 1.4 Brand of engine: AUA Type description: 6Y2 Body: Hatchback From date: 01-12-1999 To date: 01-03-2008 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: 16V Size of motor: 1.4 Brand of engine: AUA Type description: 6Y3 From date: 01-10-1999 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: 16V Size of motor: 1.4 Brand of engine: AUA Type description: 6Y5 Body: Estate From date: 01-05-2000 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: 16V Size of motor: 1.4 Brand of engine: AUB Type description: 6Y2 Body: Hatchback From date: 01-12-1999 To date: 01-03-2008 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: 16V Size of motor: 1.4 Brand of engine: AUB Type description: 6Y5 Body: Estate From date: 01-04-2000 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: 16V Size of motor: 1.4 Brand of engine: BBY Type description: 6Y2 Body: Hatchback From date: 01-12-1999 To date: 01-03-2008 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: 16V Size of motor: 1.4 Brand of engine: BBZ Type description: 6Y2 Body: Hatchback From date: 01-12-1999 To date: 01-03-2008 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: 16V Size of motor: 1.4 Brand of engine: BBZ Type description: 6Y3 From date: 01-12-1999 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
    VW Model: Beetle Model series: New Beetle Size of motor: 1.4 Brand of engine: BCA Type description: 9C1, 1C1 Body: Hatchback From date: 01-11-2001 To date: 01-09-2010 Fuel: Gasoline Approved: Yes
    VW Model: Golf Model series: Golf IV Size of motor: 1.6 Brand of engine: BAD Type description: 1J1 Body: Hatchback From date: 01-01-2002 To date: 01-06-2005 Fuel: Gasoline Approved: Yes
    VW Model: Golf Model series: Golf IV Type of engine: FSi Size of motor: 1.6 Brand of engine: BAD Body: Estate From date: 01-01-2002 To date: 01-06-2006 Fuel: Gasoline Approved: Yes Manufacture type: variant
    VW Model: Golf Model series: Golf lV Brand of engine: SSL From date: 01-04-2001 Approved: Yes
    VW Model: Lupo Model series: Lupo Type of engine: GTi Size of motor: 1.6 Brand of engine: AVY Type description: 6X1,6E1 Body: Hatchback From date: 01-09-2000 To date: 01-07-2005 Fuel: Gasoline Approved: Yes
    VW Model: Polo Model series: Polo Size of motor: 1.2 Brand of engine: AWY Body: Hatchback From date: 01-01-2002 To date: 01-05-2007 Fuel: Gasoline Approved: Yes
    VW Model: Polo Model series: Polo Size of motor: 1.2 Brand of engine: AZQ Type description: 6N_ Body: Hatchback From date: 01-10-2001 To date: 01-07-2007 Fuel: Gasoline Approved: Yes
    VW Model: Polo Model series: Polo Size of motor: 1.2 Brand of engine: BMD Body: Hatchback From date: 01-01-2002 To date: 01-05-2007 Fuel: Gasoline Approved: Yes
    VW Model: Polo Model series: Polo Size of motor: 1.2 Brand of engine: BME Type description: 6N_ Body: Hatchback From date: 01-10-2001 To date: 01-07-2007 Fuel: Gasoline Approved: Yes
    VW Model: Polo Model series: Polo Size of motor: 1.4 Brand of engine: AUB Type description: 9N1 Body: Hatchback From date: 01-10-2001 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
    VW Model: Polo Model series: Polo Type of engine: 16V Size of motor: 1.4 Brand of engine: AUA Body: Estate From date: 01-10-1999 To date: 01-09-2001 Fuel: Gasoline Approved: Yes Manufacture type: Variant
    VW Model: Polo Model series: Polo Type of engine: 16V Size of motor: 1.4 Brand of engine: AUA Type description: 9N_ Body: Hatchback From date: 01-10-2001 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
    VW Model: Polo Model series: Polo Type of engine: 16V Size of motor: 1.4 Brand of engine: BBY Type description: 9N_ Body: Hatchback From date: 01-10-2001 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
    VW Model: Polo Model series: Polo Type of engine: 16V Size of motor: 1.4 Brand of engine: BBZ Body: Hatchback From date: 01-10-2001 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
    VW Model: Polo Model series: Polo Type of engine: 16V Size of motor: 1.4 Brand of engine: BKY Type description: 9N_ Body: Hatchback From date: 01-10-2001 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
    1 / 7
  • Beskrivelse
    Spænding: 12
    kW: 1.1
    Monteringsflange: 76.00
    Drevafstand: 52.50
    Monteringshuls 2 mm: 11.00
    Monteringshuls 1 mm: 11.00
    Afstand/bag: 153.50
    Afstand/foran: 56.50
    Antal/tænder: 10
    B+: M8
    Position/50: 20
    Terminal 50: 4.80
    Gear type: GR
    Afstand mm: 150.00
    Rotation: mod uret
    Samlet længde mm: 210.50
    Koblingstype: Tør
    Drev type: Stål
    Produktion info: BN
    Vandtæt: Nej
    Olielukket: Nej
    Antal/monteringshuls: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 10
    Mount. flange 76.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 20
    Clutch type Dry
    Prod. info BN
    Rotation CCW
    Dist./back 153.50
    Dist./front 56.50
    Drive dist. 52.50
    Drive type Steel
    Gear type GR
    kW 1.1
    Terminal 50 4.80
    Voltage 12
    Total length 210.50 mm
    Waterproof No
    Dist. 150.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Køretøjsmatchning

    • OEM
      cs1197, F032112435, RGO 112435, 02T911023A, 02t911023e, 02T911023EX, 0001121016, 0001121017

    • Konkurrentreferens
      CST10139, CST15129, DRS8430, DRS8430X, F042S0H044, LRT00220, PBNS3018, S0032, S0032PR, S3090, STR-H044, STR50183, 8EA012527-401, 25-2485, 311.078.102, 31220N, 31220R, 101197, 103740, 201035, 220124, 220124A, 438438, 457403, 726178, 726978, 8018430, 8212348, 11018430, 20513018, 42018430, 0986018430, 063521210160, 943253157010

    • NormaliseratArtNr
      cs1197, cst10139, cst15129, drs8430, drs8430x, f032112435, f042s0h044, lrt00220, pbns3018, rgo112435, s0032, s0032pr, s3090, str50183, strh044, 02t911023a, 02t911023e, 02t911023ex, 8ea012527401, 31220n, 31220r, 101197, 103740, 201035, 220124, 220124a, 252485, 438438, 457403, 726178, 726978, 0001121016, 0001121017, 8018430, 8212348, 11018430, 20513018, 42018430, 311078102, 0986018430, 063521210160, 943253157010

    • Passar modeller
      Audi Model: A2 Model series: A2 Size of motor: 1.4 Brand of engine: AUA Body: Hatchback From date: 01-02-2000 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
      Audi Model: A2 Model series: A2 Size of motor: 1.4 Brand of engine: BBY Body: Hatchback From date: 01-02-2000 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
      Seat Model: Cordoba Model series: Cordoba Size of motor: 1.6 Brand of engine: BAH Type description: 6L2 From date: 01-04-2003 To date: 01-11-2009 Fuel: Gasoline Approved: Yes
      Seat Model: Ibiza Model series: Ibiza Size of motor: 1.2 Brand of engine: AZQ Type description: 6L Body: Hatchback From date: 01-02-2002 To date: 01-06-2006 Fuel: Gasoline Approved: Yes
      Seat Model: Ibiza Model series: Ibiza Size of motor: 1.2 Brand of engine: BME Type description: 6L Body: Hatchback From date: 01-02-2002 To date: 01-06-2006 Fuel: Gasoline Approved: Yes
      Seat Model: Ibiza Model series: Ibiza Type of engine: 16V Size of motor: 1.4 Brand of engine: BBY Type description: 6L Body: Hatchback From date: 01-02-2002 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
      Seat Model: Ibiza Model series: Ibiza Type of engine: 16V Size of motor: 1.4 Brand of engine: BBZ Type description: 6L Body: Hatchback From date: 01-02-2002 To date: 01-11-2009 Fuel: Gasoline Approved: Yes
      Seat Model: Ibiza Model series: Ibiza Type of engine: 16V Size of motor: 1.4 Brand of engine: BKY Type description: 6L Body: Hatchback From date: 01-02-2002 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
      Seat Model: Ibiza Model series: Ibiza Type of engine: SDi Size of motor: 1.9 Brand of engine: ASY Type description: 6L Body: Hatchback From date: 01-02-2002 To date: 01-12-2005 Fuel: Diesel Approved: Yes
      Skoda Model: Fabia Model series: Fabia Type of engine: 16V Size of motor: 1.4 Brand of engine: AUA Type description: 6Y2 Body: Hatchback From date: 01-12-1999 To date: 01-03-2008 Fuel: Gasoline Approved: Yes
      Skoda Model: Fabia Model series: Fabia Type of engine: 16V Size of motor: 1.4 Brand of engine: AUA Type description: 6Y3 From date: 01-10-1999 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
      Skoda Model: Fabia Model series: Fabia Type of engine: 16V Size of motor: 1.4 Brand of engine: AUA Type description: 6Y5 Body: Estate From date: 01-05-2000 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
      Skoda Model: Fabia Model series: Fabia Type of engine: 16V Size of motor: 1.4 Brand of engine: AUB Type description: 6Y2 Body: Hatchback From date: 01-12-1999 To date: 01-03-2008 Fuel: Gasoline Approved: Yes
      Skoda Model: Fabia Model series: Fabia Type of engine: 16V Size of motor: 1.4 Brand of engine: AUB Type description: 6Y5 Body: Estate From date: 01-04-2000 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
      Skoda Model: Fabia Model series: Fabia Type of engine: 16V Size of motor: 1.4 Brand of engine: BBY Type description: 6Y2 Body: Hatchback From date: 01-12-1999 To date: 01-03-2008 Fuel: Gasoline Approved: Yes
      Skoda Model: Fabia Model series: Fabia Type of engine: 16V Size of motor: 1.4 Brand of engine: BBZ Type description: 6Y2 Body: Hatchback From date: 01-12-1999 To date: 01-03-2008 Fuel: Gasoline Approved: Yes
      Skoda Model: Fabia Model series: Fabia Type of engine: 16V Size of motor: 1.4 Brand of engine: BBZ Type description: 6Y3 From date: 01-12-1999 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
      VW Model: Beetle Model series: New Beetle Size of motor: 1.4 Brand of engine: BCA Type description: 9C1, 1C1 Body: Hatchback From date: 01-11-2001 To date: 01-09-2010 Fuel: Gasoline Approved: Yes
      VW Model: Golf Model series: Golf IV Size of motor: 1.6 Brand of engine: BAD Type description: 1J1 Body: Hatchback From date: 01-01-2002 To date: 01-06-2005 Fuel: Gasoline Approved: Yes
      VW Model: Golf Model series: Golf IV Type of engine: FSi Size of motor: 1.6 Brand of engine: BAD Body: Estate From date: 01-01-2002 To date: 01-06-2006 Fuel: Gasoline Approved: Yes Manufacture type: variant
      VW Model: Golf Model series: Golf lV Brand of engine: SSL From date: 01-04-2001 Approved: Yes
      VW Model: Lupo Model series: Lupo Type of engine: GTi Size of motor: 1.6 Brand of engine: AVY Type description: 6X1,6E1 Body: Hatchback From date: 01-09-2000 To date: 01-07-2005 Fuel: Gasoline Approved: Yes
      VW Model: Polo Model series: Polo Size of motor: 1.2 Brand of engine: AWY Body: Hatchback From date: 01-01-2002 To date: 01-05-2007 Fuel: Gasoline Approved: Yes
      VW Model: Polo Model series: Polo Size of motor: 1.2 Brand of engine: AZQ Type description: 6N_ Body: Hatchback From date: 01-10-2001 To date: 01-07-2007 Fuel: Gasoline Approved: Yes
      VW Model: Polo Model series: Polo Size of motor: 1.2 Brand of engine: BMD Body: Hatchback From date: 01-01-2002 To date: 01-05-2007 Fuel: Gasoline Approved: Yes
      VW Model: Polo Model series: Polo Size of motor: 1.2 Brand of engine: BME Type description: 6N_ Body: Hatchback From date: 01-10-2001 To date: 01-07-2007 Fuel: Gasoline Approved: Yes
      VW Model: Polo Model series: Polo Size of motor: 1.4 Brand of engine: AUB Type description: 9N1 Body: Hatchback From date: 01-10-2001 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
      VW Model: Polo Model series: Polo Type of engine: 16V Size of motor: 1.4 Brand of engine: AUA Body: Estate From date: 01-10-1999 To date: 01-09-2001 Fuel: Gasoline Approved: Yes Manufacture type: Variant
      VW Model: Polo Model series: Polo Type of engine: 16V Size of motor: 1.4 Brand of engine: AUA Type description: 9N_ Body: Hatchback From date: 01-10-2001 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
      VW Model: Polo Model series: Polo Type of engine: 16V Size of motor: 1.4 Brand of engine: BBY Type description: 9N_ Body: Hatchback From date: 01-10-2001 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
      VW Model: Polo Model series: Polo Type of engine: 16V Size of motor: 1.4 Brand of engine: BBZ Body: Hatchback From date: 01-10-2001 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
      VW Model: Polo Model series: Polo Type of engine: 16V Size of motor: 1.4 Brand of engine: BKY Type description: 9N_ Body: Hatchback From date: 01-10-2001 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
