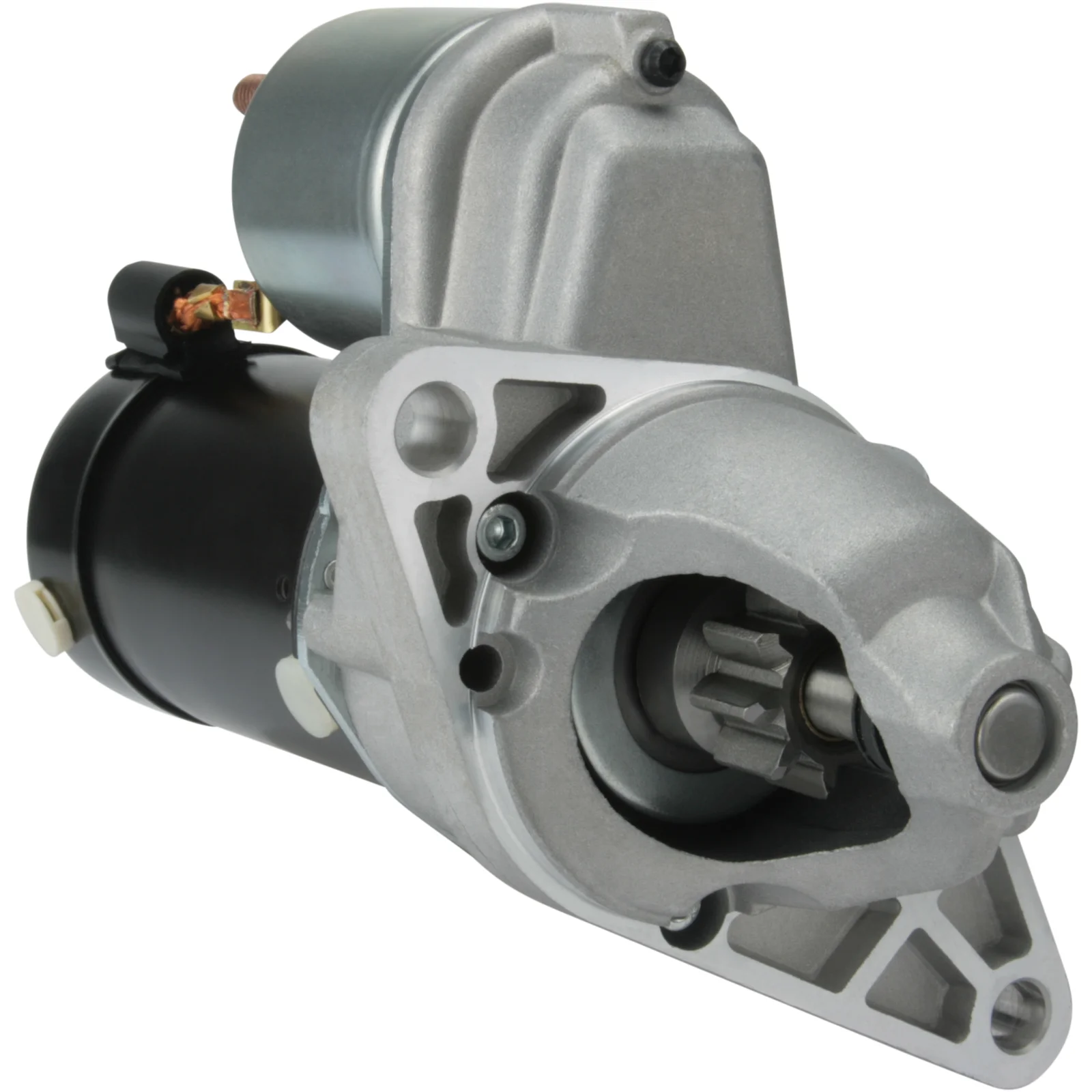

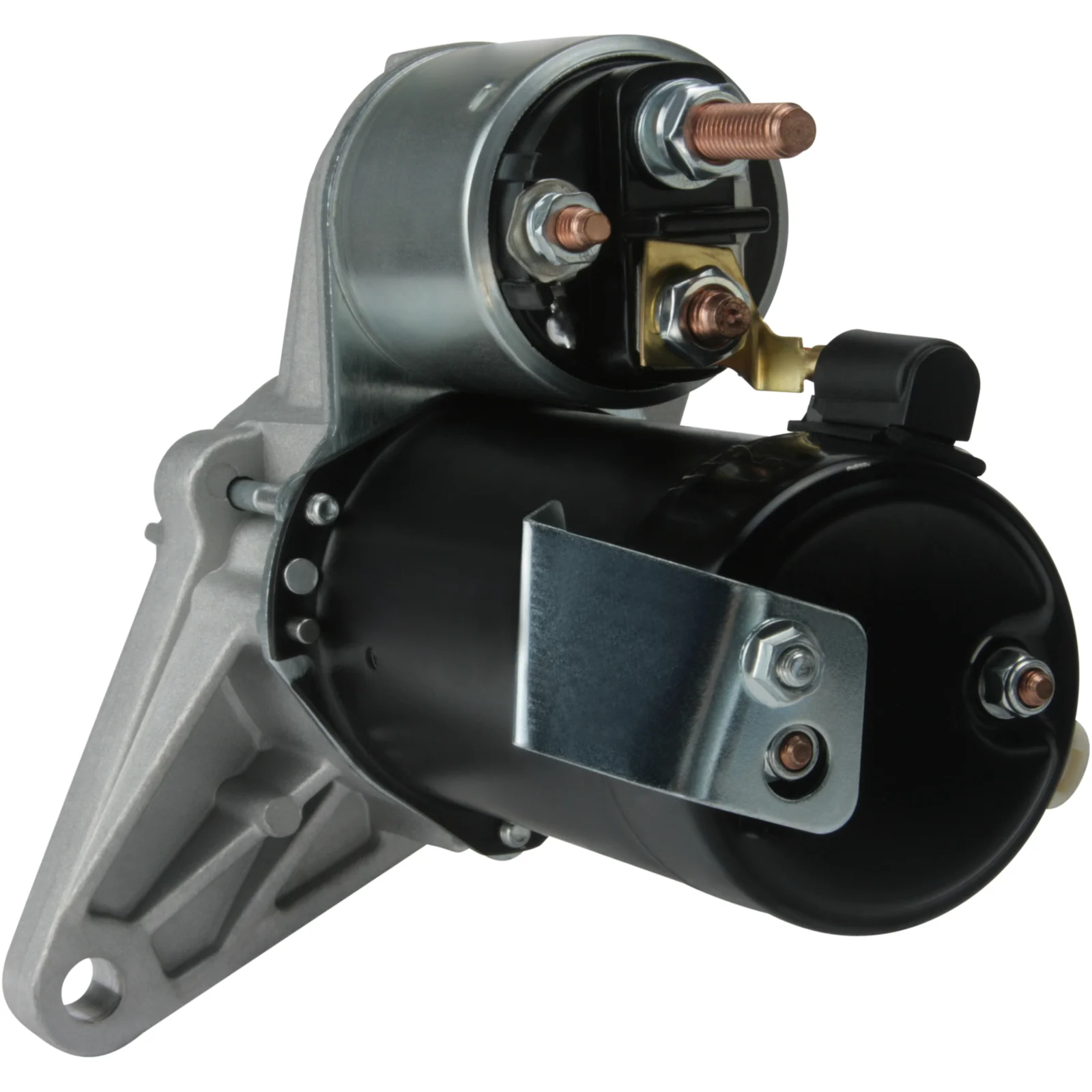

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032115554

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 1.0, No./tænder: 9, Rotation: CW

Beskrivelse

Spænding: 12
kW: 1.0
Monteringsflange: 75.00
Drevafstand: 32.00
Monteringshul 2 mm: 11.00
Monteringshul 1 mm: 10.50
Afstand/bag: 160.00
Afstand/for: 67.50
Nr./tenner: 9
B+: M8
Position/50: 45
Terminal 50: M6
Gear type: GR
Monteringsbeslag: v/
Afstand mm: 139.00
Rotation: med uret
Total længde mm: 234.50
Produktoplysninger: BN
Nr./monteringshuller: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. bracket w/
Mount. flange 75.00
No./mount. holes 2 (0)
Position/50 45
Prod. info BN
Rotation CW
Dist./back 160.00
Dist./front 67.50
Drive dist. 32.00
Gear type GR
kW 1.0
Terminal 50 M6
Voltage 12
Total length 234.50 mm
Dist. 139.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 10.50 mm

  • OEM
    d6ra91, F032115554, js1353, RGO 115554, 31200-PMH-G01, 31200-PMH-G010M5

  • Konkurrentreferens
    CST15226, DRS0082, S3101, 25-3325, 120.525.092, 322.031.092, 32756R, 220824, 220824A, 11040787, 0986023640

  • NormaliseratArtNr
    cst15226, d6ra91, drs0082, f032115554, js1353, rgo115554, s3101, 31200pmhg01, 31200pmhg010m5, 32756r, 220824, 220824a, 253325, 11040787, 120525092, 322031092, 0986023640

  • Passar modeller
    Honda Model: Civic Model series: Civic Size of motor: 1.6 Brand of engine: D16V1 From date: 01-02-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Honda Model: Civic Model series: Civic Type of engine: i Size of motor: 1.6 Brand of engine: D16V1 Type description: EM Body: Coupe From date: 01-02-2001 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
    Honda Model: Civic Model series: Civic Type of engine: i Size of motor: 1.6 Brand of engine: D16V1 Type description: EU, EP Body: Hatchback From date: 01-02-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spænding: 12
    kW: 1.0
    Monteringsflange: 75.00
    Drevafstand: 32.00
    Monteringshul 2 mm: 11.00
    Monteringshul 1 mm: 10.50
    Afstand/bag: 160.00
    Afstand/for: 67.50
    Nr./tenner: 9
    B+: M8
    Position/50: 45
    Terminal 50: M6
    Gear type: GR
    Monteringsbeslag: v/
    Afstand mm: 139.00
    Rotation: med uret
    Total længde mm: 234.50
    Produktoplysninger: BN
    Nr./monteringshuller: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. bracket w/
    Mount. flange 75.00
    No./mount. holes 2 (0)
    Position/50 45
    Prod. info BN
    Rotation CW
    Dist./back 160.00
    Dist./front 67.50
    Drive dist. 32.00
    Gear type GR
    kW 1.0
    Terminal 50 M6
    Voltage 12
    Total length 234.50 mm
    Dist. 139.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 10.50 mm
  • Køretøjsmatchning

    • OEM
      d6ra91, F032115554, js1353, RGO 115554, 31200-PMH-G01, 31200-PMH-G010M5

    • Konkurrentreferens
      CST15226, DRS0082, S3101, 25-3325, 120.525.092, 322.031.092, 32756R, 220824, 220824A, 11040787, 0986023640

    • NormaliseratArtNr
      cst15226, d6ra91, drs0082, f032115554, js1353, rgo115554, s3101, 31200pmhg01, 31200pmhg010m5, 32756r, 220824, 220824a, 253325, 11040787, 120525092, 322031092, 0986023640

    • Passar modeller
      Honda Model: Civic Model series: Civic Size of motor: 1.6 Brand of engine: D16V1 From date: 01-02-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Honda Model: Civic Model series: Civic Type of engine: i Size of motor: 1.6 Brand of engine: D16V1 Type description: EM Body: Coupe From date: 01-02-2001 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
      Honda Model: Civic Model series: Civic Type of engine: i Size of motor: 1.6 Brand of engine: D16V1 Type description: EU, EP Body: Hatchback From date: 01-02-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
