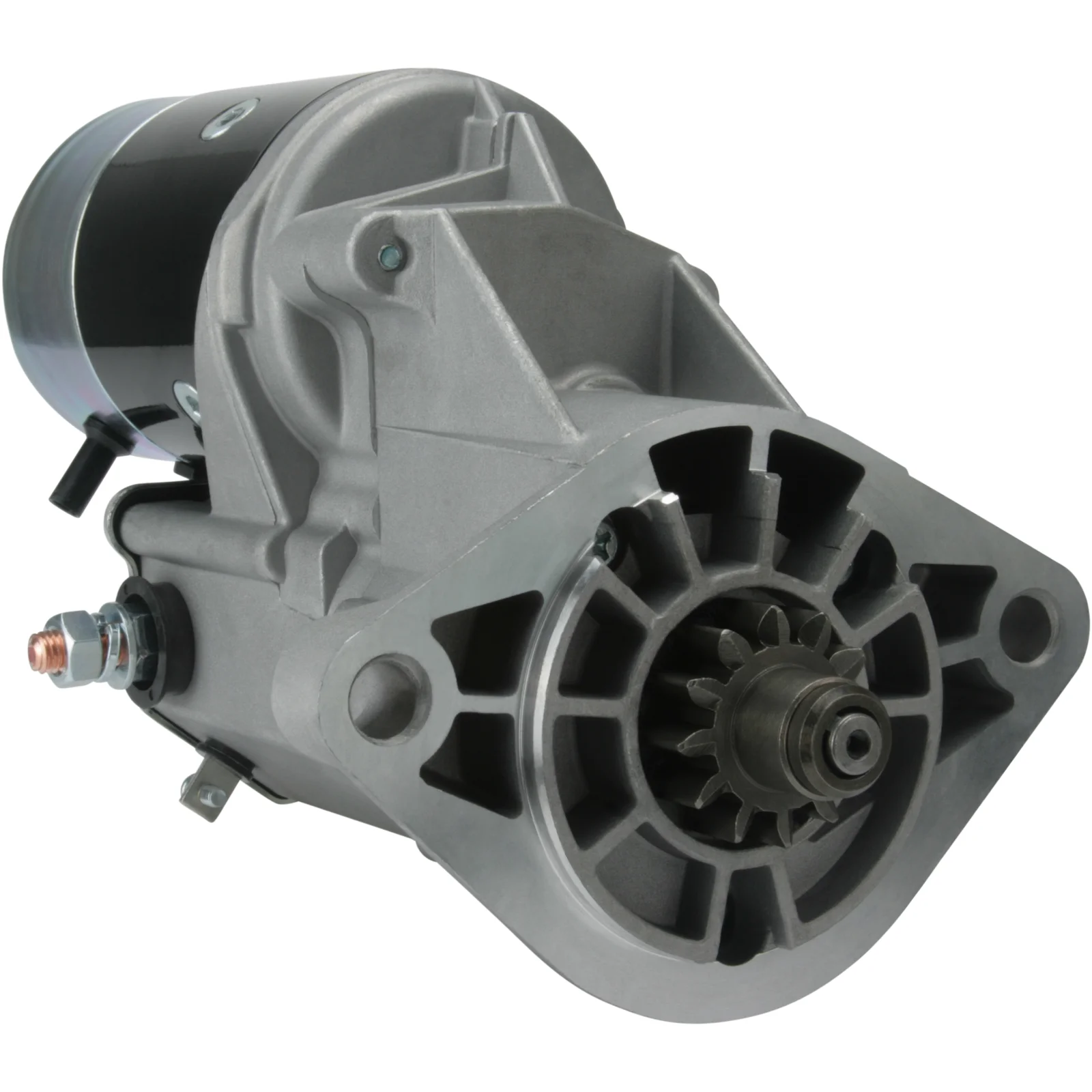

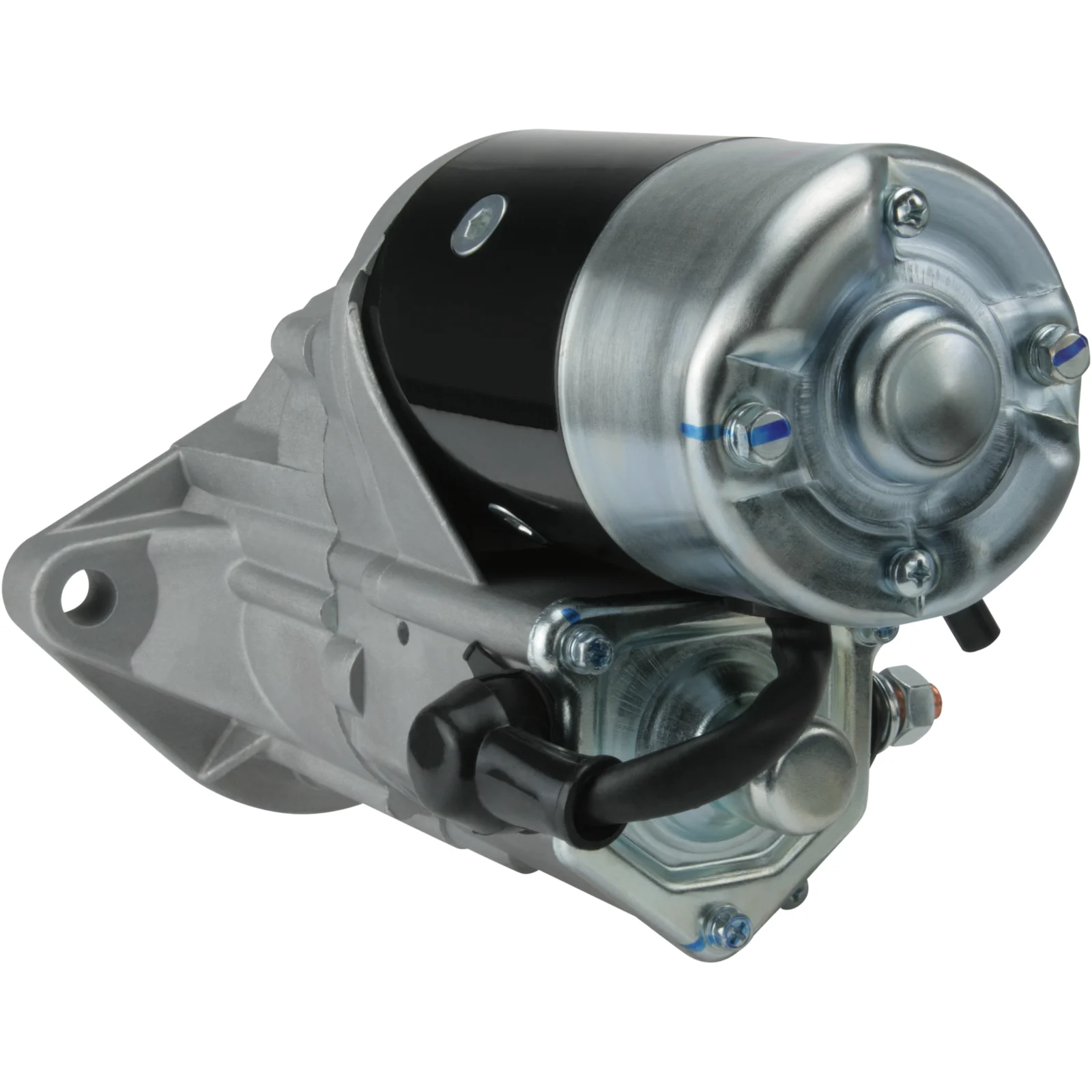

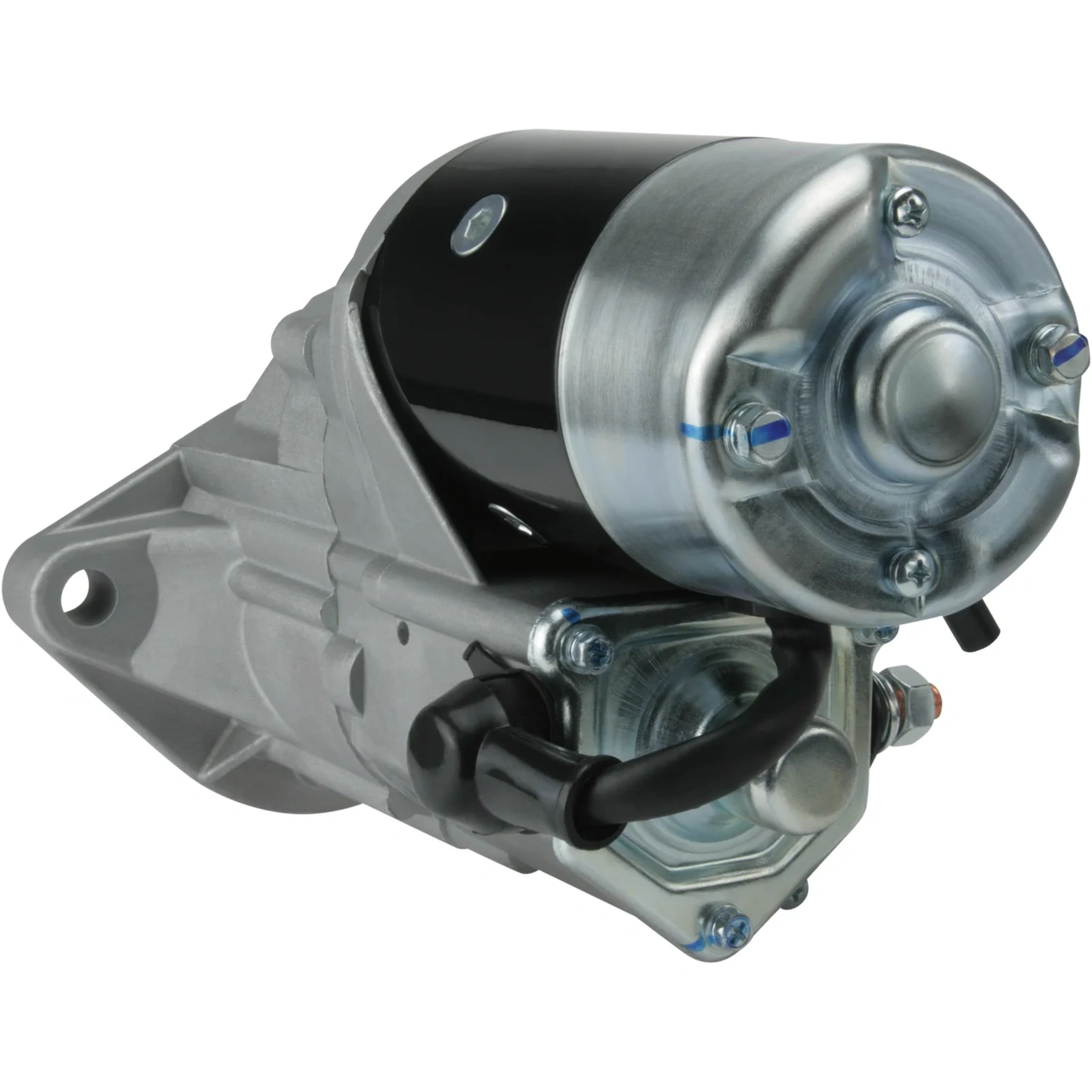

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032113207

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 2,8, Antal tænder: 12, Rotation: med uret

Beskrivelse

Spænding: 12
kW: 2.8
Monteringsflange: 91.00
Drevafstand: 15.50
Monteringshul 2 mm: 13.00
Monteringshul 1 mm: 13.00
Afstand/bag: 196.00
Afstand/front: 38.00
Nr./tænder: 12
B+: M10
Position/50: 25
Terminal 50: M5
Geartype: GR
Afstand mm: 142.50
Rotation: Uret
Total længde mm: 295.00
Drevetype: Stål
Produktoplysninger: BN
Vandtæt: Nej
Oliekapslet: Nej
Nr./monteringshuller: 2 (0)

Filer

Specifikation

B+ M10
No./teeth 12
Mount. flange 91.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 25
Prod. info BN
Rotation CW
Dist./back 196.00
Dist./front 38.00
Drive dist. 15.50
Drive type Steel
Gear type GR
kW 2.8
Terminal 50 M5
Voltage 12
Total length 295.00 mm
Waterproof No
Dist. 142.50 mm
Mount. hole 2 13.00 mm
Mount. hole 1 13.00 mm

  • OEM
    F032113207, 6TA8180000, 119773-77010, 228000-2030, 228000-2031, 228000-2032, 228000-6290, 228000-6291

  • Konkurrentreferens
    CST40221, DRS0513, lrs01444, STR70101, 25-2369, 18424, 18424N, 254314

  • NormaliseratArtNr
    cst40221, drs0513, f032113207, lrs01444, str70101, 6ta8180000, 18424, 18424n, 252369, 254314, 2280002030, 2280002031, 2280002032, 2280006290, 2280006291, 11977377010

  • Passar modeller
    Volvo Penta Model: Engine Model series: Engine Brand of engine: KAD43DP Approved: Yes
    Yanmar Model: 6LP Model series: 6LP From date: 01-01-1997 Approved: Yes
    Yanmar Model: Various Models Model series: Various Models Size of motor: 1.4 Brand of engine: F115TJR From date: 01-01-2005 Approved: Yes
  • Beskrivelse
    Spænding: 12
    kW: 2.8
    Monteringsflange: 91.00
    Drevafstand: 15.50
    Monteringshul 2 mm: 13.00
    Monteringshul 1 mm: 13.00
    Afstand/bag: 196.00
    Afstand/front: 38.00
    Nr./tænder: 12
    B+: M10
    Position/50: 25
    Terminal 50: M5
    Geartype: GR
    Afstand mm: 142.50
    Rotation: Uret
    Total længde mm: 295.00
    Drevetype: Stål
    Produktoplysninger: BN
    Vandtæt: Nej
    Oliekapslet: Nej
    Nr./monteringshuller: 2 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 12
    Mount. flange 91.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 25
    Prod. info BN
    Rotation CW
    Dist./back 196.00
    Dist./front 38.00
    Drive dist. 15.50
    Drive type Steel
    Gear type GR
    kW 2.8
    Terminal 50 M5
    Voltage 12
    Total length 295.00 mm
    Waterproof No
    Dist. 142.50 mm
    Mount. hole 2 13.00 mm
    Mount. hole 1 13.00 mm
  • Køretøjsmatchning

    • OEM
      F032113207, 6TA8180000, 119773-77010, 228000-2030, 228000-2031, 228000-2032, 228000-6290, 228000-6291

    • Konkurrentreferens
      CST40221, DRS0513, lrs01444, STR70101, 25-2369, 18424, 18424N, 254314

    • NormaliseratArtNr
      cst40221, drs0513, f032113207, lrs01444, str70101, 6ta8180000, 18424, 18424n, 252369, 254314, 2280002030, 2280002031, 2280002032, 2280006290, 2280006291, 11977377010

    • Passar modeller
      Volvo Penta Model: Engine Model series: Engine Brand of engine: KAD43DP Approved: Yes
      Yanmar Model: 6LP Model series: 6LP From date: 01-01-1997 Approved: Yes
      Yanmar Model: Various Models Model series: Various Models Size of motor: 1.4 Brand of engine: F115TJR From date: 01-01-2005 Approved: Yes
