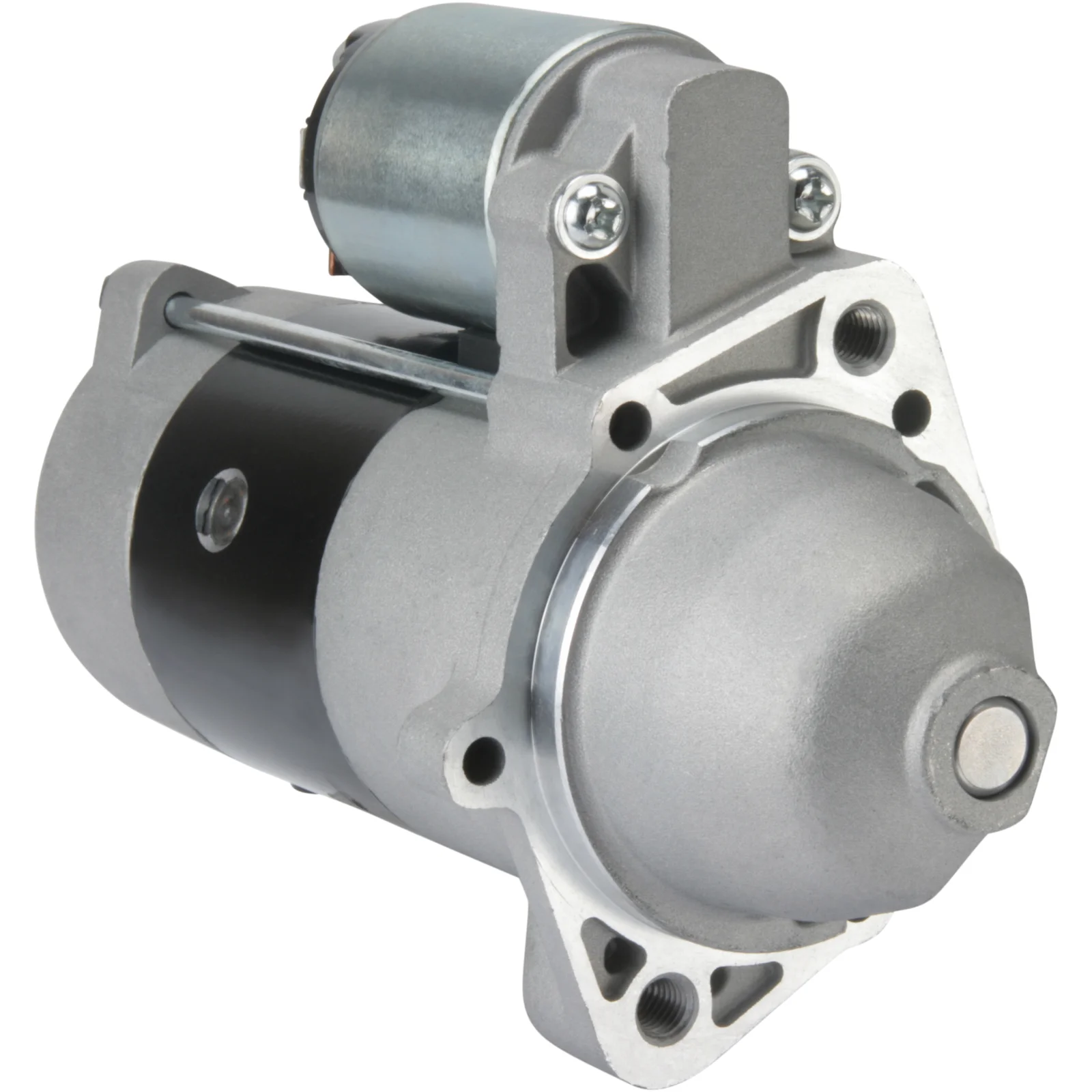

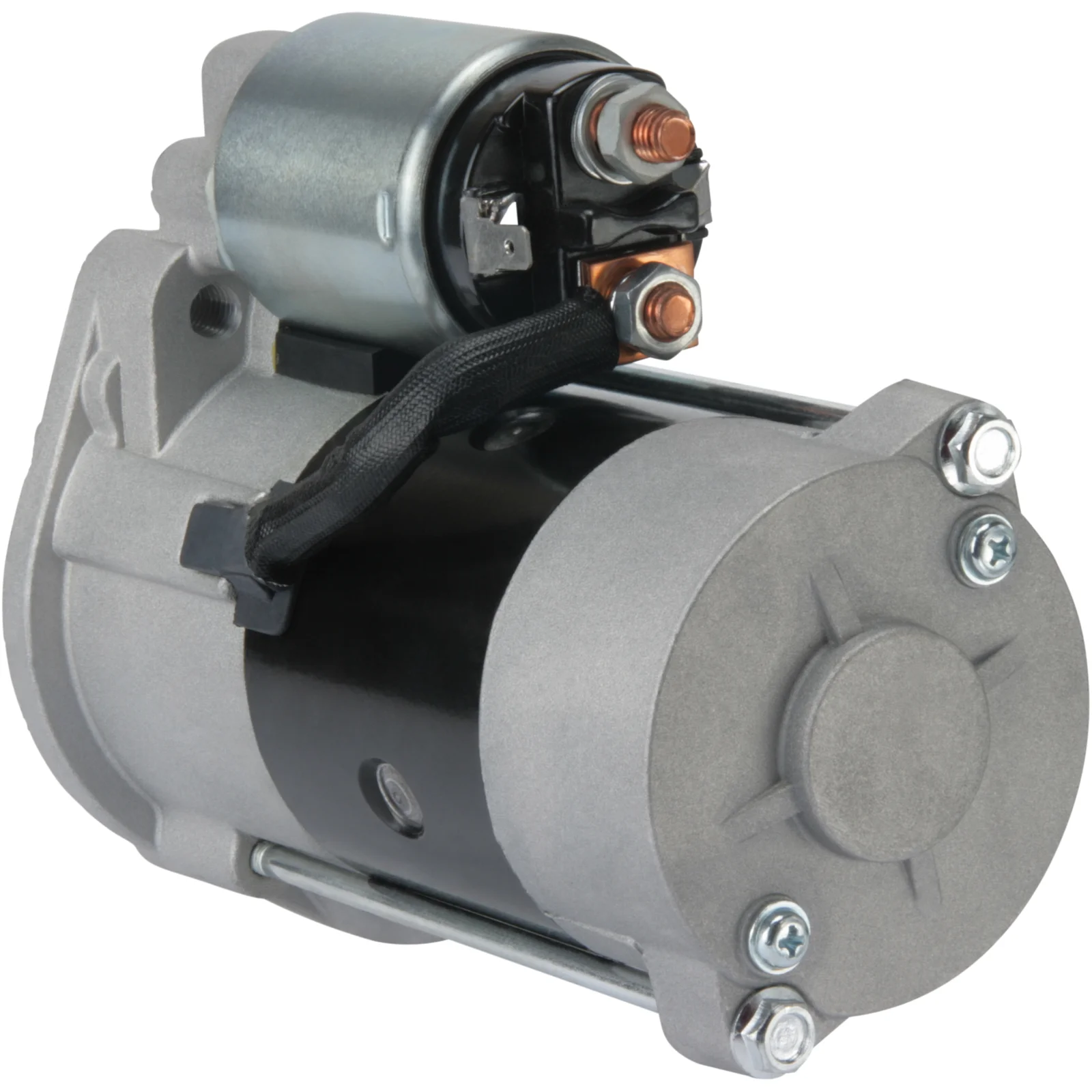

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032114237

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 2,2, No./tænder: 12, Rotation: CW

Beskrivelse

Spændingsføler: 12
kW: 2.2
Montering. flange: 82.50
Drev afstand: 25.50
Afstand/tilbageløbet: 164.50
Afstand/forneden: 62.00
Antal/tænder: 12
B+: M8
Position/50: 45
Terminal 50: 6.30
Koblingstype: GR
Afstand mm: 104.50
Rotation: med uret
Total længde mm: 227.00
Antal/monteringshuller: 2 (2)

Filer

Specifikation

B+ M8
No./teeth 12
Mount. flange 82.50
No./mount. holes 2 (2)
Position/50 45
Rotation CW
Dist./back 164.50
Dist./front 62.00
Drive dist. 25.50
Gear type GR
kW 2.2
Terminal 50 6.30
Voltage 12
Total length 227.00 mm
Dist. 104.50 mm

  • OEM
    cs1481, F032114237, M002T88572, M002T88572ZC, M2T88572, M2T88572ZC, 05033125AB, 5033125ab

  • Konkurrentreferens
    CST35162, DRS0119, LRS02280, S5155, 25-3451, 670.013.122, 3664, 32690N, 32691, 106330, 220710, 220710A, 254031, 8080355, 11040773, 0986024380

  • NormaliseratArtNr
    cs1481, cst35162, drs0119, f032114237, lrs02280, m002t88572, m002t88572zc, m2t88572, m2t88572zc, s5155, 3664, 32690n, 32691, 106330, 220710, 220710a, 253451, 254031, 05033125ab, 5033125ab, 8080355, 11040773, 670013122, 0986024380

  • Passar modeller
    Chrysler Model: PT Cruiser Model series: PT Cruiser Type of engine: CRD Size of motor: 2.2 Brand of engine: EDJ Type description: PT_ From date: 01-08-2005 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Chrysler Model: PT Cruiser Model series: PT Cruiser Type of engine: Diesel Size of motor: 2.2 Brand of engine: EDJ Type description: PT_ From date: 01-03-2002 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: 4x4 Type of engine: CRD Size of motor: 2.7 Brand of engine: ENF Type description: WJ, WG From date: 01-10-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spændingsføler: 12
    kW: 2.2
    Montering. flange: 82.50
    Drev afstand: 25.50
    Afstand/tilbageløbet: 164.50
    Afstand/forneden: 62.00
    Antal/tænder: 12
    B+: M8
    Position/50: 45
    Terminal 50: 6.30
    Koblingstype: GR
    Afstand mm: 104.50
    Rotation: med uret
    Total længde mm: 227.00
    Antal/monteringshuller: 2 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 12
    Mount. flange 82.50
    No./mount. holes 2 (2)
    Position/50 45
    Rotation CW
    Dist./back 164.50
    Dist./front 62.00
    Drive dist. 25.50
    Gear type GR
    kW 2.2
    Terminal 50 6.30
    Voltage 12
    Total length 227.00 mm
    Dist. 104.50 mm
  • Køretøjsmatchning

    • OEM
      cs1481, F032114237, M002T88572, M002T88572ZC, M2T88572, M2T88572ZC, 05033125AB, 5033125ab

    • Konkurrentreferens
      CST35162, DRS0119, LRS02280, S5155, 25-3451, 670.013.122, 3664, 32690N, 32691, 106330, 220710, 220710A, 254031, 8080355, 11040773, 0986024380

    • NormaliseratArtNr
      cs1481, cst35162, drs0119, f032114237, lrs02280, m002t88572, m002t88572zc, m2t88572, m2t88572zc, s5155, 3664, 32690n, 32691, 106330, 220710, 220710a, 253451, 254031, 05033125ab, 5033125ab, 8080355, 11040773, 670013122, 0986024380

    • Passar modeller
      Chrysler Model: PT Cruiser Model series: PT Cruiser Type of engine: CRD Size of motor: 2.2 Brand of engine: EDJ Type description: PT_ From date: 01-08-2005 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Chrysler Model: PT Cruiser Model series: PT Cruiser Type of engine: Diesel Size of motor: 2.2 Brand of engine: EDJ Type description: PT_ From date: 01-03-2002 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: 4x4 Type of engine: CRD Size of motor: 2.7 Brand of engine: ENF Type description: WJ, WG From date: 01-10-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
