HC-Cargo Startmotor
HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032116458

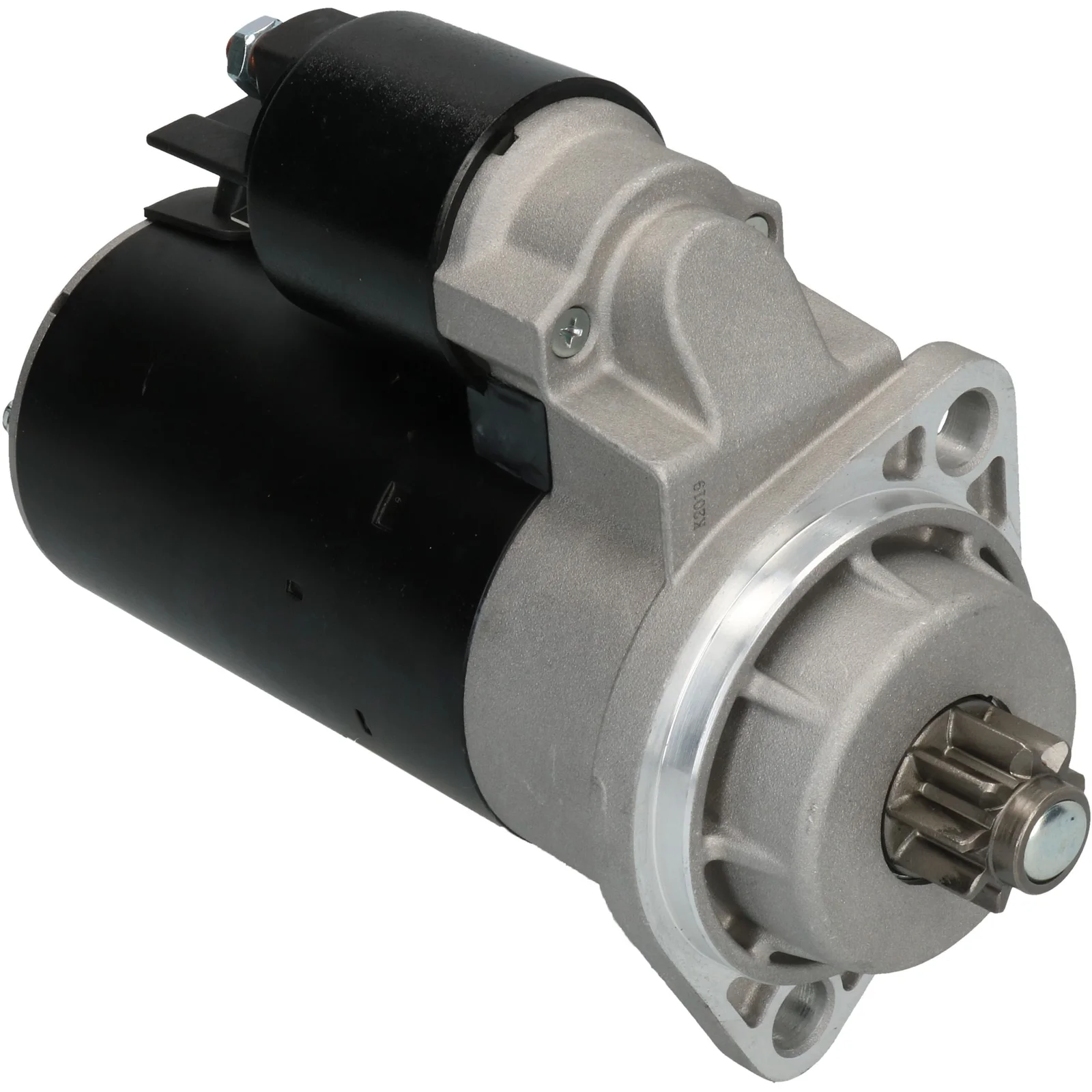

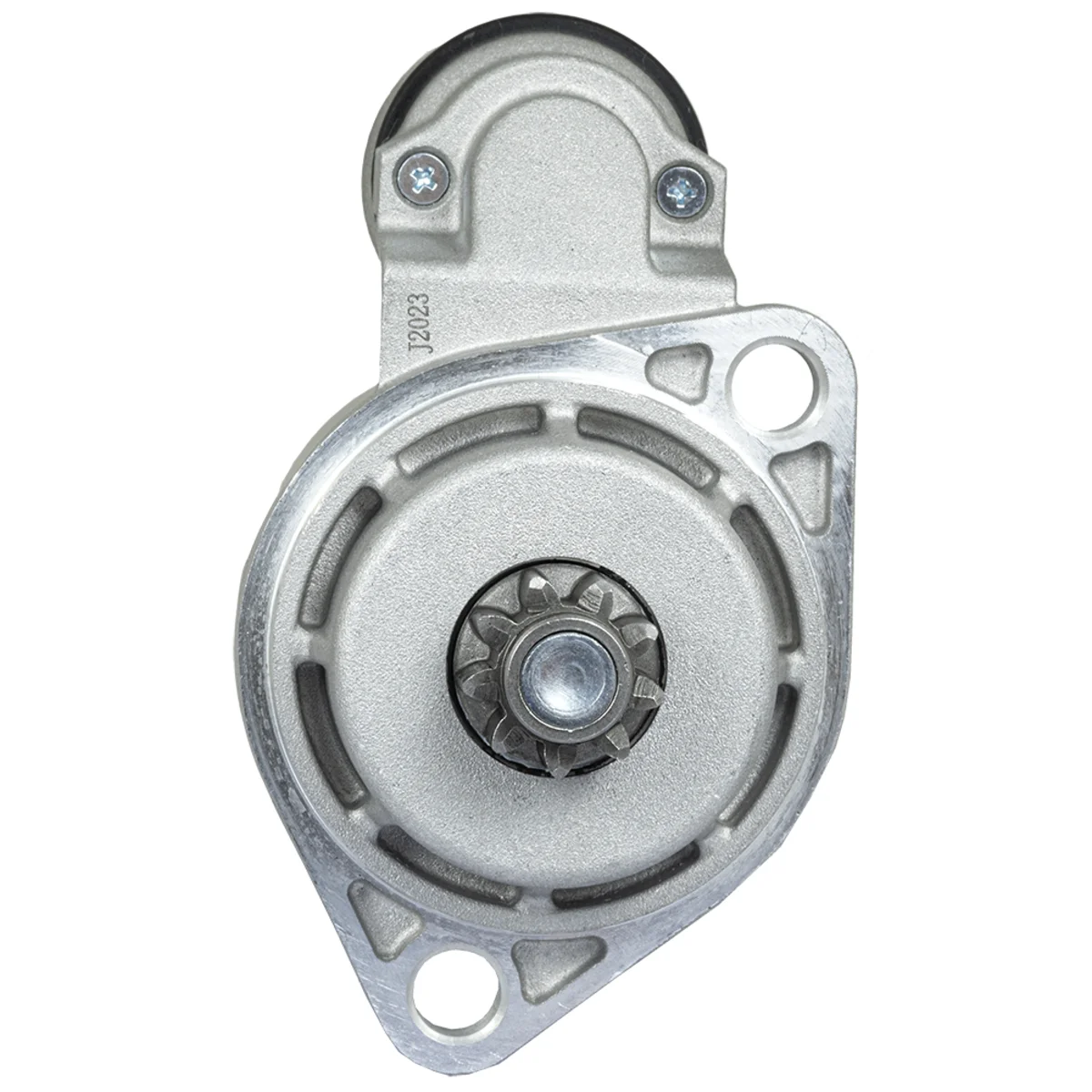

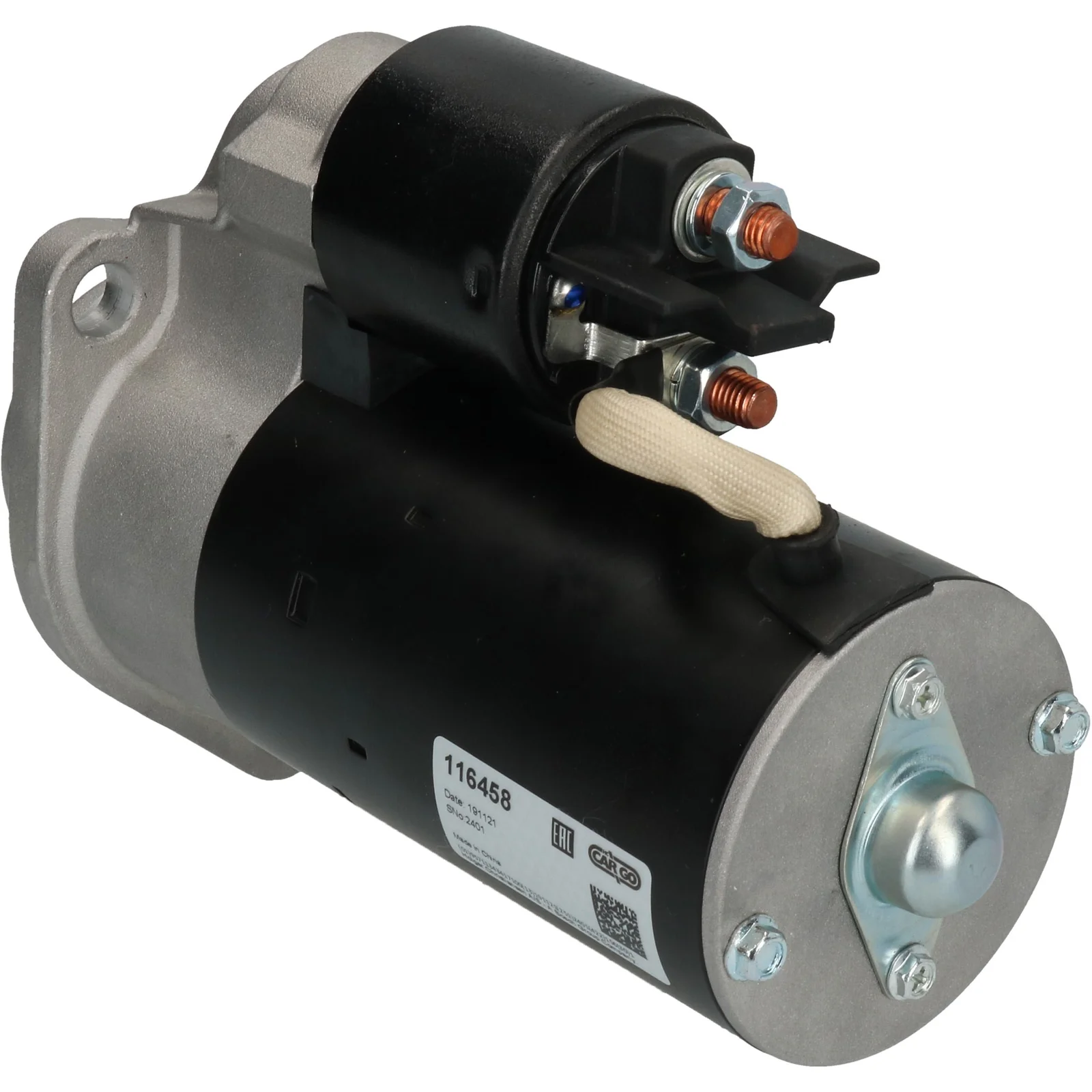

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 2.0, No./tænder: 9, Rotation: CW

Beskrivelse

HC-Cargo Startm. 12V-2,0kW, 9k 12V - 2,0kW, 9k. A - 82,5 mm, B - 41 mm

Spænding: 12
kW: 2,0
Monteringsflange: 82,50
Drevafstand: 40,50
Monteringshul 2 mm: 11,00
Monteringshul 1 mm: 11,00
Afstand / bagud: 177,00
Afstand / forud: 45,00
Antal / tænder: 9
B+: M8
Position / B+: 60
Position / 50: 15
Terminal 50: 6,30
Gear type: GR
Afstand mm: 102,50
Rotation: CW
Total længde mm: 233,50
Drevtype: Stål
Produktoplysninger: BN
Vandtæt: Nej
Olieforseglet: Nej
Antal / monteringshuller: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (0)
Position/50 15
Position/B+ 60
Prod. info BN
Rotation CW
Dist./back 177.00
Dist./front 45.00
Drive dist. 40.50
Drive type Steel
Gear type GR
kW 2.0
Terminal 50 6.30
Voltage 12
Total length 233.50 mm
Waterproof No
Dist. 102.50 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    AZE 2606, AZE 2657, AZE 2663, AZE2606, aze2663, F032116458, MS 432, 11.130.923, 11.131.528, 91-216-0923, 1150, 11130 923, 11131 496, 11131 528, 116458, 05726001, 05728551, 50495900, 50495901, 72736060, 504959010733

  • Konkurrentreferens
    CST21118, DRS0266, is1150, MS432, S9200(LETRIKA), S9200S, 25-4043, 8096

  • Bilmärken
    Atlas-Copco, Bomag, Hatz, Wacker Neuson

  • NormaliseratArtNr
    aze2606, aze2657, aze2663, cst21118, drs0266, f032116458, is1150, ms432, s9200letrika, s9200s, 1150, 8096, 116458, 254043, 05726001, 05728551, 11130923, 11131496, 11131528, 50495900, 50495901, 72736060, 912160923, 504959010733

  • Passar modeller
    Hatz Model: Engine Model series: Engine Brand of engine: 1D81 Fuel: Diesel Approved: Yes
    Hatz Series: 1 D 90 V
    Hatz Series: 1 D 90 W
    Hatz Series: 4 HZXL
  • Beskrivelse
    HC-Cargo Startm. 12V-2,0kW, 9k 12V - 2,0kW, 9k. A - 82,5 mm, B - 41 mm

    Spænding: 12
    kW: 2,0
    Monteringsflange: 82,50
    Drevafstand: 40,50
    Monteringshul 2 mm: 11,00
    Monteringshul 1 mm: 11,00
    Afstand / bagud: 177,00
    Afstand / forud: 45,00
    Antal / tænder: 9
    B+: M8
    Position / B+: 60
    Position / 50: 15
    Terminal 50: 6,30
    Gear type: GR
    Afstand mm: 102,50
    Rotation: CW
    Total længde mm: 233,50
    Drevtype: Stål
    Produktoplysninger: BN
    Vandtæt: Nej
    Olieforseglet: Nej
    Antal / monteringshuller: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 82.50
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 15
    Position/B+ 60
    Prod. info BN
    Rotation CW
    Dist./back 177.00
    Dist./front 45.00
    Drive dist. 40.50
    Drive type Steel
    Gear type GR
    kW 2.0
    Terminal 50 6.30
    Voltage 12
    Total length 233.50 mm
    Waterproof No
    Dist. 102.50 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Køretøjsmatchning

    • OEM
      AZE 2606, AZE 2657, AZE 2663, AZE2606, aze2663, F032116458, MS 432, 11.130.923, 11.131.528, 91-216-0923, 1150, 11130 923, 11131 496, 11131 528, 116458, 05726001, 05728551, 50495900, 50495901, 72736060, 504959010733

    • Konkurrentreferens
      CST21118, DRS0266, is1150, MS432, S9200(LETRIKA), S9200S, 25-4043, 8096

    • Bilmärken
      Atlas-Copco, Bomag, Hatz, Wacker Neuson

    • NormaliseratArtNr
      aze2606, aze2657, aze2663, cst21118, drs0266, f032116458, is1150, ms432, s9200letrika, s9200s, 1150, 8096, 116458, 254043, 05726001, 05728551, 11130923, 11131496, 11131528, 50495900, 50495901, 72736060, 912160923, 504959010733

    • Passar modeller
      Hatz Model: Engine Model series: Engine Brand of engine: 1D81 Fuel: Diesel Approved: Yes
      Hatz Series: 1 D 90 V
      Hatz Series: 1 D 90 W
      Hatz Series: 4 HZXL
