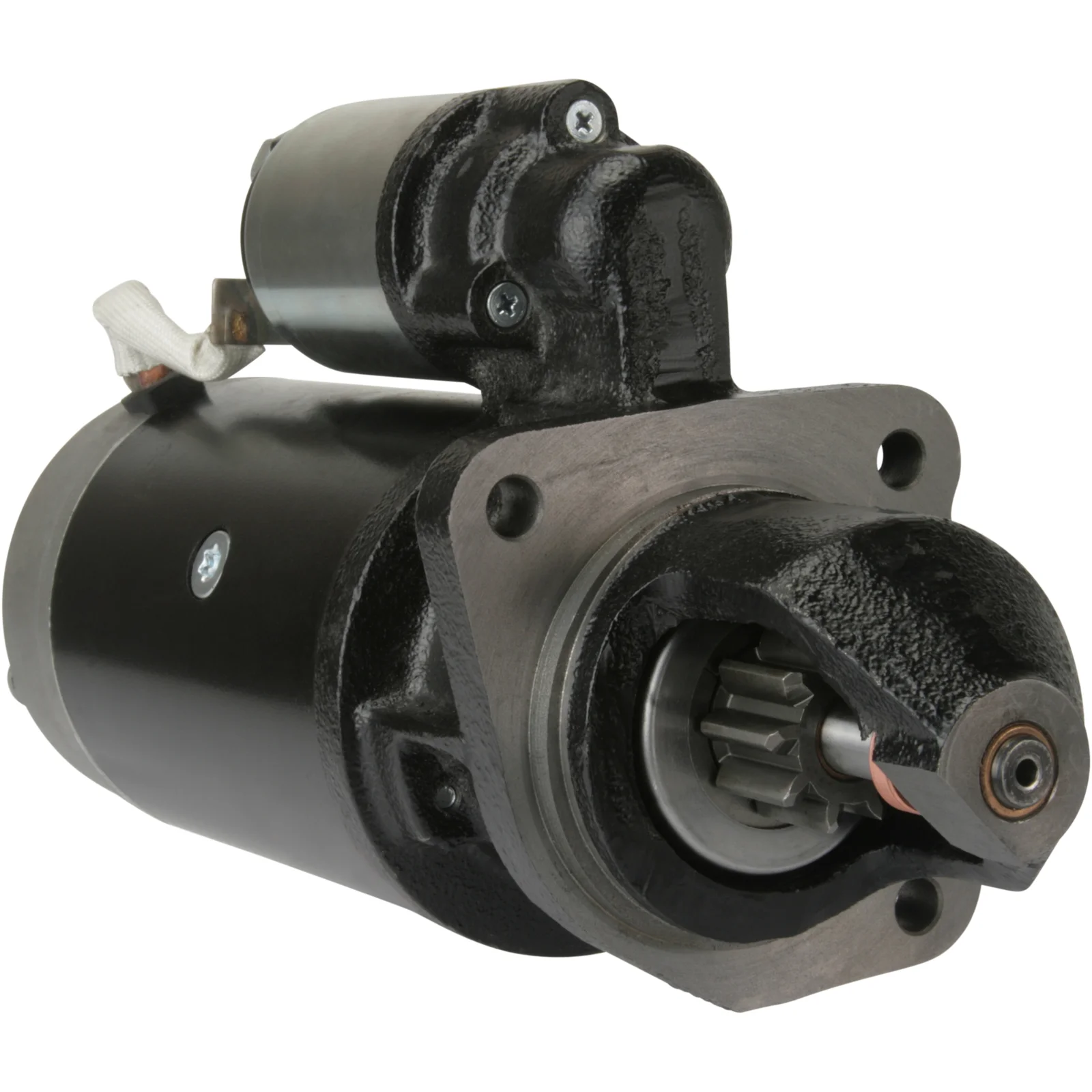

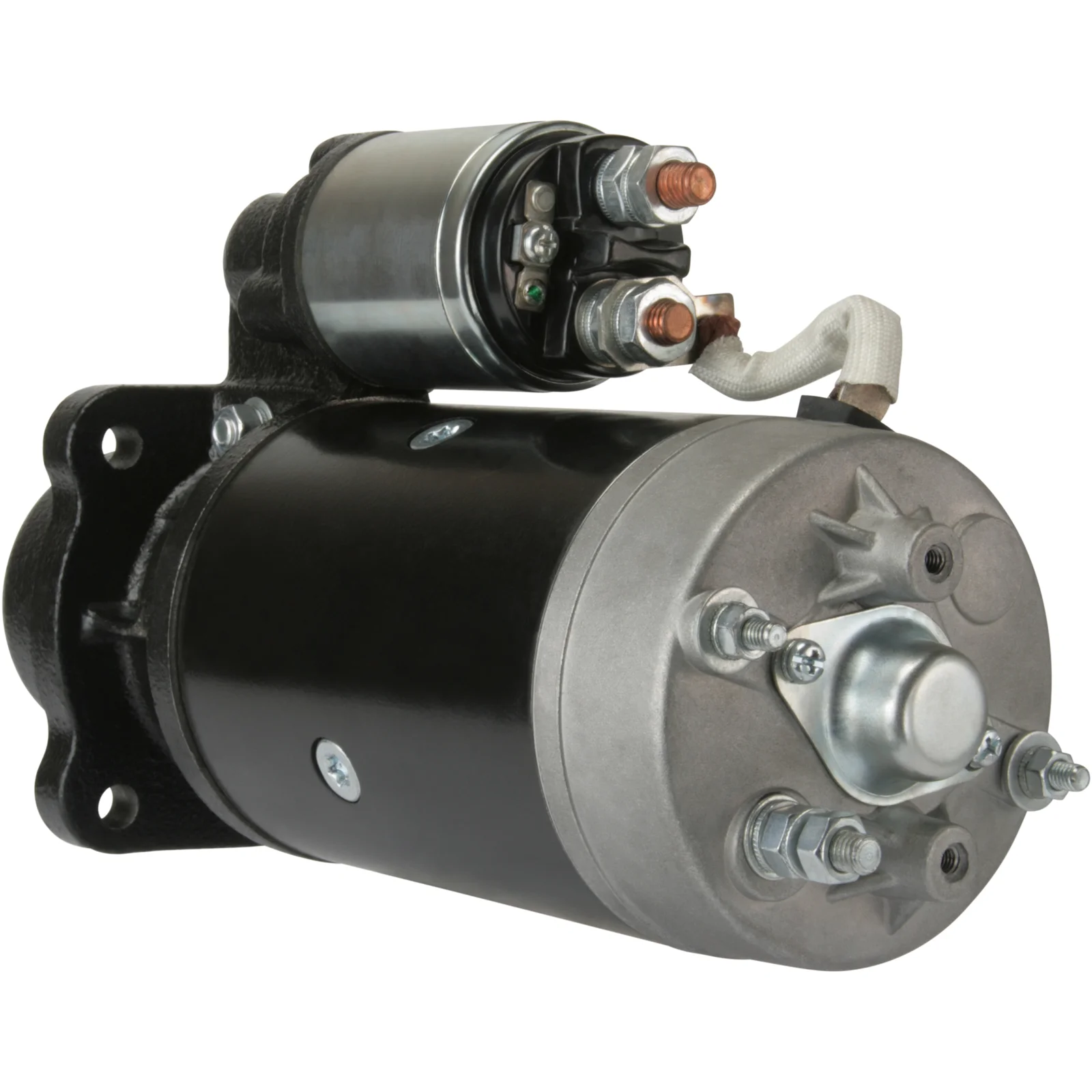

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032111399

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 24, kW: 4.0, Antal/tenner: 9,Rotation: med uret

Beskrivelse

Daf Startm. 24V, 24V - 4.0kW, 9k A - 89mm, B - 38mm Til Yourex produktbestilling 91-120-1752

Spænding: 24
kW: 4.0
Monteringsflange: 89.00
Kørt afstand: 38.00
Monteringshul 3 mm: 11.00
Monteringshul 2 mm: 11.00
Monteringshul 1 mm: 11.00
Afstand/back: 252.50
Afstand/for: 85.00
Antal./tænder: 9
B+: M10
Position/50: 45
Terminal 50: M4
Gear type: DD
Afstand 2: 126.00
Afstand 3: 89.00
Afstand mm: 89.00
Rotation: CW
B-: M8
Samlet længde mm: 352.50
Koblingstype: Tør
Køresystem: Stål
Produktinfo: BN
Vandtæt: Nej
Olieforseglet: Nej
Antal./monteringshuller: 3 (0)

Filer

Specifikation

B+ M10
B- M8
No./teeth 9
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 45
Clutch type Dry
Prod. info BN
Dist. 2 126.00
Dist. 3 89.00
Rotation CW
Dist./back 252.50
Dist./front 85.00
Drive dist. 38.00
Drive type Steel
Gear type DD
kW 4.0
Terminal 50 M4
Voltage 24
Total length 352.50 mm
Waterproof No
Dist. 89.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    AELB426, AELB426R, AMPB074, AMPB074R, cs989, F032111399, S 4524/9, s4524/9, 0001 368 083, 0986 017 520, 1986S00066, 111399, 859022, 859506, 1201327, 0001368083, 19024262

  • Konkurrentreferens
    BSO4246, BSO7246, CST10619, DRS7520, lrt00135, S0196, STR22034, STR81005, 8ea737238-001, 45-2240, 646.011.094, 901.004.093, 4441, 10989, 30095N, 103676, 203042, 220286, 220286A, 458341, 11017520, 0986017520

  • Bilmärken
    Daf, Leyland, Leyland DAF, LDV

  • NormaliseratArtNr
    aelb426, aelb426r, ampb074, ampb074r, bso4246, bso7246, cs989, cst10619, drs7520, f032111399, lrt00135, s0196, s45249, str22034, str81005, 8ea737238001, 1986s00066, 4441, 10989, 30095n, 103676, 111399, 203042, 220286, 220286a, 452240, 458341, 859022, 859506, 1201327, 0001368083, 11017520, 19024262, 646011094, 901004093, 0986017520

  • Passar modeller
    Daf - Trucks Series: 45 Model: 130 Engine volume: 5.9 Year: 05.91-12.97
    DAF Model: 45 Model series: 45.120 Size of motor: 5.9 Brand of engine: CD85 Body: Platform / Chassis From date: 01-05-1991 To date: 01-12-2000 Fuel: Diesel Approved: Yes
    DAF Model: 45 Model series: 45.130 Size of motor: 5.9 Brand of engine: CN96 Body: Platform / Chassis From date: 01-05-1991 To date: 01-12-2000 Fuel: Diesel Approved: Yes
    DAF Model: 45 Model series: 45.130 Size of motor: 5.9 Brand of engine: CS97M Body: Platform / Chassis From date: 01-05-1991 To date: 01-12-2000 Fuel: Diesel Approved: Yes
    DAF Model: 45 Model series: 45.130 Size of motor: 5.9 Brand of engine: CT97 Body: Platform / Chassis From date: 01-05-1991 To date: 01-12-2000 Fuel: Diesel Approved: Yes
    DAF Model: 45 Model series: 45.150 Size of motor: 5.9 Brand of engine: CB108 Body: Platform / Chassis From date: 01-05-1991 To date: 01-12-2000 Fuel: Diesel Approved: Yes
    DAF Model: 45 Model series: 45.150 Size of motor: 5.9 Brand of engine: CS107M Body: Platform / Chassis From date: 01-05-1991 To date: 01-12-2000 Fuel: Diesel Approved: Yes
    DAF Model: 45 Model series: 45.150 Size of motor: 5.9 Brand of engine: CT108 Body: Platform / Chassis From date: 01-05-1991 To date: 01-12-2000 Fuel: Diesel Approved: Yes
    DAF Model: 45 Model series: 45.160 Size of motor: 5.9 Brand of engine: CS119 Body: Platform / Chassis From date: 01-05-1991 To date: 01-12-2000 Fuel: Diesel Approved: Yes
    DAF Model: 45 Model series: 45.160 Size of motor: 5.9 Brand of engine: CT119 Body: Platform / Chassis From date: 01-05-1991 To date: 01-12-2000 Fuel: Diesel Approved: Yes
    DAF Model: 45 Model series: 45.180 Size of motor: 5.9 Brand of engine: CS133M Body: Platform / Chassis From date: 01-05-1995 To date: 01-12-2000 Fuel: Diesel Approved: Yes
    DAF Model: 45 Model series: 45.210 Size of motor: 5.9 Brand of engine: CS158M Body: Platform / Chassis From date: 01-05-1995 To date: 01-12-2000 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivelse
    Daf Startm. 24V, 24V - 4.0kW, 9k A - 89mm, B - 38mm Til Yourex produktbestilling 91-120-1752

    Spænding: 24
    kW: 4.0
    Monteringsflange: 89.00
    Kørt afstand: 38.00
    Monteringshul 3 mm: 11.00
    Monteringshul 2 mm: 11.00
    Monteringshul 1 mm: 11.00
    Afstand/back: 252.50
    Afstand/for: 85.00
    Antal./tænder: 9
    B+: M10
    Position/50: 45
    Terminal 50: M4
    Gear type: DD
    Afstand 2: 126.00
    Afstand 3: 89.00
    Afstand mm: 89.00
    Rotation: CW
    B-: M8
    Samlet længde mm: 352.50
    Koblingstype: Tør
    Køresystem: Stål
    Produktinfo: BN
    Vandtæt: Nej
    Olieforseglet: Nej
    Antal./monteringshuller: 3 (0)

    Filer

  • Specifikation
    B+ M10
    B- M8
    No./teeth 9
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 45
    Clutch type Dry
    Prod. info BN
    Dist. 2 126.00
    Dist. 3 89.00
    Rotation CW
    Dist./back 252.50
    Dist./front 85.00
    Drive dist. 38.00
    Drive type Steel
    Gear type DD
    kW 4.0
    Terminal 50 M4
    Voltage 24
    Total length 352.50 mm
    Waterproof No
    Dist. 89.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Køretøjsmatchning

    • OEM
      AELB426, AELB426R, AMPB074, AMPB074R, cs989, F032111399, S 4524/9, s4524/9, 0001 368 083, 0986 017 520, 1986S00066, 111399, 859022, 859506, 1201327, 0001368083, 19024262

    • Konkurrentreferens
      BSO4246, BSO7246, CST10619, DRS7520, lrt00135, S0196, STR22034, STR81005, 8ea737238-001, 45-2240, 646.011.094, 901.004.093, 4441, 10989, 30095N, 103676, 203042, 220286, 220286A, 458341, 11017520, 0986017520

    • Bilmärken
      Daf, Leyland, Leyland DAF, LDV

    • NormaliseratArtNr
      aelb426, aelb426r, ampb074, ampb074r, bso4246, bso7246, cs989, cst10619, drs7520, f032111399, lrt00135, s0196, s45249, str22034, str81005, 8ea737238001, 1986s00066, 4441, 10989, 30095n, 103676, 111399, 203042, 220286, 220286a, 452240, 458341, 859022, 859506, 1201327, 0001368083, 11017520, 19024262, 646011094, 901004093, 0986017520

    • Passar modeller
      Daf - Trucks Series: 45 Model: 130 Engine volume: 5.9 Year: 05.91-12.97
      DAF Model: 45 Model series: 45.120 Size of motor: 5.9 Brand of engine: CD85 Body: Platform / Chassis From date: 01-05-1991 To date: 01-12-2000 Fuel: Diesel Approved: Yes
      DAF Model: 45 Model series: 45.130 Size of motor: 5.9 Brand of engine: CN96 Body: Platform / Chassis From date: 01-05-1991 To date: 01-12-2000 Fuel: Diesel Approved: Yes
      DAF Model: 45 Model series: 45.130 Size of motor: 5.9 Brand of engine: CS97M Body: Platform / Chassis From date: 01-05-1991 To date: 01-12-2000 Fuel: Diesel Approved: Yes
      DAF Model: 45 Model series: 45.130 Size of motor: 5.9 Brand of engine: CT97 Body: Platform / Chassis From date: 01-05-1991 To date: 01-12-2000 Fuel: Diesel Approved: Yes
      DAF Model: 45 Model series: 45.150 Size of motor: 5.9 Brand of engine: CB108 Body: Platform / Chassis From date: 01-05-1991 To date: 01-12-2000 Fuel: Diesel Approved: Yes
      DAF Model: 45 Model series: 45.150 Size of motor: 5.9 Brand of engine: CS107M Body: Platform / Chassis From date: 01-05-1991 To date: 01-12-2000 Fuel: Diesel Approved: Yes
      DAF Model: 45 Model series: 45.150 Size of motor: 5.9 Brand of engine: CT108 Body: Platform / Chassis From date: 01-05-1991 To date: 01-12-2000 Fuel: Diesel Approved: Yes
      DAF Model: 45 Model series: 45.160 Size of motor: 5.9 Brand of engine: CS119 Body: Platform / Chassis From date: 01-05-1991 To date: 01-12-2000 Fuel: Diesel Approved: Yes
      DAF Model: 45 Model series: 45.160 Size of motor: 5.9 Brand of engine: CT119 Body: Platform / Chassis From date: 01-05-1991 To date: 01-12-2000 Fuel: Diesel Approved: Yes
      DAF Model: 45 Model series: 45.180 Size of motor: 5.9 Brand of engine: CS133M Body: Platform / Chassis From date: 01-05-1995 To date: 01-12-2000 Fuel: Diesel Approved: Yes
      DAF Model: 45 Model series: 45.210 Size of motor: 5.9 Brand of engine: CS158M Body: Platform / Chassis From date: 01-05-1995 To date: 01-12-2000 Fuel: Diesel Approved: Yes
      1 / 3
