Vare nr.: F032112221

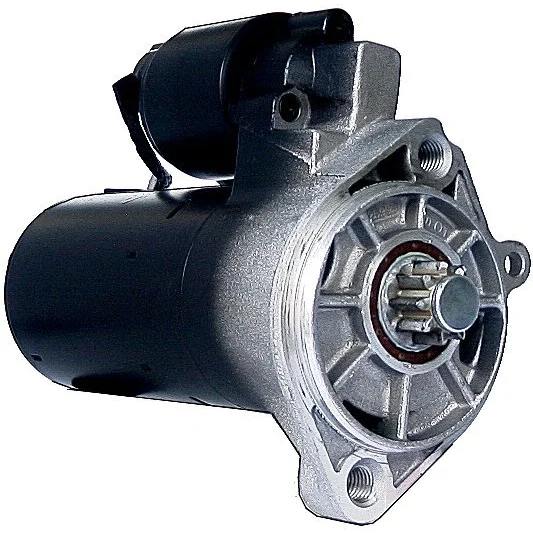

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 2.0, No./tænder: 9, Rotation: CW

Beskrivelse

Spænding: 12
kW: 2.0
Monteringsflange: 82.50
Drevafstand: 21.50
Afstand/bag: 208.00
Afstand/forreste: 25.00
Nummer/tænder: 9
B+: M8
Position/50: 60
Terminal 50: 4.80
Geartype: GR
Afstand mm: 104.00
Rotation: CW
Total længde mm: 236.50
Koblingstype: Tør
Drevtype: Stål
Produktinfo: BN
Vandtæt: Nej
Oliefæstnet: Nej
Nummer/monteringshuller: 2 (2)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (2)
Position/50 60
Clutch type Dry
Prod. info BN
Rotation CW
Dist./back 208.00
Dist./front 25.00
Drive dist. 21.50
Drive type Steel
Gear type GR
kW 2.0
Terminal 50 4.80
Voltage 12
Total length 236.50 mm
Waterproof No
Dist. 104.00 mm

  • OEM
    b001126016, B001126081, cs1165, F032112221, RGO 112221, 1986S00818, 0001125501, 0001125502, 0001125511, 0001125512, 1516674R, 069911023e, 069911023l, 069911023LX

  • Konkurrentreferens
    CST10281, DRS8380, DRS8380N, F042S0H039, LRS01389, PBNS3047, S0049, STR-H039, STR50070, 8EA012527-741, 8ea737680-001, 25-2270, 311.071.092, 3024, 4603, 32389N, 32389R, 101165, 103710, 220581, 220581A, 458495, 8018380, 8018940, 11018380, 20513047, 42018380, 0986018380, 943253153010, 944280183800

  • NormaliseratArtNr
    b001126016, b001126081, cs1165, cst10281, drs8380, drs8380n, f032112221, f042s0h039, lrs01389, pbns3047, rgo112221, s0049, str50070, strh039, 8ea012527741, 8ea737680001, 1986s00818, 3024, 4603, 32389n, 32389r, 101165, 103710, 220581, 220581a, 252270, 458495, 0001125501, 0001125502, 0001125511, 0001125512, 1516674r, 8018380, 8018940, 11018380, 20513047, 42018380, 069911023e, 069911023l, 069911023lx, 311071092, 0986018380, 943253153010, 944280183800

  • Passar modeller
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: AHD Body: Bus From date: 01-05-1996 To date: 01-08-1999 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: AHD Body: Platform / Chassis From date: 01-06-1996 To date: 01-08-1999 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: AHD Body: Van From date: 01-05-1996 To date: 01-08-1999 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: ANJ Body: Bus From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: ANJ Body: Platform / Chassis From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: ANJ Body: Van From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: APA Body: Bus From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: APA Body: Platform / Chassis From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: APA Body: Van From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBE Body: Bus From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBE Type description: 2DX0AE Body: Van From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBE Type description: 2DX0FE Body: Platform / Chassis From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBF Body: Bus From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBF Type description: 2DX0AE Body: Van From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBF Type description: 2DX0FE Body: Platform / Chassis From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.5 Brand of engine: AHD Body: Platform / Chassis From date: 01-06-1996 To date: 01-08-1999 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.5 Brand of engine: AHD Body: Van From date: 01-05-1996 To date: 01-08-1999 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBE Type description: 2DX0AE Body: Van From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBE Type description: 2DX0FE Body: Platform / Chassis From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBF Type description: 2DX0AE Body: Van From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBF Type description: 2DX0FE Body: Platform / Chassis From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    1 / 5
  • Beskrivelse
    Spænding: 12
    kW: 2.0
    Monteringsflange: 82.50
    Drevafstand: 21.50
    Afstand/bag: 208.00
    Afstand/forreste: 25.00
    Nummer/tænder: 9
    B+: M8
    Position/50: 60
    Terminal 50: 4.80
    Geartype: GR
    Afstand mm: 104.00
    Rotation: CW
    Total længde mm: 236.50
    Koblingstype: Tør
    Drevtype: Stål
    Produktinfo: BN
    Vandtæt: Nej
    Oliefæstnet: Nej
    Nummer/monteringshuller: 2 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 82.50
    Oil sealed No
    No./mount. holes 2 (2)
    Position/50 60
    Clutch type Dry
    Prod. info BN
    Rotation CW
    Dist./back 208.00
    Dist./front 25.00
    Drive dist. 21.50
    Drive type Steel
    Gear type GR
    kW 2.0
    Terminal 50 4.80
    Voltage 12
    Total length 236.50 mm
    Waterproof No
    Dist. 104.00 mm
  • Køretøjsmatchning

    • OEM
      b001126016, B001126081, cs1165, F032112221, RGO 112221, 1986S00818, 0001125501, 0001125502, 0001125511, 0001125512, 1516674R, 069911023e, 069911023l, 069911023LX

    • Konkurrentreferens
      CST10281, DRS8380, DRS8380N, F042S0H039, LRS01389, PBNS3047, S0049, STR-H039, STR50070, 8EA012527-741, 8ea737680-001, 25-2270, 311.071.092, 3024, 4603, 32389N, 32389R, 101165, 103710, 220581, 220581A, 458495, 8018380, 8018940, 11018380, 20513047, 42018380, 0986018380, 943253153010, 944280183800

    • NormaliseratArtNr
      b001126016, b001126081, cs1165, cst10281, drs8380, drs8380n, f032112221, f042s0h039, lrs01389, pbns3047, rgo112221, s0049, str50070, strh039, 8ea012527741, 8ea737680001, 1986s00818, 3024, 4603, 32389n, 32389r, 101165, 103710, 220581, 220581a, 252270, 458495, 0001125501, 0001125502, 0001125511, 0001125512, 1516674r, 8018380, 8018940, 11018380, 20513047, 42018380, 069911023e, 069911023l, 069911023lx, 311071092, 0986018380, 943253153010, 944280183800

    • Passar modeller
      VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: AHD Body: Bus From date: 01-05-1996 To date: 01-08-1999 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: AHD Body: Platform / Chassis From date: 01-06-1996 To date: 01-08-1999 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: AHD Body: Van From date: 01-05-1996 To date: 01-08-1999 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: ANJ Body: Bus From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: ANJ Body: Platform / Chassis From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: ANJ Body: Van From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: APA Body: Bus From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: APA Body: Platform / Chassis From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: APA Body: Van From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBE Body: Bus From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBE Type description: 2DX0AE Body: Van From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBE Type description: 2DX0FE Body: Platform / Chassis From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBF Body: Bus From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBF Type description: 2DX0AE Body: Van From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBF Type description: 2DX0FE Body: Platform / Chassis From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.5 Brand of engine: AHD Body: Platform / Chassis From date: 01-06-1996 To date: 01-08-1999 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.5 Brand of engine: AHD Body: Van From date: 01-05-1996 To date: 01-08-1999 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBE Type description: 2DX0AE Body: Van From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBE Type description: 2DX0FE Body: Platform / Chassis From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBF Type description: 2DX0AE Body: Van From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBF Type description: 2DX0FE Body: Platform / Chassis From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes
