- Startmotor
-

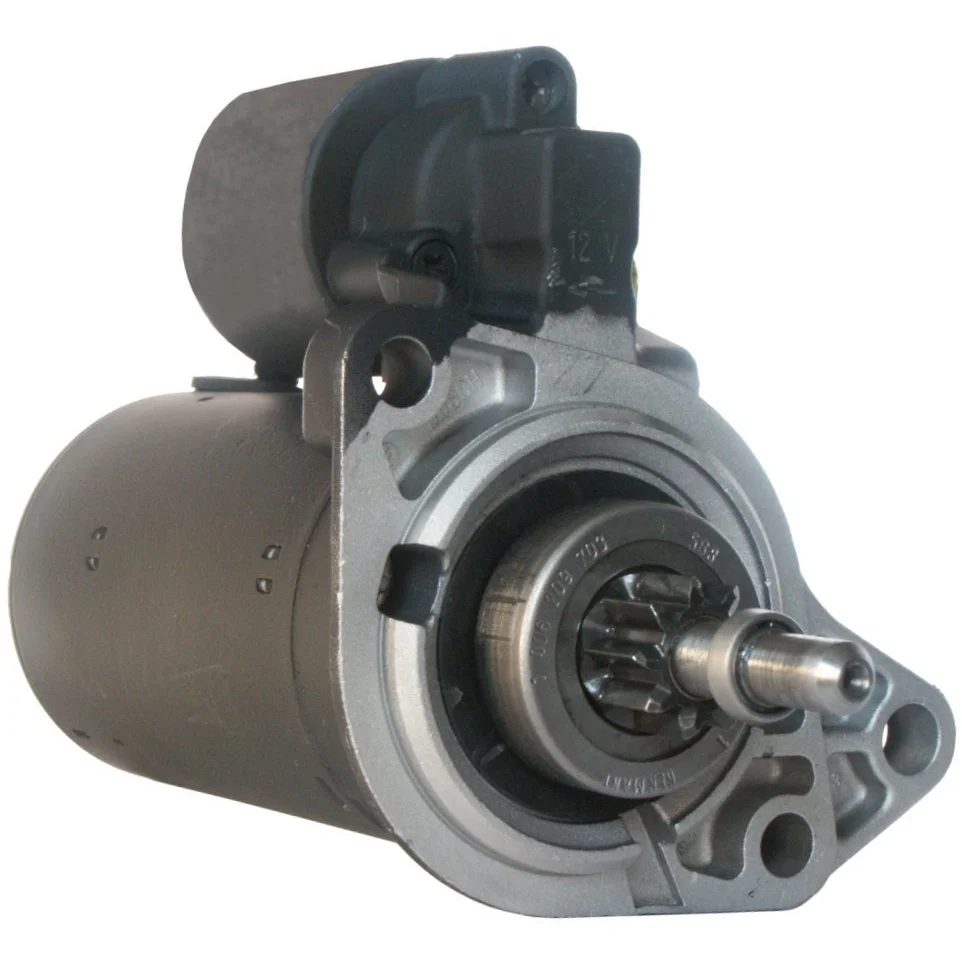

HC-Cargo Startmotor
- Startmotor
-
HC-Cargo Startmotor
Vare nr.: F032111059
HC-Cargo Startmotor
Spænding: 12, kW: 0.9, No./tænder: 9, Rotation: CCW
Beskrivelse
VW Startmotor 12V-0.9kW, 9k 12V - 0.9kW, 9k Alternativ : 91-620-1623 1.4kW Til Yourex produkt bestilling 91-620-1260
Spænding: 12
kW: 0.9
Montagespindel: 76.00
Drevafstand: 33.00
Montagehuls 3 mm: 11.00
Montagehuls 2 mm: 11.00
Montagehuls 1 mm: 12.00
Afstand/tilbage: 161.50
Afstand/frem: 69.00
Antal/højder: 9
B+: M8
Position/15a: 45
Terminal 15a: 6.30
Position/50: 15
Terminal 50: 6.30
Geartype: DD/GR
Afstand 2: 111.00
Afstand 3: 121.50
Afstand mm: 31.50
Rotation: CCW
Total længde mm: 230.00
Koblingstype: Tør
Drevtype: Stål
Produktinfo: BN
Vandtæt: Nej
Olieseald: Nej
Bemærkninger: Bøsning D.E. (koblinghus): HC-CARGO 140008.
Antal/montagehuller: 3 (0)
Spænding: 12
kW: 0.9
Montagespindel: 76.00
Drevafstand: 33.00
Montagehuls 3 mm: 11.00
Montagehuls 2 mm: 11.00
Montagehuls 1 mm: 12.00
Afstand/tilbage: 161.50
Afstand/frem: 69.00
Antal/højder: 9
B+: M8
Position/15a: 45
Terminal 15a: 6.30
Position/50: 15
Terminal 50: 6.30
Geartype: DD/GR
Afstand 2: 111.00
Afstand 3: 121.50
Afstand mm: 31.50
Rotation: CCW
Total længde mm: 230.00
Koblingstype: Tør
Drevtype: Stål
Produktinfo: BN
Vandtæt: Nej
Olieseald: Nej
Bemærkninger: Bøsning D.E. (koblinghus): HC-CARGO 140008.
Antal/montagehuller: 3 (0)
Filer
Specifikation
| B+ | M8 |
|---|---|
| No./teeth | 9 |
| Mount. flange | 76.00 |
| Oil sealed | No |
| No./mount. holes | 3 (0) |
| Position/15a | 45 |
| Position/50 | 15 |
| Clutch type | Dry |
| Prod. info | BN |
| Dist. 2 | 111.00 |
| Remarks | Bushing D.E. (clutch house): HC-CARGO 140008. |
| Dist. 3 | 121.50 |
| Rotation | CCW |
| Dist./back | 161.50 |
| Dist./front | 69.00 |
| Drive dist. | 33.00 |
| Drive type | Steel |
| Gear type | DD/GR |
| kW | 0.9 |
| Terminal 50 | 6.30 |
| Voltage | 12 |
| Total length | 230.00 mm |
| Waterproof | No |
| Dist. | 31.50 mm |
| Terminal 15A | 6.30 mm |
| Mount. hole 3 | 11.00 mm |
| Mount. hole 2 | 11.00 mm |
| Mount. hole 1 | 12.00 mm |
-
OEM
AZD3520, b001110116, b001181007, cs294, d9e140, F032111059, GNU4538, RGO 111059, s114-553, s114-553a, 0001 106 001, 0001 106 002, 0001 107 007, 0001 107 008, 0001 211 257, 0001 211 258, 11.139.418, 020 911 024, 020 911023MX, 037 911 023, 055 911 023E, 055 911 023F, 055 911 023H, 055 911 023J, 055 911 023K, 055 911 023L, 055 911 023M, 055 911 023R, 055 911023FX, 055 911023HX, 055 911023KX, 055 911023MX, 379 110 23, 0986 012 590, 0986 012 600, 0986 018 200, 111059, 0001106001, 0001106002, 0001107007, 0001107008, 0001108094, 0001112003, 0001112004, 0001113011, 0001114005, 0001114006, 0001114012, 0001208416, 0001208417, 0001208418, 0001208419, 0001211257, 0001211258, 1516723R, 9141391, 020911024, 037911023, 055911023e, 055911023f, 055911023FX, 055911023h, 055911023j, 055911023k, 055911023l, 055911023m, 055911023r, 9000042057, 9000692050 -
Konkurrentreferens
CST10121, CST10133, drs2590, drs2600, F042002014, F042S02014, FRS166, lrs00558, lrs00560, MS105, MS316, nd141, QS1356, S0062PR, S0062SR, S0072, S3197S, SR33X, STR-2016, STR50007, STR50104, vs231, vs254, 2-1367-BO, 2-1372-BO, 2-1373-BO, 8EA012526-761, 8ea726054-001, 26-1035, 26-1134, 34-12.590, 41-12.600, 311.121.092, 311.124.092, 1236, 3580, 11260, 11399, 17025, 17134, 17134N, 17134R, 17222N, 17222R, 30560R, 201030, 201046, 201121, 220097, 220097A, 436019, 436022, 455548, 726109, 726826, 726830, 726909, 8012600, 8018200, 11012590, 11012600, 11016230, 11018200, 42012590, 943251663, 943251671, 0986012590, 0986012598, 0986012600, 0986016290, 0986018200, 0986018207 -
Bilmärken
Seat, VW -
NormaliseratArtNr
azd3520, b001110116, b001181007, cs294, cst10121, cst10133, d9e140, drs2590, drs2600, f032111059, f042002014, f042s02014, frs166, gnu4538, lrs00558, lrs00560, ms105, ms316, nd141, qs1356, rgo111059, s0062pr, s0062sr, s0072, s114553, s114553a, s3197s, sr33x, str2016, str50007, str50104, vs231, vs254, 8ea012526761, 8ea726054001, 1236, 3580, 11260, 11399, 17025, 17134, 17134n, 17134r, 17222n, 17222r, 21367bo, 21372bo, 21373bo, 30560r, 111059, 201030, 201046, 201121, 220097, 220097a, 261035, 261134, 436019, 436022, 455548, 726109, 726826, 726830, 726909, 0001106001, 0001106002, 0001107007, 0001107008, 0001108094, 0001112003, 0001112004, 0001113011, 0001114005, 0001114006, 0001114012, 0001208416, 0001208417, 0001208418, 0001208419, 0001211257, 0001211258, 1516723r, 3412590, 4112600, 8012600, 8018200, 9141391, 11012590, 11012600, 11016230, 11018200, 11139418, 020911023mx, 020911024, 037911023, 37911023, 42012590, 055911023e, 055911023f, 055911023fx, 055911023h, 055911023hx, 055911023j, 055911023k, 055911023kx, 055911023l, 055911023m, 055911023mx, 055911023r, 311121092, 311124092, 943251663, 943251671, 0986012590, 0986012598, 0986012600, 0986016290, 0986018200, 0986018207, 9000042057, 9000692050 -
Passar modeller
Audi Series: A3 (8L1) Model: 1.6 Engine volume: 1.6 Engine type: AEH/AKL/APF Year: 09.96-05.03 Audi Series: A3 (8L1) Model: 1.6 Engine volume: 1.6 Engine type: AVU / BFQ Year: 08.00-05.03 Audi Series: A3 (8L1) Model: 1.8 Obs! Ch.nr: 8L.W.095.001> Engine volume: 1.8 Engine type: AGN Year: 05.98-05.03 Audi Series: A3 (8L1) Model: 1.8 T Engine volume: 1.8 Engine type: AGU/AQA/ARZ/AUM Year: 12.96-05.03 Audi Series: A3 (8L1) Model: 1.8 T Engine volume: 1.8 Engine type: AGU/AUM Year: 12.96-05.03 Audi Series: A3 (8L1) Model: 1.8 T Engine volume: 1.8 Engine type: AJQ/APP/ARY/AUQ Year: 12.98-05.03 Audi Series: A3 (8L1) Model: 1.8 T Engine volume: 1.8 Engine type: APP / AJQ Year: 12.98- Audi Series: A3 (8L1) Model: 1.9 TDI Engine volume: 1.9 Engine type: AHF Year: 01.01-07.01 Audi Series: A3 (8L1) Model: 1.9 TDI Engine volume: 1.9 Engine type: ALH Year: 01.01-07.01 Audi Series: A3 (8L1) Model: 1.9 TDI Engine volume: 1.9 Engine type: ASZ Year: 08.00- Audi Series: A3 (8L1) Model: 1.9 TDI quattro Engine volume: 1.9 Engine type: ASZ Year: 09.00-05.03 Austin Model: Maestro Model series: Maestro Size of motor: 1.3 Brand of engine: 12H Body: Hatchback From date: 01-03-1983 To date: 01-08-1985 Fuel: Gasoline Approved: Yes Austin Model: Maestro Model series: Maestro Size of motor: 1.3 Brand of engine: 12H Body: Hatchback From date: 01-03-1983 To date: 01-08-1990 Fuel: Gasoline Approved: Yes Austin Model: Maestro Model series: Maestro Size of motor: 1.6 Brand of engine: 16H956AK Body: Hatchback From date: 01-03-1983 To date: 01-10-1984 Fuel: Gasoline Approved: Yes Fiat Model: Tipo Model series: Tipo Type of engine: i.e. Size of motor: 1.8 Brand of engine: 159A4.000 Type description: 160AM Body: Hatchback From date: 01-10-1994 To date: 01-10-1995 Fuel: Gasoline Approved: Yes Seat Model: Toledo Model series: Toledo Type of engine: i Size of motor: 1.6 Brand of engine: 1F Body: Hatchback From date: 01-01-1993 To date: 01-03-1999 Fuel: Gasoline Approved: Yes Seat Model: Toledo Model series: Toledo Type of engine: i Size of motor: 1.6 Brand of engine: 1F Type description: 1l Body: Hatchback From date: 01-05-1991 To date: 01-12-1993 Fuel: Gasoline Approved: Yes Seat Model: Toledo Model series: Toledo Type of engine: i Size of motor: 1.6 Brand of engine: ABN Type description: 1l Body: Hatchback From date: 01-05-1991 To date: 01-03-1999 Fuel: Gasoline Approved: Yes Seat Model: Toledo Model series: Toledo Type of engine: i Size of motor: 1.6 Brand of engine: EZ Type description: 1l Body: Hatchback From date: 01-05-1991 To date: 01-03-1999 Fuel: Gasoline Approved: Yes Seat Series: Alhambra Model: 1.8 T 20V Engine volume: 1.8 Engine type: AJH / AWC Year: 10.97-03.10 Seat Series: Alhambra Model: 2.0 i Engine volume: 2.0 Engine type: ATM / ADY Year: 04.96-03.10 Seat Series: ALHAMBRA VAN Model: 2.0 Engine volume: 2.0 Engine type: ADY/ ATM Year: 05.98-03.10 Seat Series: Cordoba (6K2/C2) Model: 1.8i Engine volume: 1.8 Engine type: ADZ Year: 07.94-07.95 Seat Series: Ibiza II Model: 2.0i Engine volume: 2.0 Engine type: 2E / AGG Year: 03.93-08.99 Seat Series: Inca Model: 1.6i Engine volume: 1.6 Engine type: 1F Year: 11.95-05.98 Seat Series: Leon (1M1) Model: 1.4 16V Engine volume: 1.4 Engine type: AHV/APE/AXP/BCA Year: 11.99-06.06 Seat Series: Leon (1M1) Model: 1.6 16V Engine volume: 1.6 Engine type: AUS/AZD/BCB Year: 09.00-06.06 Seat Series: Leon (1M1) Model: 1.6 Engine volume: 1.6 Engine type: AEH/AKL Year: 11.99-06.06 Seat Series: LEON (1M1) Model: 1.6 Engine volume: 1.6 Engine type: BFQ Year: 10.05-06.06 Seat Series: Leon (1M1) Model: 1.8 20V Engine volume: 1.8 Engine type: AGN / APG Year: 11.99-06.06 Seat Series: Toledo I Model: 1.6i Engine volume: 1.6 Engine type: 1F / AFT Year: 05.91-10.98 Seat Series: Toledo I Model: 1.6i Engine volume: 1.6 Engine type: 1F Year: 05.91-12.93 Seat Series: Toledo I Model: 1.6i Engine volume: 1.6 Engine type: 1F Year: 10.96-03.99 Seat Series: Toledo I Model: 1.6i Engine volume: 1.6 Engine type: 1F/ABN/EZ Year: 10.96-03.99 Seat Series: Toledo I Model: 1.8 16V Engine volume: 1.8 Engine type: KR / PL Year: 05.91-06.93 Seat Series: Toledo II Model: 1.4 16V Engine volume: 1.4 Engine type: AHW/APE/AXP/ BCA Year: 01.00-05.02 Seat Series: Toledo II Model: 1.6 16V Engine volume: 1.6 Engine type: AUS/AZD/BCB Year: 06.00-05.06 Seat Series: Toledo II Model: 1.6 Engine volume: 1.6 Engine type: AEH/AKL/APF Year: 10.98-07.04 Seat Series: Toledo II Model: 1.8 20V Engine volume: 1.8 Engine type: AGN/APG Year: 10.98-07.04 Skoda Series: Octavia (1U) Kombi Model: 1.6 Engine volume: 1.6 Engine type: AEE Year: 07.98-09.04 Skoda Series: Octavia I (1U2) Model: 1.4 16V Engine volume: 1.4 Engine type: AXP Year: 09.00-12.10 Skoda Series: Octavia I (1U2) Model: 1.6 AC Engine volume: 1.6 Engine type: AEE Year: 09.96-09.04 Skoda Series: Octavia I (1U2) Model: 1.6 AC Engine volume: 1.6 Engine type: AVU / BFQ Year: 11.00-12.10 Skoda Series: Octavia I (1U2) Model: 1.6 Engine volume: 1.6 Engine type: AEH / AKL Year: 02.97-12.07 Skoda Series: Octavia I (1U2) Model: 1.6 Engine volume: 1.6 Engine type: AVU / BFQ Year: 11.00-12.10 Skoda Series: Octavia I (1U2) Model: 1.8 Engine volume: 1.8 Engine type: AGN Year: 09.96-07.00 Skoda Series: Octavia I (1U2) Model: 1.8 T Engine volume: 1.8 Engine type: AGU Year: 08.00-12.10 Skoda Series: Octavia I (1U2) Model: 1.8 T Engine volume: 1.8 Engine type: AUM Year: 08.00-12.10 Skoda Series: Octavia I (1U2) Model: 2.0 Engine volume: 2.0 Engine type: APK Year: 04.99-05.07 Skoda Series: Octavia I Kombi Model: 1.4 16V Engine volume: 1.4 Engine type: AXP / BCA Year: 08.00-12.10 Skoda Series: Octavia I Kombi Model: 1.4 16V Engine volume: 1.4 Engine type: BCA Year: 08.00-12.10 Skoda Series: Octavia I Kombi Model: 1.6 Engine volume: 1.6 Engine type: AEH / AKL Year: 07.98-12.07 Skoda Series: Octavia I Kombi Model: 1.6 Engine volume: 1.6 Engine type: AVU / BFQ Year: 09.00-12.10 Skoda Series: Octavia I Kombi Model: 1.8 20V Engine volume: 1.8 Engine type: AGN Year: 07.98-07.00 Skoda Series: Octavia I Kombi Model: 1.8 T Engine volume: 1.8 Engine type: AGU Year: 07.98-12.10 Skoda Series: Octavia I Kombi Model: 2.0 Engine volume: 2.0 Engine type: APK Year: 04.99-05.07 VW Model: Caddy Model series: Caddy Size of motor: 1.6 Brand of engine: 1F Type description: 9K9A Body: Van From date: 01-11-1995 To date: 01-05-1997 Fuel: Gasoline Approved: Yes VW Model: Caddy Model series: Caddy Size of motor: 1.6 Brand of engine: 1F Type description: 9K9A Body: Van From date: 01-11-1995 To date: 01-09-2000 Fuel: Gasoline Approved: Yes VW Model: Caddy Model series: Caddy Size of motor: 1.6 Brand of engine: 1F Type description: 9K9B Body: Estate From date: 01-11-1995 To date: 01-05-1997 Fuel: Gasoline Approved: Yes Manufacture type: kombi VW Model: Caddy Model series: Caddy Size of motor: 1.6 Brand of engine: EM Body: Pick Up From date: 01-01-1983 To date: 01-07-1992 Fuel: Gasoline Approved: Yes VW Model: Caddy Model series: Caddy Size of motor: 1.6 Brand of engine: EW Body: Pick Up From date: 01-01-1983 To date: 01-07-1992 Fuel: Gasoline Approved: Yes VW Model: Caddy Model series: Caddy Size of motor: 1.8 Brand of engine: JH Body: Pick Up From date: 01-08-1985 To date: 01-07-1992 Fuel: Gasoline Approved: Yes VW Model: Caddy Model series: Caddy Type of engine: TDi Size of motor: 1.9 Brand of engine: 1Z Type description: 9K9A Body: Van From date: 01-09-1996 To date: 01-01-2004 Fuel: Diesel Approved: Yes VW Model: Caddy Model series: Caddy Type of engine: TDi Size of motor: 1.9 Brand of engine: AHU Type description: 9K9A Body: Van From date: 01-09-1996 To date: 01-01-2004 Fuel: Diesel Approved: Yes VW Model: Caddy Model series: Caddy Type of engine: TDi Size of motor: 1.9 Brand of engine: ALH Type description: 9K9A Body: Van From date: 01-09-1996 To date: 01-01-2004 Fuel: Diesel Approved: Yes VW Model: Corrado Model series: Corrado Type of engine: 16V Size of motor: 1.8 Brand of engine: KR Body: Coupe From date: 01-04-1989 To date: 01-07-1992 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf I Model type: CL Type of engine: TD Size of motor: 1.6 Type description: 17 Body: Hatchback From date: 01-08-1983 To date: 01-07-1985 Fuel: Diesel Approved: Yes VW Model: Golf Model series: Golf I Size of motor: 1.6 Brand of engine: EW Type description: 155 Body: Convertible From date: 01-08-1983 To date: 01-04-1992 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf I Size of motor: 1.6 Brand of engine: FN Body: Hatchback From date: 01-08-1975 To date: 01-02-1984 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf I Size of motor: 1.6 Brand of engine: RE Body: Convertible From date: 01-04-1986 To date: 01-02-1990 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf I Size of motor: 1.8 Brand of engine: DX Body: Convertible From date: 01-08-1982 To date: 01-12-1989 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf I Size of motor: 1.8 Brand of engine: EV Body: Convertible From date: 01-08-1982 To date: 01-12-1989 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf I Size of motor: 1.8 Brand of engine: EX Body: Convertible From date: 01-08-1983 To date: 01-09-1992 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf I Size of motor: 1.8 Brand of engine: PB Body: Convertible From date: 01-08-1982 To date: 01-12-1989 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Model type: CL Type of engine: TD Size of motor: 1.6 Type description: 19E, 1G1 Body: Hatchback From date: 01-08-1983 To date: 01-07-1985 Fuel: Diesel Approved: Yes VW Model: Golf Model series: Golf II Model type: GL Size of motor: 1.8 Brand of engine: GX From date: 01-01-1987 To date: 01-01-1987 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Model type: GL Size of motor: 1.8 Brand of engine: PF From date: 01-01-1988 To date: 01-01-1990 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Model type: GL Size of motor: 1.8 Brand of engine: PF From date: 01-01-1990 T VW Model: Golf Model series: Golf II Model type: GL Size of motor: 1.8 Brand of engine: RV From date: 01-01-1988 To date: 01-01-1991 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Model type: GL Size of motor: 1.8 Brand of engine: RV From date: 01-01-1989 To date: 01-01-1989 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Model type: GT Size of motor: 1.8 Brand of engine: PF From date: 01-01-1988 To date: 01-01-1988 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Model type: GT Size of motor: 1.8 Brand of engine: RD From date: 01-01-1987 To date: 01-01-1987 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Model type: Syncro Size of motor: 1.8 Brand of engine: RH Type description: 19E, 1G1 Body: Hatchback From date: 01-08-1987 To date: 01-07-1988 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Model type: Syncro Size of motor: 1.8 Brand of engine: RP Body: Hatchback From date: 01-08-1987 To date: 01-10-1991 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Size of motor: 1.6 Brand of engine: EZ Body: Hatchback From date: 01-08-1983 To date: 01-07-1992 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Size of motor: 1.6 Brand of engine: HM Body: Hatchback From date: 01-08-1983 To date: 01-07-1992 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Size of motor: 1.6 Brand of engine: PN Body: Hatchback From date: 01-10-1986 To date: 01-12-1992 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Size of motor: 1.6 Brand of engine: RF Body: Hatchback From date: 01-02-1986 To date: 01-10-1991 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Size of motor: 1.8 Brand of engine: GU Body: Hatchback From date: 01-08-1984 To date: 01-10-1991 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Size of motor: 1.8 Brand of engine: GX Body: Hatchback From date: 01-08-1984 To date: 01-10-1991 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Size of motor: 1.8 Brand of engine: GX Body: Hatchback From date: 01-08-1987 To date: 01-10-1991 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Size of motor: 1.8 Brand of engine: HV Body: Hatchback From date: 01-08-1984 To date: 01-10-1991 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Size of motor: 1.8 Brand of engine: PF From date: 01-01-1988 To date: 01-01-1989 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Size of motor: 1.8 Brand of engine: PF From date: 01-01-1989 To date: 01-01-1989 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Size of motor: 1.8 Brand of engine: RH Body: Hatchback From date: 01-08-1986 To date: 01-01-1990 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Type of engine: Diesel Size of motor: 1.6 Brand of engine: JP Body: Hatchback From date: 01-08-1983 To date: 01-10-1991 Fuel: Diesel Approved: Yes VW Model: Golf Model series: Golf II Type of engine: Diesel Size of motor: 1.6 Brand of engine: ME Body: Hatchback From date: 01-08-1983 To date: 01-10-1991 Fuel: Diesel Approved: Yes VW Model: Golf Model series: Golf II Type of engine: GTi 16V Size of motor: 1.8 Brand of engine: PL From date: 01-01-1987 To date: 01-01-1989 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Type of engine: GTi Size of motor: 1.8 Brand of engine: HT From date: 01-01-1985 To date: 01-01-1986 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Type of engine: GTi Size of motor: 1.8 Brand of engine: RD From date: 01-01-1985 To date: 01-01-1987 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Type of engine: TD Size of motor: 1.6 Brand of engine: JR Body: Hatchback From date: 01-08-1983 To date: 01-10-1991 Fuel: Diesel Approved: Yes VW Model: Golf Model series: Golf II Type of engine: TD Size of motor: 1.6 Brand of engine: MF Body: Hatchback From date: 01-08-1983 To date: 01-10-1991 Fuel: Diesel Approved: Yes VW Model: Golf Model series: Golf III Size of motor: 1.4 Brand of engine: ABD Type description: 1H_ Body: Estate From date: 01-07-1993 To date: 01-04-1999 Fuel: Gasoline Approved: Yes Manufacture type: variant VW Model: Golf Model series: Golf III Size of motor: 1.4 Brand of engine: ABD Type description: 1H_ Body: Hatchback From date: 01-11-1991 To date: 01-08-1997 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf III Size of motor: 1.4 Brand of engine: AEX Type description: 1H_ Body: Estate From date: 01-07-1993 To date: 01-04-1999 Fuel: Gasoline Approved: Yes Manufacture type: variant VW Model: Golf Model series: Golf III Size of motor: 1.4 Brand of engine: APQ Type description: 1H_ Body: Estate From date: 01-07-1993 To date: 01-04-1999 Fuel: Gasoline Approved: Yes Manufacture type: variant VW Model: Golf Model series: Golf III Size of motor: 1.6 Brand of engine: AEE Type description: 1H_ Body: Hatchback From date: 01-09-1992 To date: 01-08-1997 Fuel: Gasoline Approved: Yes VW Model: Jetta Model series: Jetta Model type: Syncro Size of motor: 1.8 Brand of engine: RH Type description: 19E,1G2 From date: 01-08-1987 To date: 01-07-1988 Fuel: Gasoline Approved: Yes VW Model: Jetta Model series: Jetta Model type: Syncro Size of motor: 1.8 Brand of engine: RP From date: 01-08-1987 To date: 01-12-1988 Fuel: Gasoline Approved: Yes VW Model: Jetta Model series: Jetta Size of motor: 1.6 Brand of engine: ABN From date: 01-01-1984 To date: 01-07-1992 Fuel: Gasoline Approved: Yes VW Model: Jetta Model series: Jetta Size of motor: 1.6 Brand of engine: EZ From date: 01-01-1984 To date: 01-07-1992 Fuel: Gasoline Approved: Yes VW Model: Jetta Model series: Jetta Size of motor: 1.6 Brand of engine: HM From date: 01-01-1984 To date: 01-07-1992 Fuel: Gasoline Approved: Yes VW Model: Jetta Model series: Jetta Size of motor: 1.6 Brand of engine: PN From date: 01-10-1986 To date: 01-10-1991 Fuel: Gasoline Approved: Yes VW Model: Jetta Model series: Jetta Size of motor: 1.6 Brand of engine: RF From date: 01-03-1986 To date: 01-10-1991 Fuel: Gasoline Approved: Yes VW Model: Jetta Model series: Jetta Size of motor: 1.8 Brand of engine: GX From date: 01-08-1987 To date: 01-10-1991 Fuel: Gasoline Approved: Yes VW Model: Jetta Model series: Jetta Size of motor: 1.8 Brand of engine: RH From date: 01-08-1986 To date: 01-01-1990 Fuel: Gasoline Approved: Yes VW Model: Jetta Model series: Jetta Size of motor: 1.8 Brand of engine: RP From date: 01-08-1987 To date: 01-10-1991 Fuel: Gasoline Approved: Yes VW Model: Jetta Model series: Jetta Type of engine: Diesel Size of motor: 1.6 Brand of engine: JP From date: 01-01-1984 To date: 01-10-1991 Fuel: Diesel Approved: Yes VW Model: Jetta Model series: Jetta Type of engine: Diesel Size of motor: 1.6 Brand of engine: ME From date: 01-01-1984 To date: 01-10-1991 Fuel: Diesel Approved: Yes VW Model: Jetta Model series: Jetta Type of engine: TD Size of motor: 1.6 Brand of engine: JR From date: 01-01-1984 To date: 01-10-1991 Fuel: Diesel Approved: Yes VW Model: Jetta Model series: Jetta Type of engine: TD Size of motor: 1.6 Brand of engine: MF From date: 01-01-1984 To date: 01-10-1991 Fuel: Diesel Approved: Yes VW Model: Scirocco Model series: Scirocco Model type: DLX Size of motor: 1.8 Brand of engine: JH From date: 01-01-1984 To date: 01-01-1985 Fuel: Gasoline Approved: Yes VW Model: Scirocco Model series: Scirocco Model type: DLX Size of motor: 1.8 Brand of engine: JH From date: 01-01-1986 To date: 01-01-1987 Fuel: Gasoline Approved: Yes VW Model: Scirocco Model series: Scirocco Size of motor: 1.6 Brand of engine: EW Body: Coupe From date: 01-01-1983 To date: 01-12-1989 Fuel: Gasoline Approved: Yes VW Model: Scirocco Model series: Scirocco Size of motor: 1.6 Brand of engine: FN Body: Coupe From date: 01-08-1975 To date: 01-07-1979 Fuel: Gasoline Approved: Yes VW Model: Scirocco Model series: Scirocco Size of motor: 1.6 Brand of engine: FR Body: Coupe From date: 01-08-1980 To date: 01-04-1984 Fuel: Gasoline Approved: Yes VW Model: Scirocco Model series: Scirocco Size of motor: 1.6 Brand of engine: RE Body: Coupe From date: 01-04-1986 To date: 01-07-1990 Fuel: Gasoline Approved: Yes VW Model: Scirocco Model series: Scirocco Size of motor: 1.8 Brand of engine: DX Body: Coupe From date: 01-08-1982 To date: 01-12-1989 Fuel: Gasoline Approved: Yes VW Model: Scirocco Model series: Scirocco Size of motor: 1.8 Brand of engine: EV Body: Coupe From date: 01-08-1982 To date: 01-12-1989 Fuel: Gasoline Approved: Yes VW Model: Scirocco Model series: Scirocco Size of motor: 1.8 Brand of engine: EX Body: Coupe From date: 01-08-1983 To date: 01-07-1992 Fuel: Gasoline Approved: Yes VW Model: Scirocco Model series: Scirocco Size of motor: 1.8 Brand of engine: JH Body: Coupe From date: 01-11-1985 To date: 01-07-1992 Fuel: Gasoline Approved: Yes VW Model: Scirocco Model series: Scirocco Size of motor: 1.8 Brand of engine: JH From date: 01-01-1988 To date: 01-01-1988 Fuel: Gasoline Approved: Yes VW Model: Scirocco Model series: Scirocco Size of motor: 1.8 Brand of engine: JJ Body: Coupe From date: 01-08-1982 To date: 01-12-1989 Fuel: Gasoline Approved: Yes VW Model: Scirocco Model series: Scirocco Size of motor: 1.8 Brand of engine: PB Body: Coupe From date: 01-08-1982 To date: 01-12-1989 Fuel: Gasoline Approved: Yes VW Model: Scirocco Model series: Scirocco Type of engine: 16V Size of motor: 1.8 Brand of engine: KR Body: Coupe From date: 01-10-1985 To date: 01-07-1989 Fuel: Gasoline Approved: Yes VW Model: Scirocco Model series: Scirocco Type of engine: 16V Size of motor: 1.8 Brand of engine: PL From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAB Body: Platform / Chassis From date: 01-10-1992 To date: 01-09-1998 Fuel: Diesel Approved: Yes VW Series: Bora Kombi Model: 1.4 16V Engine volume: 1.4 Engine type: AHW Year: 09.01-05.05 VW Series: Bora Kombi Model: 1.6 16V Engine volume: 1.6 Engine type: ATN/AUS/AZD/BCB Year: 02.00-05.05 VW Series: Bora Kombi Model: 1.6 Engine volume: 1.6 Engine type: AEH / APF Year: 05.99-05.05 VW Series: Bora Kombi Model: 1.8 T Engine volume: 1.8 Engine type: AGU/ARX/AUM Year: 05.00-05.05 VW Series: Bora Model: 1.4 16V Engine volume: 1.4 Engine type: AHW/AKQ/APE/AXP/BCA Year: 03.00-05.05 VW Series: Bora Model: 1.6 Engine volume: 1.6 Engine type: AEH/AKL/APF Year: 10.98-05.05 VW Series: Bora Model: 1.6 Engine volume: 1.6 Engine type: AVU / BFQ Year: 08.00-05.05 VW Series: Bora Model: 1.8 T Engine volume: 1.8 Engine type: AGU/ARX/AUM/BAE Year: 05.01-05.05 VW Series: BORA Variant (1J6) Model: 1.6 Engine volume: 1.6 Engine type: AVU/BFQ Year: 08.00-05.05 VW Series: BORA Variant (1J6) Model: 2.0 4motion Engine volume: 2.0 Engine type: AZJ Year: 04.00-05.05 VW Series: BORA Variant (1J6) Model: 2.0 4motion Engine volume: 2.0 Engine type: AZJ Year: 12.99-05.03 VW Series: Caddy I (14) Model: 1.8 Engine volume: 1.8 Engine type: JH Year: 08.85-07.92 VW Series: Caddy II (9K9A) Model: 1.6 75 Engine volume: 1.6 Engine type: 1F Year: 11.95-05.97 VW Series: Caddy II (9K9A) Model: 1.6 75 Engine volume: 1.6 Engine type: AEE Year: 11.95-09.00 VW Series: Caddy II (9K9A) Model: 1.6 Engine volume: 1.6 Engine type: 1F Year: 11.95-05.97 VW Series: Corrado Model: 1.8 16V AUT Engine volume: 1.8 Engine type: KR Year: 04.89-07.91 VW Series: Corrado Model: 1.8 G60 Engine volume: 1.8 Engine type: PG Year: 09.88-09.93 VW Series: Golf Cabriolet III Model: 1.6 Engine volume: 1.6 Engine type: AEK / AFT / AKS Year: 10.94-04.98 VW Series: Golf Cabriolet Model: 1.6 Engine volume: 1.6 Engine type: EW / RE Year: 08.83-04.92 VW Series: Golf Cabriolet Model: 1.8 Engine volume: 1.8 Year: 08.82-04.93 VW Series: Golf I Cabrio Model: 1.6 Engine volume: 1.6 Engine type: EW / HN Year: 01.80-04.92 VW Series: Golf I Cabrio Model: 1.8 Engine volume: 1.8 Engine type: 2H Year: 08.89-03.93 VW Series: Golf I Cabrio Model: 1.8 Engine volume: 1.8 Engine type: DX / EV / PB Year: 08.82-12.89 VW Series: Golf I Cabrio Model: 1.8 Engine volume: 1.8 Engine type: JH Year: 08.83-04.93 VW Series: Golf I Cabrio Model: 1.8 Engine volume: 1.8 Year: 08.83-07.84 VW Series: Golf I Model: 1.6 Engine volume: 1.6 Engine type: EM / FN / FP Year: 08.75-07.83 VW Series: Golf I Model: 1.6 Engine volume: 1.6 Engine type: FN / FP Year: 08.75-07.78 VW Series: Golf I Model: 1.6 GTI Engine volume: 1.6 Engine type: EG Year: 08.76-07.82 VW Series: Golf II Model: 1.6 Engine volume: 1.6 Engine type: ABN / EZ / HM Year: 07.85-08.86 VW Series: Golf II Model: 1.6 Engine volume: 1.6 Engine type: EZ / HM Year: 08.83-07.87 VW Series: Golf II Model: 1.6 Engine volume: 1.6 Engine type: PN Year: 01.90-12.92 VW Series: Golf II Model: 1.8 i KAT Engine volume: 1.8 Engine type: GX / RP Year: 08.87-10.91 VW Series: Golf II Model: 1.8 Engine volume: 1.8 Engine type: GX Year: 08.87-07.88 VW Series: Golf II Model: 1.8 Engine volume: 1.8 Engine type: RH Year: 08.86-01.90 VW Series: Golf II Model: 1.8 Engine volume: 1.8 Year: 07.85-08.86 VW Series: Golf II Model: 1.8 GTI 16V Engine volume: 1.8 Engine type: PL Year: 11.88-10.91 VW Series: Golf II Model: 1.8 GTI Engine volume: 1.8 Engine type: PB Year: 01.90-10.91 VW Series: Golf II Model: 1.8 GTI Engine volume: 1.8 Engine type: RD Year: 08.85-10.87 VW Series: Golf II Model: 1.8 GTI KAT Engine volume: 1.8 Engine type: PF Year: 01.90-10.91 VW Series: Golf II Model: 1.8 i Syncro KAT Engine volume: 1.8 Engine type: RP Year: 08.87-10.91 VW Series: Golf II Model: 1.8 Syncro Engine volume: 1.8 Engine type: 1P Year: 08.88-07.91 VW Series: GOLF III (1H1) Model: 2.0 GL Engine volume: 2.0 Engine type: AEP Year: 08.95-09.97 VW Series: Golf III Model: 1.4 Engine volume: 1.4 Engine type: ABD / AEX Year: 11.91-08.97 VW Series: Golf III Model: 1.4 Engine volume: 1.4 Engine type: AEX Year: 07.95-08.97 VW Series: Golf III Model: 1.4 Engine volume: 1.4 Engine type: AEX Year: 10.91-08.97 VW Series: Golf III Model: 1.6 Engine volume: 1.6 Engine type: ABU / AEA / AEE Year: 09.92-08.97 VW Series: Golf III Model: 1.6 Engine volume: 1.6 Engine type: ABU Year: 09.92-09.94 VW Series: Golf III Model: 1.6 Engine volume: 1.6 Engine type: AEA / AEE Year: 10.94-08.97 VW Series: Golf III Model: 1.6 Engine volume: 1.6 Engine type: AEK/AFT/AKS Year: 07.95-08.97 VW Series: Golf III Model: 1.8 Engine volume: 1.8 Engine type: AAM Year: 11.91-08.97 VW Series: Golf III Model: 1.8 Engine volume: 1.8 Engine type: ABS / ACC / ADZ Year: 11.91-08.97 VW Series: Golf III Model: 1.8 Syncro Engine volume: 1.8 Engine type: ABS / ADZ Year: 01.93-08.97 VW Series: Golf III Model: 2.0 Engine volume: 2.0 Engine type: 2E / ADY Year: 11.91-07.95 VW Series: Golf III Model: 2.0 Engine volume: 2.0 Engine type: 2E/ADY/AGG/AKR/ABA Year: 11.91-05-96 VW Series: GOLF III Van (1H1) Model: 1.4 Engine volume: 1.4 Engine type: AEX Year: 08.91-05.96 VW Series: GOLF III Van (1H1) Model: 1.8 Engine volume: 1.8 Engine type: AAM Year: 08.91-07.95 VW Series: GOLF III Van (1H1) Model: 1.8 Engine volume: 1.8 Engine type: ABS/ADZ Year: 08.91-12.97 VW Series: GOLF III Van (1H1) Model: 2.0 Engine volume: 2.0 Engine type: AGG Year: 08.95-09.97 VW Series: Golf III Variant Model: 1.4 Engine volume: 1.4 Engine type: ABD Year: 07.93-04.99 VW Series: Golf III Variant Model: 1.4 Engine volume: 1.4 Engine type: AEX Year: 07.93-04.99 VW Series: Golf III Variant Model: 1.8 Engine volume: 1.8 Engine type: ABS / ADZ Year: 07.93-07.95 VW Series: Golf III Variant Model: 2.0 Engine volume: 2.0 Engine type: 2E / ADY Year: 07.93-07.95 VW Series: Golf IV Cabriolet Model: 1.6 Engine volume: 1.6 Engine type: AFT / AKS Year: 06.98-06.02 VW Series: GOLF IV Cabriolet Model: 1.8 Engine volume: 1.8 Engine type: AAM/ANN Year: 06.98-06.02 VW Series: GOLF IV Cabriolet Model: 1.8 Engine volume: 1.8 Engine type: ADZ/ANP Year: 06.98-06.02 VW Series: Golf IV Cabriolet Model: 2.0 Engine volume: 2.0 Engine type: AWF / AWG / ATU Year: 06.99-06.02 VW Series: Golf IV Model: 1.4 16V Engine volume: 1.4 Engine type: AHW/AKQ/APE/AXP/BCA Year: 10.97-05.04 VW Series: Golf IV Model: 1.6 16V Engine volume: 1.6 Engine type: ATN/AUS/AZD/BCB Year: 02.00.06.05 VW Series: Golf IV Model: 1.6 Engine volume: 1.6 Engine type: AEH / AKL Year: 08.97-05.04 VW Series: Golf IV Model: 1.6 Engine volume: 1.6 Engine type: AVU/BFQ Year: 08.00-06.05 VW Series: Golf IV Model: 1.8 Engine volume: 1.8 Engine type: AGN Year: 08.97-06.05 VW Series: Golf IV Model: 1.8 T AC Engine volume: 1.8 Engine type: AGU/ARZ/AUM Year: 08.97-06.05 VW Series: Golf IV Model: 2.0 Engine volume: 2.0 Engine type: Samtliga Year: 07.98-05.04 VW Series: Golf IV Variant Model: 1.4 16V Obs! Ch.nr.! Engine volume: 1.4 Engine type: AHW/AKQ/APE/AXP/BCA Year: 05.99-06.06 VW Series: Golf IV Variant Model: 1.6 16V Engine volume: 1.6 Engine type: ATN/AUS/AZD/BCB Year: 02.00-06.02 VW Series: Golf IV Variant Model: 1.6 Engine volume: 1.6 Engine type: AKL/AEH/APF Year: 01.01-12.01 VW Series: Golf IV Variant Model: 1.6 Engine volume: 1.6 Engine type: AVU / BFQ Year: 08.00-06.06 VW Series: Golf IV Variant Model: 1.8 T Engine volume: 1.8 Engine type: AGU/ARZ/AUM Year: 05.00-06.06 VW Series: Golf IV Variant Model: 2.0 Engine volume: 2.0 Engine type: APK/AQY/AZJ Year: 05.99-06.06 VW Series: GOLF VAN IV Variant Model: 1.4 Engine volume: 1.4 Engine type: AXP/ BCA Year: 05.00-06.06 VW Series: GOLF VAN IV Variant Model: 1.6 Engine volume: 1.6 Engine type: AUS/AZD/BCB Year: 05.00-06.06 VW Series: Jetta II Model: 1.6 Engine volume: 1.6 Engine type: ABN / EZ Year: 01.90-07.92 VW Series: Jetta II Model: 1.6 Engine volume: 1.6 Engine type: PN Year: 10.86-10.91 VW Series: Jetta II Model: 1.8 16V Engine volume: 1.8 Engine type: KR Year: 08.87-12.89 VW Series: Jetta II Model: 1.8 16V Engine volume: 1.8 Engine type: PL Year: 08.86-10.91 VW Series: Jetta II Model: 1.8 Engine volume: 1.8 Engine type: EV / GZ / PB Year: 01.84-10.91 VW Series: Jetta II Model: 1.8 Engine volume: 1.8 Engine type: GU / GX Year: 09.86-08.87 VW Series: Jetta II Model: 1.8 Engine volume: 1.8 Engine type: GX / RP Year: 10.87-10.91 VW Series: Jetta II Model: 1.8 Engine volume: 1.8 Engine type: GX Year: 08.87-10.87 VW Series: Jetta II Model: 1.8 Engine volume: 1.8 Engine type: RD Year: 08.85-10.87 VW Series: New Beetle Cabriolet Model: 2.0 Engine volume: 2.0 Engine type: AZJ/BDC/BGD/BEV Year: 09.02-10.10 VW Series: New Beetle Model: 1.6 Engine volume: 1.6 Engine type: AWH Year: 10.99-09.00 VW Series: New Beetle Model: 1.6 Engine volume: 1.6 Engine type: AYD / BFS Year: 06.00-09.10 VW Series: New Beetle Model: 1.8 T Engine volume: 1.8 Engine type: Samtliga Year: 06.01-09.10 VW Series: New Beetle Model: 2.0 Engine volume: 2.0 Engine type: AEG/ AQY/ AZJ/ BER Year: 01.98-09.10 VW Series: Passat (3A_/35I) Model: 1.8 AUT Engine volume: 1.8 Engine type: ABS / ADZ Year: 08.91-07.95 VW Series: Passat (3A_/35I) Model: 1.8 MAN/AUT Engine volume: 1.8 Engine type: RP Year: 04.88-07.91 VW Series: Passat (3A_/35I) Model: 1.8 Engine volume: 1.8 Engine type: AAM Year: 02.92-08.96 VW Series: Passat (3A_/35I) Model: 1.8 Engine volume: 1.8 Engine type: PB Year: 04.88-07.90 VW Series: Passat (3A_/35I) Model: 1.8 Engine volume: 1.8 Engine type: PF Year: 04.88-07.90 VW Series: Passat (3A_/35I) Model: 1.8 Engine volume: 1.8 Engine type: RP Year: 04.88-07.91 VW Series: Passat (3A_/35I) Model: 2.0 AUT Engine volume: 2.0 Engine type: 2E / ADY Year: 03.90-07.95 VW Series: Passat Variant (3A5) Model: 1.8 AUT Engine volume: 1.8 Engine type: AAM Year: 08.90-05.97 VW Series: Passat Variant (3A5) Model: 1.8 AUT Engine volume: 1.8 Engine type: ABS / ADZ Year: 08.91-07.95 VW Series: Passat Variant (3A5) Model: 1.8 MAN /AUT Engine volume: 1.8 Engine type: RP Year: 04.88-07.91 VW Series: Passat Variant (3A5) Model: 2.0 AUT Engine volume: 2.0 Engine type: 2E Year: 03.90-07.91 VW Series: Polo (6KV2) Model: 1.6 Engine volume: 1.6 Engine type: AEH/AFT/AKL/APF/AUR Year: 12.95-09.01 VW Series: Polo III (6V2) Model: 75 1.6 Engine volume: 1.6 Engine type: 1F Year: 11.95-09.97 VW Series: Polo Variant (6V5) Model: 1.6 Engine volume: 1.6 Engine type: AEH/AFT/AKL/APF/AUR Year: 05.97-09.01 VW Series: Scirocco (53) Model: 1.6 Engine volume: 1.6 Engine type: FN / FP Year: 08.75-07.79 VW Series: Scirocco (53B) Model: 1.6 Engine volume: 1.6 Engine type: EW; RE Year: 01.83-07.92 VW Series: Scirocco (53B) Model: 1.6 Engine volume: 1.6 Year: 08.83-12.89 VW Series: Scirocco (53B) Model: 1.8 16V Engine volume: 1.8 Engine type: KR Year: 10.85-07.89 VW Series: Scirocco (53B) Model: 1.8 16V Engine volume: 1.8 Engine type: PL Year: 03.86-07.92 VW Series: Scirocco (53B) Model: 1.8 Engine volume: 1.8 Engine type: DX / PB Year: 02.86-07.92 VW Series: Sharan Model: 1.8 T 20V Engine volume: 1.8 Engine type: AWC / AJH Year: 09.97-03.10 VW Series: Sharan Model: 2.0 Engine volume: 2.0 Engine type: ADY / ATM Year: 09.95-03.10 VW Series: SHARAN VAN (7M_) Model: 2.0 Engine volume: 2.0 Engine type: ADY/ATM Year: 09.96-07.02 VW Series: Vento Model: 1.4 Engine volume: 1.4 Engine type: AEX Year: 11.91-09.98 VW Series: Vento Model: 1.6 Engine volume: 1.6 Engine type: ABU/AEA/AEE Year: 09.92-09.98 VW Series: Vento Model: 1.6 Engine volume: 1.6 Engine type: AEK / AFT Year: 10.94-09.98 VW Series: Vento Model: 1.8 Engine volume: 1.8 Engine type: AAM Year: 11.91-09.98 VW Series: Vento Model: 1.8 Engine volume: 1.8 Engine type: ABS / ADZ Year: 11.91-07.95 VW Series: Vento Model: 1.8 Engine volume: 1.8 Engine type: ABS / ADZ Year: 11.91-08.98 VW Series: Vento Model: 2.0 Engine volume: 2.0 Engine type: 2E/ADY/AGG/AKR Year: 11.91-09.98 VW Trucks & Vans Series: Transporter IV Buss Model: 2.0 AUT Engine volume: 2.0 Engine type: AAC Year: 09.90-04.03 VW Trucks & Vans Series: Transporter IV Model: 2.0 AUT Engine volume: 2.0 Engine type: AAC Year: 09.90- VW Trucks & Vans Series: Transporter IV Buss Model: 2.0 AUT Engine volume: 2.0 Engine type: AAC Year: 09.90- VW Trucks & Vans Series: Transporter IV Flak Model: 2.0 A/T Engine volume: 2.0 Year: 07.90-04.03 VW Trucks & Vans Series: Transporter IV Skåp Model: 2.0 A/T Engine volume: 2.0 Year: 07.90-04.03 1 / 54
-
Beskrivelse
VW Startmotor 12V-0.9kW, 9k 12V - 0.9kW, 9k Alternativ : 91-620-1623 1.4kW Til Yourex produkt bestilling 91-620-1260
Spænding: 12
kW: 0.9
Montagespindel: 76.00
Drevafstand: 33.00
Montagehuls 3 mm: 11.00
Montagehuls 2 mm: 11.00
Montagehuls 1 mm: 12.00
Afstand/tilbage: 161.50
Afstand/frem: 69.00
Antal/højder: 9
B+: M8
Position/15a: 45
Terminal 15a: 6.30
Position/50: 15
Terminal 50: 6.30
Geartype: DD/GR
Afstand 2: 111.00
Afstand 3: 121.50
Afstand mm: 31.50
Rotation: CCW
Total længde mm: 230.00
Koblingstype: Tør
Drevtype: Stål
Produktinfo: BN
Vandtæt: Nej
Olieseald: Nej
Bemærkninger: Bøsning D.E. (koblinghus): HC-CARGO 140008.
Antal/montagehuller: 3 (0)Filer
-
Specifikation
B+ M8 No./teeth 9 Mount. flange 76.00 Oil sealed No No./mount. holes 3 (0) Position/15a 45 Position/50 15 Clutch type Dry Prod. info BN Dist. 2 111.00 Remarks Bushing D.E. (clutch house): HC-CARGO 140008. Dist. 3 121.50 Rotation CCW Dist./back 161.50 Dist./front 69.00 Drive dist. 33.00 Drive type Steel Gear type DD/GR kW 0.9 Terminal 50 6.30 Voltage 12 Total length 230.00 mm Waterproof No Dist. 31.50 mm Terminal 15A 6.30 mm Mount. hole 3 11.00 mm Mount. hole 2 11.00 mm Mount. hole 1 12.00 mm -
Køretøjsmatchning
-
OEM
AZD3520, b001110116, b001181007, cs294, d9e140, F032111059, GNU4538, RGO 111059, s114-553, s114-553a, 0001 106 001, 0001 106 002, 0001 107 007, 0001 107 008, 0001 211 257, 0001 211 258, 11.139.418, 020 911 024, 020 911023MX, 037 911 023, 055 911 023E, 055 911 023F, 055 911 023H, 055 911 023J, 055 911 023K, 055 911 023L, 055 911 023M, 055 911 023R, 055 911023FX, 055 911023HX, 055 911023KX, 055 911023MX, 379 110 23, 0986 012 590, 0986 012 600, 0986 018 200, 111059, 0001106001, 0001106002, 0001107007, 0001107008, 0001108094, 0001112003, 0001112004, 0001113011, 0001114005, 0001114006, 0001114012, 0001208416, 0001208417, 0001208418, 0001208419, 0001211257, 0001211258, 1516723R, 9141391, 020911024, 037911023, 055911023e, 055911023f, 055911023FX, 055911023h, 055911023j, 055911023k, 055911023l, 055911023m, 055911023r, 9000042057, 9000692050 -
Konkurrentreferens
CST10121, CST10133, drs2590, drs2600, F042002014, F042S02014, FRS166, lrs00558, lrs00560, MS105, MS316, nd141, QS1356, S0062PR, S0062SR, S0072, S3197S, SR33X, STR-2016, STR50007, STR50104, vs231, vs254, 2-1367-BO, 2-1372-BO, 2-1373-BO, 8EA012526-761, 8ea726054-001, 26-1035, 26-1134, 34-12.590, 41-12.600, 311.121.092, 311.124.092, 1236, 3580, 11260, 11399, 17025, 17134, 17134N, 17134R, 17222N, 17222R, 30560R, 201030, 201046, 201121, 220097, 220097A, 436019, 436022, 455548, 726109, 726826, 726830, 726909, 8012600, 8018200, 11012590, 11012600, 11016230, 11018200, 42012590, 943251663, 943251671, 0986012590, 0986012598, 0986012600, 0986016290, 0986018200, 0986018207 -
Bilmärken
Seat, VW -
NormaliseratArtNr
azd3520, b001110116, b001181007, cs294, cst10121, cst10133, d9e140, drs2590, drs2600, f032111059, f042002014, f042s02014, frs166, gnu4538, lrs00558, lrs00560, ms105, ms316, nd141, qs1356, rgo111059, s0062pr, s0062sr, s0072, s114553, s114553a, s3197s, sr33x, str2016, str50007, str50104, vs231, vs254, 8ea012526761, 8ea726054001, 1236, 3580, 11260, 11399, 17025, 17134, 17134n, 17134r, 17222n, 17222r, 21367bo, 21372bo, 21373bo, 30560r, 111059, 201030, 201046, 201121, 220097, 220097a, 261035, 261134, 436019, 436022, 455548, 726109, 726826, 726830, 726909, 0001106001, 0001106002, 0001107007, 0001107008, 0001108094, 0001112003, 0001112004, 0001113011, 0001114005, 0001114006, 0001114012, 0001208416, 0001208417, 0001208418, 0001208419, 0001211257, 0001211258, 1516723r, 3412590, 4112600, 8012600, 8018200, 9141391, 11012590, 11012600, 11016230, 11018200, 11139418, 020911023mx, 020911024, 037911023, 37911023, 42012590, 055911023e, 055911023f, 055911023fx, 055911023h, 055911023hx, 055911023j, 055911023k, 055911023kx, 055911023l, 055911023m, 055911023mx, 055911023r, 311121092, 311124092, 943251663, 943251671, 0986012590, 0986012598, 0986012600, 0986016290, 0986018200, 0986018207, 9000042057, 9000692050 -
Passar modeller
Audi Series: A3 (8L1) Model: 1.6 Engine volume: 1.6 Engine type: AEH/AKL/APF Year: 09.96-05.03 Audi Series: A3 (8L1) Model: 1.6 Engine volume: 1.6 Engine type: AVU / BFQ Year: 08.00-05.03 Audi Series: A3 (8L1) Model: 1.8 Obs! Ch.nr: 8L.W.095.001> Engine volume: 1.8 Engine type: AGN Year: 05.98-05.03 Audi Series: A3 (8L1) Model: 1.8 T Engine volume: 1.8 Engine type: AGU/AQA/ARZ/AUM Year: 12.96-05.03 Audi Series: A3 (8L1) Model: 1.8 T Engine volume: 1.8 Engine type: AGU/AUM Year: 12.96-05.03 Audi Series: A3 (8L1) Model: 1.8 T Engine volume: 1.8 Engine type: AJQ/APP/ARY/AUQ Year: 12.98-05.03 Audi Series: A3 (8L1) Model: 1.8 T Engine volume: 1.8 Engine type: APP / AJQ Year: 12.98- Audi Series: A3 (8L1) Model: 1.9 TDI Engine volume: 1.9 Engine type: AHF Year: 01.01-07.01 Audi Series: A3 (8L1) Model: 1.9 TDI Engine volume: 1.9 Engine type: ALH Year: 01.01-07.01 Audi Series: A3 (8L1) Model: 1.9 TDI Engine volume: 1.9 Engine type: ASZ Year: 08.00- Audi Series: A3 (8L1) Model: 1.9 TDI quattro Engine volume: 1.9 Engine type: ASZ Year: 09.00-05.03 Austin Model: Maestro Model series: Maestro Size of motor: 1.3 Brand of engine: 12H Body: Hatchback From date: 01-03-1983 To date: 01-08-1985 Fuel: Gasoline Approved: Yes Austin Model: Maestro Model series: Maestro Size of motor: 1.3 Brand of engine: 12H Body: Hatchback From date: 01-03-1983 To date: 01-08-1990 Fuel: Gasoline Approved: Yes Austin Model: Maestro Model series: Maestro Size of motor: 1.6 Brand of engine: 16H956AK Body: Hatchback From date: 01-03-1983 To date: 01-10-1984 Fuel: Gasoline Approved: Yes Fiat Model: Tipo Model series: Tipo Type of engine: i.e. Size of motor: 1.8 Brand of engine: 159A4.000 Type description: 160AM Body: Hatchback From date: 01-10-1994 To date: 01-10-1995 Fuel: Gasoline Approved: Yes Seat Model: Toledo Model series: Toledo Type of engine: i Size of motor: 1.6 Brand of engine: 1F Body: Hatchback From date: 01-01-1993 To date: 01-03-1999 Fuel: Gasoline Approved: Yes Seat Model: Toledo Model series: Toledo Type of engine: i Size of motor: 1.6 Brand of engine: 1F Type description: 1l Body: Hatchback From date: 01-05-1991 To date: 01-12-1993 Fuel: Gasoline Approved: Yes Seat Model: Toledo Model series: Toledo Type of engine: i Size of motor: 1.6 Brand of engine: ABN Type description: 1l Body: Hatchback From date: 01-05-1991 To date: 01-03-1999 Fuel: Gasoline Approved: Yes Seat Model: Toledo Model series: Toledo Type of engine: i Size of motor: 1.6 Brand of engine: EZ Type description: 1l Body: Hatchback From date: 01-05-1991 To date: 01-03-1999 Fuel: Gasoline Approved: Yes Seat Series: Alhambra Model: 1.8 T 20V Engine volume: 1.8 Engine type: AJH / AWC Year: 10.97-03.10 Seat Series: Alhambra Model: 2.0 i Engine volume: 2.0 Engine type: ATM / ADY Year: 04.96-03.10 Seat Series: ALHAMBRA VAN Model: 2.0 Engine volume: 2.0 Engine type: ADY/ ATM Year: 05.98-03.10 Seat Series: Cordoba (6K2/C2) Model: 1.8i Engine volume: 1.8 Engine type: ADZ Year: 07.94-07.95 Seat Series: Ibiza II Model: 2.0i Engine volume: 2.0 Engine type: 2E / AGG Year: 03.93-08.99 Seat Series: Inca Model: 1.6i Engine volume: 1.6 Engine type: 1F Year: 11.95-05.98 Seat Series: Leon (1M1) Model: 1.4 16V Engine volume: 1.4 Engine type: AHV/APE/AXP/BCA Year: 11.99-06.06 Seat Series: Leon (1M1) Model: 1.6 16V Engine volume: 1.6 Engine type: AUS/AZD/BCB Year: 09.00-06.06 Seat Series: Leon (1M1) Model: 1.6 Engine volume: 1.6 Engine type: AEH/AKL Year: 11.99-06.06 Seat Series: LEON (1M1) Model: 1.6 Engine volume: 1.6 Engine type: BFQ Year: 10.05-06.06 Seat Series: Leon (1M1) Model: 1.8 20V Engine volume: 1.8 Engine type: AGN / APG Year: 11.99-06.06 Seat Series: Toledo I Model: 1.6i Engine volume: 1.6 Engine type: 1F / AFT Year: 05.91-10.98 Seat Series: Toledo I Model: 1.6i Engine volume: 1.6 Engine type: 1F Year: 05.91-12.93 Seat Series: Toledo I Model: 1.6i Engine volume: 1.6 Engine type: 1F Year: 10.96-03.99 Seat Series: Toledo I Model: 1.6i Engine volume: 1.6 Engine type: 1F/ABN/EZ Year: 10.96-03.99 Seat Series: Toledo I Model: 1.8 16V Engine volume: 1.8 Engine type: KR / PL Year: 05.91-06.93 Seat Series: Toledo II Model: 1.4 16V Engine volume: 1.4 Engine type: AHW/APE/AXP/ BCA Year: 01.00-05.02 Seat Series: Toledo II Model: 1.6 16V Engine volume: 1.6 Engine type: AUS/AZD/BCB Year: 06.00-05.06 Seat Series: Toledo II Model: 1.6 Engine volume: 1.6 Engine type: AEH/AKL/APF Year: 10.98-07.04 Seat Series: Toledo II Model: 1.8 20V Engine volume: 1.8 Engine type: AGN/APG Year: 10.98-07.04 Skoda Series: Octavia (1U) Kombi Model: 1.6 Engine volume: 1.6 Engine type: AEE Year: 07.98-09.04 Skoda Series: Octavia I (1U2) Model: 1.4 16V Engine volume: 1.4 Engine type: AXP Year: 09.00-12.10 Skoda Series: Octavia I (1U2) Model: 1.6 AC Engine volume: 1.6 Engine type: AEE Year: 09.96-09.04 Skoda Series: Octavia I (1U2) Model: 1.6 AC Engine volume: 1.6 Engine type: AVU / BFQ Year: 11.00-12.10 Skoda Series: Octavia I (1U2) Model: 1.6 Engine volume: 1.6 Engine type: AEH / AKL Year: 02.97-12.07 Skoda Series: Octavia I (1U2) Model: 1.6 Engine volume: 1.6 Engine type: AVU / BFQ Year: 11.00-12.10 Skoda Series: Octavia I (1U2) Model: 1.8 Engine volume: 1.8 Engine type: AGN Year: 09.96-07.00 Skoda Series: Octavia I (1U2) Model: 1.8 T Engine volume: 1.8 Engine type: AGU Year: 08.00-12.10 Skoda Series: Octavia I (1U2) Model: 1.8 T Engine volume: 1.8 Engine type: AUM Year: 08.00-12.10 Skoda Series: Octavia I (1U2) Model: 2.0 Engine volume: 2.0 Engine type: APK Year: 04.99-05.07 Skoda Series: Octavia I Kombi Model: 1.4 16V Engine volume: 1.4 Engine type: AXP / BCA Year: 08.00-12.10 Skoda Series: Octavia I Kombi Model: 1.4 16V Engine volume: 1.4 Engine type: BCA Year: 08.00-12.10 Skoda Series: Octavia I Kombi Model: 1.6 Engine volume: 1.6 Engine type: AEH / AKL Year: 07.98-12.07 Skoda Series: Octavia I Kombi Model: 1.6 Engine volume: 1.6 Engine type: AVU / BFQ Year: 09.00-12.10 Skoda Series: Octavia I Kombi Model: 1.8 20V Engine volume: 1.8 Engine type: AGN Year: 07.98-07.00 Skoda Series: Octavia I Kombi Model: 1.8 T Engine volume: 1.8 Engine type: AGU Year: 07.98-12.10 Skoda Series: Octavia I Kombi Model: 2.0 Engine volume: 2.0 Engine type: APK Year: 04.99-05.07 VW Model: Caddy Model series: Caddy Size of motor: 1.6 Brand of engine: 1F Type description: 9K9A Body: Van From date: 01-11-1995 To date: 01-05-1997 Fuel: Gasoline Approved: Yes VW Model: Caddy Model series: Caddy Size of motor: 1.6 Brand of engine: 1F Type description: 9K9A Body: Van From date: 01-11-1995 To date: 01-09-2000 Fuel: Gasoline Approved: Yes VW Model: Caddy Model series: Caddy Size of motor: 1.6 Brand of engine: 1F Type description: 9K9B Body: Estate From date: 01-11-1995 To date: 01-05-1997 Fuel: Gasoline Approved: Yes Manufacture type: kombi VW Model: Caddy Model series: Caddy Size of motor: 1.6 Brand of engine: EM Body: Pick Up From date: 01-01-1983 To date: 01-07-1992 Fuel: Gasoline Approved: Yes VW Model: Caddy Model series: Caddy Size of motor: 1.6 Brand of engine: EW Body: Pick Up From date: 01-01-1983 To date: 01-07-1992 Fuel: Gasoline Approved: Yes VW Model: Caddy Model series: Caddy Size of motor: 1.8 Brand of engine: JH Body: Pick Up From date: 01-08-1985 To date: 01-07-1992 Fuel: Gasoline Approved: Yes VW Model: Caddy Model series: Caddy Type of engine: TDi Size of motor: 1.9 Brand of engine: 1Z Type description: 9K9A Body: Van From date: 01-09-1996 To date: 01-01-2004 Fuel: Diesel Approved: Yes VW Model: Caddy Model series: Caddy Type of engine: TDi Size of motor: 1.9 Brand of engine: AHU Type description: 9K9A Body: Van From date: 01-09-1996 To date: 01-01-2004 Fuel: Diesel Approved: Yes VW Model: Caddy Model series: Caddy Type of engine: TDi Size of motor: 1.9 Brand of engine: ALH Type description: 9K9A Body: Van From date: 01-09-1996 To date: 01-01-2004 Fuel: Diesel Approved: Yes VW Model: Corrado Model series: Corrado Type of engine: 16V Size of motor: 1.8 Brand of engine: KR Body: Coupe From date: 01-04-1989 To date: 01-07-1992 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf I Model type: CL Type of engine: TD Size of motor: 1.6 Type description: 17 Body: Hatchback From date: 01-08-1983 To date: 01-07-1985 Fuel: Diesel Approved: Yes VW Model: Golf Model series: Golf I Size of motor: 1.6 Brand of engine: EW Type description: 155 Body: Convertible From date: 01-08-1983 To date: 01-04-1992 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf I Size of motor: 1.6 Brand of engine: FN Body: Hatchback From date: 01-08-1975 To date: 01-02-1984 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf I Size of motor: 1.6 Brand of engine: RE Body: Convertible From date: 01-04-1986 To date: 01-02-1990 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf I Size of motor: 1.8 Brand of engine: DX Body: Convertible From date: 01-08-1982 To date: 01-12-1989 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf I Size of motor: 1.8 Brand of engine: EV Body: Convertible From date: 01-08-1982 To date: 01-12-1989 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf I Size of motor: 1.8 Brand of engine: EX Body: Convertible From date: 01-08-1983 To date: 01-09-1992 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf I Size of motor: 1.8 Brand of engine: PB Body: Convertible From date: 01-08-1982 To date: 01-12-1989 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Model type: CL Type of engine: TD Size of motor: 1.6 Type description: 19E, 1G1 Body: Hatchback From date: 01-08-1983 To date: 01-07-1985 Fuel: Diesel Approved: Yes VW Model: Golf Model series: Golf II Model type: GL Size of motor: 1.8 Brand of engine: GX From date: 01-01-1987 To date: 01-01-1987 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Model type: GL Size of motor: 1.8 Brand of engine: PF From date: 01-01-1988 To date: 01-01-1990 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Model type: GL Size of motor: 1.8 Brand of engine: PF From date: 01-01-1990 T VW Model: Golf Model series: Golf II Model type: GL Size of motor: 1.8 Brand of engine: RV From date: 01-01-1988 To date: 01-01-1991 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Model type: GL Size of motor: 1.8 Brand of engine: RV From date: 01-01-1989 To date: 01-01-1989 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Model type: GT Size of motor: 1.8 Brand of engine: PF From date: 01-01-1988 To date: 01-01-1988 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Model type: GT Size of motor: 1.8 Brand of engine: RD From date: 01-01-1987 To date: 01-01-1987 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Model type: Syncro Size of motor: 1.8 Brand of engine: RH Type description: 19E, 1G1 Body: Hatchback From date: 01-08-1987 To date: 01-07-1988 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Model type: Syncro Size of motor: 1.8 Brand of engine: RP Body: Hatchback From date: 01-08-1987 To date: 01-10-1991 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Size of motor: 1.6 Brand of engine: EZ Body: Hatchback From date: 01-08-1983 To date: 01-07-1992 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Size of motor: 1.6 Brand of engine: HM Body: Hatchback From date: 01-08-1983 To date: 01-07-1992 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Size of motor: 1.6 Brand of engine: PN Body: Hatchback From date: 01-10-1986 To date: 01-12-1992 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Size of motor: 1.6 Brand of engine: RF Body: Hatchback From date: 01-02-1986 To date: 01-10-1991 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Size of motor: 1.8 Brand of engine: GU Body: Hatchback From date: 01-08-1984 To date: 01-10-1991 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Size of motor: 1.8 Brand of engine: GX Body: Hatchback From date: 01-08-1984 To date: 01-10-1991 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Size of motor: 1.8 Brand of engine: GX Body: Hatchback From date: 01-08-1987 To date: 01-10-1991 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Size of motor: 1.8 Brand of engine: HV Body: Hatchback From date: 01-08-1984 To date: 01-10-1991 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Size of motor: 1.8 Brand of engine: PF From date: 01-01-1988 To date: 01-01-1989 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Size of motor: 1.8 Brand of engine: PF From date: 01-01-1989 To date: 01-01-1989 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Size of motor: 1.8 Brand of engine: RH Body: Hatchback From date: 01-08-1986 To date: 01-01-1990 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Type of engine: Diesel Size of motor: 1.6 Brand of engine: JP Body: Hatchback From date: 01-08-1983 To date: 01-10-1991 Fuel: Diesel Approved: Yes VW Model: Golf Model series: Golf II Type of engine: Diesel Size of motor: 1.6 Brand of engine: ME Body: Hatchback From date: 01-08-1983 To date: 01-10-1991 Fuel: Diesel Approved: Yes VW Model: Golf Model series: Golf II Type of engine: GTi 16V Size of motor: 1.8 Brand of engine: PL From date: 01-01-1987 To date: 01-01-1989 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Type of engine: GTi Size of motor: 1.8 Brand of engine: HT From date: 01-01-1985 To date: 01-01-1986 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Type of engine: GTi Size of motor: 1.8 Brand of engine: RD From date: 01-01-1985 To date: 01-01-1987 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf II Type of engine: TD Size of motor: 1.6 Brand of engine: JR Body: Hatchback From date: 01-08-1983 To date: 01-10-1991 Fuel: Diesel Approved: Yes VW Model: Golf Model series: Golf II Type of engine: TD Size of motor: 1.6 Brand of engine: MF Body: Hatchback From date: 01-08-1983 To date: 01-10-1991 Fuel: Diesel Approved: Yes VW Model: Golf Model series: Golf III Size of motor: 1.4 Brand of engine: ABD Type description: 1H_ Body: Estate From date: 01-07-1993 To date: 01-04-1999 Fuel: Gasoline Approved: Yes Manufacture type: variant VW Model: Golf Model series: Golf III Size of motor: 1.4 Brand of engine: ABD Type description: 1H_ Body: Hatchback From date: 01-11-1991 To date: 01-08-1997 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf III Size of motor: 1.4 Brand of engine: AEX Type description: 1H_ Body: Estate From date: 01-07-1993 To date: 01-04-1999 Fuel: Gasoline Approved: Yes Manufacture type: variant VW Model: Golf Model series: Golf III Size of motor: 1.4 Brand of engine: APQ Type description: 1H_ Body: Estate From date: 01-07-1993 To date: 01-04-1999 Fuel: Gasoline Approved: Yes Manufacture type: variant VW Model: Golf Model series: Golf III Size of motor: 1.6 Brand of engine: AEE Type description: 1H_ Body: Hatchback From date: 01-09-1992 To date: 01-08-1997 Fuel: Gasoline Approved: Yes VW Model: Jetta Model series: Jetta Model type: Syncro Size of motor: 1.8 Brand of engine: RH Type description: 19E,1G2 From date: 01-08-1987 To date: 01-07-1988 Fuel: Gasoline Approved: Yes VW Model: Jetta Model series: Jetta Model type: Syncro Size of motor: 1.8 Brand of engine: RP From date: 01-08-1987 To date: 01-12-1988 Fuel: Gasoline Approved: Yes VW Model: Jetta Model series: Jetta Size of motor: 1.6 Brand of engine: ABN From date: 01-01-1984 To date: 01-07-1992 Fuel: Gasoline Approved: Yes VW Model: Jetta Model series: Jetta Size of motor: 1.6 Brand of engine: EZ From date: 01-01-1984 To date: 01-07-1992 Fuel: Gasoline Approved: Yes VW Model: Jetta Model series: Jetta Size of motor: 1.6 Brand of engine: HM From date: 01-01-1984 To date: 01-07-1992 Fuel: Gasoline Approved: Yes VW Model: Jetta Model series: Jetta Size of motor: 1.6 Brand of engine: PN From date: 01-10-1986 To date: 01-10-1991 Fuel: Gasoline Approved: Yes VW Model: Jetta Model series: Jetta Size of motor: 1.6 Brand of engine: RF From date: 01-03-1986 To date: 01-10-1991 Fuel: Gasoline Approved: Yes VW Model: Jetta Model series: Jetta Size of motor: 1.8 Brand of engine: GX From date: 01-08-1987 To date: 01-10-1991 Fuel: Gasoline Approved: Yes VW Model: Jetta Model series: Jetta Size of motor: 1.8 Brand of engine: RH From date: 01-08-1986 To date: 01-01-1990 Fuel: Gasoline Approved: Yes VW Model: Jetta Model series: Jetta Size of motor: 1.8 Brand of engine: RP From date: 01-08-1987 To date: 01-10-1991 Fuel: Gasoline Approved: Yes VW Model: Jetta Model series: Jetta Type of engine: Diesel Size of motor: 1.6 Brand of engine: JP From date: 01-01-1984 To date: 01-10-1991 Fuel: Diesel Approved: Yes VW Model: Jetta Model series: Jetta Type of engine: Diesel Size of motor: 1.6 Brand of engine: ME From date: 01-01-1984 To date: 01-10-1991 Fuel: Diesel Approved: Yes VW Model: Jetta Model series: Jetta Type of engine: TD Size of motor: 1.6 Brand of engine: JR From date: 01-01-1984 To date: 01-10-1991 Fuel: Diesel Approved: Yes VW Model: Jetta Model series: Jetta Type of engine: TD Size of motor: 1.6 Brand of engine: MF From date: 01-01-1984 To date: 01-10-1991 Fuel: Diesel Approved: Yes VW Model: Scirocco Model series: Scirocco Model type: DLX Size of motor: 1.8 Brand of engine: JH From date: 01-01-1984 To date: 01-01-1985 Fuel: Gasoline Approved: Yes VW Model: Scirocco Model series: Scirocco Model type: DLX Size of motor: 1.8 Brand of engine: JH From date: 01-01-1986 To date: 01-01-1987 Fuel: Gasoline Approved: Yes VW Model: Scirocco Model series: Scirocco Size of motor: 1.6 Brand of engine: EW Body: Coupe From date: 01-01-1983 To date: 01-12-1989 Fuel: Gasoline Approved: Yes VW Model: Scirocco Model series: Scirocco Size of motor: 1.6 Brand of engine: FN Body: Coupe From date: 01-08-1975 To date: 01-07-1979 Fuel: Gasoline Approved: Yes VW Model: Scirocco Model series: Scirocco Size of motor: 1.6 Brand of engine: FR Body: Coupe From date: 01-08-1980 To date: 01-04-1984 Fuel: Gasoline Approved: Yes VW Model: Scirocco Model series: Scirocco Size of motor: 1.6 Brand of engine: RE Body: Coupe From date: 01-04-1986 To date: 01-07-1990 Fuel: Gasoline Approved: Yes VW Model: Scirocco Model series: Scirocco Size of motor: 1.8 Brand of engine: DX Body: Coupe From date: 01-08-1982 To date: 01-12-1989 Fuel: Gasoline Approved: Yes VW Model: Scirocco Model series: Scirocco Size of motor: 1.8 Brand of engine: EV Body: Coupe From date: 01-08-1982 To date: 01-12-1989 Fuel: Gasoline Approved: Yes VW Model: Scirocco Model series: Scirocco Size of motor: 1.8 Brand of engine: EX Body: Coupe From date: 01-08-1983 To date: 01-07-1992 Fuel: Gasoline Approved: Yes VW Model: Scirocco Model series: Scirocco Size of motor: 1.8 Brand of engine: JH Body: Coupe From date: 01-11-1985 To date: 01-07-1992 Fuel: Gasoline Approved: Yes VW Model: Scirocco Model series: Scirocco Size of motor: 1.8 Brand of engine: JH From date: 01-01-1988 To date: 01-01-1988 Fuel: Gasoline Approved: Yes VW Model: Scirocco Model series: Scirocco Size of motor: 1.8 Brand of engine: JJ Body: Coupe From date: 01-08-1982 To date: 01-12-1989 Fuel: Gasoline Approved: Yes VW Model: Scirocco Model series: Scirocco Size of motor: 1.8 Brand of engine: PB Body: Coupe From date: 01-08-1982 To date: 01-12-1989 Fuel: Gasoline Approved: Yes VW Model: Scirocco Model series: Scirocco Type of engine: 16V Size of motor: 1.8 Brand of engine: KR Body: Coupe From date: 01-10-1985 To date: 01-07-1989 Fuel: Gasoline Approved: Yes VW Model: Scirocco Model series: Scirocco Type of engine: 16V Size of motor: 1.8 Brand of engine: PL From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAB Body: Platform / Chassis From date: 01-10-1992 To date: 01-09-1998 Fuel: Diesel Approved: Yes VW Series: Bora Kombi Model: 1.4 16V Engine volume: 1.4 Engine type: AHW Year: 09.01-05.05 VW Series: Bora Kombi Model: 1.6 16V Engine volume: 1.6 Engine type: ATN/AUS/AZD/BCB Year: 02.00-05.05 VW Series: Bora Kombi Model: 1.6 Engine volume: 1.6 Engine type: AEH / APF Year: 05.99-05.05 VW Series: Bora Kombi Model: 1.8 T Engine volume: 1.8 Engine type: AGU/ARX/AUM Year: 05.00-05.05 VW Series: Bora Model: 1.4 16V Engine volume: 1.4 Engine type: AHW/AKQ/APE/AXP/BCA Year: 03.00-05.05 VW Series: Bora Model: 1.6 Engine volume: 1.6 Engine type: AEH/AKL/APF Year: 10.98-05.05 VW Series: Bora Model: 1.6 Engine volume: 1.6 Engine type: AVU / BFQ Year: 08.00-05.05 VW Series: Bora Model: 1.8 T Engine volume: 1.8 Engine type: AGU/ARX/AUM/BAE Year: 05.01-05.05 VW Series: BORA Variant (1J6) Model: 1.6 Engine volume: 1.6 Engine type: AVU/BFQ Year: 08.00-05.05 VW Series: BORA Variant (1J6) Model: 2.0 4motion Engine volume: 2.0 Engine type: AZJ Year: 04.00-05.05 VW Series: BORA Variant (1J6) Model: 2.0 4motion Engine volume: 2.0 Engine type: AZJ Year: 12.99-05.03 VW Series: Caddy I (14) Model: 1.8 Engine volume: 1.8 Engine type: JH Year: 08.85-07.92 VW Series: Caddy II (9K9A) Model: 1.6 75 Engine volume: 1.6 Engine type: 1F Year: 11.95-05.97 VW Series: Caddy II (9K9A) Model: 1.6 75 Engine volume: 1.6 Engine type: AEE Year: 11.95-09.00 VW Series: Caddy II (9K9A) Model: 1.6 Engine volume: 1.6 Engine type: 1F Year: 11.95-05.97 VW Series: Corrado Model: 1.8 16V AUT Engine volume: 1.8 Engine type: KR Year: 04.89-07.91 VW Series: Corrado Model: 1.8 G60 Engine volume: 1.8 Engine type: PG Year: 09.88-09.93 VW Series: Golf Cabriolet III Model: 1.6 Engine volume: 1.6 Engine type: AEK / AFT / AKS Year: 10.94-04.98 VW Series: Golf Cabriolet Model: 1.6 Engine volume: 1.6 Engine type: EW / RE Year: 08.83-04.92 VW Series: Golf Cabriolet Model: 1.8 Engine volume: 1.8 Year: 08.82-04.93 VW Series: Golf I Cabrio Model: 1.6 Engine volume: 1.6 Engine type: EW / HN Year: 01.80-04.92 VW Series: Golf I Cabrio Model: 1.8 Engine volume: 1.8 Engine type: 2H Year: 08.89-03.93 VW Series: Golf I Cabrio Model: 1.8 Engine volume: 1.8 Engine type: DX / EV / PB Year: 08.82-12.89 VW Series: Golf I Cabrio Model: 1.8 Engine volume: 1.8 Engine type: JH Year: 08.83-04.93 VW Series: Golf I Cabrio Model: 1.8 Engine volume: 1.8 Year: 08.83-07.84 VW Series: Golf I Model: 1.6 Engine volume: 1.6 Engine type: EM / FN / FP Year: 08.75-07.83 VW Series: Golf I Model: 1.6 Engine volume: 1.6 Engine type: FN / FP Year: 08.75-07.78 VW Series: Golf I Model: 1.6 GTI Engine volume: 1.6 Engine type: EG Year: 08.76-07.82 VW Series: Golf II Model: 1.6 Engine volume: 1.6 Engine type: ABN / EZ / HM Year: 07.85-08.86 VW Series: Golf II Model: 1.6 Engine volume: 1.6 Engine type: EZ / HM Year: 08.83-07.87 VW Series: Golf II Model: 1.6 Engine volume: 1.6 Engine type: PN Year: 01.90-12.92 VW Series: Golf II Model: 1.8 i KAT Engine volume: 1.8 Engine type: GX / RP Year: 08.87-10.91 VW Series: Golf II Model: 1.8 Engine volume: 1.8 Engine type: GX Year: 08.87-07.88 VW Series: Golf II Model: 1.8 Engine volume: 1.8 Engine type: RH Year: 08.86-01.90 VW Series: Golf II Model: 1.8 Engine volume: 1.8 Year: 07.85-08.86 VW Series: Golf II Model: 1.8 GTI 16V Engine volume: 1.8 Engine type: PL Year: 11.88-10.91 VW Series: Golf II Model: 1.8 GTI Engine volume: 1.8 Engine type: PB Year: 01.90-10.91 VW Series: Golf II Model: 1.8 GTI Engine volume: 1.8 Engine type: RD Year: 08.85-10.87 VW Series: Golf II Model: 1.8 GTI KAT Engine volume: 1.8 Engine type: PF Year: 01.90-10.91 VW Series: Golf II Model: 1.8 i Syncro KAT Engine volume: 1.8 Engine type: RP Year: 08.87-10.91 VW Series: Golf II Model: 1.8 Syncro Engine volume: 1.8 Engine type: 1P Year: 08.88-07.91 VW Series: GOLF III (1H1) Model: 2.0 GL Engine volume: 2.0 Engine type: AEP Year: 08.95-09.97 VW Series: Golf III Model: 1.4 Engine volume: 1.4 Engine type: ABD / AEX Year: 11.91-08.97 VW Series: Golf III Model: 1.4 Engine volume: 1.4 Engine type: AEX Year: 07.95-08.97 VW Series: Golf III Model: 1.4 Engine volume: 1.4 Engine type: AEX Year: 10.91-08.97 VW Series: Golf III Model: 1.6 Engine volume: 1.6 Engine type: ABU / AEA / AEE Year: 09.92-08.97 VW Series: Golf III Model: 1.6 Engine volume: 1.6 Engine type: ABU Year: 09.92-09.94 VW Series: Golf III Model: 1.6 Engine volume: 1.6 Engine type: AEA / AEE Year: 10.94-08.97 VW Series: Golf III Model: 1.6 Engine volume: 1.6 Engine type: AEK/AFT/AKS Year: 07.95-08.97 VW Series: Golf III Model: 1.8 Engine volume: 1.8 Engine type: AAM Year: 11.91-08.97 VW Series: Golf III Model: 1.8 Engine volume: 1.8 Engine type: ABS / ACC / ADZ Year: 11.91-08.97 VW Series: Golf III Model: 1.8 Syncro Engine volume: 1.8 Engine type: ABS / ADZ Year: 01.93-08.97 VW Series: Golf III Model: 2.0 Engine volume: 2.0 Engine type: 2E / ADY Year: 11.91-07.95 VW Series: Golf III Model: 2.0 Engine volume: 2.0 Engine type: 2E/ADY/AGG/AKR/ABA Year: 11.91-05-96 VW Series: GOLF III Van (1H1) Model: 1.4 Engine volume: 1.4 Engine type: AEX Year: 08.91-05.96 VW Series: GOLF III Van (1H1) Model: 1.8 Engine volume: 1.8 Engine type: AAM Year: 08.91-07.95 VW Series: GOLF III Van (1H1) Model: 1.8 Engine volume: 1.8 Engine type: ABS/ADZ Year: 08.91-12.97 VW Series: GOLF III Van (1H1) Model: 2.0 Engine volume: 2.0 Engine type: AGG Year: 08.95-09.97 VW Series: Golf III Variant Model: 1.4 Engine volume: 1.4 Engine type: ABD Year: 07.93-04.99 VW Series: Golf III Variant Model: 1.4 Engine volume: 1.4 Engine type: AEX Year: 07.93-04.99 VW Series: Golf III Variant Model: 1.8 Engine volume: 1.8 Engine type: ABS / ADZ Year: 07.93-07.95 VW Series: Golf III Variant Model: 2.0 Engine volume: 2.0 Engine type: 2E / ADY Year: 07.93-07.95 VW Series: Golf IV Cabriolet Model: 1.6 Engine volume: 1.6 Engine type: AFT / AKS Year: 06.98-06.02 VW Series: GOLF IV Cabriolet Model: 1.8 Engine volume: 1.8 Engine type: AAM/ANN Year: 06.98-06.02 VW Series: GOLF IV Cabriolet Model: 1.8 Engine volume: 1.8 Engine type: ADZ/ANP Year: 06.98-06.02 VW Series: Golf IV Cabriolet Model: 2.0 Engine volume: 2.0 Engine type: AWF / AWG / ATU Year: 06.99-06.02 VW Series: Golf IV Model: 1.4 16V Engine volume: 1.4 Engine type: AHW/AKQ/APE/AXP/BCA Year: 10.97-05.04 VW Series: Golf IV Model: 1.6 16V Engine volume: 1.6 Engine type: ATN/AUS/AZD/BCB Year: 02.00.06.05 VW Series: Golf IV Model: 1.6 Engine volume: 1.6 Engine type: AEH / AKL Year: 08.97-05.04 VW Series: Golf IV Model: 1.6 Engine volume: 1.6 Engine type: AVU/BFQ Year: 08.00-06.05 VW Series: Golf IV Model: 1.8 Engine volume: 1.8 Engine type: AGN Year: 08.97-06.05 VW Series: Golf IV Model: 1.8 T AC Engine volume: 1.8 Engine type: AGU/ARZ/AUM Year: 08.97-06.05 VW Series: Golf IV Model: 2.0 Engine volume: 2.0 Engine type: Samtliga Year: 07.98-05.04 VW Series: Golf IV Variant Model: 1.4 16V Obs! Ch.nr.! Engine volume: 1.4 Engine type: AHW/AKQ/APE/AXP/BCA Year: 05.99-06.06 VW Series: Golf IV Variant Model: 1.6 16V Engine volume: 1.6 Engine type: ATN/AUS/AZD/BCB Year: 02.00-06.02 VW Series: Golf IV Variant Model: 1.6 Engine volume: 1.6 Engine type: AKL/AEH/APF Year: 01.01-12.01 VW Series: Golf IV Variant Model: 1.6 Engine volume: 1.6 Engine type: AVU / BFQ Year: 08.00-06.06 VW Series: Golf IV Variant Model: 1.8 T Engine volume: 1.8 Engine type: AGU/ARZ/AUM Year: 05.00-06.06 VW Series: Golf IV Variant Model: 2.0 Engine volume: 2.0 Engine type: APK/AQY/AZJ Year: 05.99-06.06 VW Series: GOLF VAN IV Variant Model: 1.4 Engine volume: 1.4 Engine type: AXP/ BCA Year: 05.00-06.06 VW Series: GOLF VAN IV Variant Model: 1.6 Engine volume: 1.6 Engine type: AUS/AZD/BCB Year: 05.00-06.06 VW Series: Jetta II Model: 1.6 Engine volume: 1.6 Engine type: ABN / EZ Year: 01.90-07.92 VW Series: Jetta II Model: 1.6 Engine volume: 1.6 Engine type: PN Year: 10.86-10.91 VW Series: Jetta II Model: 1.8 16V Engine volume: 1.8 Engine type: KR Year: 08.87-12.89 VW Series: Jetta II Model: 1.8 16V Engine volume: 1.8 Engine type: PL Year: 08.86-10.91 VW Series: Jetta II Model: 1.8 Engine volume: 1.8 Engine type: EV / GZ / PB Year: 01.84-10.91 VW Series: Jetta II Model: 1.8 Engine volume: 1.8 Engine type: GU / GX Year: 09.86-08.87 VW Series: Jetta II Model: 1.8 Engine volume: 1.8 Engine type: GX / RP Year: 10.87-10.91 VW Series: Jetta II Model: 1.8 Engine volume: 1.8 Engine type: GX Year: 08.87-10.87 VW Series: Jetta II Model: 1.8 Engine volume: 1.8 Engine type: RD Year: 08.85-10.87 VW Series: New Beetle Cabriolet Model: 2.0 Engine volume: 2.0 Engine type: AZJ/BDC/BGD/BEV Year: 09.02-10.10 VW Series: New Beetle Model: 1.6 Engine volume: 1.6 Engine type: AWH Year: 10.99-09.00 VW Series: New Beetle Model: 1.6 Engine volume: 1.6 Engine type: AYD / BFS Year: 06.00-09.10 VW Series: New Beetle Model: 1.8 T Engine volume: 1.8 Engine type: Samtliga Year: 06.01-09.10 VW Series: New Beetle Model: 2.0 Engine volume: 2.0 Engine type: AEG/ AQY/ AZJ/ BER Year: 01.98-09.10 VW Series: Passat (3A_/35I) Model: 1.8 AUT Engine volume: 1.8 Engine type: ABS / ADZ Year: 08.91-07.95 VW Series: Passat (3A_/35I) Model: 1.8 MAN/AUT Engine volume: 1.8 Engine type: RP Year: 04.88-07.91 VW Series: Passat (3A_/35I) Model: 1.8 Engine volume: 1.8 Engine type: AAM Year: 02.92-08.96 VW Series: Passat (3A_/35I) Model: 1.8 Engine volume: 1.8 Engine type: PB Year: 04.88-07.90 VW Series: Passat (3A_/35I) Model: 1.8 Engine volume: 1.8 Engine type: PF Year: 04.88-07.90 VW Series: Passat (3A_/35I) Model: 1.8 Engine volume: 1.8 Engine type: RP Year: 04.88-07.91 VW Series: Passat (3A_/35I) Model: 2.0 AUT Engine volume: 2.0 Engine type: 2E / ADY Year: 03.90-07.95 VW Series: Passat Variant (3A5) Model: 1.8 AUT Engine volume: 1.8 Engine type: AAM Year: 08.90-05.97 VW Series: Passat Variant (3A5) Model: 1.8 AUT Engine volume: 1.8 Engine type: ABS / ADZ Year: 08.91-07.95 VW Series: Passat Variant (3A5) Model: 1.8 MAN /AUT Engine volume: 1.8 Engine type: RP Year: 04.88-07.91 VW Series: Passat Variant (3A5) Model: 2.0 AUT Engine volume: 2.0 Engine type: 2E Year: 03.90-07.91 VW Series: Polo (6KV2) Model: 1.6 Engine volume: 1.6 Engine type: AEH/AFT/AKL/APF/AUR Year: 12.95-09.01 VW Series: Polo III (6V2) Model: 75 1.6 Engine volume: 1.6 Engine type: 1F Year: 11.95-09.97 VW Series: Polo Variant (6V5) Model: 1.6 Engine volume: 1.6 Engine type: AEH/AFT/AKL/APF/AUR Year: 05.97-09.01 VW Series: Scirocco (53) Model: 1.6 Engine volume: 1.6 Engine type: FN / FP Year: 08.75-07.79 VW Series: Scirocco (53B) Model: 1.6 Engine volume: 1.6 Engine type: EW; RE Year: 01.83-07.92 VW Series: Scirocco (53B) Model: 1.6 Engine volume: 1.6 Year: 08.83-12.89 VW Series: Scirocco (53B) Model: 1.8 16V Engine volume: 1.8 Engine type: KR Year: 10.85-07.89 VW Series: Scirocco (53B) Model: 1.8 16V Engine volume: 1.8 Engine type: PL Year: 03.86-07.92 VW Series: Scirocco (53B) Model: 1.8 Engine volume: 1.8 Engine type: DX / PB Year: 02.86-07.92 VW Series: Sharan Model: 1.8 T 20V Engine volume: 1.8 Engine type: AWC / AJH Year: 09.97-03.10 VW Series: Sharan Model: 2.0 Engine volume: 2.0 Engine type: ADY / ATM Year: 09.95-03.10 VW Series: SHARAN VAN (7M_) Model: 2.0 Engine volume: 2.0 Engine type: ADY/ATM Year: 09.96-07.02 VW Series: Vento Model: 1.4 Engine volume: 1.4 Engine type: AEX Year: 11.91-09.98 VW Series: Vento Model: 1.6 Engine volume: 1.6 Engine type: ABU/AEA/AEE Year: 09.92-09.98 VW Series: Vento Model: 1.6 Engine volume: 1.6 Engine type: AEK / AFT Year: 10.94-09.98 VW Series: Vento Model: 1.8 Engine volume: 1.8 Engine type: AAM Year: 11.91-09.98 VW Series: Vento Model: 1.8 Engine volume: 1.8 Engine type: ABS / ADZ Year: 11.91-07.95 VW Series: Vento Model: 1.8 Engine volume: 1.8 Engine type: ABS / ADZ Year: 11.91-08.98 VW Series: Vento Model: 2.0 Engine volume: 2.0 Engine type: 2E/ADY/AGG/AKR Year: 11.91-09.98 VW Trucks & Vans Series: Transporter IV Buss Model: 2.0 AUT Engine volume: 2.0 Engine type: AAC Year: 09.90-04.03 VW Trucks & Vans Series: Transporter IV Model: 2.0 AUT Engine volume: 2.0 Engine type: AAC Year: 09.90- VW Trucks & Vans Series: Transporter IV Buss Model: 2.0 AUT Engine volume: 2.0 Engine type: AAC Year: 09.90- VW Trucks & Vans Series: Transporter IV Flak Model: 2.0 A/T Engine volume: 2.0 Year: 07.90-04.03 VW Trucks & Vans Series: Transporter IV Skåp Model: 2.0 A/T Engine volume: 2.0 Year: 07.90-04.03 1 / 54
-
