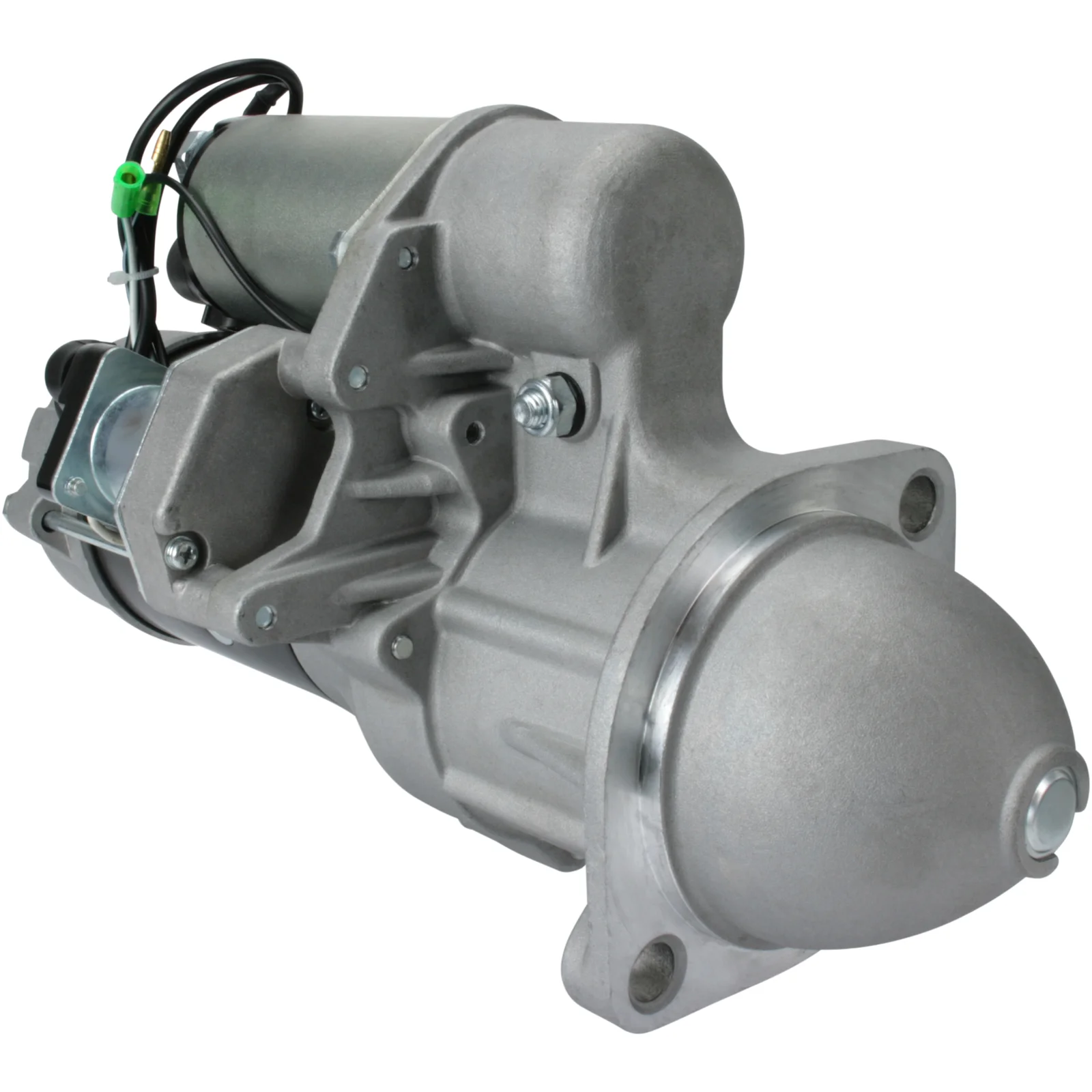

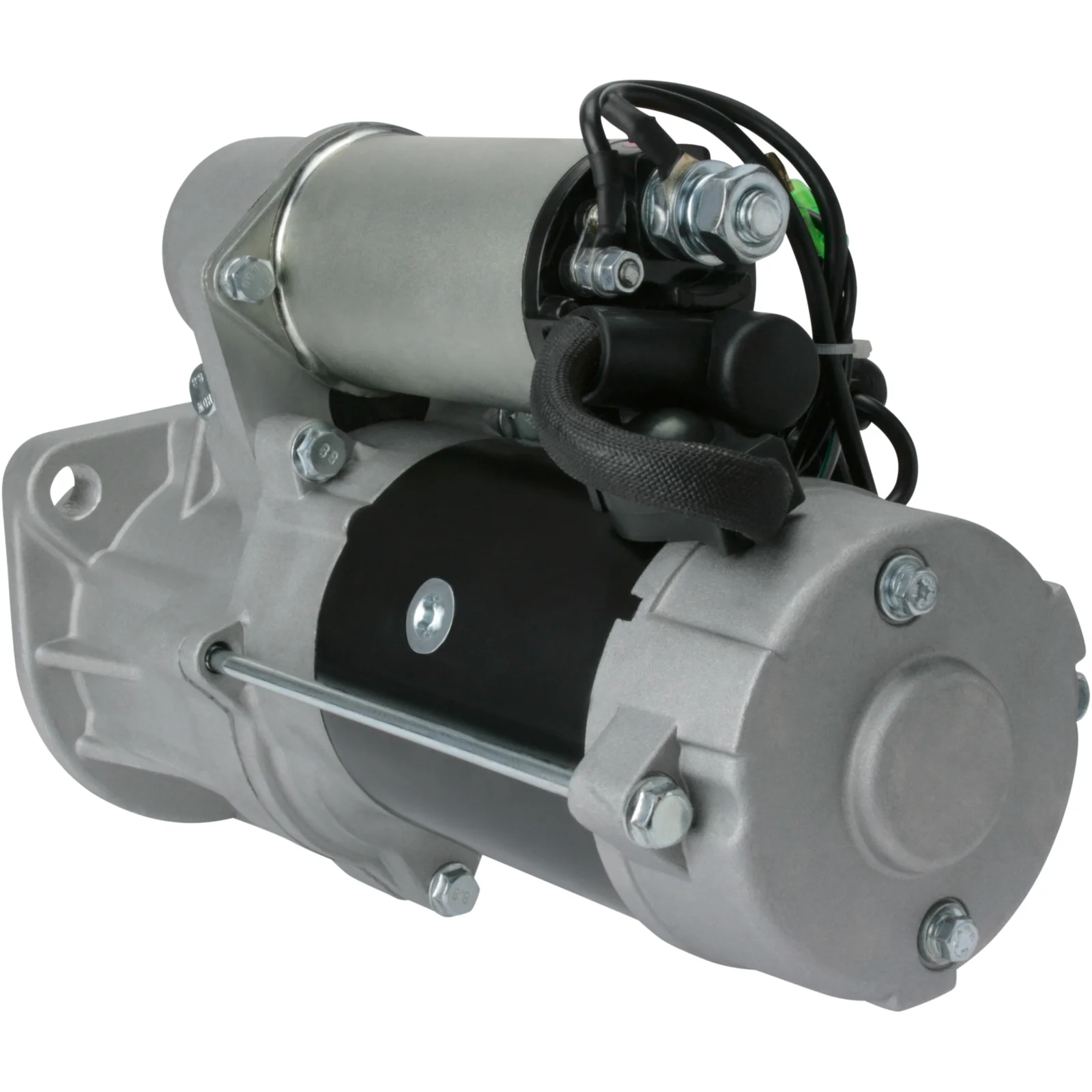

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032111254

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 24, kW: 4.5, No./tænder: 9, Rotation: CW

Beskrivelse

Spænding: 24
kW: 4.5
Monteringsflange: 95.00
Driveafstand: 19.00
Monteringshul 2 mm: 13.50
Monteringshul 1 mm: 13.50
Afstand/bag: 266.50
Afstand/frem: 66.00
Antal/tenner: 9
B+: M10
Position/50: 6
Terminal 50: M5
Geartype: GR
Afstand mm: 119.00
Rotation: CW
Samlet længde mm: 332.50
Drive type: Stål
Produktoplysninger: BN
Vandtæt: Nej
Olieforseglet: Nej
Antal/monteringshuller: 2 (0)

Filer

Specifikation

B+ M10
No./teeth 9
Mount. flange 95.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 6
Prod. info BN
Rotation CW
Dist./back 266.50
Dist./front 66.00
Drive dist. 19.00
Drive type Steel
Gear type GR
kW 4.5
Terminal 50 M5
Voltage 24
Total length 332.50 mm
Waterproof No
Dist. 119.00 mm
Mount. hole 2 13.50 mm
Mount. hole 1 13.50 mm

  • OEM
    0-23000-0100, 0-23000-0470, 0-23000-1260, 0-23000-1310, 0-23000-1700, 0-23000-2100, 0-23000-2101, 0-23000-2102, 0-23000-2103, 0-23000-2201, 0-23000-2540, 0-23000-2541, 0-23000-2542, F032111254, LRS01910, S25-176, VI8970298637, 714-35900, 714/24400, 714/29900, 8941717720, 8944545590, 8970298630, 8970298631, 8970298632, 8970298635, 8970298636, 8970298637, 8971298636

  • Konkurrentreferens
    CST50606, LRS01905, S-8823E, S9170, S9190, STR29002, STR29007, 8ea737264-001, 45-2214, 45-2332, 91-28-4026, 131.504.092, 131.533.092, 131.537.092, 643.048.094, 643.055.094, 4470, 18194, 18194N, 201010

  • NormaliseratArtNr
    cst50606, f032111254, lrs01905, lrs01910, s25176, s8823e, s9170, s9190, str29002, str29007, vi8970298637, 8ea737264001, 4470, 18194, 18194n, 201010, 452214, 452332, 71424400, 71429900, 71435900, 91284026, 131504092, 131533092, 131537092, 0230000100, 0230000470, 0230001260, 0230001310, 0230001700, 0230002100, 0230002101, 0230002102, 0230002103, 0230002201, 0230002540, 0230002541, 0230002542, 643048094, 643055094, 8941717720, 8944545590, 8970298630, 8970298631, 8970298632, 8970298635, 8970298636, 8970298637, 8971298636

  • Passar modeller
    Hitachi Model: EX120 Model series: EX120 Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    Hitachi Model: EX130 Model series: EX130 Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    Hitachi Model: EX135 Model series: EX135 Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    Hitachi Model: EX150 Model series: EX150 Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    Hitachi Model: Zaxis 120 Model series: Zaxis 120 Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    Hitachi Model: ZX110 Model series: ZX110 Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    Hitachi Model: ZX120 Model series: ZX120 Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    Hitachi Model: ZX130H Model series: ZX130H Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    Hitachi Model: ZX135 Model series: ZX135 Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    Hitachi Model: ZX135US Model series: ZX135US Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    JCB Model: JS130 Model series: JS130 Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    JCB Model: JS130 SERIES Model series: JS130 SERIES Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    JCB Model: JS130L Model series: JS130L Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    JCB Model: JS130LC Model series: JS130LC Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    JCB Model: JS130W Model series: JS130W Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    JCB Model: JS145W Model series: JS145W Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    JCB Model: JS160 Model series: JS160 Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    JCB Model: JS160L/NL Model series: JS160L/NL Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    JCB Model: JS160W Model series: JS160W Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    JCB Model: JS180L Model series: JS180L Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    JCB Model: JS220LR Model series: JS220LR Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    JCB Model: JZ140 SERIES Model series: JZ140 SERIES Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    John Deere Model: 135 Model series: 135C Brand of engine: Isuzu Approved: Yes
    John Deere Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
    Takeuchi Model: TB1140 Model series: TB1140 Model type: Excavators Brand of engine: 4BG1T Approved: Yes
