Vare nr.: F032111760

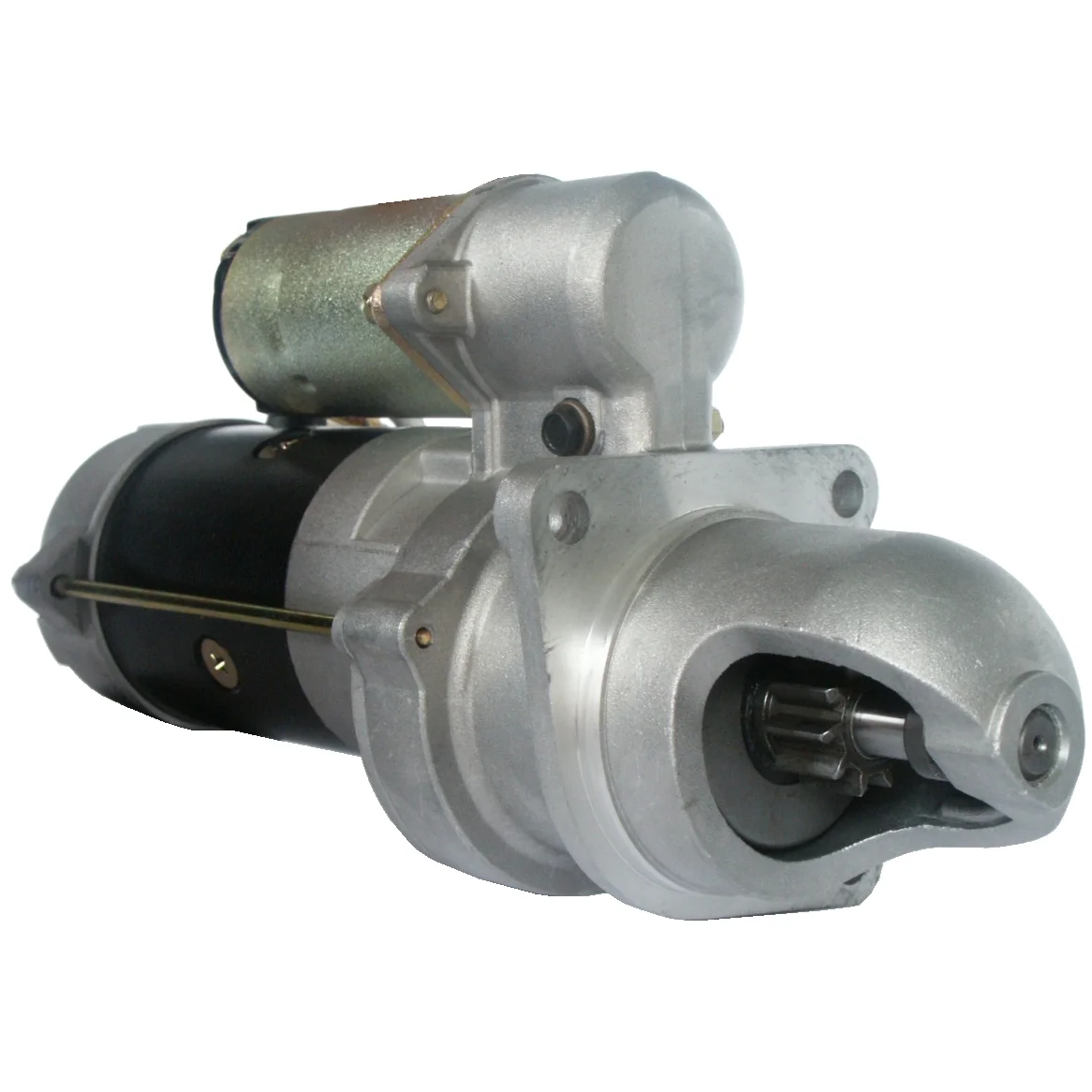

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 24, kW: 4.5, No./tænder: 10, Rotation: CW

Beskrivelse

Spænding: 24
kW: 4,5
Mount. flange: 89,00
Drivlængde: 45,00
Mount. hul 3 mm: 11,00
Mount. hul 2 mm: 11,00
Mount. hul 1 mm: 11,00
Afstand/ryg: 250,50
Afstand/frem: 88,50
Nr./tænder: 10
B+: M10
Position/50: 47
Terminal 50: M5
Gear type: GR
Afstand 2: 127,00
Afstand 3: 90,00
Afstand mm: 89,00
Rotation: Uret
Total længde mm: 339,00
Kobling type: Tør
Drev type: Stål
Prod. info: BN
Vandtæt: Nej
Oliesluttet: Nej
Bemærkninger: Udskiftning: 7MT
Nr./Mount. huller: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 10
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 47
Clutch type Dry
Prod. info BN
Dist. 2 127.00
Remarks Replacing: 7MT
Dist. 3 90.00
Rotation CW
Dist./back 250.50
Dist./front 88.50
Drive dist. 45.00
Drive type Steel
Gear type GR
kW 4.5
Terminal 50 M5
Voltage 24
Total length 339.00 mm
Waterproof No
Dist. 89.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    0-23000-2030, 0-23000-2031, 0-23000-2040, 0-23000-2270, 0-23000-2470, C4929600, F032111760, us857, 323-911, 367520rx, 860318, 1113277, 1113291, 1113594, 1998488, 3604677, 3604677RX, 3675204, 3909914, 3918377, 3918378, 3926932, 8200064, 10455500, 10461283, 10461286, 10461465, 10461468, 10461469, 10461486, 10479616, 10479622, 10479623, 10479655, 10479656

  • Konkurrentreferens
    BSO7195R, BSO7272, CST50653, CST60600, DRS3518, DRS3529, drz5168, F042003112, F042003113, F042S03112, F042S03113, LES0202, LRS02448, MS242, S1007, S9244, S9244(LETRIKA), sn-0087r, STR-7150, STR-7158, STR-7162, STR20001, STR7150, STR7158, STR7162, ts-1602, 8ea732680-001, 50-8416, 50-8421, 50-8434, 90-01-4361, 201-28201, 410-12111, 641.527.103, 641.528.103, 672.021.104, 6574, 6582, 6582N, 6582R, 6592N, 6592R, 6737, 23498A, 60857, 103971, 220601, 220601A, 8213287, 11023450, 0986023450

  • NormaliseratArtNr
    bso7195r, bso7272, c4929600, cst50653, cst60600, drs3518, drs3529, drz5168, f032111760, f042003112, f042003113, f042s03112, f042s03113, les0202, lrs02448, ms242, s1007, s9244, s9244letrika, sn0087r, str20001, str7150, str7158, str7162, ts1602, us857, 8ea732680001, 6574, 6582, 6582n, 6582r, 6592n, 6592r, 6737, 23498a, 60857, 103971, 220601, 220601a, 323911, 367520rx, 508416, 508421, 508434, 860318, 1113277, 1113291, 1113594, 1998488, 3604677, 3604677rx, 3675204, 3909914, 3918377, 3918378, 3926932, 8200064, 8213287, 10455500, 10461283, 10461286, 10461465, 10461468, 10461469, 10461486, 10479616, 10479622, 10479623, 10479655, 10479656, 11023450, 20128201, 41012111, 90014361, 0230002030, 0230002031, 0230002040, 0230002270, 0230002470, 641527103, 641528103, 672021104, 0986023450

  • Passar modeller
    Case Model: Various Models Model series: Various Models Approved: Yes
    Cummins Model: Various Models Model series: Various Models From date: 01-01-1987 Approved: Yes
  • Beskrivelse
    Spænding: 24
    kW: 4,5
    Mount. flange: 89,00
    Drivlængde: 45,00
    Mount. hul 3 mm: 11,00
    Mount. hul 2 mm: 11,00
    Mount. hul 1 mm: 11,00
    Afstand/ryg: 250,50
    Afstand/frem: 88,50
    Nr./tænder: 10
    B+: M10
    Position/50: 47
    Terminal 50: M5
    Gear type: GR
    Afstand 2: 127,00
    Afstand 3: 90,00
    Afstand mm: 89,00
    Rotation: Uret
    Total længde mm: 339,00
    Kobling type: Tør
    Drev type: Stål
    Prod. info: BN
    Vandtæt: Nej
    Oliesluttet: Nej
    Bemærkninger: Udskiftning: 7MT
    Nr./Mount. huller: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 10
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 47
    Clutch type Dry
    Prod. info BN
    Dist. 2 127.00
    Remarks Replacing: 7MT
    Dist. 3 90.00
    Rotation CW
    Dist./back 250.50
    Dist./front 88.50
    Drive dist. 45.00
    Drive type Steel
    Gear type GR
    kW 4.5
    Terminal 50 M5
    Voltage 24
    Total length 339.00 mm
    Waterproof No
    Dist. 89.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Køretøjsmatchning

    • OEM
      0-23000-2030, 0-23000-2031, 0-23000-2040, 0-23000-2270, 0-23000-2470, C4929600, F032111760, us857, 323-911, 367520rx, 860318, 1113277, 1113291, 1113594, 1998488, 3604677, 3604677RX, 3675204, 3909914, 3918377, 3918378, 3926932, 8200064, 10455500, 10461283, 10461286, 10461465, 10461468, 10461469, 10461486, 10479616, 10479622, 10479623, 10479655, 10479656

    • Konkurrentreferens
      BSO7195R, BSO7272, CST50653, CST60600, DRS3518, DRS3529, drz5168, F042003112, F042003113, F042S03112, F042S03113, LES0202, LRS02448, MS242, S1007, S9244, S9244(LETRIKA), sn-0087r, STR-7150, STR-7158, STR-7162, STR20001, STR7150, STR7158, STR7162, ts-1602, 8ea732680-001, 50-8416, 50-8421, 50-8434, 90-01-4361, 201-28201, 410-12111, 641.527.103, 641.528.103, 672.021.104, 6574, 6582, 6582N, 6582R, 6592N, 6592R, 6737, 23498A, 60857, 103971, 220601, 220601A, 8213287, 11023450, 0986023450

    • NormaliseratArtNr
      bso7195r, bso7272, c4929600, cst50653, cst60600, drs3518, drs3529, drz5168, f032111760, f042003112, f042003113, f042s03112, f042s03113, les0202, lrs02448, ms242, s1007, s9244, s9244letrika, sn0087r, str20001, str7150, str7158, str7162, ts1602, us857, 8ea732680001, 6574, 6582, 6582n, 6582r, 6592n, 6592r, 6737, 23498a, 60857, 103971, 220601, 220601a, 323911, 367520rx, 508416, 508421, 508434, 860318, 1113277, 1113291, 1113594, 1998488, 3604677, 3604677rx, 3675204, 3909914, 3918377, 3918378, 3926932, 8200064, 8213287, 10455500, 10461283, 10461286, 10461465, 10461468, 10461469, 10461486, 10479616, 10479622, 10479623, 10479655, 10479656, 11023450, 20128201, 41012111, 90014361, 0230002030, 0230002031, 0230002040, 0230002270, 0230002470, 641527103, 641528103, 672021104, 0986023450

    • Passar modeller
      Case Model: Various Models Model series: Various Models Approved: Yes
      Cummins Model: Various Models Model series: Various Models From date: 01-01-1987 Approved: Yes
