Vare nr.: F032113925

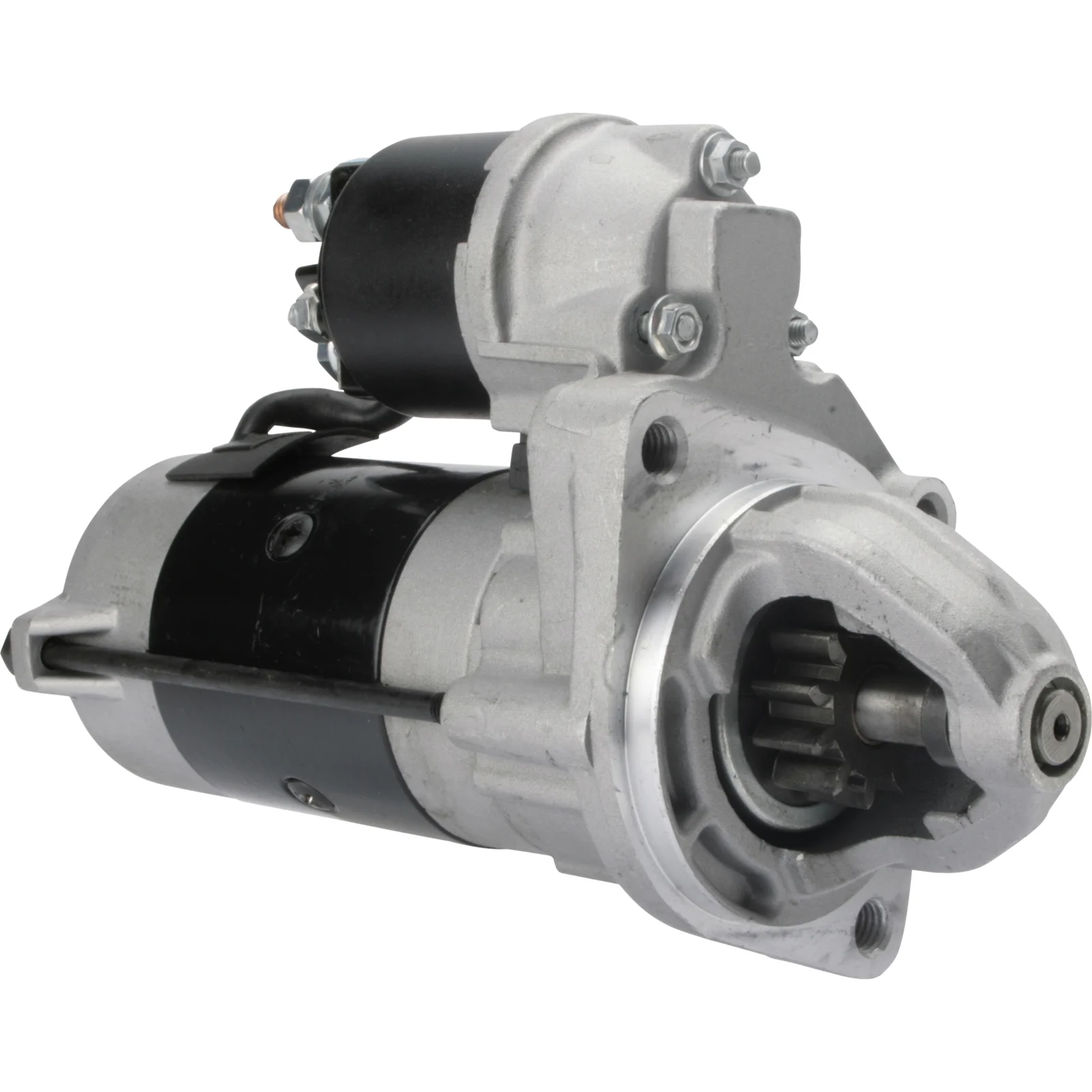

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, Kvalitet: 1,8, No./tænder: 11, Rotation: CW

Beskrivelse

Spænding: 12
kW: 1,8
Monteringsflange: 76,00
Drevafstand: 21,00
Monteringshul 3 mm: M10
Monteringshul 1 mm: 7,80
Afstand/bag: 167,50
Afstand/front: 57,00
Antal/tænder: 11
B+: M8
Position/50: 18
Terminal 50: M6
Geartype: GR
Afstand 2: 105,00
Afstand 3: 74,00
Afstand mm: 74,00
Rotation: med uret
Total længde mm: 227,00
Terminal 30h: M5
Position/30h: 45
Drevtype: Stål
Produktinfo: BN
Vandtæt: Nej
Oliekapslet: Nej
Antal monteringshuller: 3 (2)

Filer

Specifikation

B+ M8
No./teeth 11
Mount. flange 76.00
Oil sealed No
No./mount. holes 3 (2)
Position/30h 45
Position/50 18
Prod. info BN
Dist. 2 105.00
Dist. 3 74.00
Rotation CW
Dist./back 167.50
Dist./front 57.00
Drive dist. 21.00
Drive type Steel
Gear type GR
kW 1.8
Terminal 50 M6
Voltage 12
Total length 227.00 mm
Waterproof No
Dist. 74.00 mm
Terminal 30H M5 mm
Mount. hole 3 M10 mm
Mount. hole 1 7.80 mm

  • OEM
    cs1265, E5579N, F032113925, RGO 113925, 2247063, 2249295, 4496934, 63113001, 63193001, 12412247063, 12412249295, 12414496934

  • Konkurrentreferens
    CST30154, DENDSN504, DRS3929, DRS3929X, DSN504, F042S0H072, LRS01791, MSN808, S4031, STR-H072, 8EA738027-001, 26-3000, 315.120.112, 3184, 32791, 32791N, 32791R, 101265, 105158, 220508, 220508A, 458888, 8080191, 11022580, 42063193, 0986022581, 0986022583, 063193001010, 944280801910

  • NormaliseratArtNr
    cs1265, cst30154, dendsn504, drs3929, drs3929x, dsn504, e5579n, f032113925, f042s0h072, lrs01791, msn808, rgo113925, s4031, strh072, 8ea738027001, 3184, 32791, 32791n, 32791r, 101265, 105158, 220508, 220508a, 263000, 458888, 2247063, 2249295, 4496934, 8080191, 11022580, 42063193, 63113001, 63193001, 315120112, 0986022581, 0986022583, 12412247063, 12412249295, 12414496934, 063193001010, 944280801910

  • Passar modeller
    BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47204D1 Type description: E46 Body: Estate From date: 01-10-2002 To date: 01-03-2003 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47204D1 Type description: E46 From date: 01-09-2001 To date: 01-03-2003 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 Type description: E46 Body: Estate From date: 01-10-2002 To date: 01-03-2003 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 Type description: E46 From date: 01-09-2001 To date: 01-03-2003 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47204D1 Type description: E46 Body: Estate From date: 01-03-2000 To date: 01-09-2001 Fuel: Diesel Approved: Yes Manufacture type: touring
    BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47204D1 Type description: E46 From date: 01-02-1998 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47204D1 Type description: E46 From date: 01-04-1998 To date: 01-09-2001 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 Type description: E46 Body: Estate From date: 01-03-2000 To date: 01-09-2001 Fuel: Diesel Approved: Yes Manufacture type: touring
    BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 Type description: E46 From date: 01-04-1998 To date: 01-09-2001 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 520 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47204D1 Type description: E39 Body: Estate From date: 01-02-2000 To date: 01-09-2003 Fuel: Diesel Approved: Yes Manufacture type: touring
    BMW Model: 5 Model series: 520 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47204D1 Type description: E39 From date: 01-02-2000 To date: 01-06-2003 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 520 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 Type description: E39 Body: Estate From date: 01-02-2000 To date: 01-09-2003 Fuel: Diesel Approved: Yes Manufacture type: touring
    BMW Model: 5 Model series: 520 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 Type description: E39 From date: 01-02-2000 To date: 01-06-2003 Fuel: Diesel Approved: Yes
