Vare nr.: F032111690

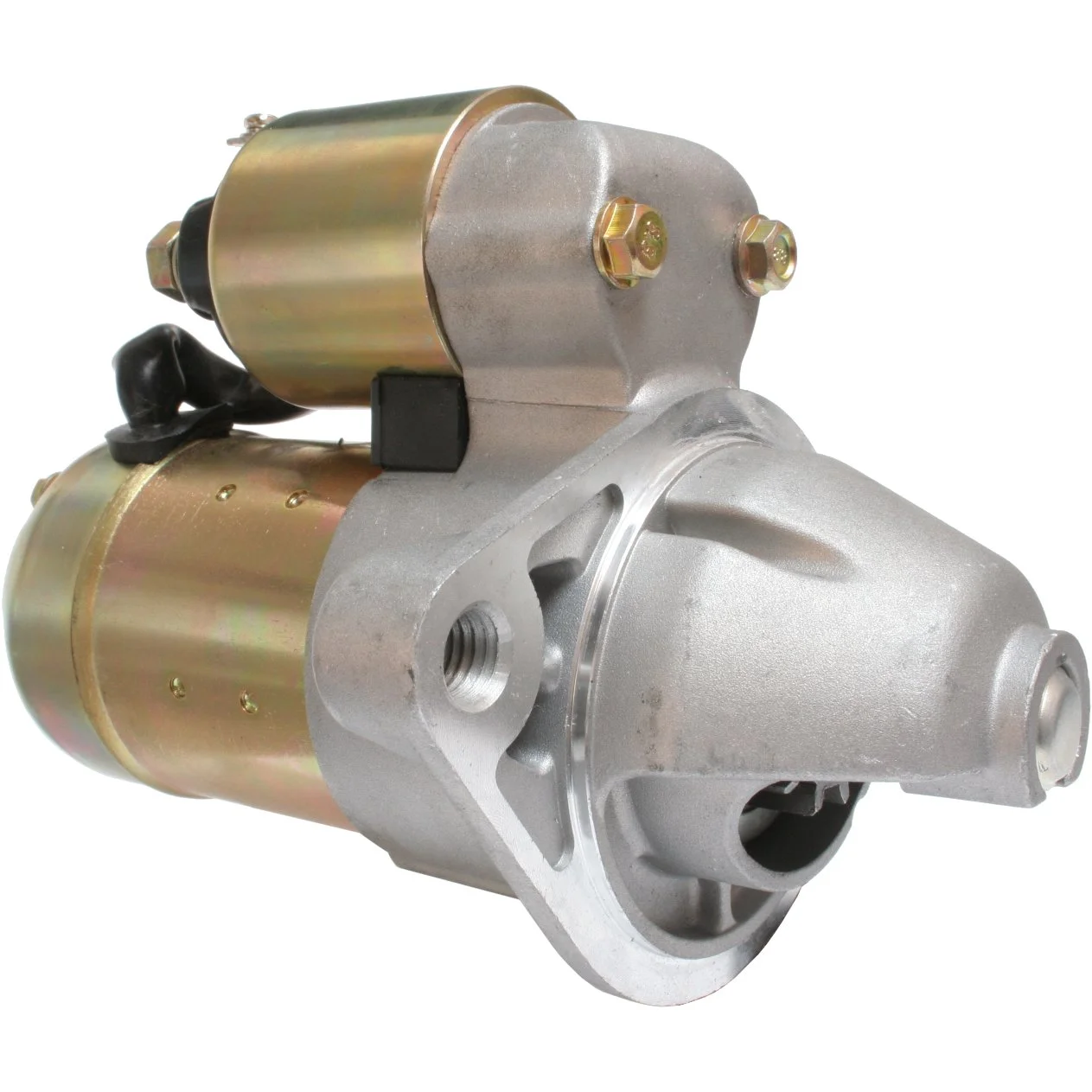

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 1.1, No./tænder: 11, Rotation: CW

Beskrivelse

HC-Cargo Startmotor Spænding: 12 kW: 1.1 Monteringsflange: 78.00 Drevs. afstand: 19.50 Monteringshuls. 1 mm: 10.00 Afstand/tilbagelægning: 139.50 Afstand/foran: 54.00 No./tænder: 11 B+: M8 Position/50: 60 Terminal 50: M4 Geartype: GR Drejning: CW Total længde mm: 193.50 Koblingstype: Vådt Drevetype: Stål Produktoplysninger: BN Vandtæt: Nej Olietæt: Nej No./monteringshuller: 2 (1)

Filer

Specifikation

B+ M8
No./teeth 11
Mount. flange 78.00
Oil sealed No
No./mount. holes 2 (1)
Position/50 60
Clutch type Wet
Prod. info BN
Rotation CW
Dist./back 139.50
Dist./front 54.00
Drive dist. 19.50
Drive type Steel
Gear type GR
kW 1.1
Terminal 50 M4
Voltage 12
Total length 193.50 mm
Waterproof No
Dist. 118.00 mm
Mount. hole 1 10.00 mm

  • OEM
    AZD3517, F032111690, js1091, R1040031, RGO 111690, s114-808, s114-808a, S114-808B, S114-808C, S114-808D, 11.139.409, 111690, 1202157, 09163638, 09512152, 90371773, 97150204, 8971502040, 8971502041, 8971502042

  • Konkurrentreferens
    BSO7117, CST20100, DRS3484, DRS3484N, F032US0051, F042001057, F042S01057, IS9317, LES0102, lrt00131, MS128, QS2620, S2002, STR-3056, STR3056, 8EA011610-611, 8ea737424-001, 25-2190, 328.036.112, 4533, 9741, 18328, 18328N, 18328R, 107291, 201091, 201195, 220046, 220046A, 438178, 455940, 726116, 726856, 726916, 8080018, 8213339, 11040196, 42114808, 0986018331, 0986018333, 944280800180

  • NormaliseratArtNr
    azd3517, bso7117, cst20100, drs3484, drs3484n, f032111690, f032us0051, f042001057, f042s01057, is9317, js1091, les0102, lrt00131, ms128, qs2620, r1040031, rgo111690, s114808, s114808a, s114808b, s114808c, s114808d, s2002, str3056, 8ea011610611, 8ea737424001, 4533, 9741, 18328, 18328n, 18328r, 107291, 111690, 201091, 201195, 220046, 220046a, 252190, 438178, 455940, 726116, 726856, 726916, 1202157, 8080018, 8213339, 09163638, 09512152, 11040196, 11139409, 42114808, 90371773, 97150204, 328036112, 0986018331, 0986018333, 8971502040, 8971502041, 8971502042, 944280800180

  • Passar modeller
    Opel Model: Astra Model series: Astra F Type of engine: TD Size of motor: 1.7 Brand of engine: X17DT (TC4EE1) Type description: 55_ Body: Van From date: 01-03-1995 To date: 01-02-1998 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra F Type of engine: TDS Size of motor: 1.7 Brand of engine: 17DT (TC4EE1) Body: Estate From date: 01-12-1991 To date: 01-01-1998 Fuel: Diesel Approved: Yes Manufacture type: Caravan
    Opel Model: Astra Model series: Astra F Type of engine: TDS Size of motor: 1.7 Brand of engine: 17DT (TC4EE1) Body: Hatchback From date: 01-12-1991 To date: 01-01-1998 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra F Type of engine: TDS Size of motor: 1.7 Brand of engine: 17DT (TC4EE1) From date: 01-03-1992 To date: 01-09-1998 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra F Type of engine: TDS Size of motor: 1.7 Brand of engine: X17DT (TC4EE1) Body: Estate From date: 01-12-1991 To date: 01-01-1998 Fuel: Diesel Approved: Yes Manufacture type: Caravan
    Opel Model: Astra Model series: Astra F Type of engine: TDS Size of motor: 1.7 Brand of engine: X17DT (TC4EE1) Body: Hatchback From date: 01-12-1991 To date: 01-01-1998 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra F Type of engine: TDS Size of motor: 1.7 Brand of engine: X17DT (TC4EE1) From date: 01-03-1992 To date: 01-09-1998 Fuel: Diesel Approved: Yes
    Opel Model: Vectra Model series: Vectra B Type of engine: TD Size of motor: 1.7 Brand of engine: X17DT (TC4EE1) Body: Hatchback From date: 01-10-1995 To date: 01-12-1998 Fuel: Diesel Approved: Yes
    Opel Model: Vectra Model series: Vectra B Type of engine: TD Size of motor: 1.7 Brand of engine: X17DT (TC4EE1) From date: 01-10-1995 To date: 01-12-1998 Fuel: Diesel Approved: Yes
    Vauxhall Model: Astra Model series: Astra F Type of engine: TD Size of motor: 1.7 Brand of engine: 17DT (TC4EE1) Body: Estate From date: 01-12-1991 To date: 01-02-1998 Fuel: Diesel Approved: Yes
    Vauxhall Model: Astra Model series: Astra F Type of engine: TD Size of motor: 1.7 Brand of engine: 17DT (TC4EE1) Body: Hatchback From date: 01-12-1991 To date: 01-02-1998 Fuel: Diesel Approved: Yes
    Vauxhall Model: Vectra Model series: Vectra Type of engine: TD Size of motor: 1.7 Brand of engine: X17DT (TC4EE1) Body: Hatchback From date: 01-10-1995 To date: 01-11-1996 Fuel: Diesel Approved: Yes
    Vauxhall Model: Vectra Model series: Vectra Type of engine: TD Size of motor: 1.7 Brand of engine: X17DT (TC4EE1) From date: 01-10-1995 To date: 01-11-1996 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivelse
    HC-Cargo Startmotor Spænding: 12 kW: 1.1 Monteringsflange: 78.00 Drevs. afstand: 19.50 Monteringshuls. 1 mm: 10.00 Afstand/tilbagelægning: 139.50 Afstand/foran: 54.00 No./tænder: 11 B+: M8 Position/50: 60 Terminal 50: M4 Geartype: GR Drejning: CW Total længde mm: 193.50 Koblingstype: Vådt Drevetype: Stål Produktoplysninger: BN Vandtæt: Nej Olietæt: Nej No./monteringshuller: 2 (1)

    Filer

  • Specifikation
    B+ M8
    No./teeth 11
    Mount. flange 78.00
    Oil sealed No
    No./mount. holes 2 (1)
    Position/50 60
    Clutch type Wet
    Prod. info BN
    Rotation CW
    Dist./back 139.50
    Dist./front 54.00
    Drive dist. 19.50
    Drive type Steel
    Gear type GR
    kW 1.1
    Terminal 50 M4
    Voltage 12
    Total length 193.50 mm
    Waterproof No
    Dist. 118.00 mm
    Mount. hole 1 10.00 mm
  • Køretøjsmatchning

    • OEM
      AZD3517, F032111690, js1091, R1040031, RGO 111690, s114-808, s114-808a, S114-808B, S114-808C, S114-808D, 11.139.409, 111690, 1202157, 09163638, 09512152, 90371773, 97150204, 8971502040, 8971502041, 8971502042

    • Konkurrentreferens
      BSO7117, CST20100, DRS3484, DRS3484N, F032US0051, F042001057, F042S01057, IS9317, LES0102, lrt00131, MS128, QS2620, S2002, STR-3056, STR3056, 8EA011610-611, 8ea737424-001, 25-2190, 328.036.112, 4533, 9741, 18328, 18328N, 18328R, 107291, 201091, 201195, 220046, 220046A, 438178, 455940, 726116, 726856, 726916, 8080018, 8213339, 11040196, 42114808, 0986018331, 0986018333, 944280800180

    • NormaliseratArtNr
      azd3517, bso7117, cst20100, drs3484, drs3484n, f032111690, f032us0051, f042001057, f042s01057, is9317, js1091, les0102, lrt00131, ms128, qs2620, r1040031, rgo111690, s114808, s114808a, s114808b, s114808c, s114808d, s2002, str3056, 8ea011610611, 8ea737424001, 4533, 9741, 18328, 18328n, 18328r, 107291, 111690, 201091, 201195, 220046, 220046a, 252190, 438178, 455940, 726116, 726856, 726916, 1202157, 8080018, 8213339, 09163638, 09512152, 11040196, 11139409, 42114808, 90371773, 97150204, 328036112, 0986018331, 0986018333, 8971502040, 8971502041, 8971502042, 944280800180

    • Passar modeller
      Opel Model: Astra Model series: Astra F Type of engine: TD Size of motor: 1.7 Brand of engine: X17DT (TC4EE1) Type description: 55_ Body: Van From date: 01-03-1995 To date: 01-02-1998 Fuel: Diesel Approved: Yes
      Opel Model: Astra Model series: Astra F Type of engine: TDS Size of motor: 1.7 Brand of engine: 17DT (TC4EE1) Body: Estate From date: 01-12-1991 To date: 01-01-1998 Fuel: Diesel Approved: Yes Manufacture type: Caravan
      Opel Model: Astra Model series: Astra F Type of engine: TDS Size of motor: 1.7 Brand of engine: 17DT (TC4EE1) Body: Hatchback From date: 01-12-1991 To date: 01-01-1998 Fuel: Diesel Approved: Yes
      Opel Model: Astra Model series: Astra F Type of engine: TDS Size of motor: 1.7 Brand of engine: 17DT (TC4EE1) From date: 01-03-1992 To date: 01-09-1998 Fuel: Diesel Approved: Yes
      Opel Model: Astra Model series: Astra F Type of engine: TDS Size of motor: 1.7 Brand of engine: X17DT (TC4EE1) Body: Estate From date: 01-12-1991 To date: 01-01-1998 Fuel: Diesel Approved: Yes Manufacture type: Caravan
      Opel Model: Astra Model series: Astra F Type of engine: TDS Size of motor: 1.7 Brand of engine: X17DT (TC4EE1) Body: Hatchback From date: 01-12-1991 To date: 01-01-1998 Fuel: Diesel Approved: Yes
      Opel Model: Astra Model series: Astra F Type of engine: TDS Size of motor: 1.7 Brand of engine: X17DT (TC4EE1) From date: 01-03-1992 To date: 01-09-1998 Fuel: Diesel Approved: Yes
      Opel Model: Vectra Model series: Vectra B Type of engine: TD Size of motor: 1.7 Brand of engine: X17DT (TC4EE1) Body: Hatchback From date: 01-10-1995 To date: 01-12-1998 Fuel: Diesel Approved: Yes
      Opel Model: Vectra Model series: Vectra B Type of engine: TD Size of motor: 1.7 Brand of engine: X17DT (TC4EE1) From date: 01-10-1995 To date: 01-12-1998 Fuel: Diesel Approved: Yes
      Vauxhall Model: Astra Model series: Astra F Type of engine: TD Size of motor: 1.7 Brand of engine: 17DT (TC4EE1) Body: Estate From date: 01-12-1991 To date: 01-02-1998 Fuel: Diesel Approved: Yes
      Vauxhall Model: Astra Model series: Astra F Type of engine: TD Size of motor: 1.7 Brand of engine: 17DT (TC4EE1) Body: Hatchback From date: 01-12-1991 To date: 01-02-1998 Fuel: Diesel Approved: Yes
      Vauxhall Model: Vectra Model series: Vectra Type of engine: TD Size of motor: 1.7 Brand of engine: X17DT (TC4EE1) Body: Hatchback From date: 01-10-1995 To date: 01-11-1996 Fuel: Diesel Approved: Yes
      Vauxhall Model: Vectra Model series: Vectra Type of engine: TD Size of motor: 1.7 Brand of engine: X17DT (TC4EE1) From date: 01-10-1995 To date: 01-11-1996 Fuel: Diesel Approved: Yes
