Vare nr.: F032113847

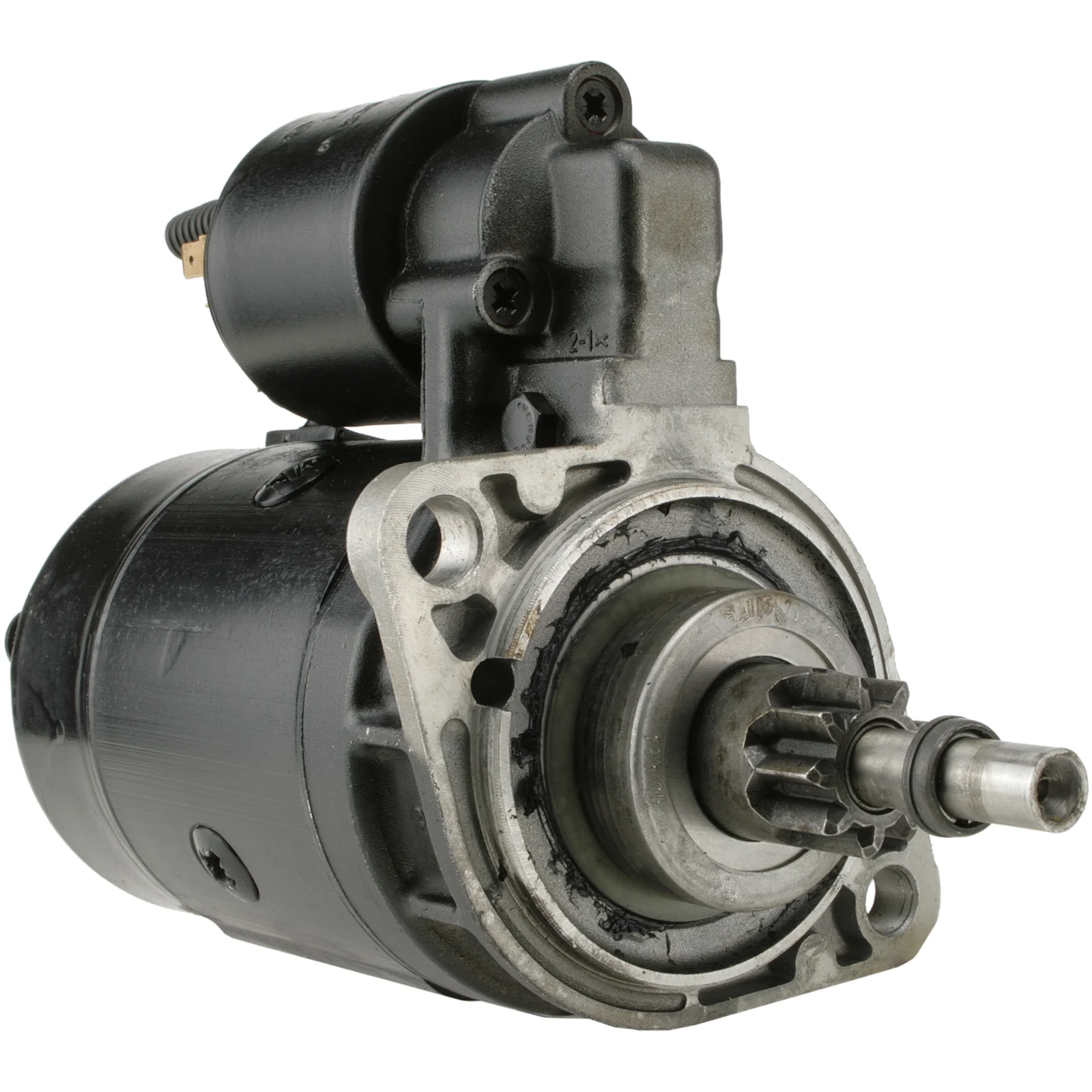

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 0.95, No./tænder: 9, Rotation: CCW

Beskrivelse

VW Startmotor 12V-0.95kW 12V - 0,95kW, 9t, CCW Til Yourex produktordre 91-620-1483

Spænding: 12
kW: 0,95
Monteringsflange: 76,20
Drevafstand: 43,50
Monteringshul 2 mm: 11,80
Monteringshul 1 mm: 10,40
Afstand/bag: 159,00
Afstand/frem: 77,50
Antal/tænder: 9
B+: M8
Position/50: 15
Terminal 50: 6,30
Geartype: DD/GR
Afstand mm: 105,00
Rotation: CCW
Total længde mm: 241,00
Koblingstype: Tør
Drevtype: Stål
Producentinfo: BN
Vandtæt: Nej
Oliestop: Nej
Antal./monteringshuller: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 76.20
Oil sealed No
No./mount. holes 2 (0)
Position/50 15
Clutch type Dry
Prod. info BN
Rotation CCW
Dist./back 159.00
Dist./front 77.50
Drive dist. 43.50
Drive type Steel
Gear type DD/GR
kW 0.95
Terminal 50 6.30
Voltage 12
Total length 241.00 mm
Waterproof No
Dist. 105.00 mm
Mount. hole 2 11.80 mm
Mount. hole 1 10.40 mm

  • OEM
    cs683, F032113847, RGO 113847, 0001 208 425, 0001 208 426, 0001 208 428, 0001 208 429, 0986 014 830, 113847, 0001208425, 0001208426, 0001208428, 0001208429, 1516789R, 025911023, 025911023a, 025911023AX

  • Konkurrentreferens
    CST10541, drs4830, lrs00790, S0077, 8ea730199-001, 25-0385, 41-14.830, 311.031.092, 1325, 10683, 11397, 17066N, 17066R, 103409, 220357, 220357A, 455625, 8014830, 11014830, 42014830, 943251436, 0986014830, 0986014837, 943251436010, 944280148300

  • Bilmärken
    VW

  • NormaliseratArtNr
    cs683, cst10541, drs4830, f032113847, lrs00790, rgo113847, s0077, 8ea730199001, 1325, 10683, 11397, 17066n, 17066r, 103409, 113847, 220357, 220357a, 250385, 455625, 0001208425, 0001208426, 0001208428, 0001208429, 1516789r, 4114830, 8014830, 11014830, 025911023, 025911023a, 025911023ax, 42014830, 311031092, 943251436, 0986014830, 0986014837, 943251436010, 944280148300

  • Passar modeller
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 1.9 Brand of engine: DF Body: Bus From date: 01-08-1982 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 1.9 Brand of engine: DF Body: Platform / Chassis From date: 01-09-1982 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 1.9 Brand of engine: DF Body: Van From date: 01-10-1982 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 1.9 Brand of engine: DG Body: Bus From date: 01-08-1982 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 1.9 Brand of engine: DG Body: Platform / Chassis From date: 01-08-1982 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 1.9 Brand of engine: DG Body: Van From date: 01-10-1982 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 2.1 Brand of engine: DJ Body: Bus From date: 01-08-1984 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 2.1 Brand of engine: DJ Body: Platform / Chassis From date: 01-03-1986 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 2.1 Brand of engine: DJ Body: Van From date: 01-03-1986 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 2.1 Brand of engine: MV Body: Bus From date: 01-06-1989 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 2.1 Brand of engine: MV Body: Bus From date: 01-08-1985 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 2.1 Brand of engine: MV Body: Platform / Chassis From date: 01-08-1985 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 2.1 Brand of engine: MV Body: Van From date: 01-08-1985 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 2.1 Brand of engine: SR Body: Bus From date: 01-10-1986 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 2.1 Brand of engine: SS Body: Bus From date: 01-07-1989 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Size of motor: 1.9 Brand of engine: DG Body: Bus From date: 01-02-1985 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Size of motor: 1.9 Brand of engine: DG Body: Platform / Chassis From date: 01-12-1984 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Size of motor: 1.9 Brand of engine: DG Body: Van From date: 01-11-1984 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Size of motor: 2.1 Brand of engine: DJ Body: Bus From date: 01-01-1986 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Size of motor: 2.1 Brand of engine: DJ Body: Platform / Chassis From date: 01-03-1986 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Size of motor: 2.1 Brand of engine: DJ Body: Van From date: 01-03-1986 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Size of motor: 2.1 Brand of engine: MV Body: Bus From date: 01-08-1985 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Size of motor: 2.1 Brand of engine: MV Body: Van From date: 01-08-1985 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Size of motor: 2.1 Brand of engine: SR Body: Bus From date: 01-10-1986 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Type of engine: i Size of motor: 2.1 Brand of engine: SS Body: Platform / Chassis From date: 01-07-1989 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Type of engine: i Size of motor: 2.1 Brand of engine: SS Body: Van From date: 01-07-1989 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Trucks & Vans Series: Transporter III Model: 1.9 MAN Engine volume: 1.9 Engine type: DG Year: 08.82-07.92
    VW Trucks & Vans Series: Transporter III Model: 2.0 Engine volume: 2.0 Engine type: CU / CV Year: 01.81-12.82
    VW Trucks & Vans Series: Transporter III Model: 2.1 Engine volume: 2.1 Engine type: MV / DJ Year: 07.85-07.92
    VW Trucks & Vans Series: Transporter III Model: 2.1 Syncro Engine volume: 2.1 Engine type: MV / DJ Year: 08.85-07.92
    VW Trucks & Vans Series: Transporter III Model: 2.1i Engine volume: 2.1 Engine type: SS Year: 08.89-07.92
    VW Trucks & Vans Series: Transporter III Buss Model: 1.9 Engine volume: 1.9 Engine type: SP Year: 08.87-07.89
    VW Trucks & Vans Series: Transporter III Buss Model: 1.9 Engine volume: 1.9 Year: 08.83-07.92
    VW Trucks & Vans Series: Transporter III Buss Model: 2.1 MAN Engine volume: 2.1 Engine type: DJ Year: 08.85-07.92
    VW Trucks & Vans Series: Transporter III Buss Model: 2.1 Syncro Engine volume: 2.1 Engine type: DJ/MV/SR Year: 08.85-07.92
    VW Trucks & Vans Series: Transporter III Flak Model: 2.1 Engine volume: 2.1 Engine type: DJ Year: 03.86-07.92
    VW Trucks & Vans Series: Transporter III Flak Model: 2.1 Engine volume: 2.1 Engine type: MV Year: 08.85-07.92
