Vare nr.: F032112014

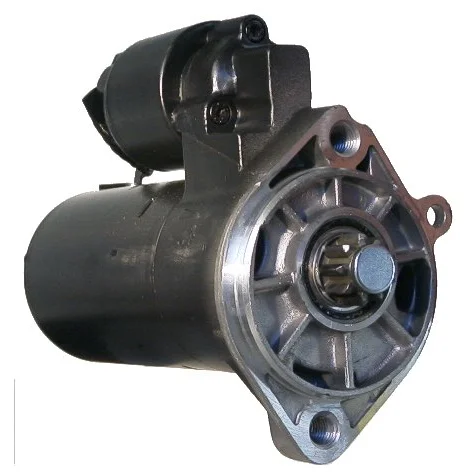

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 2.0, No./tænder: 9, Rotation: CW

Beskrivelse

Spenning: 12
kW: 2.0
Mount. flange: 82,50
Drevafstand: 21,00
Afstand/bag: 211,50
Afstand/frem: 24,50
Antal./tænder: 9
B+: M8
Position/B+: 40
Position/50: 55
Terminal 50: Stik
Gear typ: GR
Afstand mm: 105,00
Rotation: med uret
Total længde mm: 237,00
Koblingstype: Tør
Drevetype: Stål
Fremstillingsinfo: BN
Vandtæt: Nej
Olieforseglet: Nej
No./montagehuller: 2 (2)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (2)
Position/50 55
Clutch type Dry
Position/B+ 40
Prod. info BN
Rotation CW
Dist./back 211.50
Dist./front 24.50
Drive dist. 21.00
Drive type Steel
Gear type GR
kW 2.0
Terminal 50 Plug
Voltage 12
Total length 237.00 mm
Waterproof No
Dist. 105.00 mm

  • OEM
    cs1115, F032112014, RGO 112014, 0001125503, 0001125504, 0001125513, 0001125514, 1516661R, 069911023h, 069911023HX, 069911023K, 069911023KX

  • Konkurrentreferens
    cst10555, DRS3809, LRS01519, PBNS3055, S0169, STR50178, 8ea737567-001, 25-2492, 311.072.092, 4573, 32555N, 101115, 104382, 11090034, 20513055, 0986023800

  • NormaliseratArtNr
    cs1115, cst10555, drs3809, f032112014, lrs01519, pbns3055, rgo112014, s0169, str50178, 8ea737567001, 4573, 32555n, 101115, 104382, 252492, 0001125503, 0001125504, 0001125513, 0001125514, 1516661r, 11090034, 20513055, 069911023h, 069911023hx, 069911023k, 069911023kx, 311072092, 0986023800

  • Passar modeller
    VW Model: LT Model series: LT 28-35 Type of engine: SDi Size of motor: 2.5 Brand of engine: AGX Body: Bus From date: 01-07-1996 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: SDi Size of motor: 2.5 Brand of engine: AGX Body: Platform / Chassis From date: 01-09-1996 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: SDi Size of motor: 2.5 Brand of engine: AGX Body: Van From date: 01-09-1996 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 40-55 Type of engine: SDi Size of motor: 2.5 Brand of engine: AGX Body: Platform / Chassis From date: 01-09-1996 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 40-55 Type of engine: SDi Size of motor: 2.5 Brand of engine: AGX Body: Van From date: 01-09-1996 To date: 01-07-2006 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenning: 12
    kW: 2.0
    Mount. flange: 82,50
    Drevafstand: 21,00
    Afstand/bag: 211,50
    Afstand/frem: 24,50
    Antal./tænder: 9
    B+: M8
    Position/B+: 40
    Position/50: 55
    Terminal 50: Stik
    Gear typ: GR
    Afstand mm: 105,00
    Rotation: med uret
    Total længde mm: 237,00
    Koblingstype: Tør
    Drevetype: Stål
    Fremstillingsinfo: BN
    Vandtæt: Nej
    Olieforseglet: Nej
    No./montagehuller: 2 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 82.50
    Oil sealed No
    No./mount. holes 2 (2)
    Position/50 55
    Clutch type Dry
    Position/B+ 40
    Prod. info BN
    Rotation CW
    Dist./back 211.50
    Dist./front 24.50
    Drive dist. 21.00
    Drive type Steel
    Gear type GR
    kW 2.0
    Terminal 50 Plug
    Voltage 12
    Total length 237.00 mm
    Waterproof No
    Dist. 105.00 mm
  • Køretøjsmatchning

    • OEM
      cs1115, F032112014, RGO 112014, 0001125503, 0001125504, 0001125513, 0001125514, 1516661R, 069911023h, 069911023HX, 069911023K, 069911023KX

    • Konkurrentreferens
      cst10555, DRS3809, LRS01519, PBNS3055, S0169, STR50178, 8ea737567-001, 25-2492, 311.072.092, 4573, 32555N, 101115, 104382, 11090034, 20513055, 0986023800

    • NormaliseratArtNr
      cs1115, cst10555, drs3809, f032112014, lrs01519, pbns3055, rgo112014, s0169, str50178, 8ea737567001, 4573, 32555n, 101115, 104382, 252492, 0001125503, 0001125504, 0001125513, 0001125514, 1516661r, 11090034, 20513055, 069911023h, 069911023hx, 069911023k, 069911023kx, 311072092, 0986023800

    • Passar modeller
      VW Model: LT Model series: LT 28-35 Type of engine: SDi Size of motor: 2.5 Brand of engine: AGX Body: Bus From date: 01-07-1996 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 28-35 Type of engine: SDi Size of motor: 2.5 Brand of engine: AGX Body: Platform / Chassis From date: 01-09-1996 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 28-35 Type of engine: SDi Size of motor: 2.5 Brand of engine: AGX Body: Van From date: 01-09-1996 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 40-55 Type of engine: SDi Size of motor: 2.5 Brand of engine: AGX Body: Platform / Chassis From date: 01-09-1996 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 40-55 Type of engine: SDi Size of motor: 2.5 Brand of engine: AGX Body: Van From date: 01-09-1996 To date: 01-07-2006 Fuel: Diesel Approved: Yes
