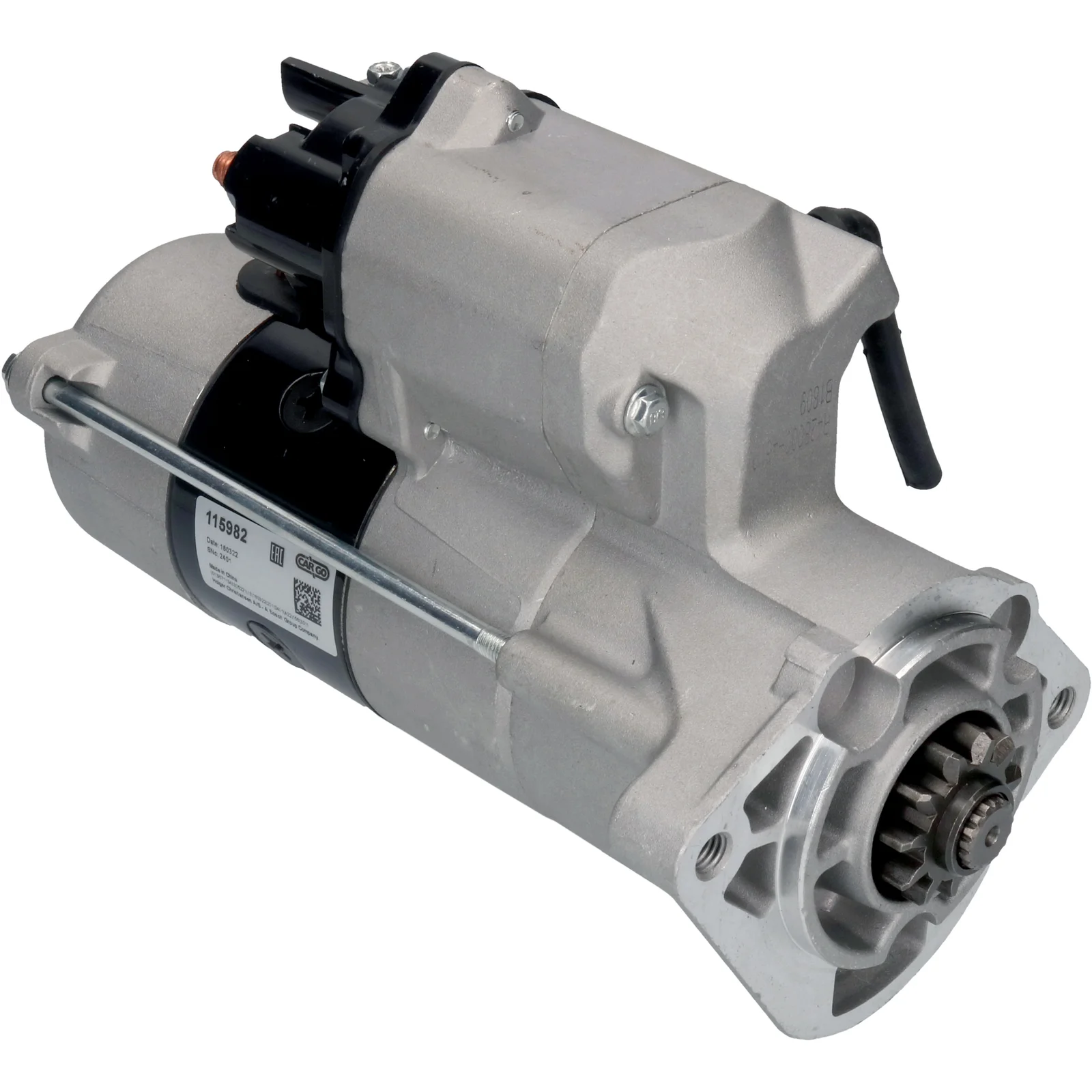

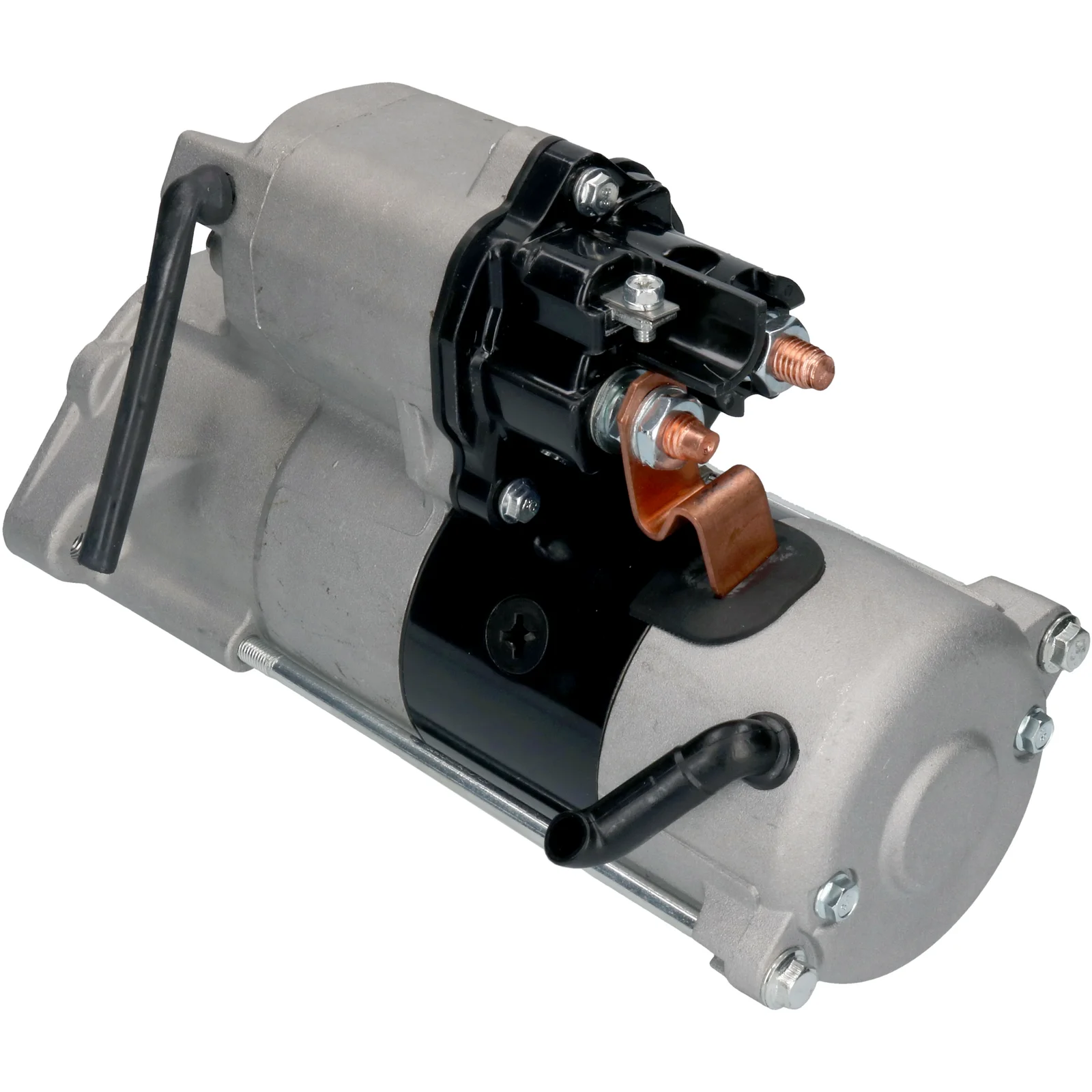

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032115982

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 2,7, Nr./tænder: 11, Rotation: CW

Beskrivelse

Spænding: 12
kW: 2,7
Monteringsflange: 80,00
Drevafstand: 17,00
Afstand/bag: 256,00
Afstand/foran: 22,00
Nr./tænder: 11
B+: M10
Position/50: 55
Terminal 50: M5
Geartype: GR
Afstand mm: 119,00
Rotation: CW
Total længde mm: 278,00
Nr./monteringshuller: 2 (2)

Filer

Specifikation

B+ M10
No./teeth 11
Mount. flange 80.00
No./mount. holes 2 (2)
Position/50 55
Rotation CW
Dist./back 256.00
Dist./front 22.00
Drive dist. 17.00
Gear type GR
kW 2.7
Terminal 50 M5
Voltage 12
Total length 278.00 mm
Dist. 119.00 mm

  • OEM
    F032115982, LR021461, LR029152, LR032541, nad500280, RGO 115982, 7H4211001AB, 7H4211001AC, 1986S00974, 428000-4610, 428000-4611, 428000-4612

  • Konkurrentreferens
    CST40266, CST40466, DRS0485, DSN1207, LRS02334, S6264S, 8EA011612-021, 25-4006, 339.019.112, 450.519.112, 33334N, 33334R, 220828, 220828A, 254331, 458996, 8080256, 11040782, 42009000

  • NormaliseratArtNr
    cst40266, cst40466, drs0485, dsn1207, f032115982, lr021461, lr029152, lr032541, lrs02334, nad500280, rgo115982, s6264s, 7h4211001ab, 7h4211001ac, 8ea011612021, 1986s00974, 33334n, 33334r, 220828, 220828a, 254006, 254331, 458996, 8080256, 11040782, 42009000, 339019112, 450519112, 4280004610, 4280004611, 4280004612

  • Passar modeller
    Land Rover Model: Range Rover Model series: Range Rover Type of engine: TD V8 Size of motor: 4.4 Brand of engine: 448DT Type description: LM From date: 01-07-2010 To date: 01-08-2012 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Type of engine: TD8 Size of motor: 3.6 Brand of engine: 368DT From date: 01-04-2006 To date: 01-03-2013 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Type of engine: TD8 Size of motor: 3.6 Brand of engine: 368DT From date: 01-04-2006 To date: 01-08-2012 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 12
    kW: 2,7
    Monteringsflange: 80,00
    Drevafstand: 17,00
    Afstand/bag: 256,00
    Afstand/foran: 22,00
    Nr./tænder: 11
    B+: M10
    Position/50: 55
    Terminal 50: M5
    Geartype: GR
    Afstand mm: 119,00
    Rotation: CW
    Total længde mm: 278,00
    Nr./monteringshuller: 2 (2)

    Filer

  • Specifikation
    B+ M10
    No./teeth 11
    Mount. flange 80.00
    No./mount. holes 2 (2)
    Position/50 55
    Rotation CW
    Dist./back 256.00
    Dist./front 22.00
    Drive dist. 17.00
    Gear type GR
    kW 2.7
    Terminal 50 M5
    Voltage 12
    Total length 278.00 mm
    Dist. 119.00 mm
  • Køretøjsmatchning

    • OEM
      F032115982, LR021461, LR029152, LR032541, nad500280, RGO 115982, 7H4211001AB, 7H4211001AC, 1986S00974, 428000-4610, 428000-4611, 428000-4612

    • Konkurrentreferens
      CST40266, CST40466, DRS0485, DSN1207, LRS02334, S6264S, 8EA011612-021, 25-4006, 339.019.112, 450.519.112, 33334N, 33334R, 220828, 220828A, 254331, 458996, 8080256, 11040782, 42009000

    • NormaliseratArtNr
      cst40266, cst40466, drs0485, dsn1207, f032115982, lr021461, lr029152, lr032541, lrs02334, nad500280, rgo115982, s6264s, 7h4211001ab, 7h4211001ac, 8ea011612021, 1986s00974, 33334n, 33334r, 220828, 220828a, 254006, 254331, 458996, 8080256, 11040782, 42009000, 339019112, 450519112, 4280004610, 4280004611, 4280004612

    • Passar modeller
      Land Rover Model: Range Rover Model series: Range Rover Type of engine: TD V8 Size of motor: 4.4 Brand of engine: 448DT Type description: LM From date: 01-07-2010 To date: 01-08-2012 Fuel: Diesel Approved: Yes
      Land Rover Model: Range Rover Model series: Range Rover Type of engine: TD8 Size of motor: 3.6 Brand of engine: 368DT From date: 01-04-2006 To date: 01-03-2013 Fuel: Diesel Approved: Yes
      Land Rover Model: Range Rover Model series: Range Rover Type of engine: TD8 Size of motor: 3.6 Brand of engine: 368DT From date: 01-04-2006 To date: 01-08-2012 Fuel: Diesel Approved: Yes
