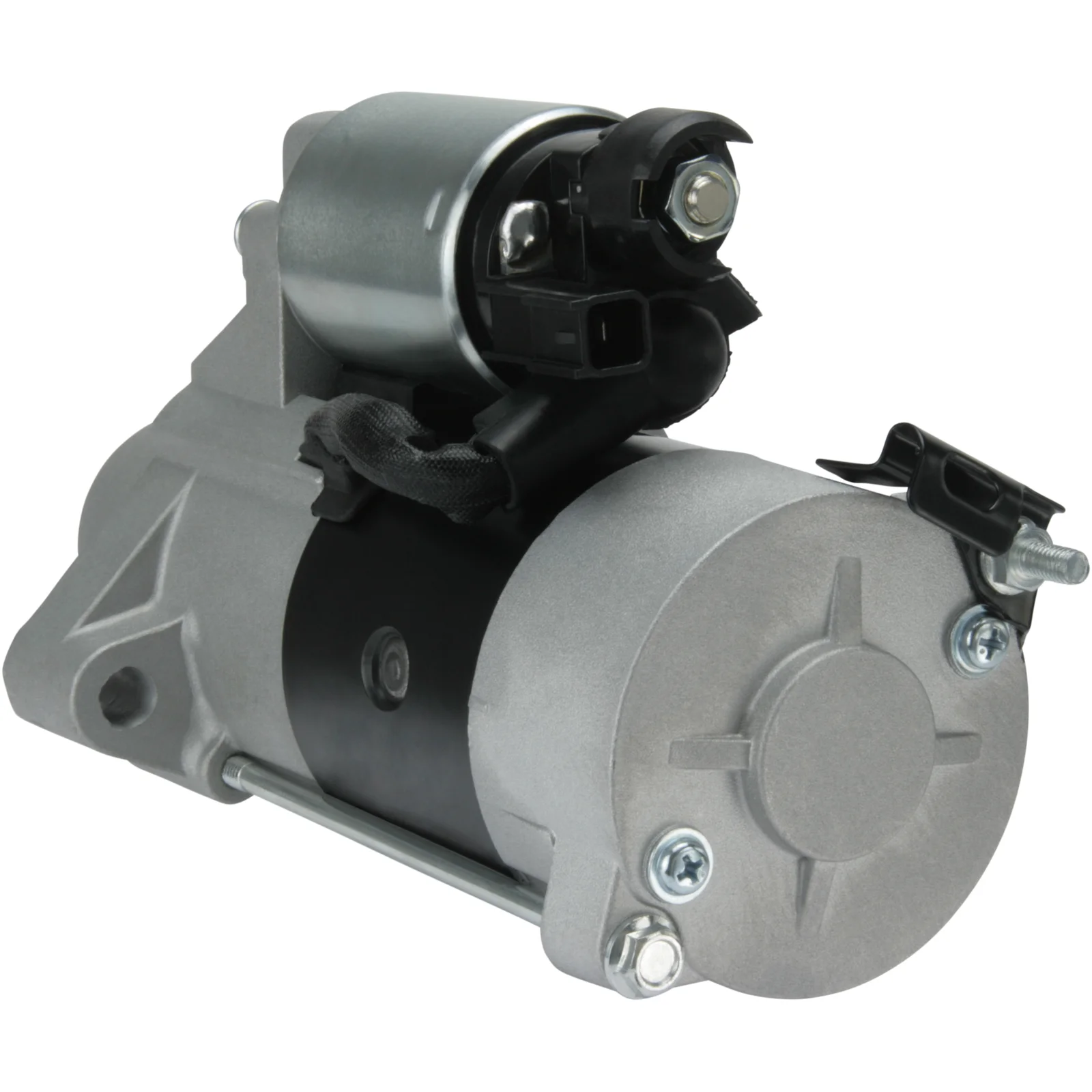

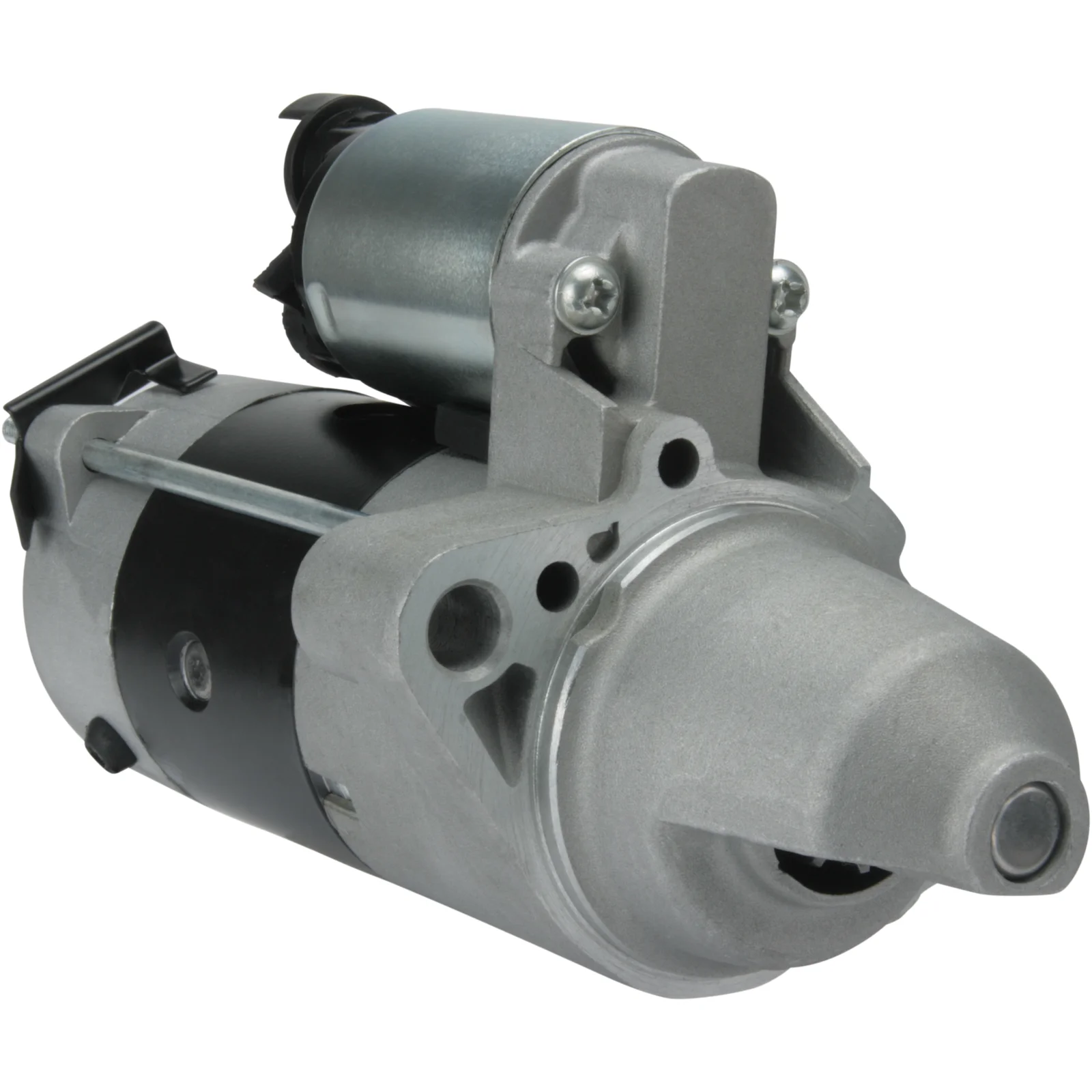

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032115627

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 2.0, No./tænder: 9, Rotation: CW

Beskrivelse

Spænding: 12
kW: 2.0
Monteringsflange: 75.00
Drevsdist.: 33.00
Monteringshul 2 mm: 13.00
Monteringshul 1 mm: 11.00
Dist./bag: 170.50
Dist./front: 69.00
Nr./tænder: 9
B+: M8
Trådlængde mm: 11.00
Position/50: 40
Terminal 50: Stik
Gear type: GR
Monteringsbeslag: w/
Dist. mm: 109.50
Rotation: CW
Total længde mm: 248.50
Produkts info: BN
Nr./monteringshuller: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. bracket w/
Mount. flange 75.00
No./mount. holes 2 (0)
Position/50 40
Prod. info BN
Rotation CW
Dist./back 170.50
Dist./front 69.00
Drive dist. 33.00
Gear type GR
kW 2.0
Terminal 50 Plug
Voltage 12
Total length 248.50 mm
Dist. 109.50 mm
Thread length 11.00 mm
Mount. hole 2 13.00 mm
Mount. hole 1 11.00 mm

  • OEM
    cs1457, F032115627, M002T85871, M2T85871, MHG025, RGO 116246, 31200-RSR-E01

  • Konkurrentreferens
    CST35309, DRS0402, LRS02281, S5144, 8EA011611-861, 25-3452, 120.533.092, 322.054.092, 33281, 33281N, 101457, 220958, 220958A, 11040855, 0986025750

  • NormaliseratArtNr
    cs1457, cst35309, drs0402, f032115627, lrs02281, m002t85871, m2t85871, mhg025, rgo116246, s5144, 8ea011611861, 31200rsre01, 33281, 33281n, 101457, 220958, 220958a, 253452, 11040855, 120533092, 322054092, 0986025750

  • Passar modeller
    Honda Model: Civic Model series: Civic Type of engine: CTDi Size of motor: 2.2 Brand of engine: N22A2 Type description: FD_ Body: Hatchback From date: 01-09-2005 Fuel: Diesel Approved: Yes
    Honda Model: CR-V Model series: CR-V Type of engine: CTDi Size of motor: 2.2 Brand of engine: N22A2 Type description: RD_ Body: SUV From date: 01-02-2005 To date: 01-09-2006 Fuel: Diesel Approved: Yes
    Honda Model: CR-V Model series: CR-V Type of engine: i CTDi Size of motor: 2.2 Brand of engine: N22A2 Type description: RE_ Body: SUV From date: 01-01-2007 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 12
    kW: 2.0
    Monteringsflange: 75.00
    Drevsdist.: 33.00
    Monteringshul 2 mm: 13.00
    Monteringshul 1 mm: 11.00
    Dist./bag: 170.50
    Dist./front: 69.00
    Nr./tænder: 9
    B+: M8
    Trådlængde mm: 11.00
    Position/50: 40
    Terminal 50: Stik
    Gear type: GR
    Monteringsbeslag: w/
    Dist. mm: 109.50
    Rotation: CW
    Total længde mm: 248.50
    Produkts info: BN
    Nr./monteringshuller: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. bracket w/
    Mount. flange 75.00
    No./mount. holes 2 (0)
    Position/50 40
    Prod. info BN
    Rotation CW
    Dist./back 170.50
    Dist./front 69.00
    Drive dist. 33.00
    Gear type GR
    kW 2.0
    Terminal 50 Plug
    Voltage 12
    Total length 248.50 mm
    Dist. 109.50 mm
    Thread length 11.00 mm
    Mount. hole 2 13.00 mm
    Mount. hole 1 11.00 mm
  • Køretøjsmatchning

    • OEM
      cs1457, F032115627, M002T85871, M2T85871, MHG025, RGO 116246, 31200-RSR-E01

    • Konkurrentreferens
      CST35309, DRS0402, LRS02281, S5144, 8EA011611-861, 25-3452, 120.533.092, 322.054.092, 33281, 33281N, 101457, 220958, 220958A, 11040855, 0986025750

    • NormaliseratArtNr
      cs1457, cst35309, drs0402, f032115627, lrs02281, m002t85871, m2t85871, mhg025, rgo116246, s5144, 8ea011611861, 31200rsre01, 33281, 33281n, 101457, 220958, 220958a, 253452, 11040855, 120533092, 322054092, 0986025750

    • Passar modeller
      Honda Model: Civic Model series: Civic Type of engine: CTDi Size of motor: 2.2 Brand of engine: N22A2 Type description: FD_ Body: Hatchback From date: 01-09-2005 Fuel: Diesel Approved: Yes
      Honda Model: CR-V Model series: CR-V Type of engine: CTDi Size of motor: 2.2 Brand of engine: N22A2 Type description: RD_ Body: SUV From date: 01-02-2005 To date: 01-09-2006 Fuel: Diesel Approved: Yes
      Honda Model: CR-V Model series: CR-V Type of engine: i CTDi Size of motor: 2.2 Brand of engine: N22A2 Type description: RE_ Body: SUV From date: 01-01-2007 Fuel: Diesel Approved: Yes
