Vare nr.: F032111679

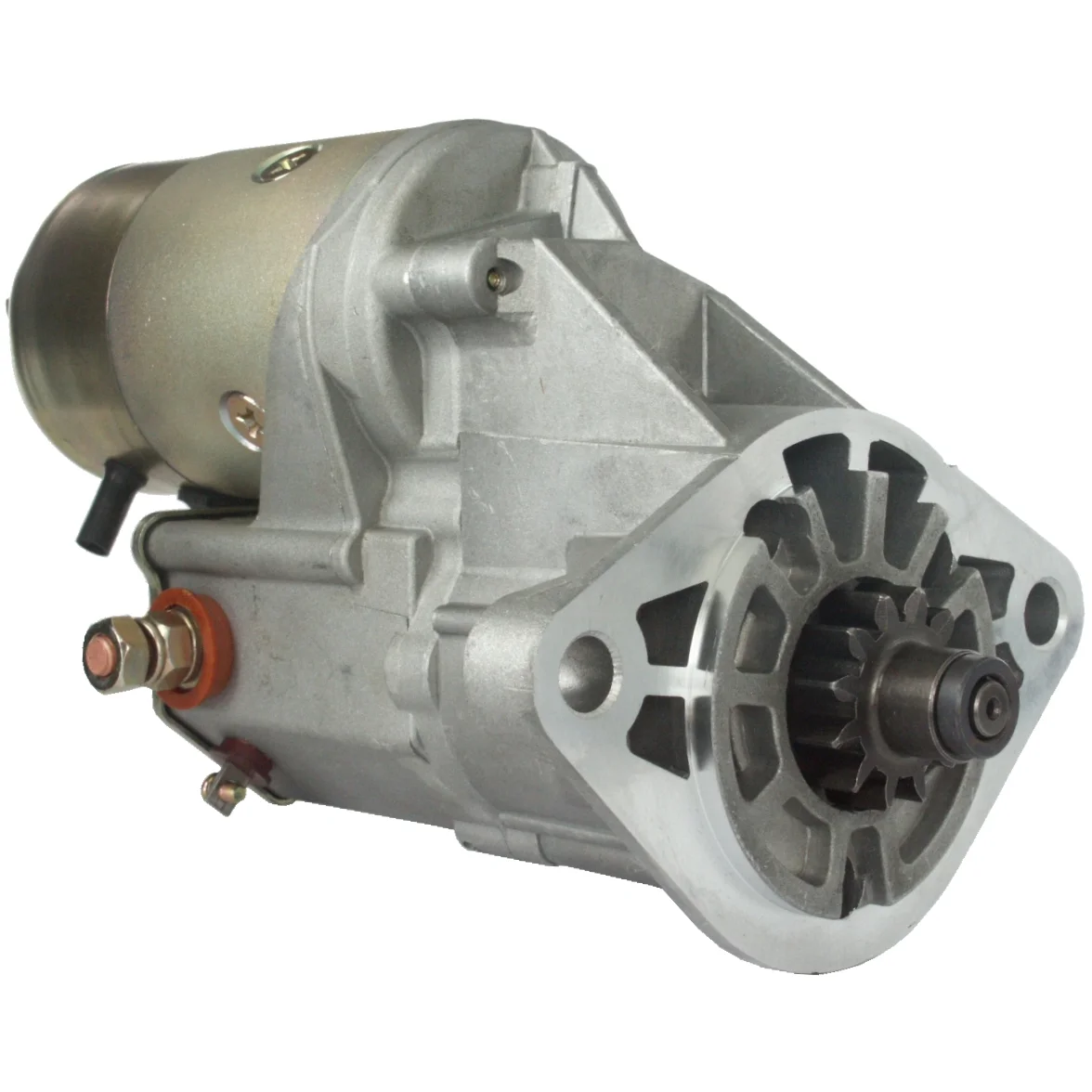

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 24, kW: 4.5, No./tænder: 12, Rotation: CW

Beskrivelse

Spænding: 24
kW: 4.5
Monteringsflange: 91,00
Drevafstand: 16,00
Monteringshul 2 mm: 13,00
Monteringshul 1 mm: 13,00
Afstand/bag: 197,00
Afstand/forside: 38,50
Nummer/tænder: 12
B+: M10
Position/50: 25
Terminal 50: M5
Kugle/gear type: GR
Afstand mm: 142,50
Rotation: CW
Total længde mm: 292,00
Drevetype: Steel
Produktion info: BN
Vandtæt: No
Olieforseglet: No
Nummer/monteringshuller: 2 (0)

Filer

Specifikation

B+ M10
No./teeth 12
Mount. flange 91.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 25
Prod. info BN
Rotation CW
Dist./back 197.00
Dist./front 38.50
Drive dist. 16.00
Drive type Steel
Gear type GR
kW 4.5
Terminal 50 M5
Voltage 24
Total length 292.00 mm
Waterproof No
Dist. 142.50 mm
Mount. hole 2 13.00 mm
Mount. hole 1 13.00 mm

  • OEM
    F032111679, js1021, RGO 111679, 28100-17020, 28100-17030, 128000-8620, 128000-8621, 228000-1600, 228000-1601

  • Konkurrentreferens
    CST40605, drs3304, F042000114, F042S00114, lrs01893, PBNS3035, S6026, STR-6182, STR6182, 8ea737345-001, 45-2138, 335.039.124, 4504, 9838, 17537, 32893N, 103664, 105019, 201021, 458587, 8052276, 8213199, 11040253, 20513035, 943241058, 0986019171, 943241058010, 944280522760

  • NormaliseratArtNr
    cst40605, drs3304, f032111679, f042000114, f042s00114, js1021, lrs01893, pbns3035, rgo111679, s6026, str6182, 8ea737345001, 4504, 9838, 17537, 32893n, 103664, 105019, 201021, 452138, 458587, 8052276, 8213199, 11040253, 20513035, 335039124, 943241058, 0986019171, 1280008620, 1280008621, 2280001600, 2280001601, 2810017020, 2810017030, 943241058010, 944280522760

  • Passar modeller
    Toyota Model: Land Cruiser Model series: Land Cruiser 100 Model type: TDi (HDJ101_, HDJ101K) Type of engine: TDI Size of motor: 4.2 Brand of engine: 1HD-FTE Type description: _J1_ Body: Closed Off-Road Vehicle Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 4.2 Brand of engine: 1H-Z Type description: HZJ80_ From date: 01-01-1990 To date: 01-12-1997 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 4.2 Brand of engine: 1H-Z Type description: _J7_ Body: Hardtop From date: 01-01-1990 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.2 Brand of engine: 1H-Z Type description: HZJ7_V From date: 01-01-1990 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.2 Brand of engine: 1HD-FT Type description: HDJ80 From date: 01-01-1995 To date: 01-12-1997 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.2 Brand of engine: 1HD-T Type description: HJD80 From date: 01-01-1990 To date: 01-12-1997 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.2 Brand of engine: 1HD-T Type description: HJD80 From date: 01-10-1992 To date: 01-12-1997 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 24
    kW: 4.5
    Monteringsflange: 91,00
    Drevafstand: 16,00
    Monteringshul 2 mm: 13,00
    Monteringshul 1 mm: 13,00
    Afstand/bag: 197,00
    Afstand/forside: 38,50
    Nummer/tænder: 12
    B+: M10
    Position/50: 25
    Terminal 50: M5
    Kugle/gear type: GR
    Afstand mm: 142,50
    Rotation: CW
    Total længde mm: 292,00
    Drevetype: Steel
    Produktion info: BN
    Vandtæt: No
    Olieforseglet: No
    Nummer/monteringshuller: 2 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 12
    Mount. flange 91.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 25
    Prod. info BN
    Rotation CW
    Dist./back 197.00
    Dist./front 38.50
    Drive dist. 16.00
    Drive type Steel
    Gear type GR
    kW 4.5
    Terminal 50 M5
    Voltage 24
    Total length 292.00 mm
    Waterproof No
    Dist. 142.50 mm
    Mount. hole 2 13.00 mm
    Mount. hole 1 13.00 mm
  • Køretøjsmatchning

    • OEM
      F032111679, js1021, RGO 111679, 28100-17020, 28100-17030, 128000-8620, 128000-8621, 228000-1600, 228000-1601

    • Konkurrentreferens
      CST40605, drs3304, F042000114, F042S00114, lrs01893, PBNS3035, S6026, STR-6182, STR6182, 8ea737345-001, 45-2138, 335.039.124, 4504, 9838, 17537, 32893N, 103664, 105019, 201021, 458587, 8052276, 8213199, 11040253, 20513035, 943241058, 0986019171, 943241058010, 944280522760

    • NormaliseratArtNr
      cst40605, drs3304, f032111679, f042000114, f042s00114, js1021, lrs01893, pbns3035, rgo111679, s6026, str6182, 8ea737345001, 4504, 9838, 17537, 32893n, 103664, 105019, 201021, 452138, 458587, 8052276, 8213199, 11040253, 20513035, 335039124, 943241058, 0986019171, 1280008620, 1280008621, 2280001600, 2280001601, 2810017020, 2810017030, 943241058010, 944280522760

    • Passar modeller
      Toyota Model: Land Cruiser Model series: Land Cruiser 100 Model type: TDi (HDJ101_, HDJ101K) Type of engine: TDI Size of motor: 4.2 Brand of engine: 1HD-FTE Type description: _J1_ Body: Closed Off-Road Vehicle Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 4.2 Brand of engine: 1H-Z Type description: HZJ80_ From date: 01-01-1990 To date: 01-12-1997 Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 4.2 Brand of engine: 1H-Z Type description: _J7_ Body: Hardtop From date: 01-01-1990 To date: 01-08-2001 Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.2 Brand of engine: 1H-Z Type description: HZJ7_V From date: 01-01-1990 Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.2 Brand of engine: 1HD-FT Type description: HDJ80 From date: 01-01-1995 To date: 01-12-1997 Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.2 Brand of engine: 1HD-T Type description: HJD80 From date: 01-01-1990 To date: 01-12-1997 Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.2 Brand of engine: 1HD-T Type description: HJD80 From date: 01-10-1992 To date: 01-12-1997 Fuel: Diesel Approved: Yes
      1 / 2
