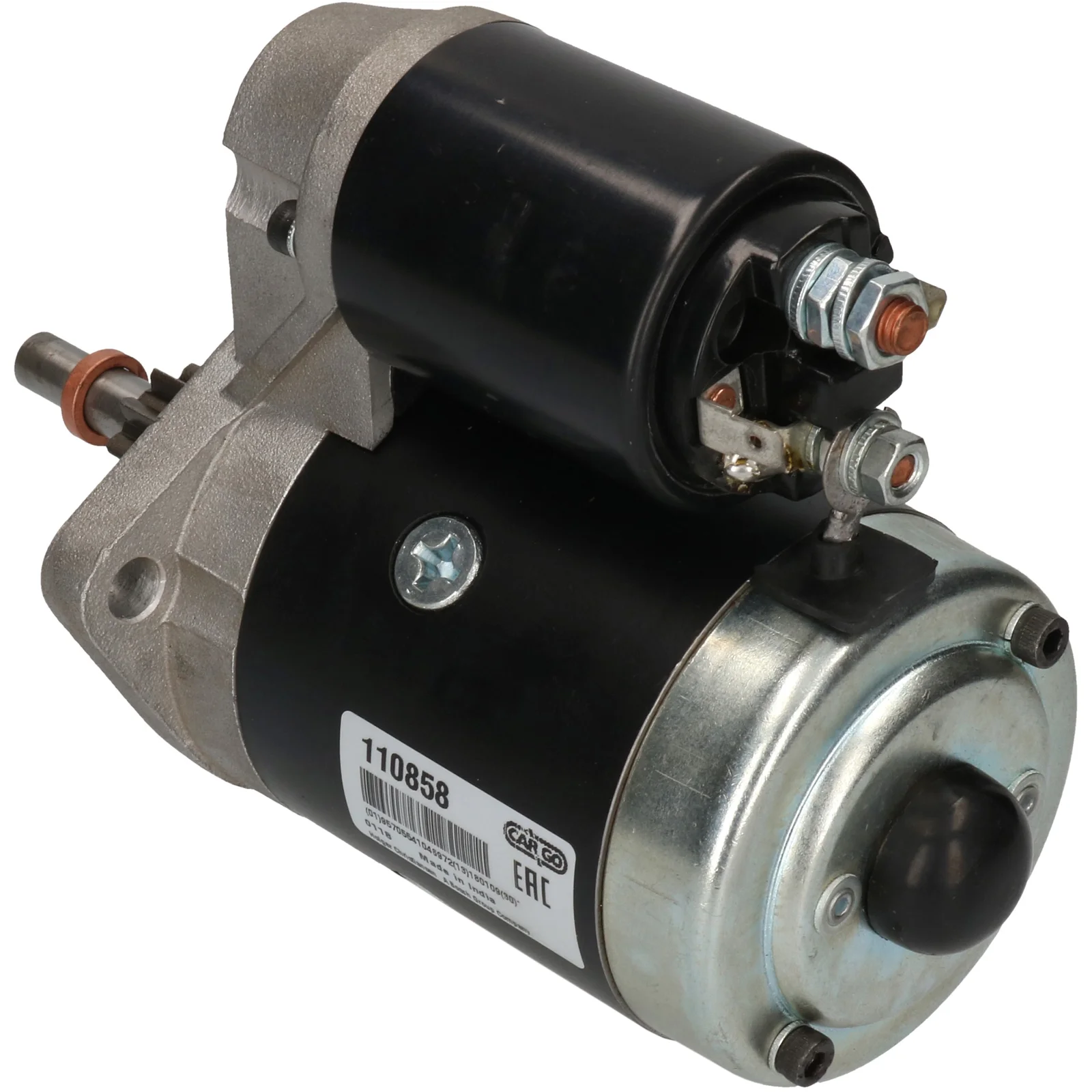

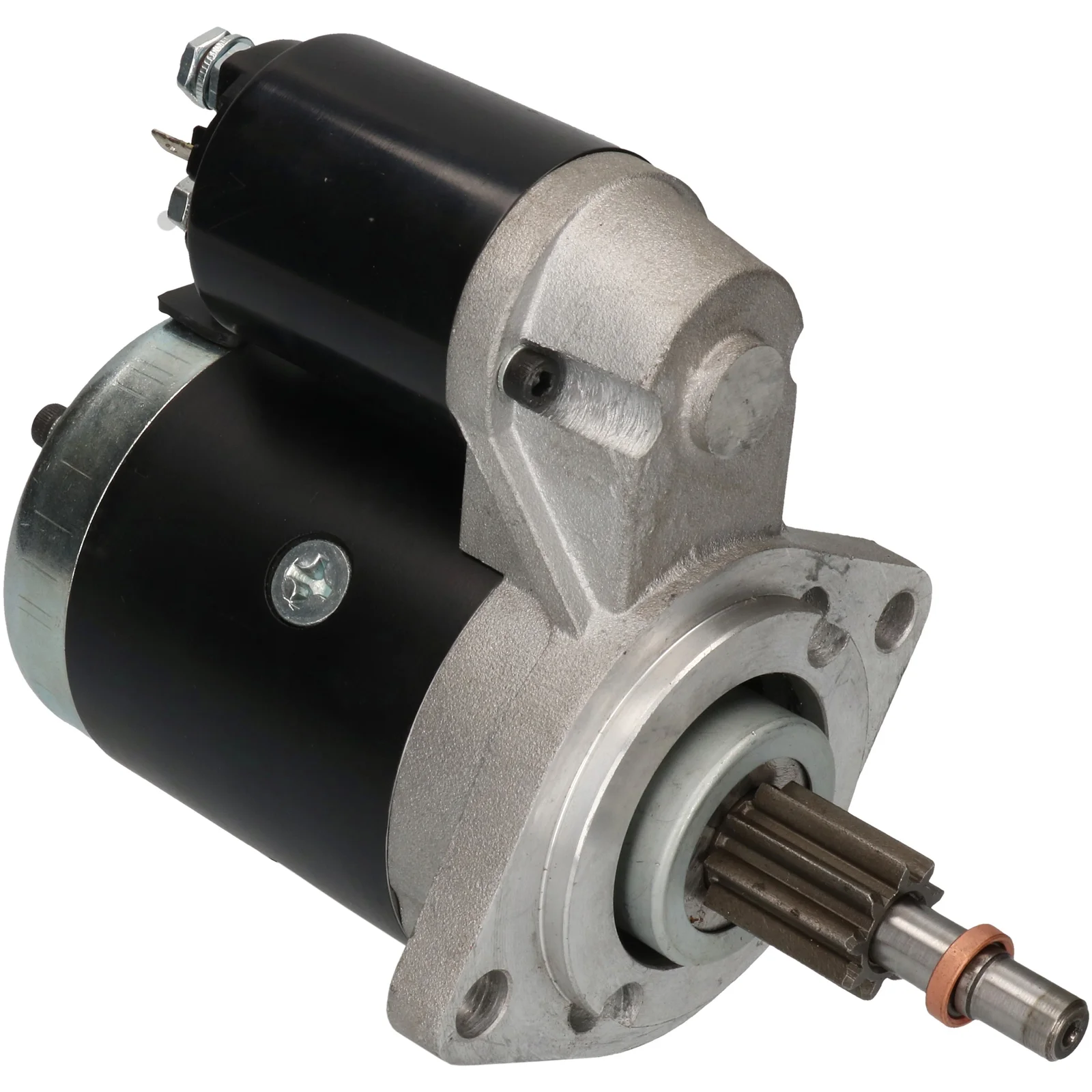

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032110858

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 0,7, No./tand: 9, Rotation: CCW

Beskrivelse

Volkswagen Startm. 12V-0.7kW 12V - 0,7kW, 9k, CCW Til Yourex produktordre 91-620-1036

Spænding: 12
kW: 0,7
Monteringsflange: 76,00
Drivafstand: 44,00
Monteringshul 1 mm: 10,50
Afstand/ryg: 134,00
Afstand/forside: 77,50
Antal./tænder: 9
B+: M8
Position/15a: 45
Terminal 15a: 6,30
Position/50: 10
Terminal 50: 6,30
Tandtype: DD
Afstand mm: 105,00
Rotation: CCW
Total længde mm: 224,50
Drivtype: Stål
Produktinfo: BN
Vandtæt: Nej
Oliesealed: Nej
Bemærkninger: Bøsning D.E. (koblingshus): HC-CARGO 140008.
Antal./monteringshuller: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 76.00
Oil sealed No
No./mount. holes 2 (0)
Position/15a 45
Position/50 10
Prod. info BN
Remarks Bushing D.E. (clutch house): HC-CARGO 140008.
Rotation CCW
Dist./back 134.00
Dist./front 77.50
Drive dist. 44.00
Drive type Steel
Gear type DD
kW 0.7
Terminal 50 6.30
Voltage 12
Total length 224.50 mm
Waterproof No
Dist. 105.00 mm
Terminal 15A 6.30 mm
Mount. hole 1 10.50 mm

  • OEM
    cs115, F032110858, LRS 370, RGO 110858, 0001 211 221, 0001 211 222, 0986 010 360, 110858, 0001211221, 0001211222, 1516668R, 091911023, 091911023x, 091911024, 9000692062

  • Konkurrentreferens
    drs0360, lrs00370, QS0471, S0414, SR87X, STR50016, vs189, 2-1353-BO, 8ea725968-001, 25-0199, 41-10.360, 311.018.092, 1018, 7376N, 7384R, 10115, 11403, 16546, 16546R, 103390, 436024, 8010360, 8212234, 11010360, 943251633, 0986010360, 0986010367, 943251633010, 944280103600

  • Bilmärken
    VW

  • NormaliseratArtNr
    cs115, drs0360, f032110858, lrs00370, lrs370, qs0471, rgo110858, s0414, sr87x, str50016, vs189, 8ea725968001, 1018, 7376n, 7384r, 10115, 11403, 16546, 16546r, 21353bo, 103390, 110858, 250199, 436024, 0001211221, 0001211222, 1516668r, 4110360, 8010360, 8212234, 11010360, 091911023, 091911023x, 091911024, 311018092, 943251633, 0986010360, 0986010367, 9000692062, 943251633010, 944280103600

  • Passar modeller
    VW Model: Campmobile Model series: Campmobile Size of motor: 2.0 Brand of engine: CJ From date: 01-01-1976 To date: 01-01-1978 Fuel: Gasoline Approved: Yes
    VW Model: Campmobile Model series: Campmobile Size of motor: 2.0 Brand of engine: CJ From date: 01-01-1979 To date: 01-01-1979 Fuel: Gasoline Approved: Yes
    VW Model: Campmobile Model series: Campmobile Size of motor: 2.0 Brand of engine: GD From date: 01-01-1976 To date: 01-01-1977 Fuel: Gasoline Approved: Yes
    VW Model: Campmobile Model series: Campmobile Size of motor: 2.0 Brand of engine: GE From date: 01-01-1978 To date: 01-01-1978 Fuel: Gasoline Approved: Yes
    VW Model: Campmobile Model series: Campmobile Size of motor: 2.0 Brand of engine: GE From date: 01-01-1979 To date: 01-01-1979 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: JU Body: Estate From date: 01-01-1981 To date: 01-02-1983 Fuel: Gasoline Approved: Yes Manufacture type: variant
    VW Model: Transporter Model series: Transporter Model type: T2 Size of motor: 1.6 Brand of engine: AD Body: Bus From date: 01-08-1970 To date: 01-04-1979 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T2 Size of motor: 1.6 Brand of engine: AD Body: Platform / Chassis From date: 01-08-1968 To date: 01-07-1979 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T2 Size of motor: 1.6 Brand of engine: AF Body: Bus From date: 01-08-1967 To date: 01-07-1970 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T2 Size of motor: 1.6 Brand of engine: AH Body: Bus From date: 01-08-1970 To date: 01-04-1979 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T2 Size of motor: 1.6 Brand of engine: AS Body: Bus From date: 01-08-1970 To date: 01-04-1979 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T2 Size of motor: 1.6 Brand of engine: AS Body: Platform / Chassis From date: 01-08-1968 To date: 01-07-1979 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T2 Size of motor: 1.6 Brand of engine: AS Body: Van From date: 01-08-1970 To date: 01-07-1979 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T2 Size of motor: 1.7 Brand of engine: CA Body: Bus From date: 01-08-1971 To date: 01-10-1973 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T2 Size of motor: 1.7 Brand of engine: CA Body: Van From date: 01-08-1971 To date: 01-12-1973 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T2 Size of motor: 1.7 Brand of engine: CB Body: Bus From date: 01-08-1971 To date: 01-10-1973 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T2 Size of motor: 1.7 Brand of engine: CB Body: Van From date: 01-08-1971 To date: 01-12-1973 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T2 Size of motor: 2.0 Brand of engine: CJ Body: Bus From date: 01-08-1975 To date: 01-04-1979 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T2 Size of motor: 2.0 Brand of engine: CJ Body: Van From date: 01-08-1976 To date: 01-07-1979 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T2 Size of motor: 2.0 Brand of engine: GD Body: Bus From date: 01-08-1975 To date: 01-04-1979 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T2 Size of motor: 2.0 Brand of engine: GD Body: Van From date: 01-08-1976 To date: 01-07-1979 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T2 Size of motor: 2.0 Brand of engine: GE Body: Bus From date: 01-08-1975 To date: 01-04-1979 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T2 Size of motor: 2.0 Brand of engine: GE Body: Van From date: 01-08-1976 To date: 01-07-1979 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 1.6 Brand of engine: CT Body: Bus From date: 01-05-1979 To date: 01-12-1982 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 1.6 Brand of engine: CT Body: Van From date: 01-05-1979 To date: 01-12-1982 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 2.0 Brand of engine: CU Body: Bus From date: 01-05-1979 To date: 01-12-1982 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 2.0 Brand of engine: CU Body: Platform / Chassis From date: 01-05-1979 To date: 01-04-1986 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 2.0 Brand of engine: CU Body: Van From date: 01-05-1979 To date: 01-04-1986 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Size of motor: 2.0 Brand of engine: CJ From date: 01-01-1976 To date: 01-01-1978 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Size of motor: 2.0 Brand of engine: CJ From date: 01-01-1979 To date: 01-01-1979 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Size of motor: 2.0 Brand of engine: GD From date: 01-01-1976 To date: 01-01-1977 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Size of motor: 2.0 Brand of engine: GE From date: 01-01-1978 To date: 01-01-1978 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Size of motor: 2.0 Brand of engine: GE From date: 01-01-1979 To date: 01-01-1979 Fuel: Gasoline Approved: Yes
    VW Model: Vanagon Model series: Vanagon Model type: Campmobile Size of motor: 2.0 Brand of engine: CV From date: 01-01-1980 To date: 01-01-1980 Fuel: Gasoline Approved: Yes
    VW Model: Vanagon Model series: Vanagon Size of motor: 2.0 Brand of engine: CV Body: Estate From date: 01-01-1980 To date: 01-01-1980 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    VW Trucks & Vans Series: Transporter II Model: 1.6 Engine volume: 1.6 Year: 08.75-04.79
    VW Trucks & Vans Series: Transporter II Model: 2.0 Engine volume: 2.0 Year: 08.75-04.79
    VW Trucks & Vans Series: Transporter III Model: 1.6 Engine volume: 1.6 Engine type: CT Year: 05.79-12.82
    VW Trucks & Vans Series: Transporter III Model: 2.0 Engine volume: 2.0 Engine type: CU / CV Year: 05.79-01.81
    1 / 8
  • Beskrivelse
    Volkswagen Startm. 12V-0.7kW 12V - 0,7kW, 9k, CCW Til Yourex produktordre 91-620-1036

    Spænding: 12
    kW: 0,7
    Monteringsflange: 76,00
    Drivafstand: 44,00
    Monteringshul 1 mm: 10,50
    Afstand/ryg: 134,00
    Afstand/forside: 77,50
    Antal./tænder: 9
    B+: M8
    Position/15a: 45
    Terminal 15a: 6,30
    Position/50: 10
    Terminal 50: 6,30
    Tandtype: DD
    Afstand mm: 105,00
    Rotation: CCW
    Total længde mm: 224,50
    Drivtype: Stål
    Produktinfo: BN
    Vandtæt: Nej
    Oliesealed: Nej
    Bemærkninger: Bøsning D.E. (koblingshus): HC-CARGO 140008.
    Antal./monteringshuller: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 76.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/15a 45
    Position/50 10
    Prod. info BN
    Remarks Bushing D.E. (clutch house): HC-CARGO 140008.
    Rotation CCW
    Dist./back 134.00
    Dist./front 77.50
    Drive dist. 44.00
    Drive type Steel
    Gear type DD
    kW 0.7
    Terminal 50 6.30
    Voltage 12
    Total length 224.50 mm
    Waterproof No
    Dist. 105.00 mm
    Terminal 15A 6.30 mm
    Mount. hole 1 10.50 mm
