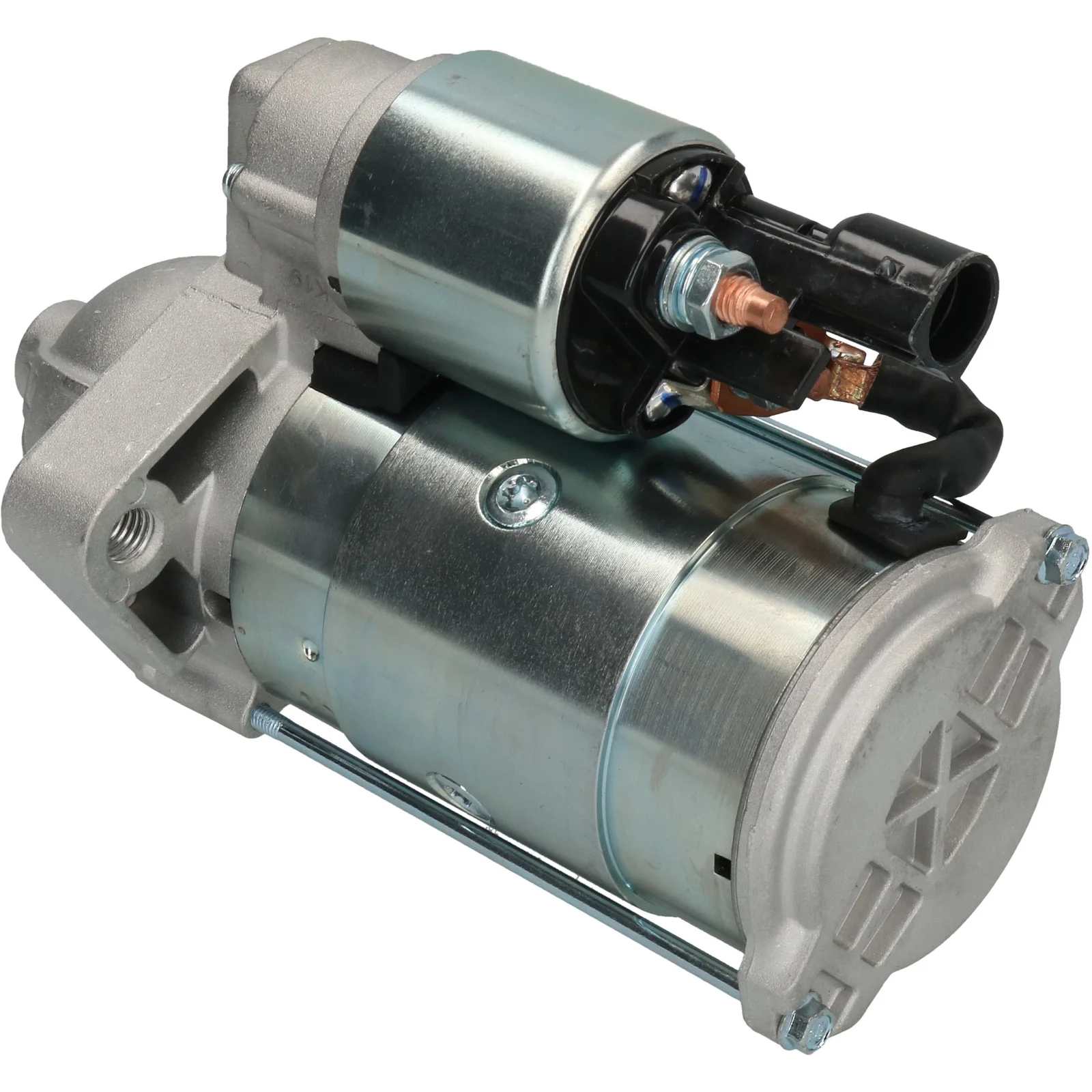

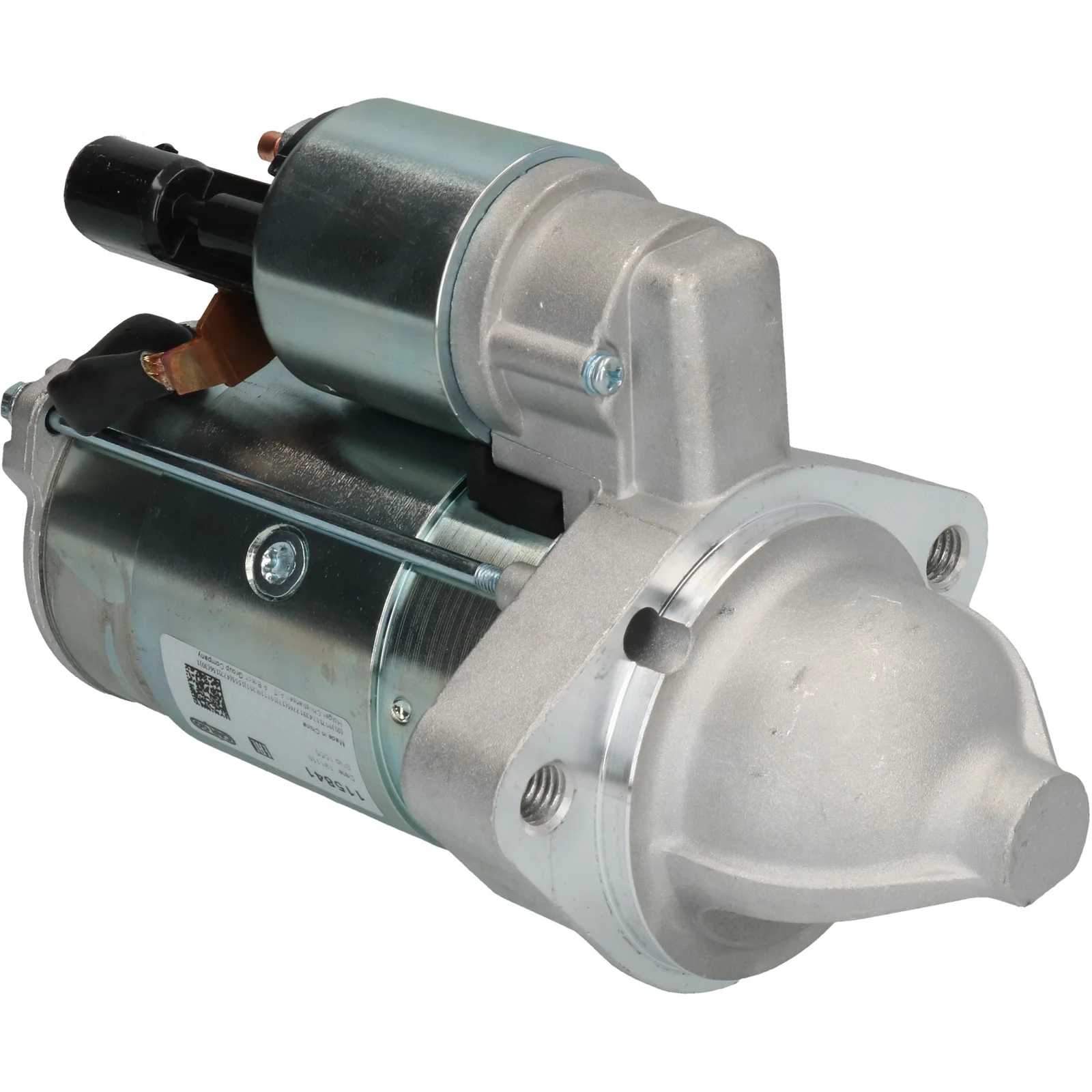

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032115841

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 2,4, No./tand: 11, Rotation: med uret

Beskrivelse

Startmotor 12V-2.4kW (Crafter) 12V - 2.4kW, 11k A - 82,5mm, B - 20mm Til Yourex produktordre 91-620-8395

Strømforsyning: 12
kW: 2,4
Monteringsflange: 82,50
Drevafstand: 20,50
Afstand/rück: 157,00
Afstand/front: 60,00
Antal/tænder: 11
B+: M8
Position/B+: 52
Position/50: 7
Terminal 50: Stik
Gear type: GR
Afstand mm: 105,00
Rotation: med uret
Samlet længde mm: 217,00
Antal/montagehuller: 2 (2)

Filer

Specifikation

B+ M8
No./teeth 11
Mount. flange 82.50
No./mount. holes 2 (2)
Position/50 7
Position/B+ 52
Rotation CW
Dist./back 157.00
Dist./front 60.00
Drive dist. 20.50
Gear type GR
kW 2.4
Terminal 50 Plug
Voltage 12
Total length 217.00 mm
Dist. 105.00 mm

  • OEM
    F032115841, RGO 115841, TS24E 13, TS24E13, 076 911 023B, 076 911023BX, 115841, 438231, 458395, 076911023B, 076911023BX

  • Konkurrentreferens
    CST15260, DRS0823, LRS02663, 8EA011613-051, 25-4335, 300.918.112, 311.289.112, 201178, 220800, 220800A, 438231, 458395, 8080396, 11090232

  • Bilmärken
    VW Trucks & Vans

  • NormaliseratArtNr
    cst15260, drs0823, f032115841, lrs02663, rgo115841, ts24e13, 8ea011613051, 115841, 201178, 220800, 220800a, 254335, 438231, 458395, 8080396, 11090232, 076911023b, 076911023bx, 300918112, 311289112

  • Passar modeller
    VW Model: Crafter Model series: Crafter 30-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJJ Type description: 2E_ Body: Bus From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJK Type description: 2E Body: Bus From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJL Type description: 2E Body: Bus From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJM Type description: 2E Body: Bus From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: CEBA Type description: 2E_ Body: Bus From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: CEBB Type description: 2E Body: Bus From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: CECA Type description: 2E Body: Bus From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: CECB Type description: 2E Body: Bus From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJJ Type description: 2E Body: Platform / Chassis From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJK Type description: 2E Body: Platform / Chassis From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJK Type description: 2E Body: Van From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJL Type description: 2E Body: Platform / Chassis From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJL Type description: 2E Body: Van From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJM Type description: 2E Body: Platform / Chassis From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJM Type description: 2E Body: Van From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: CEBA Type description: 2E Body: Platform / Chassis From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: CEBA Type description: 2E Body: Van From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: CEBB Type description: 2E Body: Platform / Chassis From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: CEBB Type description: 2E Body: Van From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: CECA Type description: 2E Body: Platform / Chassis From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: CECA Type description: 2E Body: Van From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: CECB Type description: 2E Body: Platform / Chassis From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: CECB Type description: 2E Body: Van From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
    VW Trucks & Vans Series: Crafter 30-35 Buss Model: 2.5 TDI Engine volume: 2.5 Engine type: BJK / CEBB Year: 04.06-
    VW Trucks & Vans Series: Crafter 30-35 Buss Model: 2.5 TDI Engine volume: 2.5 Engine type: BJL / CECA Year: 04.06-
    VW Trucks & Vans Series: Crafter 30-35 Buss Model: 2.5 TDI Engine volume: 2.5 Engine type: BJM / CECB Year: 04.06-
    VW Trucks & Vans Series: Crafter 30-50 Flak Model: 2.5 TDI Engine volume: 2.5 Engine type: BJK / CEBB Year: 04.06-
    VW Trucks & Vans Series: Crafter 30-50 Flak Model: 2.5 TDI Engine volume: 2.5 Engine type: BJL / CECA Year: 04.06-
    VW Trucks & Vans Series: Crafter 30-50 Flak Model: 2.5 TDI Engine volume: 2.5 Engine type: BJM Year: 04.06-07.11
    VW Trucks & Vans Series: Crafter 30-50 Skåp Model: 2.5 TDI Engine volume: 2.5 Engine type: BJK / CEBB Year: 04.06-
    VW Trucks & Vans Series: Crafter 30-50 Skåp Model: 2.5 TDI Engine volume: 2.5 Engine type: BJL / CECA Year: 04.06-
    VW Trucks & Vans Series: Crafter 30-50 Skåp Model: 2.5 TDI Engine volume: 2.5 Engine type: BJM / CECB Year: 04.06-
