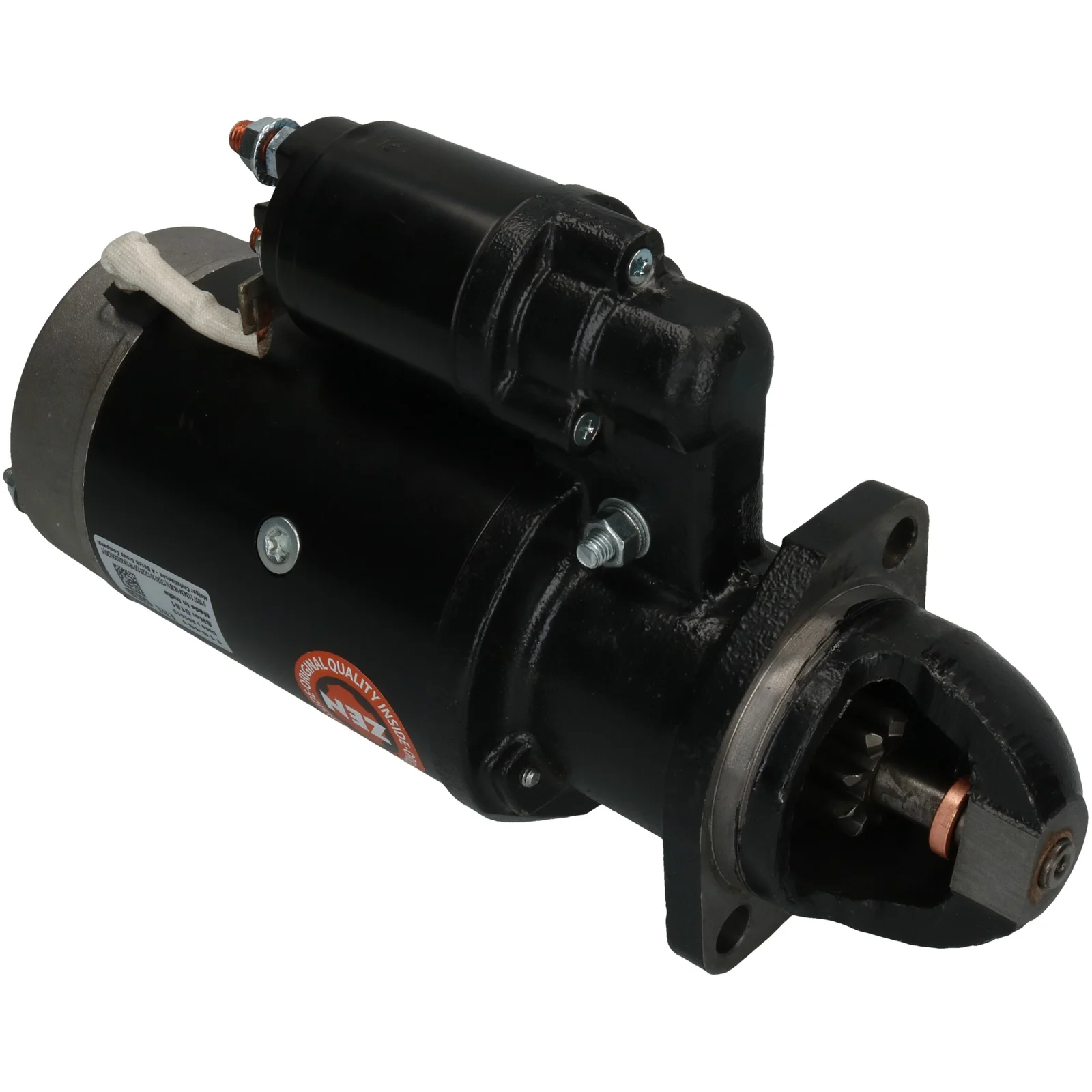

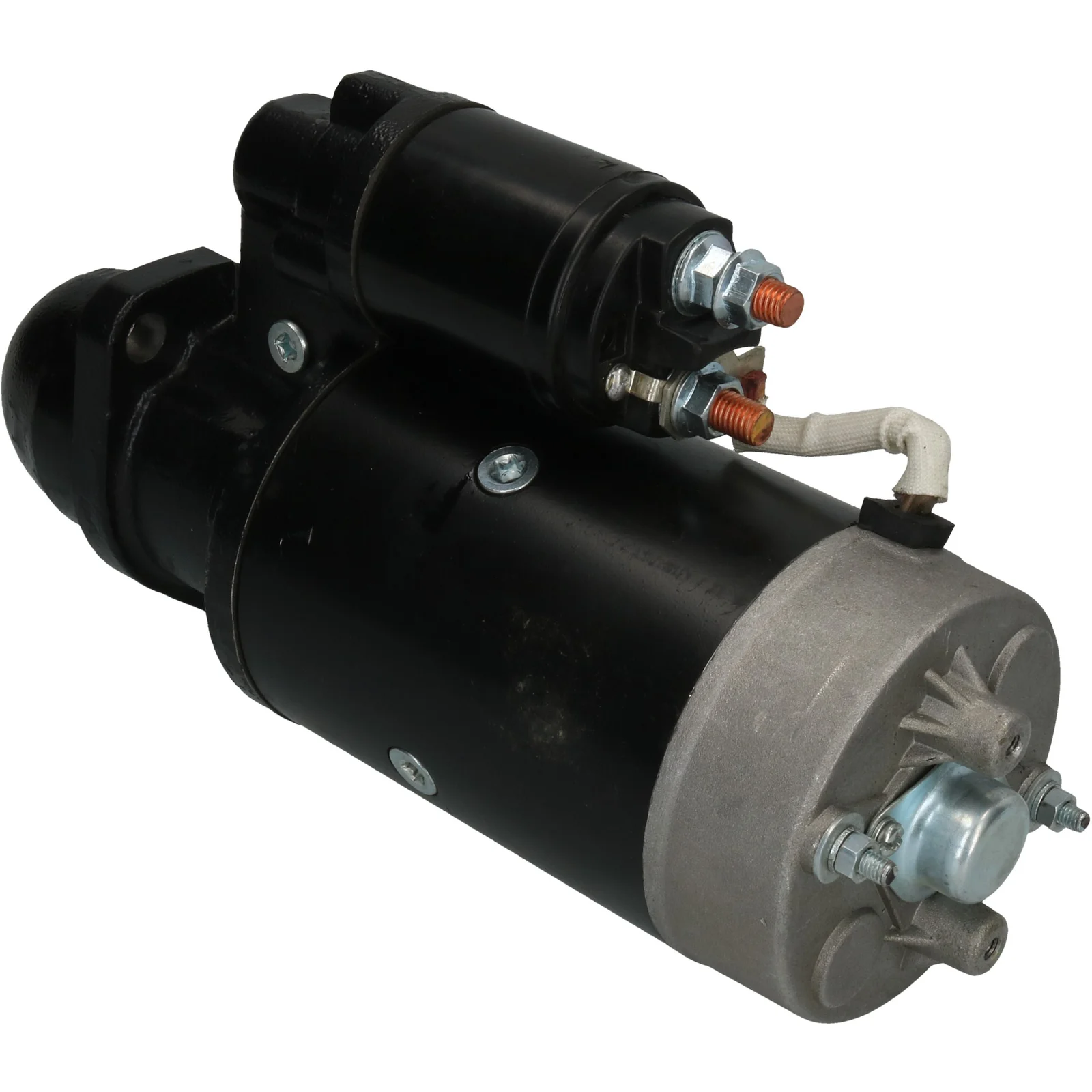

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032116461

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 2.7, Nr./tænder: 9, Rotation: CW

Beskrivelse

Spænding: 12
kW: 2.7
Monteringsflange: 82,50
Drivafstand: 20,50
Monteringshul 2 mm: 13,50
Monteringshul 1 mm: 13,50
Afstand/bag: 273,00
Afstand/frem: 67,50
Antal/tenner: 9
B+: M10
Position/B+: 60
Position/50: 15
Terminal 50: M4
Tandtype: DD
Afstand mm: 105,00
Rotation: med uret
Samlet længde mm: 340,50
Antal/monteringshuller: 2 (0)

Filer

Specifikation

B+ M10
No./teeth 9
Mount. flange 82.50
No./mount. holes 2 (0)
Position/50 15
Position/B+ 60
Rotation CW
Dist./back 273.00
Dist./front 67.50
Drive dist. 20.50
Gear type DD
kW 2.7
Terminal 50 M4
Voltage 12
Total length 340.50 mm
Dist. 105.00 mm
Mount. hole 2 13.50 mm
Mount. hole 1 13.50 mm

  • OEM
    azj3220, C000900060150, F032116461, 11.130.671, 0001362309, 0001367011, 41100090005, 41100090007, 41100090009

  • Konkurrentreferens
    CST10367, is0671, MS332, 25-2093, 600.076.092, 780.002.092, 32321, 255169, 943217408

  • NormaliseratArtNr
    azj3220, c000900060150, cst10367, f032116461, is0671, ms332, 32321, 252093, 255169, 0001362309, 0001367011, 11130671, 600076092, 780002092, 943217408, 41100090005, 41100090007, 41100090009

  • Passar modeller
    Steyr Model: 8000 Series Model series: 8070 Size of motor: 3.5 Brand of engine: WD 411.. From date: 01-01-1980 Fuel: Diesel Approved: Yes
    Steyr Model: 8000 Series Model series: 8075 Size of motor: 3.5 Brand of engine: WD 411.. From date: 01-01-1984 Fuel: Diesel Approved: Yes
    Steyr Model: 8000 Series Model series: 8080 Size of motor: 3.5 Brand of engine: WD 411.. From date: 01-01-1980 Fuel: Diesel Approved: Yes
    Steyr Model: 8000 Series Model series: 8085 Size of motor: 3.5 Brand of engine: WD 411.. From date: 01-02-1990 Fuel: Diesel Approved: Yes
    Steyr Model: 8000 Series Model series: 8090 Size of motor: 3.5 Brand of engine: WD 411.. From date: 01-01-1984 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 12
    kW: 2.7
    Monteringsflange: 82,50
    Drivafstand: 20,50
    Monteringshul 2 mm: 13,50
    Monteringshul 1 mm: 13,50
    Afstand/bag: 273,00
    Afstand/frem: 67,50
    Antal/tenner: 9
    B+: M10
    Position/B+: 60
    Position/50: 15
    Terminal 50: M4
    Tandtype: DD
    Afstand mm: 105,00
    Rotation: med uret
    Samlet længde mm: 340,50
    Antal/monteringshuller: 2 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 9
    Mount. flange 82.50
    No./mount. holes 2 (0)
    Position/50 15
    Position/B+ 60
    Rotation CW
    Dist./back 273.00
    Dist./front 67.50
    Drive dist. 20.50
    Gear type DD
    kW 2.7
    Terminal 50 M4
    Voltage 12
    Total length 340.50 mm
    Dist. 105.00 mm
    Mount. hole 2 13.50 mm
    Mount. hole 1 13.50 mm
  • Køretøjsmatchning

    • OEM
      azj3220, C000900060150, F032116461, 11.130.671, 0001362309, 0001367011, 41100090005, 41100090007, 41100090009

    • Konkurrentreferens
      CST10367, is0671, MS332, 25-2093, 600.076.092, 780.002.092, 32321, 255169, 943217408

    • NormaliseratArtNr
      azj3220, c000900060150, cst10367, f032116461, is0671, ms332, 32321, 252093, 255169, 0001362309, 0001367011, 11130671, 600076092, 780002092, 943217408, 41100090005, 41100090007, 41100090009

    • Passar modeller
      Steyr Model: 8000 Series Model series: 8070 Size of motor: 3.5 Brand of engine: WD 411.. From date: 01-01-1980 Fuel: Diesel Approved: Yes
      Steyr Model: 8000 Series Model series: 8075 Size of motor: 3.5 Brand of engine: WD 411.. From date: 01-01-1984 Fuel: Diesel Approved: Yes
      Steyr Model: 8000 Series Model series: 8080 Size of motor: 3.5 Brand of engine: WD 411.. From date: 01-01-1980 Fuel: Diesel Approved: Yes
      Steyr Model: 8000 Series Model series: 8085 Size of motor: 3.5 Brand of engine: WD 411.. From date: 01-02-1990 Fuel: Diesel Approved: Yes
      Steyr Model: 8000 Series Model series: 8090 Size of motor: 3.5 Brand of engine: WD 411.. From date: 01-01-1984 Fuel: Diesel Approved: Yes
