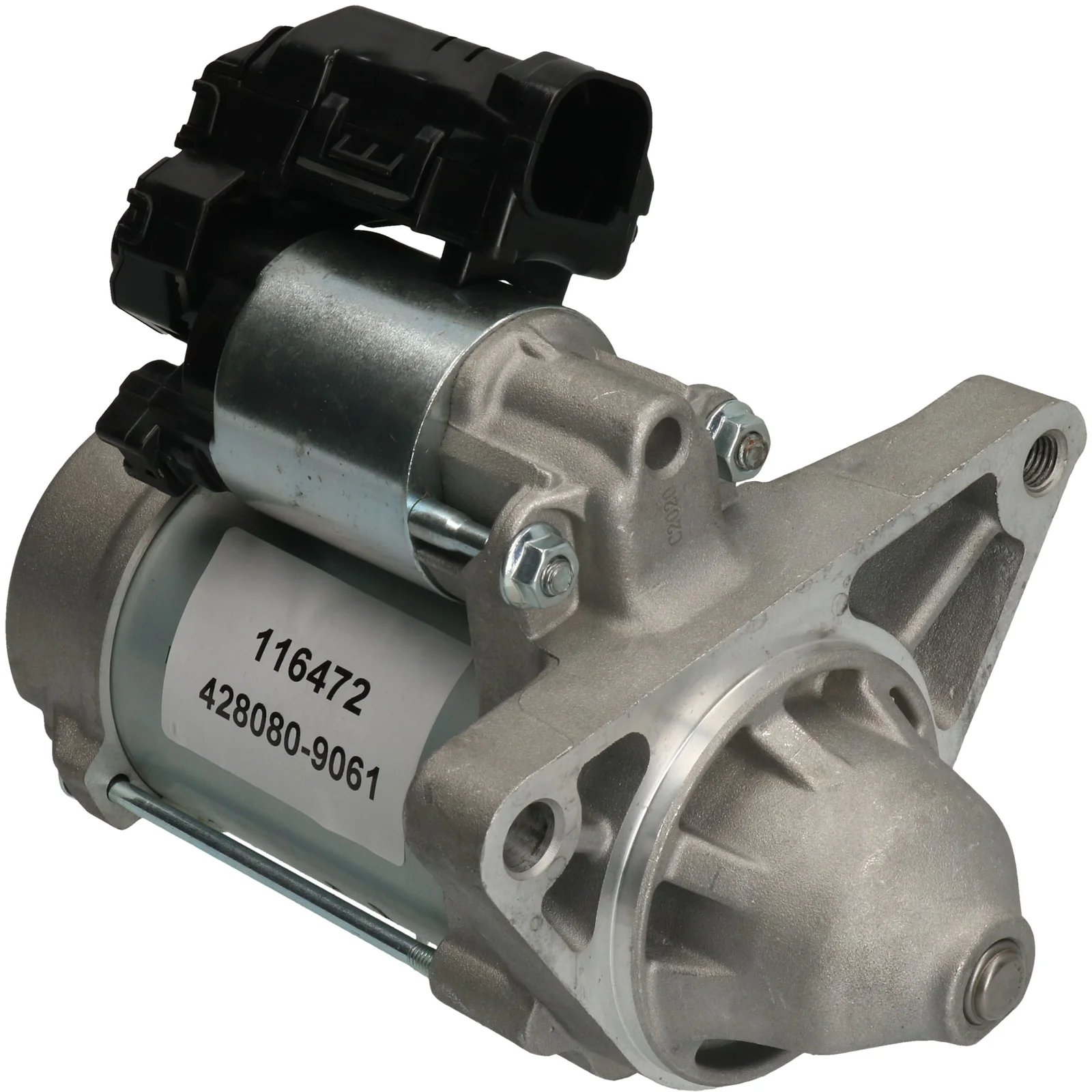

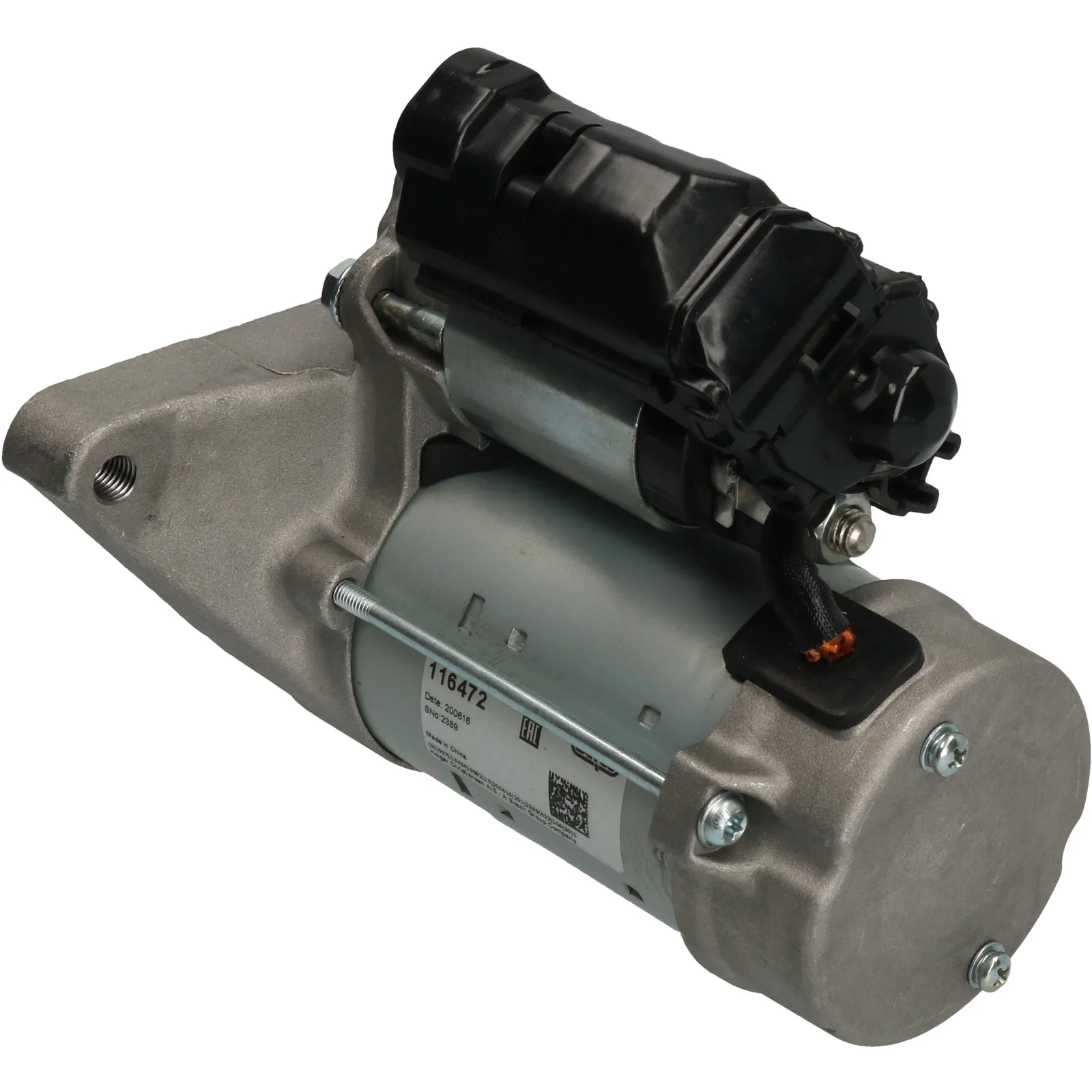

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032116472

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 2.0, No./tænder: 9, Rotation: CW

Beskrivelse

Spændingsføler: 12
kW: 2.0
Monteringsflange: 74.00
Driveafstand: 13.00
Monteringshul 2 mm: 11.00
Afstand/bag: 154.50
Afstand/frem: 47.00
Nummer/tænder: 9
B+: M8
Position/50: 20
Terminal 50: Stik
Gear type: GR
Afstand mm: 121.50
Rotation: CW
Samlet længde mm: 201.50
Nummer/monteringshuller: 2 (1)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 74.00
No./mount. holes 2 (1)
Position/50 20
Rotation CW
Dist./back 154.50
Dist./front 47.00
Drive dist. 13.00
Gear type GR
kW 2.0
Terminal 50 Plug
Voltage 12
Total length 201.50 mm
Dist. 121.50 mm
Mount. hole 2 11.00 mm

  • OEM
    F032116472, 28100-0N110, 428000-9060, 428000-9061, 428080-9061

  • Konkurrentreferens
    CST40427, DRS0924, DSN1234, S6327S, 25-5277, 190.926.092, 11040936

  • NormaliseratArtNr
    cst40427, drs0924, dsn1234, f032116472, s6327s, 255277, 281000n110, 11040936, 190926092, 4280009060, 4280009061, 4280809061

  • Passar modeller
    Toyota Model: Auris Model series: Auris Touring Sports Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Body: Estate From date: 01-07-2013 To date: 01-12-2018 Fuel: Diesel Approved: Yes Manufacture type: Touring Sp
    Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NZE18_, ZRE18_ Body: Hatchback From date: 01-10-2012 To date: 01-12-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: ZRE18_, NZE18_ Body: Van From date: 01-03-2013 To date: 01-12-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NRE18_, ZRE18_, NDE18_ From date: 01-06-2013 To date: 01-12-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _P13_ Body: Hatchback From date: 01-09-2011 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spændingsføler: 12
    kW: 2.0
    Monteringsflange: 74.00
    Driveafstand: 13.00
    Monteringshul 2 mm: 11.00
    Afstand/bag: 154.50
    Afstand/frem: 47.00
    Nummer/tænder: 9
    B+: M8
    Position/50: 20
    Terminal 50: Stik
    Gear type: GR
    Afstand mm: 121.50
    Rotation: CW
    Samlet længde mm: 201.50
    Nummer/monteringshuller: 2 (1)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 74.00
    No./mount. holes 2 (1)
    Position/50 20
    Rotation CW
    Dist./back 154.50
    Dist./front 47.00
    Drive dist. 13.00
    Gear type GR
    kW 2.0
    Terminal 50 Plug
    Voltage 12
    Total length 201.50 mm
    Dist. 121.50 mm
    Mount. hole 2 11.00 mm
  • Køretøjsmatchning

    • OEM
      F032116472, 28100-0N110, 428000-9060, 428000-9061, 428080-9061

    • Konkurrentreferens
      CST40427, DRS0924, DSN1234, S6327S, 25-5277, 190.926.092, 11040936

    • NormaliseratArtNr
      cst40427, drs0924, dsn1234, f032116472, s6327s, 255277, 281000n110, 11040936, 190926092, 4280009060, 4280009061, 4280809061

    • Passar modeller
      Toyota Model: Auris Model series: Auris Touring Sports Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Body: Estate From date: 01-07-2013 To date: 01-12-2018 Fuel: Diesel Approved: Yes Manufacture type: Touring Sp
      Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NZE18_, ZRE18_ Body: Hatchback From date: 01-10-2012 To date: 01-12-2018 Fuel: Diesel Approved: Yes
      Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: ZRE18_, NZE18_ Body: Van From date: 01-03-2013 To date: 01-12-2018 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NRE18_, ZRE18_, NDE18_ From date: 01-06-2013 To date: 01-12-2018 Fuel: Diesel Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _P13_ Body: Hatchback From date: 01-09-2011 Fuel: Diesel Approved: Yes
