Vare nr.: F032116579

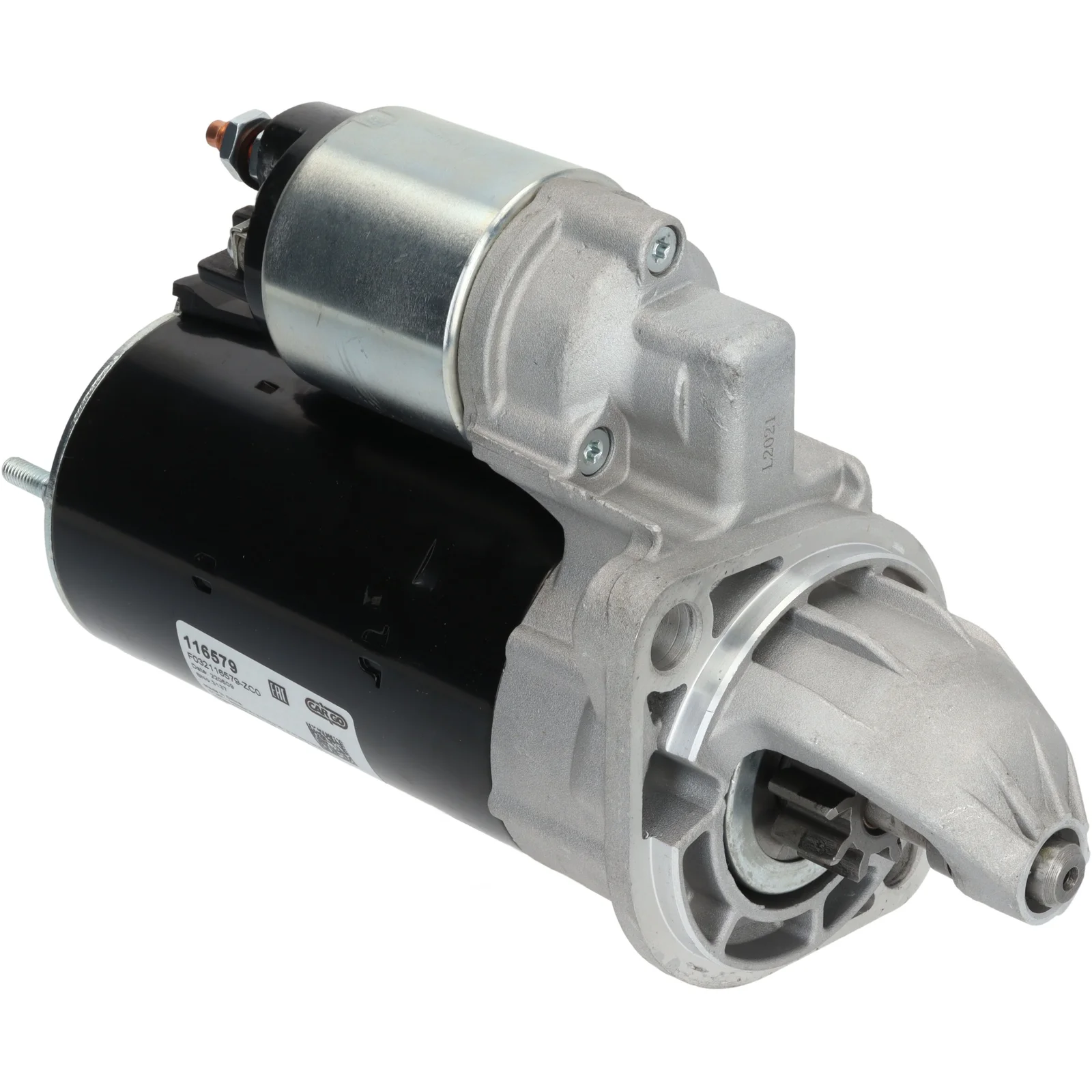

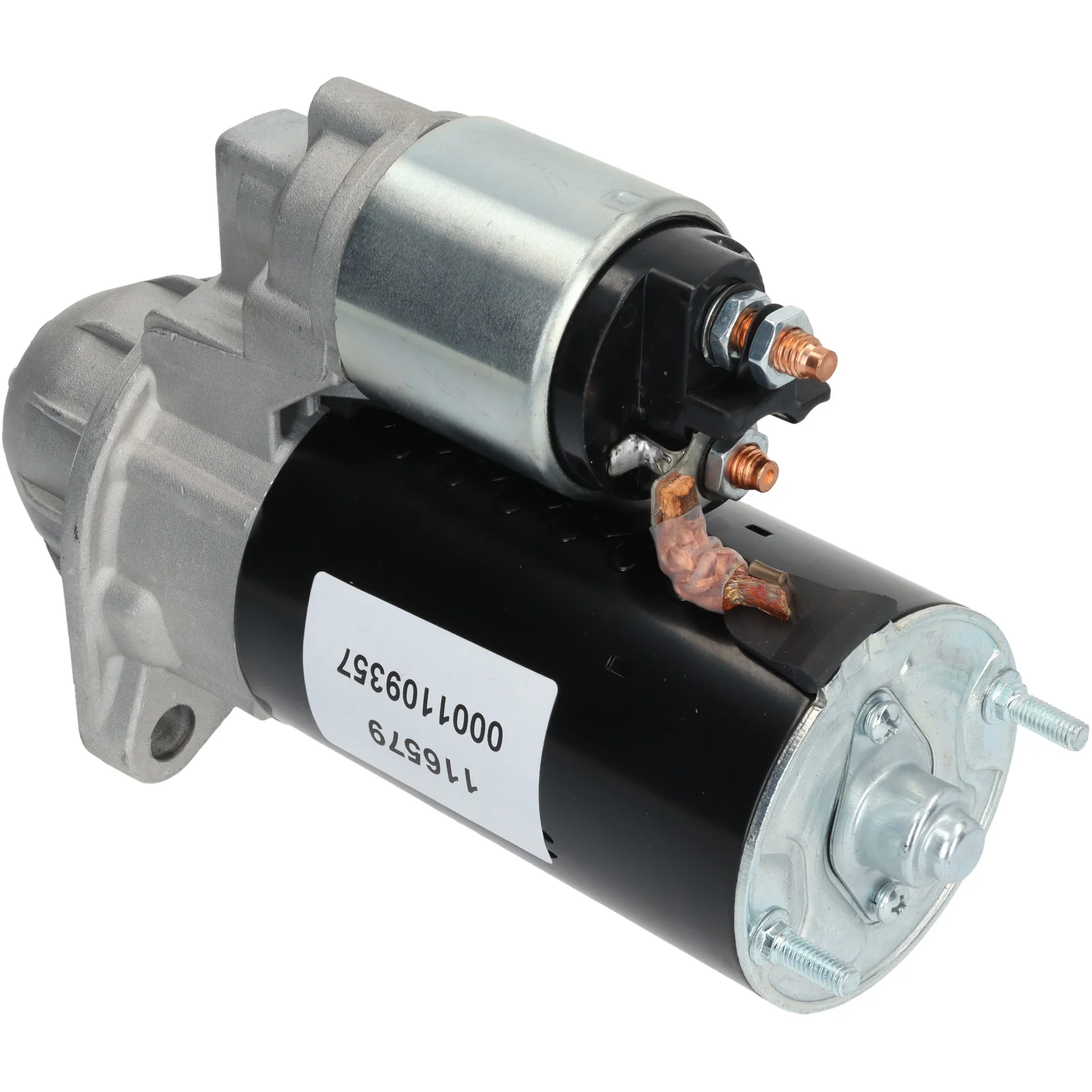

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 2.5, Sider/ tænder: 9, Rotation: CW

Beskrivelse

Spænding: 12
kW: 2,5
Monteringsflange: 82,50
Drevafstand: 21,00
Monteringshul 2 mm: 11,00
Monteringshul 1 mm: 11,00
Afstand/bag: 185,50
Afstand/forside: 60,50
Antal/tænder: 9
B+: M8
Position/B+: 60
Trådlængde mm: 14,50
Position/50: 15
Terminal 50: M4
Gear type: GR
Afstand mm: 105,00
Rotation: CW
Samlet længde mm: 246,00
Antal/monteringshuller: 2 (0)

Specifikation

B+ M8
No./teeth 9
Mount. flange 82.50
No./mount. holes 2 (0)
Position/50 15
Position/B+ 60
Rotation CW
Dist./back 185.50
Dist./front 60.50
Drive dist. 21.00
Gear type GR
kW 2.5
Terminal 50 M4
Voltage 12
Total length 246.00 mm
Dist. 105.00 mm
Thread length 14.50 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm
  • OEM

    F032116579, 3.553.2063F, 0001109357, 58400960
  • Konkurrentreferens

    DRS0786
  • NormaliseratArtNr

    drs0786, f032116579, 0001109357, 35532063f, 58400960
  • Passar modeller

    Jacobsen Model: Lawn Mower Model series: Lawn Mower Brand of engine: VM Motori Approved: Yes
    John Deere Model: 100F Model series: 100F Model type: Orchard Size of motor: 3.0 Brand of engine: VM Motori Fuel: Diesel Approved: Yes
    John Deere Model: 76F Model series: 76F Model type: Orchard Size of motor: 2.7 Brand of engine: VM Motori Fuel: Diesel Approved: Yes
    John Deere Model: 85F Model series: 85F Model type: Orchard Size of motor: 2.7 Brand of engine: VM Motori Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 12
    kW: 2,5
    Monteringsflange: 82,50
    Drevafstand: 21,00
    Monteringshul 2 mm: 11,00
    Monteringshul 1 mm: 11,00
    Afstand/bag: 185,50
    Afstand/forside: 60,50
    Antal/tænder: 9
    B+: M8
    Position/B+: 60
    Trådlængde mm: 14,50
    Position/50: 15
    Terminal 50: M4
    Gear type: GR
    Afstand mm: 105,00
    Rotation: CW
    Samlet længde mm: 246,00
    Antal/monteringshuller: 2 (0)
  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 82.50
    No./mount. holes 2 (0)
    Position/50 15
    Position/B+ 60
    Rotation CW
    Dist./back 185.50
    Dist./front 60.50
    Drive dist. 21.00
    Gear type GR
    kW 2.5
    Terminal 50 M4
    Voltage 12
    Total length 246.00 mm
    Dist. 105.00 mm
    Thread length 14.50 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Køretøjsmatchning
    • OEM

      F032116579, 3.553.2063F, 0001109357, 58400960
    • Konkurrentreferens

      DRS0786
    • NormaliseratArtNr

      drs0786, f032116579, 0001109357, 35532063f, 58400960
    • Passar modeller

      Jacobsen Model: Lawn Mower Model series: Lawn Mower Brand of engine: VM Motori Approved: Yes
      John Deere Model: 100F Model series: 100F Model type: Orchard Size of motor: 3.0 Brand of engine: VM Motori Fuel: Diesel Approved: Yes
      John Deere Model: 76F Model series: 76F Model type: Orchard Size of motor: 2.7 Brand of engine: VM Motori Fuel: Diesel Approved: Yes
      John Deere Model: 85F Model series: 85F Model type: Orchard Size of motor: 2.7 Brand of engine: VM Motori Fuel: Diesel Approved: Yes
