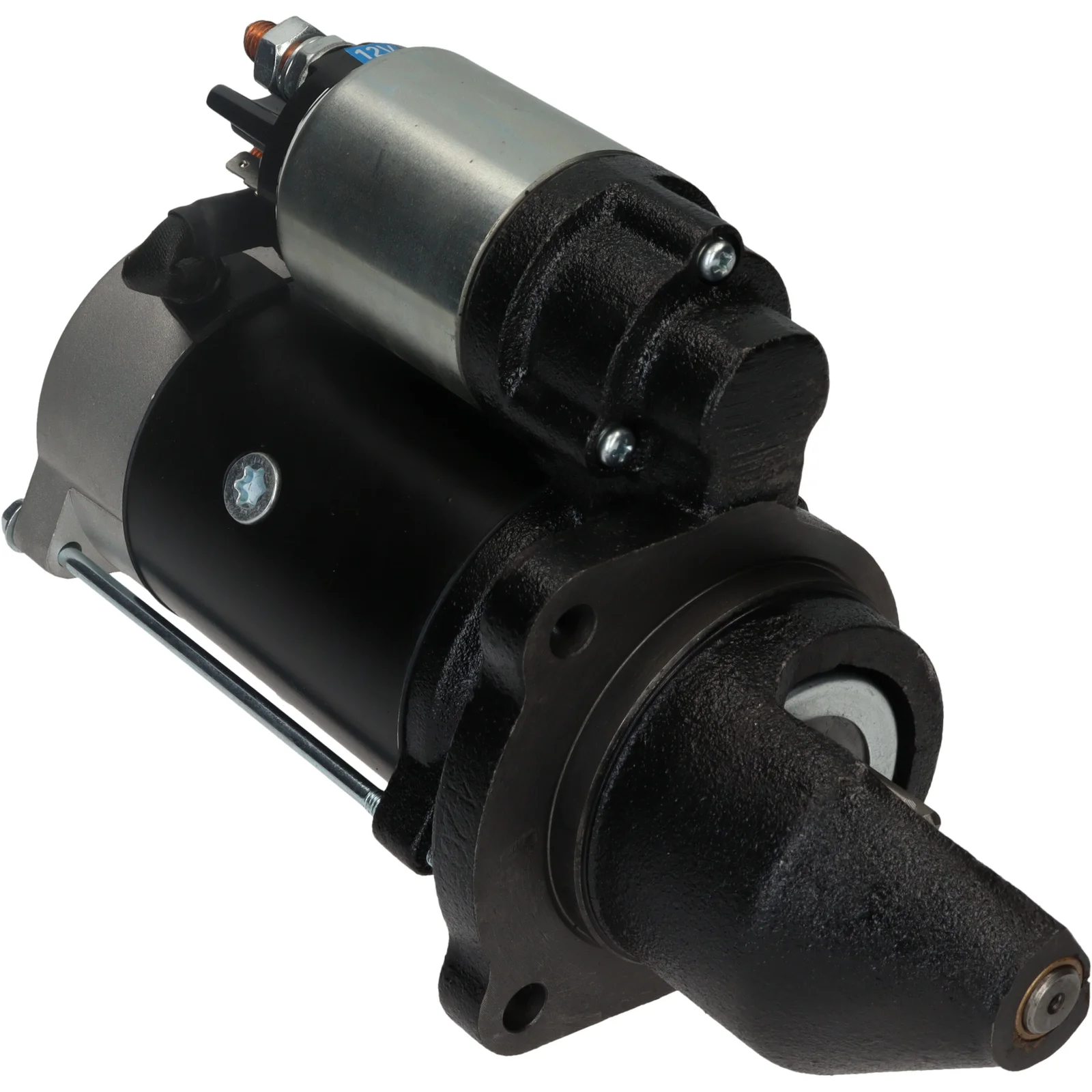

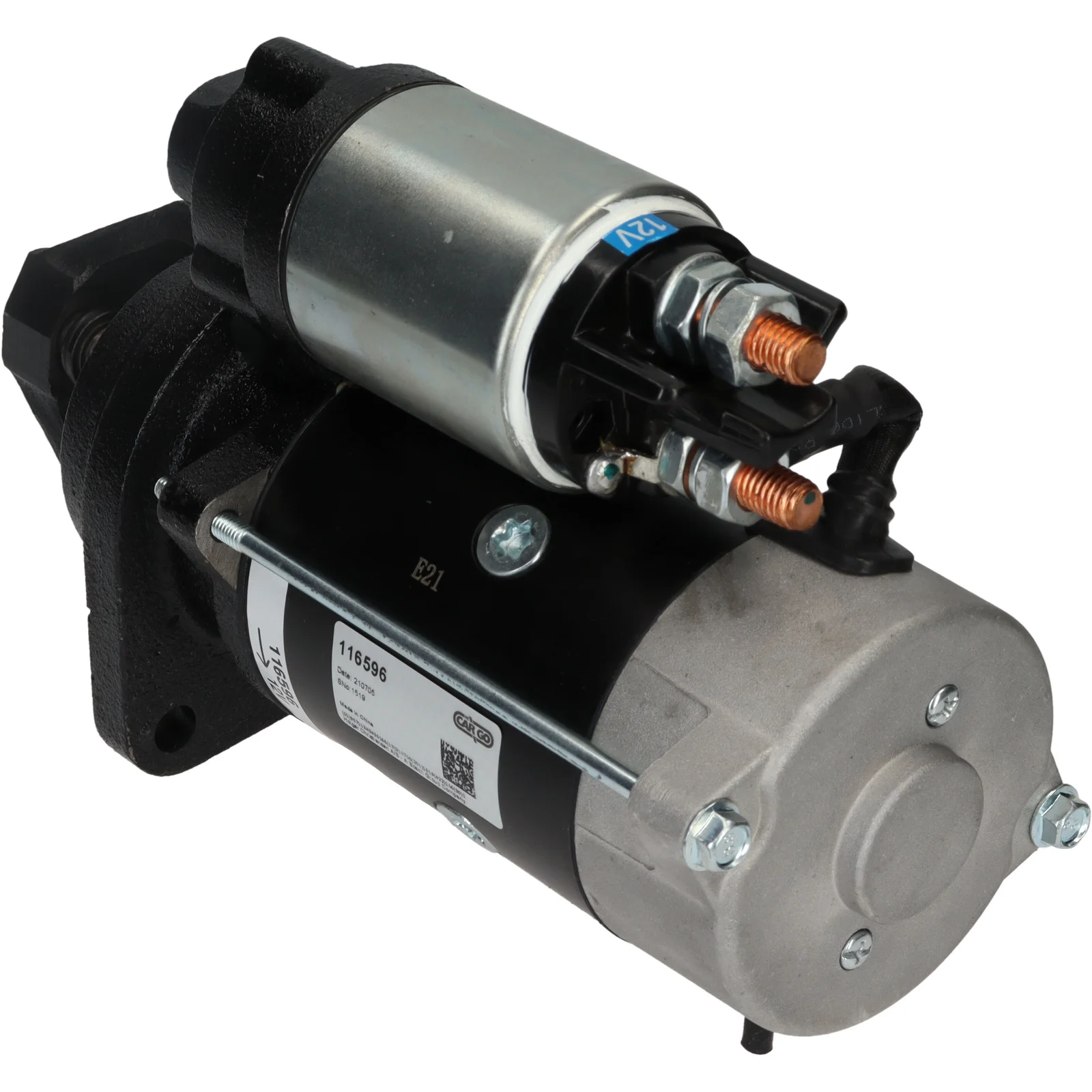

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032116596

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 3.2, Nr./tænder: 9, Rotation: CW

Beskrivelse

Spænding: 12
kW: 3.2
Monteringsflange: 89.00
Drevafstand: 48.00
Monteringshul 3 mm: 11.00
Monteringshul 2 mm: 11.00
Monteringshul 1 mm: 11.00
Afstand/bag: 193.00
Afstand/forside: 92.00
Nummer/tænder: 9
B+: M10
Position/B+: 60
Position/50: 15
Terminal 50: M4
Gear type: GR
Afstand 2: 90.00
Afstand 3: 127.00
Afstand mm: 90.00
Rotation: CW
Total længde mm: 285.00
Nummer/monteringshuller: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 9
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 15
Position/B+ 60
Dist. 2 90.00
Dist. 3 127.00
Rotation CW
Dist./back 193.00
Dist./front 92.00
Drive dist. 48.00
Gear type GR
kW 3.2
Terminal 50 M4
Voltage 12
Total length 285.00 mm
Dist. 90.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    AZE4205, F032116596, MN16359124, 11.131.957, 9142763, 9144763, 16359124, 78350925, 450115114763

  • Konkurrentreferens
    CST21182, IS1297, MS34, 580.502.092

  • NormaliseratArtNr
    aze4205, cst21182, f032116596, is1297, mn16359124, ms34, 9142763, 9144763, 11131957, 16359124, 78350925, 580502092, 450115114763

  • Passar modeller
    Zetor Model: Forterra Model series: 8641 Size of motor: 4.2 Brand of engine: Z1203 Body: Tractor From date: 01-10-2001 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    Zetor Model: Major Model series: 80 Size of motor: 4.2 Brand of engine: Z1105 Body: Tractor From date: 01-10-2012 Fuel: Diesel Approved: Yes
    Zetor Model: Proxima Model series: 90, 100 Size of motor: 4.2 Body: Tractor From date: 01-10-2013 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 12
    kW: 3.2
    Monteringsflange: 89.00
    Drevafstand: 48.00
    Monteringshul 3 mm: 11.00
    Monteringshul 2 mm: 11.00
    Monteringshul 1 mm: 11.00
    Afstand/bag: 193.00
    Afstand/forside: 92.00
    Nummer/tænder: 9
    B+: M10
    Position/B+: 60
    Position/50: 15
    Terminal 50: M4
    Gear type: GR
    Afstand 2: 90.00
    Afstand 3: 127.00
    Afstand mm: 90.00
    Rotation: CW
    Total længde mm: 285.00
    Nummer/monteringshuller: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 9
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Position/50 15
    Position/B+ 60
    Dist. 2 90.00
    Dist. 3 127.00
    Rotation CW
    Dist./back 193.00
    Dist./front 92.00
    Drive dist. 48.00
    Gear type GR
    kW 3.2
    Terminal 50 M4
    Voltage 12
    Total length 285.00 mm
    Dist. 90.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Køretøjsmatchning

    • OEM
      AZE4205, F032116596, MN16359124, 11.131.957, 9142763, 9144763, 16359124, 78350925, 450115114763

    • Konkurrentreferens
      CST21182, IS1297, MS34, 580.502.092

    • NormaliseratArtNr
      aze4205, cst21182, f032116596, is1297, mn16359124, ms34, 9142763, 9144763, 11131957, 16359124, 78350925, 580502092, 450115114763

    • Passar modeller
      Zetor Model: Forterra Model series: 8641 Size of motor: 4.2 Brand of engine: Z1203 Body: Tractor From date: 01-10-2001 To date: 01-12-2008 Fuel: Diesel Approved: Yes
      Zetor Model: Major Model series: 80 Size of motor: 4.2 Brand of engine: Z1105 Body: Tractor From date: 01-10-2012 Fuel: Diesel Approved: Yes
      Zetor Model: Proxima Model series: 90, 100 Size of motor: 4.2 Body: Tractor From date: 01-10-2013 Fuel: Diesel Approved: Yes
