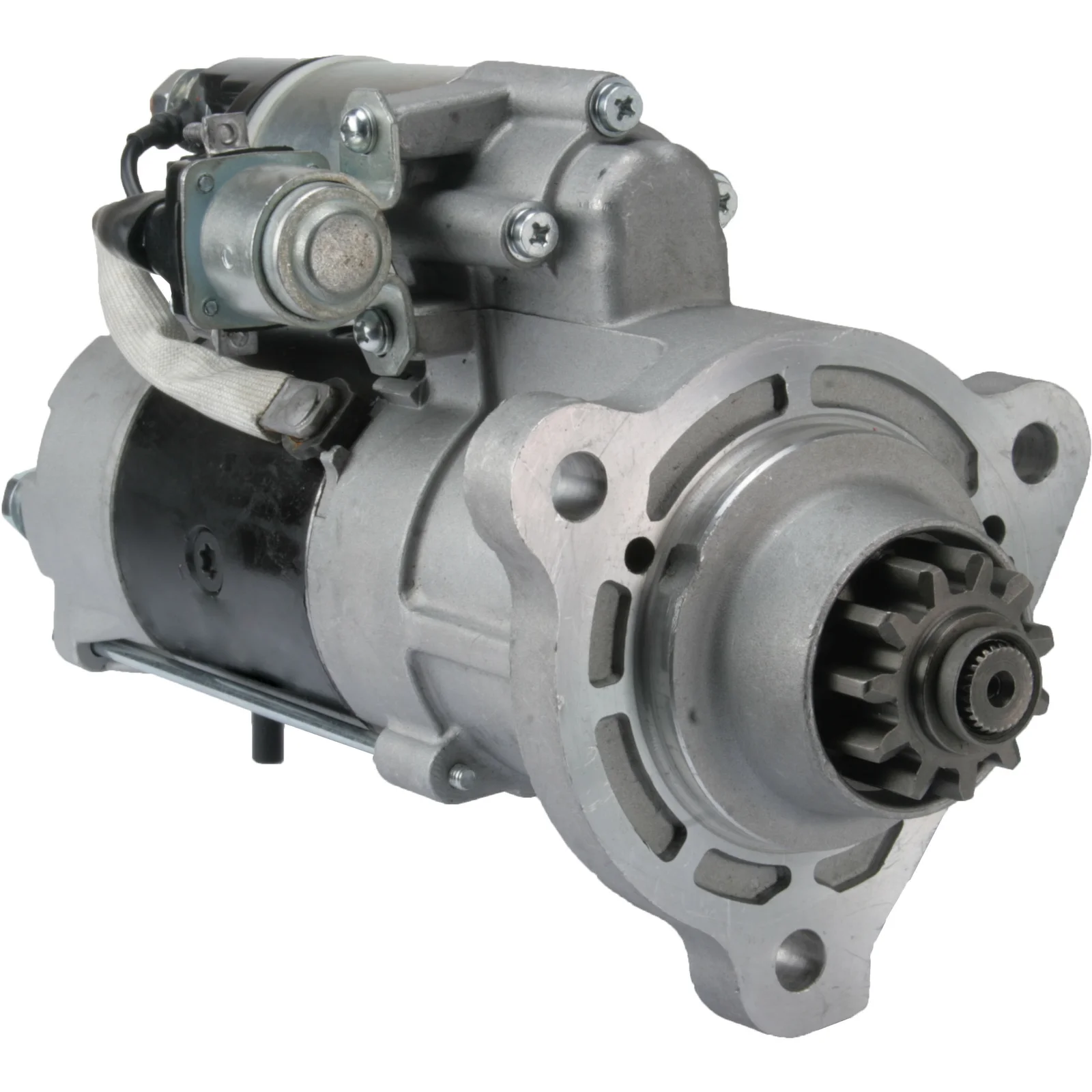

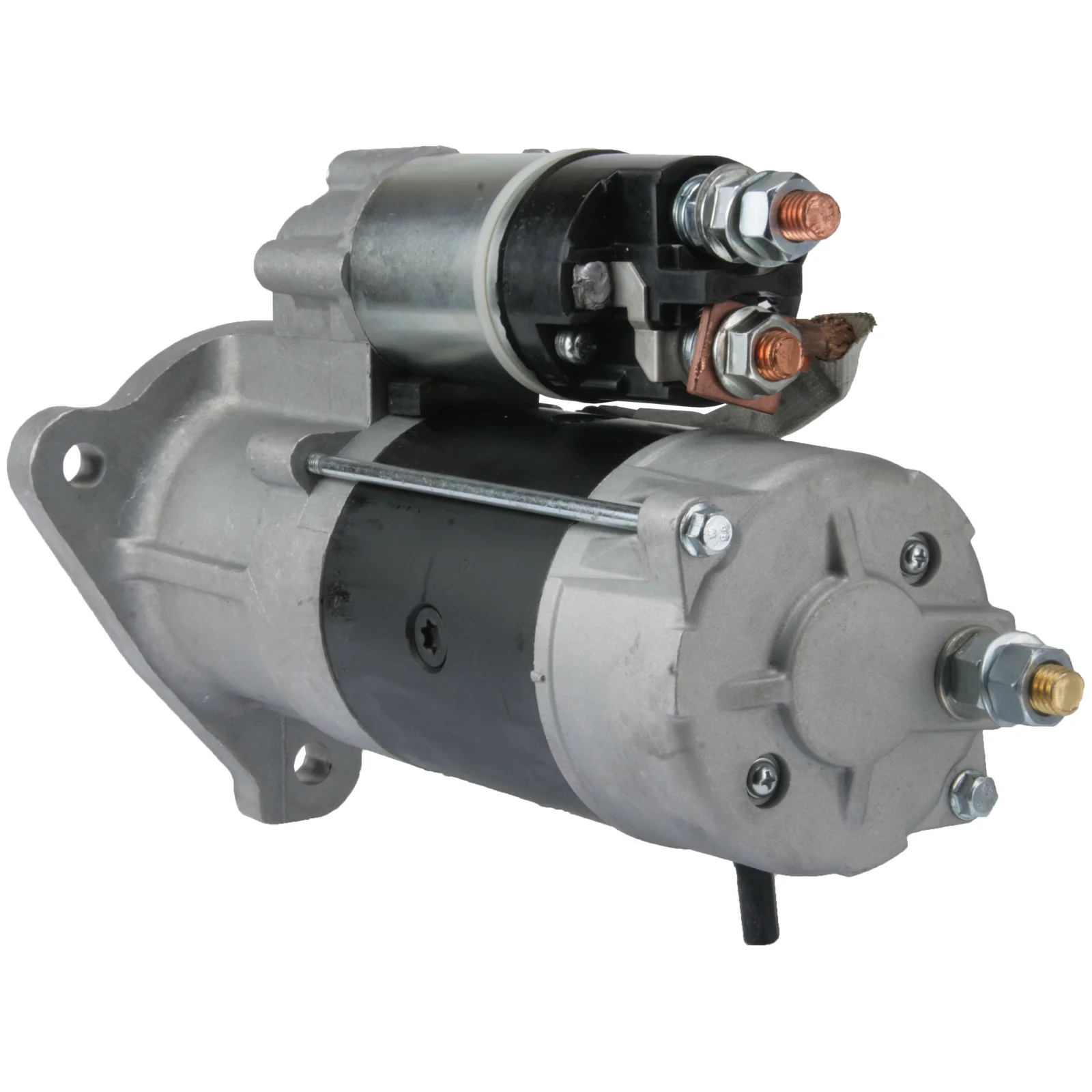

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032114100

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 24, kW: 7.5, no./tand: 11, Rotation: med uret

Beskrivelse

Spænding: 24
kW: 7.5
Monteringsflange: 92.00
Drevafstand: 47.00
Monteringshul 3 mm: 14.00
Monteringshul 2 mm: 14.00
Monteringshul 1 mm: 14.00
Afstand/bag: 286.50
Afstand/frem: 60.00
Nummer/tænder: 11
B+: M12
Position/50: 15
Terminal 50: M4
Gear type: GR
Afstand 2: 126.50
Afstand 3: 126.50
Afstand mm: 126.50
Rotation: uret
Total længde mm: 380.00
Producentinfo: BN
Nummer/monteringshuller: 3 (0)

Filer

Specifikation

B+ M12
No./teeth 11
Mount. flange 92.00
No./mount. holes 3 (0)
Position/50 15
Prod. info BN
Dist. 2 126.50
Dist. 3 126.50
Rotation CW
Dist./back 286.50
Dist./front 60.00
Drive dist. 47.00
Gear type GR
kW 7.5
Terminal 50 M4
Voltage 24
Total length 380.00 mm
Dist. 126.50 mm
Mount. hole 3 14.00 mm
Mount. hole 2 14.00 mm
Mount. hole 1 14.00 mm

  • OEM
    cs1497, d13hp613, d13hp709, F032114100, M009T80071, M9T80071, M9T80272, 5001853716, 5010306631, 5010480432, 5010508382, 5010853716

  • Konkurrentreferens
    CST15604, CST35611, DRS0127, DRS0466, LRS02258, MITM9T80272, MS884, nd172, S3034, S5029, S5030, 8ea737677-001, 45-2488, 45-3429, 630.015.114, 4602, 19979N, 30251N, 106390, 106434, 220259, 220259A, 220567, 220567A, 220568, 220568A, 455723, 8212249, 11024450, 0986024450

  • NormaliseratArtNr
    cs1497, cst15604, cst35611, d13hp613, d13hp709, drs0127, drs0466, f032114100, lrs02258, m009t80071, m9t80071, m9t80272, mitm9t80272, ms884, nd172, s3034, s5029, s5030, 8ea737677001, 4602, 19979n, 30251n, 106390, 106434, 220259, 220259a, 220567, 220567a, 220568, 220568a, 452488, 453429, 455723, 8212249, 11024450, 630015114, 0986024450, 5001853716, 5010306631, 5010480432, 5010508382, 5010853716

  • Passar modeller
    Renault V.I. Model: Magnum Model series: 400.18 Size of motor: 12.0 Brand of engine: MACKE.TECHA/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Magnum Model series: 400.18 Size of motor: 12.0 Brand of engine: MACKE.TECHA/46 Type description: E.tech Body: Semi-Trailer From date: 01-05-2000 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Magnum Model series: 400.24 Size of motor: 12.0 Brand of engine: MACKE.TECHA/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Magnum Model series: 400.26 Size of motor: 12.0 Brand of engine: MACKE.TECHA/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Magnum Model series: 440.18 Size of motor: 12.0 Brand of engine: MACKE.TECHB/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Magnum Model series: 440.18 Size of motor: 12.0 Brand of engine: MACKE.TECHB/46 Type description: E.tech Body: Semi-Trailer From date: 01-05-2000 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Magnum Model series: 440.24 Size of motor: 12.0 Brand of engine: MACKE.TECHB/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Magnum Model series: 440.26 Size of motor: 12.0 Brand of engine: MACKE.TECHB/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Magnum Model series: 440.26 Size of motor: 12.0 Brand of engine: MACKE.TECHB/46 Type description: E.tech Body: Semi-Trailer From date: 01-05-2000 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Magnum Model series: 480.18 Size of motor: 12.0 Brand of engine: MACKE.TECHC/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Magnum Model series: 480.18 Size of motor: 12.0 Brand of engine: MACKE.TECHC/46 Type description: E.tech Body: Semi-Trailer From date: 01-05-2000 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Magnum Model series: 480.24 Size of motor: 12.0 Brand of engine: MACKE.TECHC/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Magnum Model series: 480.26 Size of motor: 12.0 Brand of engine: MACKE.TECHC/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Magnum Model series: 480.26 Size of motor: 12.0 Brand of engine: MACKE.TECHC/46 Type description: E.tech Body: Semi-Trailer From date: 01-05-2000 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivelse
    Spænding: 24
    kW: 7.5
    Monteringsflange: 92.00
    Drevafstand: 47.00
    Monteringshul 3 mm: 14.00
    Monteringshul 2 mm: 14.00
    Monteringshul 1 mm: 14.00
    Afstand/bag: 286.50
    Afstand/frem: 60.00
    Nummer/tænder: 11
    B+: M12
    Position/50: 15
    Terminal 50: M4
    Gear type: GR
    Afstand 2: 126.50
    Afstand 3: 126.50
    Afstand mm: 126.50
    Rotation: uret
    Total længde mm: 380.00
    Producentinfo: BN
    Nummer/monteringshuller: 3 (0)

    Filer

  • Specifikation
    B+ M12
    No./teeth 11
    Mount. flange 92.00
    No./mount. holes 3 (0)
    Position/50 15
    Prod. info BN
    Dist. 2 126.50
    Dist. 3 126.50
    Rotation CW
    Dist./back 286.50
    Dist./front 60.00
    Drive dist. 47.00
    Gear type GR
    kW 7.5
    Terminal 50 M4
    Voltage 24
    Total length 380.00 mm
    Dist. 126.50 mm
    Mount. hole 3 14.00 mm
    Mount. hole 2 14.00 mm
    Mount. hole 1 14.00 mm
  • Køretøjsmatchning

    • OEM
      cs1497, d13hp613, d13hp709, F032114100, M009T80071, M9T80071, M9T80272, 5001853716, 5010306631, 5010480432, 5010508382, 5010853716

    • Konkurrentreferens
      CST15604, CST35611, DRS0127, DRS0466, LRS02258, MITM9T80272, MS884, nd172, S3034, S5029, S5030, 8ea737677-001, 45-2488, 45-3429, 630.015.114, 4602, 19979N, 30251N, 106390, 106434, 220259, 220259A, 220567, 220567A, 220568, 220568A, 455723, 8212249, 11024450, 0986024450

    • NormaliseratArtNr
      cs1497, cst15604, cst35611, d13hp613, d13hp709, drs0127, drs0466, f032114100, lrs02258, m009t80071, m9t80071, m9t80272, mitm9t80272, ms884, nd172, s3034, s5029, s5030, 8ea737677001, 4602, 19979n, 30251n, 106390, 106434, 220259, 220259a, 220567, 220567a, 220568, 220568a, 452488, 453429, 455723, 8212249, 11024450, 630015114, 0986024450, 5001853716, 5010306631, 5010480432, 5010508382, 5010853716

    • Passar modeller
      Renault V.I. Model: Magnum Model series: 400.18 Size of motor: 12.0 Brand of engine: MACKE.TECHA/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Magnum Model series: 400.18 Size of motor: 12.0 Brand of engine: MACKE.TECHA/46 Type description: E.tech Body: Semi-Trailer From date: 01-05-2000 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Magnum Model series: 400.24 Size of motor: 12.0 Brand of engine: MACKE.TECHA/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Magnum Model series: 400.26 Size of motor: 12.0 Brand of engine: MACKE.TECHA/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Magnum Model series: 440.18 Size of motor: 12.0 Brand of engine: MACKE.TECHB/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Magnum Model series: 440.18 Size of motor: 12.0 Brand of engine: MACKE.TECHB/46 Type description: E.tech Body: Semi-Trailer From date: 01-05-2000 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Magnum Model series: 440.24 Size of motor: 12.0 Brand of engine: MACKE.TECHB/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Magnum Model series: 440.26 Size of motor: 12.0 Brand of engine: MACKE.TECHB/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Magnum Model series: 440.26 Size of motor: 12.0 Brand of engine: MACKE.TECHB/46 Type description: E.tech Body: Semi-Trailer From date: 01-05-2000 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Magnum Model series: 480.18 Size of motor: 12.0 Brand of engine: MACKE.TECHC/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Magnum Model series: 480.18 Size of motor: 12.0 Brand of engine: MACKE.TECHC/46 Type description: E.tech Body: Semi-Trailer From date: 01-05-2000 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Magnum Model series: 480.24 Size of motor: 12.0 Brand of engine: MACKE.TECHC/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Magnum Model series: 480.26 Size of motor: 12.0 Brand of engine: MACKE.TECHC/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Magnum Model series: 480.26 Size of motor: 12.0 Brand of engine: MACKE.TECHC/46 Type description: E.tech Body: Semi-Trailer From date: 01-05-2000 Fuel: Diesel Approved: Yes
