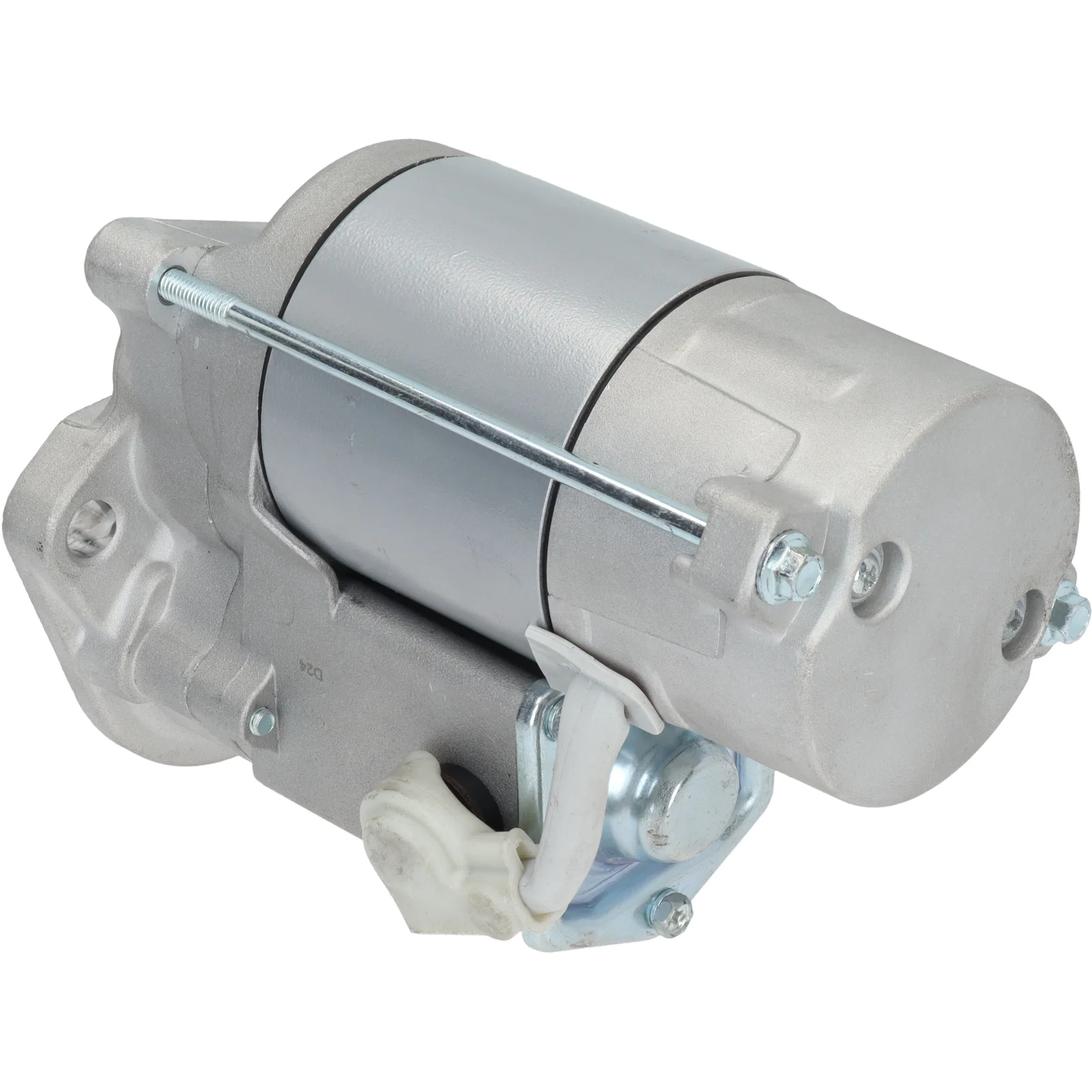

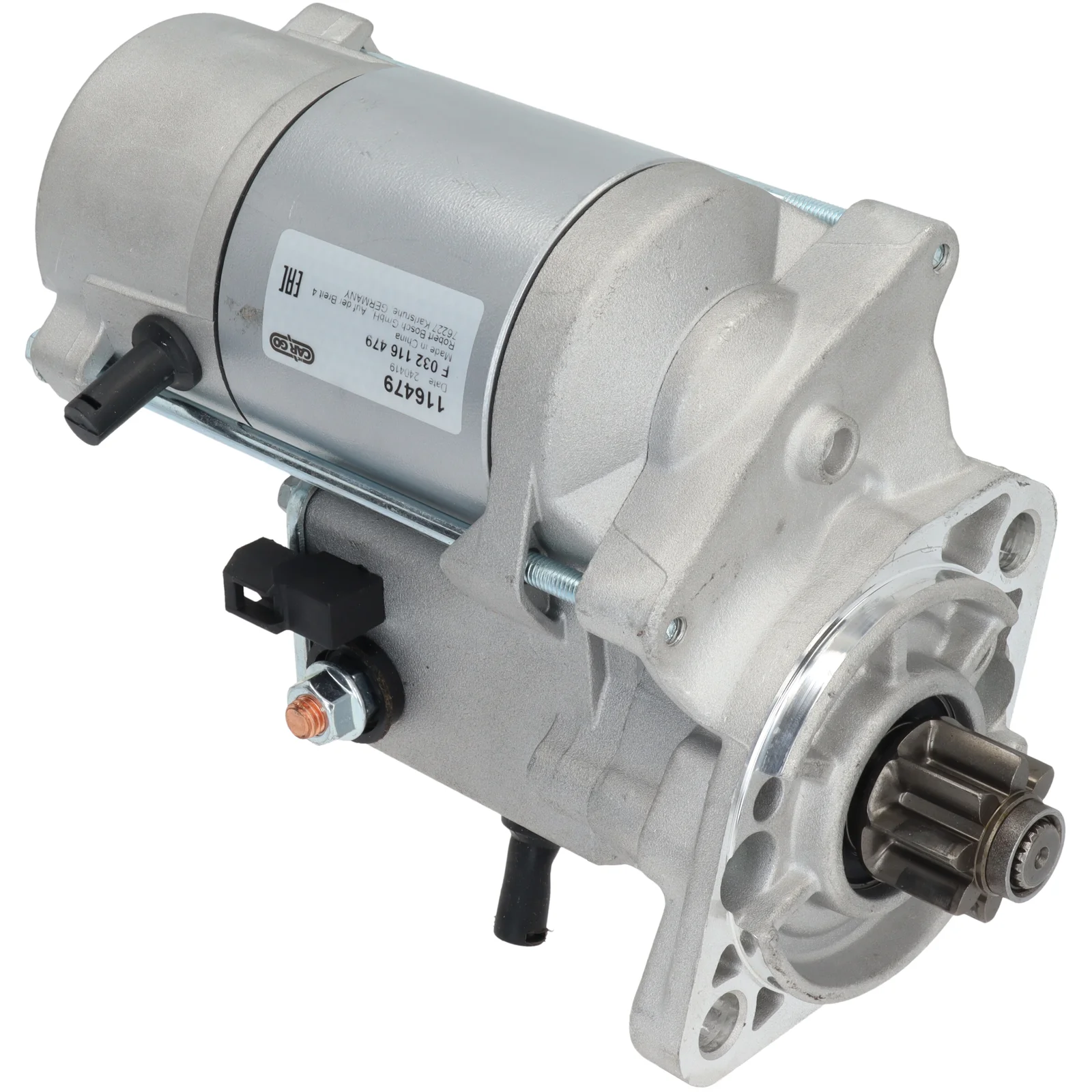

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032116479

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 2,0, No./tand: 8, Rotation: med uret

Beskrivelse

Spænding: 12
kW: 2,0
Færdigmonterings flange: 82,50
Drive afstand: 29,50
Færdigmonterings hul 2 mm: 11,00
Færdigmonterings hul 1 mm: 11,00
Afstand/front: 37,00
Antal/tænder: 8
B+: M8
Terminal 50: 6,30
Geartype: GR
Dist. mm: 105,00
Rotation: CW
Total længde mm: 219,00
Antal/færdigmonterings huller: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 8
Mount. flange 82.50
No./mount. holes 2 (0)
Rotation CW
Dist./front 37.00
Drive dist. 29.50
Gear type GR
kW 2.0
Terminal 50 6.30
Voltage 12
Total length 219.00 mm
Dist. 105.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032116479, 1J730-63010, 1J730-63011, 428000-6940, 428080-6940

  • Konkurrentreferens
    DSN2124, 690.558.082, 30579, 255367

  • NormaliseratArtNr
    dsn2124, f032116479, 1j73063010, 1j73063011, 30579, 255367, 690558082, 4280006940, 4280806940

  • Passar modeller
    Kubota Model: KX057-4 Model series: KX057-4 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
    Kubota Model: KX57-6 Model series: KX57-6 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
    Kubota Model: U40-6 Model series: U40-6 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
    Kubota Model: U48-4 Model series: U48-4 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
    Kubota Model: U55 Model series: U55 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
    Kubota Model: U55-6 Model series: U55-6 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 12
    kW: 2,0
    Færdigmonterings flange: 82,50
    Drive afstand: 29,50
    Færdigmonterings hul 2 mm: 11,00
    Færdigmonterings hul 1 mm: 11,00
    Afstand/front: 37,00
    Antal/tænder: 8
    B+: M8
    Terminal 50: 6,30
    Geartype: GR
    Dist. mm: 105,00
    Rotation: CW
    Total længde mm: 219,00
    Antal/færdigmonterings huller: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 8
    Mount. flange 82.50
    No./mount. holes 2 (0)
    Rotation CW
    Dist./front 37.00
    Drive dist. 29.50
    Gear type GR
    kW 2.0
    Terminal 50 6.30
    Voltage 12
    Total length 219.00 mm
    Dist. 105.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Køretøjsmatchning

    • OEM
      F032116479, 1J730-63010, 1J730-63011, 428000-6940, 428080-6940

    • Konkurrentreferens
      DSN2124, 690.558.082, 30579, 255367

    • NormaliseratArtNr
      dsn2124, f032116479, 1j73063010, 1j73063011, 30579, 255367, 690558082, 4280006940, 4280806940

    • Passar modeller
      Kubota Model: KX057-4 Model series: KX057-4 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
      Kubota Model: KX57-6 Model series: KX57-6 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
      Kubota Model: U40-6 Model series: U40-6 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
      Kubota Model: U48-4 Model series: U48-4 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
      Kubota Model: U55 Model series: U55 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
      Kubota Model: U55-6 Model series: U55-6 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
      1 / 2
