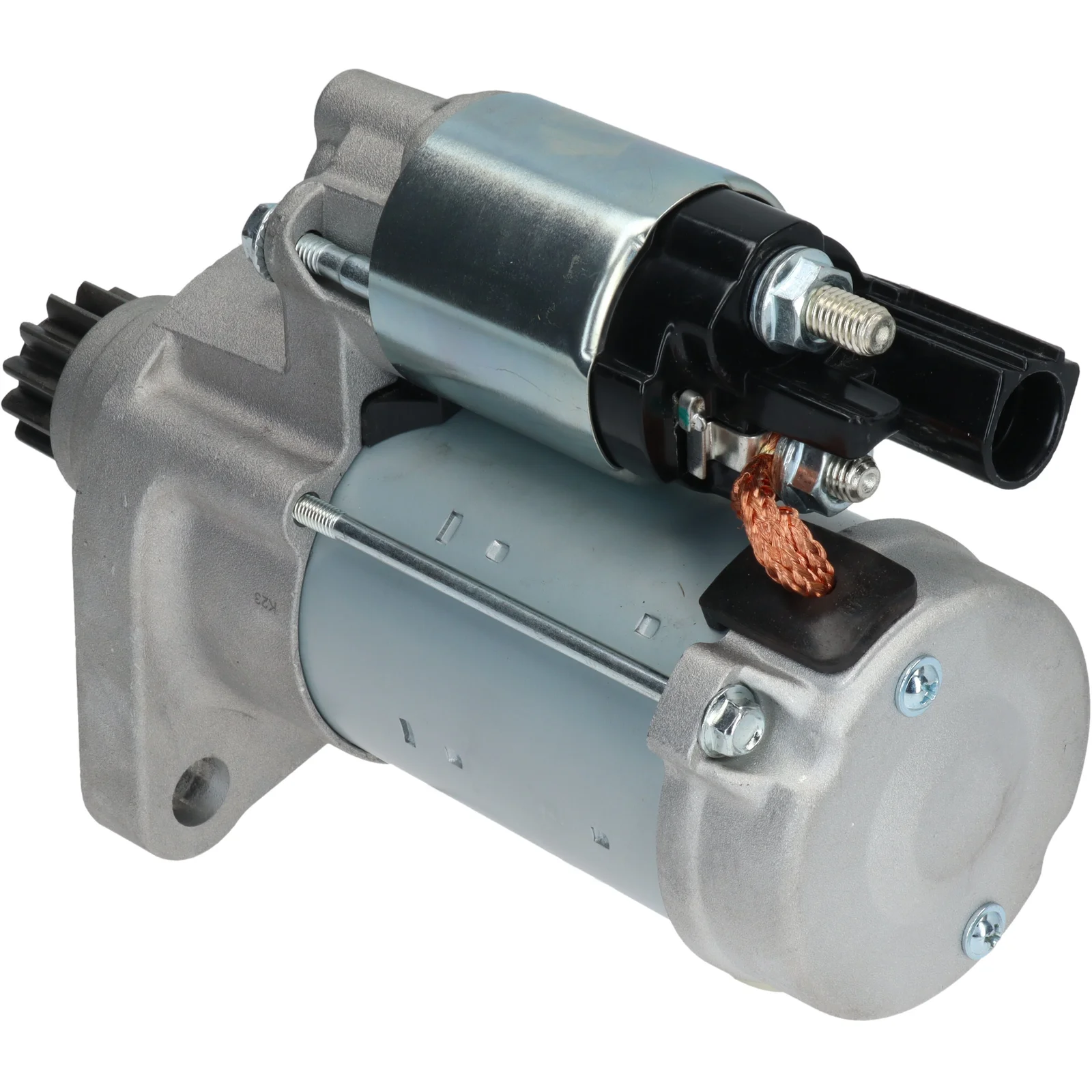

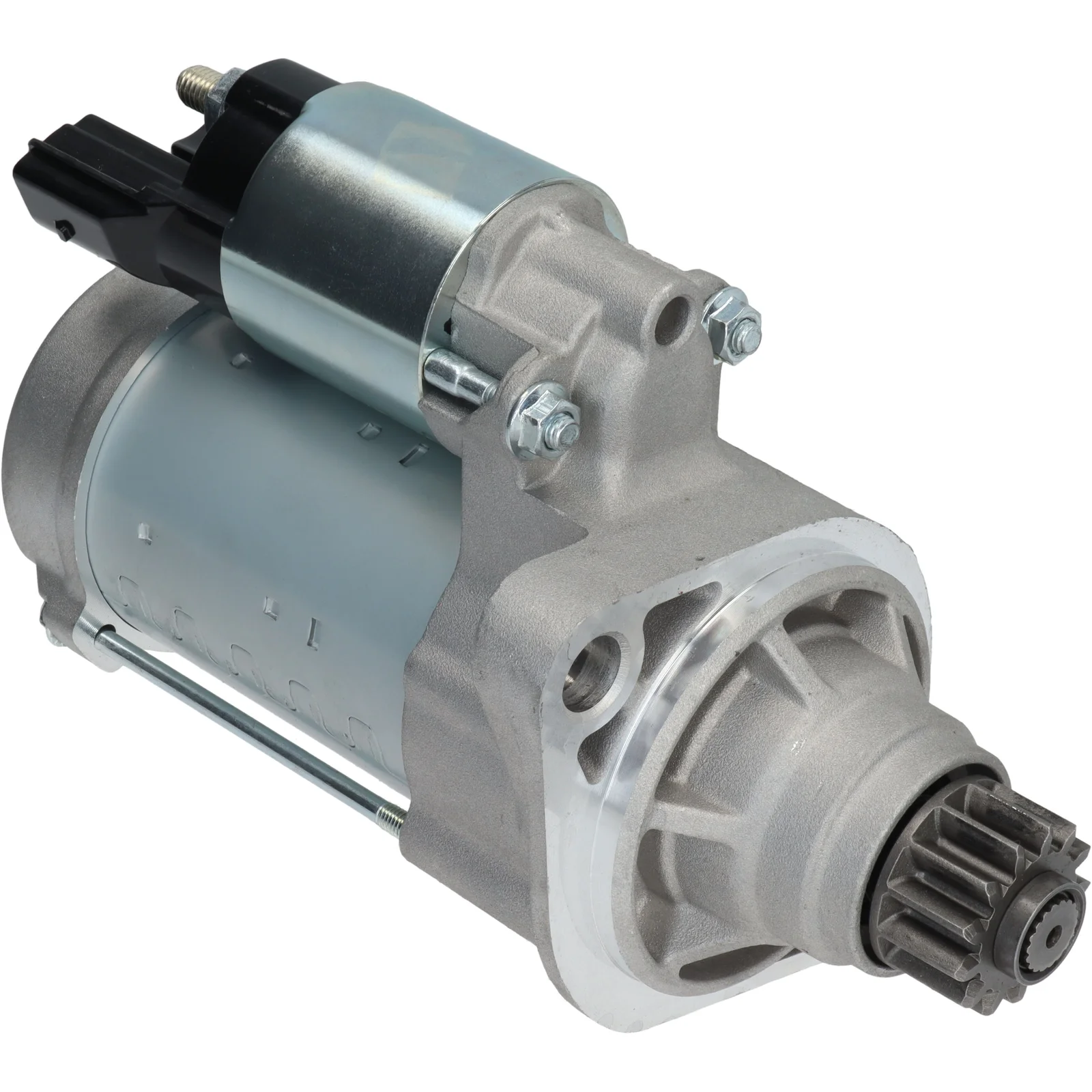

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032116756

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 1,5, Antal tandhjul: 13, Rotation: CCW

Beskrivelse

Spændingsføler: 12
kW: 1.5
Mondraflange: 79.00
Drevafstand: 56.00
Monteringshul 2 mm: 12.50
Monteringshul 1 mm: 12.50
Afstand/bag: 159.00
Afstand/forside: 61.00
Antal/tænder: 13
B+: M8
Position/B+: 60
Terminal 50: 4.80
Geartype: GR
Afstand mm: 111.00
Rotation: CCW
Total længde mm: 220.00
Antal/monteringshuller: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 13
Mount. flange 79.00
No./mount. holes 2 (0)
Position/B+ 60
Rotation CCW
Dist./back 159.00
Dist./front 61.00
Drive dist. 56.00
Gear type GR
kW 1.5
Terminal 50 4.80
Voltage 12
Total length 220.00 mm
Dist. 111.00 mm
Mount. hole 2 12.50 mm
Mount. hole 1 12.50 mm

  • OEM
    0AH 911 023J, 0AH911023J, 0AH911023JX, F032116756, 0001 179 530, 0001 179 531, 1986 S01 048, 1986S01048, 0001179530, 0001179531

  • Konkurrentreferens
    LRS04094, 25-5257, 438569, 42000007

  • NormaliseratArtNr
    0ah911023j, 0ah911023jx, f032116756, lrs04094, 1986s01048, 255257, 438569, 0001179530, 0001179531, 42000007

  • Passar modeller
    VW Model: Caddy Model series: Caddy Alltrack Type of engine: TSI Size of motor: 1.2 Brand of engine: CYVC Type description: SAA Body: Van From date: 01-06-2015 Fuel: Gasoline Approved: Yes
    VW Model: Caddy Model series: Caddy Alltrack Type of engine: TSI Size of motor: 1.2 Brand of engine: CYVC Type description: SAB Body: Estate From date: 01-06-2015 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    VW Model: Caddy Model series: Caddy Type of engine: TSi Size of motor: 1.2 Brand of engine: CYVC Type description: SAA, SAH Body: Van From date: 01-06-2015 Fuel: Gasoline Approved: Yes
    VW Model: Caddy Model series: Caddy Type of engine: TSi Size of motor: 1.2 Brand of engine: CYVC Type description: SAB, SAJ Body: Estate From date: 01-06-2015 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    VW Model: Golf Model series: Golf Sportsvan Type of engine: TSI Size of motor: 1.2 Brand of engine: CYVB Body: Hatchback From date: 01-04-2014 Fuel: Gasoline Approved: Yes
    VW Model: Golf Model series: Golf VII Type of engine: TSI Size of motor: 1.2 Brand of engine: CJZA Body: Estate From date: 01-05-2013 Fuel: Gasoline Approved: Yes Manufacture type: Variant
    VW Model: Golf Model series: Golf VII Type of engine: TSI Size of motor: 1.2 Brand of engine: CJZA Body: Hatchback From date: 01-11-2012 Fuel: Gasoline Approved: Yes
    VW Model: Golf Model series: Golf VII Type of engine: TSI Size of motor: 1.2 Brand of engine: CYVB Type description: BA5 Body: Estate From date: 01-04-2014 Fuel: Gasoline Approved: Yes Manufacture type: Variant
    VW Model: Golf Model series: Golf VII Van Model type: BlueMotion Type of engine: TSI Size of motor: 1.2 Brand of engine: CJZA Type description: 5G1 Body: Box Body / Hatchback From date: 01-11-2012 Fuel: Gasoline Approved: Yes
    VW Model: Touran Model series: Touran Type of engine: TSi Size of motor: 1.2 Brand of engine: CYVB Type description: 5T1 Body: MPV From date: 01-05-2015 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spændingsføler: 12
    kW: 1.5
    Mondraflange: 79.00
    Drevafstand: 56.00
    Monteringshul 2 mm: 12.50
    Monteringshul 1 mm: 12.50
    Afstand/bag: 159.00
    Afstand/forside: 61.00
    Antal/tænder: 13
    B+: M8
    Position/B+: 60
    Terminal 50: 4.80
    Geartype: GR
    Afstand mm: 111.00
    Rotation: CCW
    Total længde mm: 220.00
    Antal/monteringshuller: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 13
    Mount. flange 79.00
    No./mount. holes 2 (0)
    Position/B+ 60
    Rotation CCW
    Dist./back 159.00
    Dist./front 61.00
    Drive dist. 56.00
    Gear type GR
    kW 1.5
    Terminal 50 4.80
    Voltage 12
    Total length 220.00 mm
    Dist. 111.00 mm
    Mount. hole 2 12.50 mm
    Mount. hole 1 12.50 mm
  • Køretøjsmatchning

    • OEM
      0AH 911 023J, 0AH911023J, 0AH911023JX, F032116756, 0001 179 530, 0001 179 531, 1986 S01 048, 1986S01048, 0001179530, 0001179531

    • Konkurrentreferens
      LRS04094, 25-5257, 438569, 42000007

    • NormaliseratArtNr
      0ah911023j, 0ah911023jx, f032116756, lrs04094, 1986s01048, 255257, 438569, 0001179530, 0001179531, 42000007

    • Passar modeller
      VW Model: Caddy Model series: Caddy Alltrack Type of engine: TSI Size of motor: 1.2 Brand of engine: CYVC Type description: SAA Body: Van From date: 01-06-2015 Fuel: Gasoline Approved: Yes
      VW Model: Caddy Model series: Caddy Alltrack Type of engine: TSI Size of motor: 1.2 Brand of engine: CYVC Type description: SAB Body: Estate From date: 01-06-2015 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
      VW Model: Caddy Model series: Caddy Type of engine: TSi Size of motor: 1.2 Brand of engine: CYVC Type description: SAA, SAH Body: Van From date: 01-06-2015 Fuel: Gasoline Approved: Yes
      VW Model: Caddy Model series: Caddy Type of engine: TSi Size of motor: 1.2 Brand of engine: CYVC Type description: SAB, SAJ Body: Estate From date: 01-06-2015 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
      VW Model: Golf Model series: Golf Sportsvan Type of engine: TSI Size of motor: 1.2 Brand of engine: CYVB Body: Hatchback From date: 01-04-2014 Fuel: Gasoline Approved: Yes
      VW Model: Golf Model series: Golf VII Type of engine: TSI Size of motor: 1.2 Brand of engine: CJZA Body: Estate From date: 01-05-2013 Fuel: Gasoline Approved: Yes Manufacture type: Variant
      VW Model: Golf Model series: Golf VII Type of engine: TSI Size of motor: 1.2 Brand of engine: CJZA Body: Hatchback From date: 01-11-2012 Fuel: Gasoline Approved: Yes
      VW Model: Golf Model series: Golf VII Type of engine: TSI Size of motor: 1.2 Brand of engine: CYVB Type description: BA5 Body: Estate From date: 01-04-2014 Fuel: Gasoline Approved: Yes Manufacture type: Variant
      VW Model: Golf Model series: Golf VII Van Model type: BlueMotion Type of engine: TSI Size of motor: 1.2 Brand of engine: CJZA Type description: 5G1 Body: Box Body / Hatchback From date: 01-11-2012 Fuel: Gasoline Approved: Yes
      VW Model: Touran Model series: Touran Type of engine: TSi Size of motor: 1.2 Brand of engine: CYVB Type description: 5T1 Body: MPV From date: 01-05-2015 Fuel: Gasoline Approved: Yes
