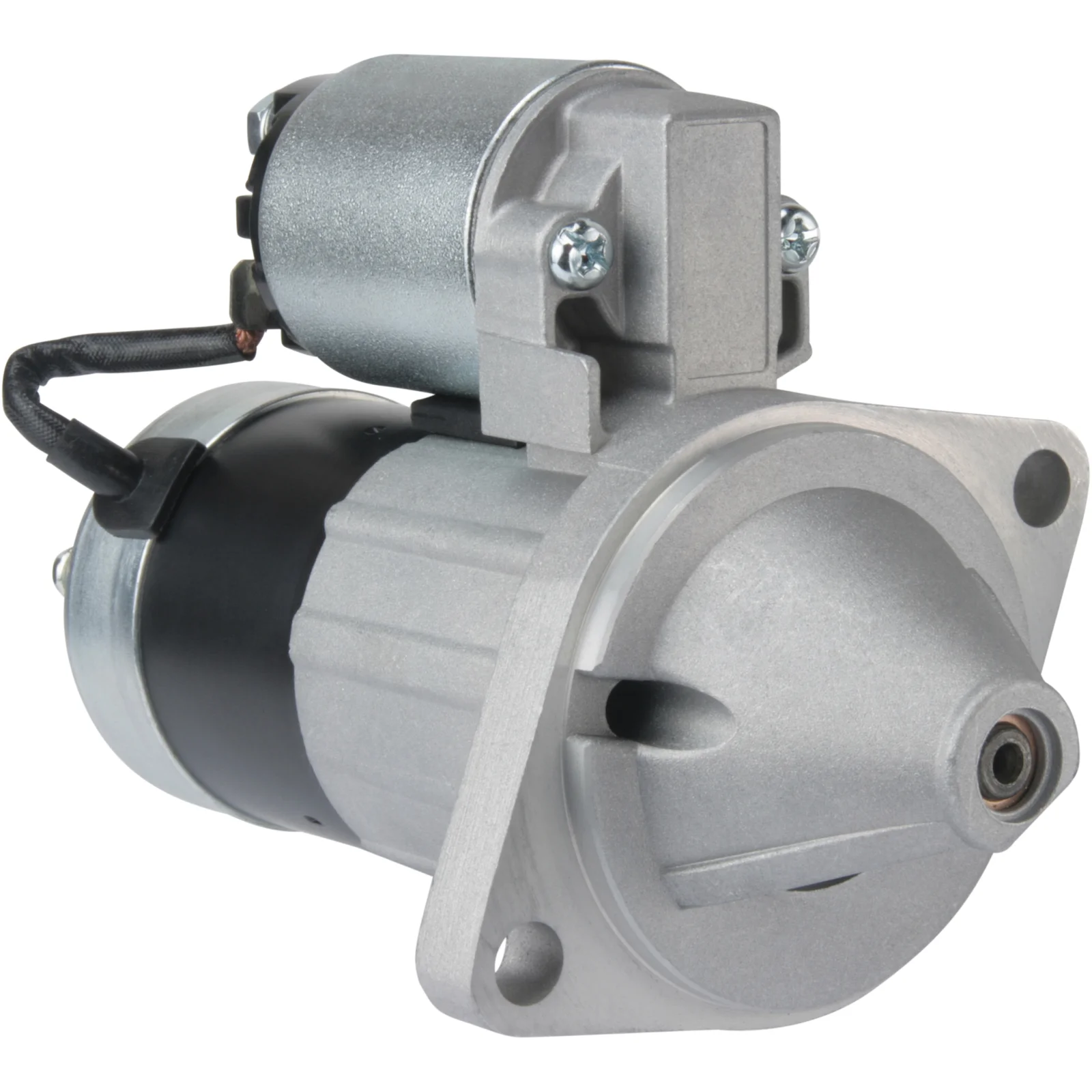

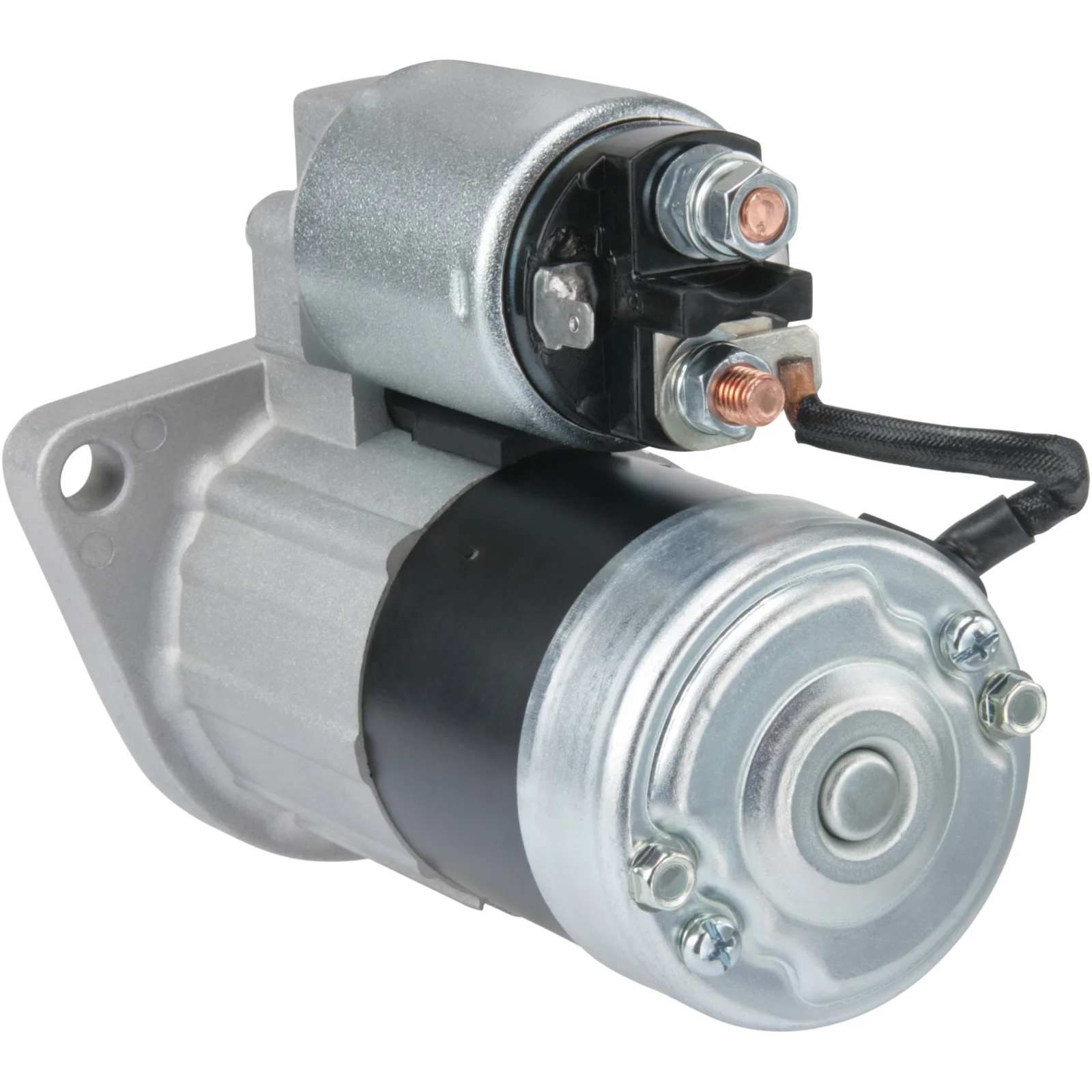

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032110155

HC-Cargo Startmotor

Tekniske oplysninger:

Spenning: 12, kW: 0.85, Antal/tooth: 8, Rotation: CW

Beskrivelse

HC-Cargo Startmotor

Voltage: 12
kW: 0.85
Monteringsflange: 83.00
Driveafstand: 7.50
Monteringshul 2 mm: 11.00
Monteringshul 1 mm: 11.00
Afstand/tilbag: 145.50
Afstand/front: 46.00
Nr./tænder: 8
B+: M8
Position/B+: 60
Position/50: 45
Terminal 50: 6.30
Gear type: DD/GR
Afstand mm: 110.00
Rotation: med uret
Total længde mm: 191.00
Drive type: Stål
Producent info: BN
Vandtæt: Nej
Olielukket: Nej
Nr./monteringshuller: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 8
Mount. flange 83.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 45
Position/B+ 60
Prod. info BN
Rotation CW
Dist./back 145.50
Dist./front 46.00
Drive dist. 7.50
Drive type Steel
Gear type DD/GR
kW 0.85
Terminal 50 6.30
Voltage 12
Total length 191.00 mm
Waterproof No
Dist. 110.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032110155, js343, M003T11272, m3t11272, me-y1r, mea13-1, mea13-2, med02-1, med02-2, mey1r, mey3r, s114-91, s114-91k, 23300-15800, 23300-15805, 23300-15810, 23300-15815, 23300-a3200, 23300-p5110, 23300-p5111

  • Konkurrentreferens
    ads-127, ads-139, BSO7029, CST20140, drs2931, F042001125, F042S01125, lrs00320, SR138X, STR-3567, STR3567, 2-1741-1, 2-1741-HI, 2-1741-MI, 8ea726435-001, 25-0007, 25-0480, 28-52.105, 327.016.092, 4185, 16201, 20343, 33487, 220071, 220071A, 455908, 455910, 11040131, 66925216, 66925309

  • NormaliseratArtNr
    ads127, ads139, bso7029, cst20140, drs2931, f032110155, f042001125, f042s01125, js343, lrs00320, m003t11272, m3t11272, mea131, mea132, med021, med022, mey1r, mey3r, s11491, s11491k, sr138x, str3567, 8ea726435001, 4185, 16201, 20343, 21741hi, 21741mi, 23300a3200, 23300p5110, 23300p5111, 33487, 217411, 220071, 220071a, 250007, 250480, 455908, 455910, 2852105, 11040131, 66925216, 66925309, 327016092, 2330015800, 2330015805, 2330015810, 2330015815

  • Passar modeller
    Komatsu Model: 605 Model series: 605 Brand of engine: H20 Approved: Yes
    Komatsu Model: FG Model series: FG20-6 Brand of engine: Nissan H20PU Approved: Yes
    Komatsu Model: FG Model series: FG20-7 Brand of engine: Nissan H20PU Approved: Yes
    Komatsu Model: FG Model series: FG20-8 Brand of engine: Nissan H20PU Approved: Yes
    Nissan Model: FD Model series: FD104 Approved: Yes
    TCM Model: FG Model series: FG 15 Brand of engine: A15 Approved: Yes
    TCM Model: FG Model series: FG 20 Approved: Yes
    1 / 2
  • Beskrivelse
    HC-Cargo Startmotor

    Voltage: 12
    kW: 0.85
    Monteringsflange: 83.00
    Driveafstand: 7.50
    Monteringshul 2 mm: 11.00
    Monteringshul 1 mm: 11.00
    Afstand/tilbag: 145.50
    Afstand/front: 46.00
    Nr./tænder: 8
    B+: M8
    Position/B+: 60
    Position/50: 45
    Terminal 50: 6.30
    Gear type: DD/GR
    Afstand mm: 110.00
    Rotation: med uret
    Total længde mm: 191.00
    Drive type: Stål
    Producent info: BN
    Vandtæt: Nej
    Olielukket: Nej
    Nr./monteringshuller: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 8
    Mount. flange 83.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 45
    Position/B+ 60
    Prod. info BN
    Rotation CW
    Dist./back 145.50
    Dist./front 46.00
    Drive dist. 7.50
    Drive type Steel
    Gear type DD/GR
    kW 0.85
    Terminal 50 6.30
    Voltage 12
    Total length 191.00 mm
    Waterproof No
    Dist. 110.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Køretøjsmatchning

    • OEM
      F032110155, js343, M003T11272, m3t11272, me-y1r, mea13-1, mea13-2, med02-1, med02-2, mey1r, mey3r, s114-91, s114-91k, 23300-15800, 23300-15805, 23300-15810, 23300-15815, 23300-a3200, 23300-p5110, 23300-p5111

    • Konkurrentreferens
      ads-127, ads-139, BSO7029, CST20140, drs2931, F042001125, F042S01125, lrs00320, SR138X, STR-3567, STR3567, 2-1741-1, 2-1741-HI, 2-1741-MI, 8ea726435-001, 25-0007, 25-0480, 28-52.105, 327.016.092, 4185, 16201, 20343, 33487, 220071, 220071A, 455908, 455910, 11040131, 66925216, 66925309

    • NormaliseratArtNr
      ads127, ads139, bso7029, cst20140, drs2931, f032110155, f042001125, f042s01125, js343, lrs00320, m003t11272, m3t11272, mea131, mea132, med021, med022, mey1r, mey3r, s11491, s11491k, sr138x, str3567, 8ea726435001, 4185, 16201, 20343, 21741hi, 21741mi, 23300a3200, 23300p5110, 23300p5111, 33487, 217411, 220071, 220071a, 250007, 250480, 455908, 455910, 2852105, 11040131, 66925216, 66925309, 327016092, 2330015800, 2330015805, 2330015810, 2330015815

    • Passar modeller
      Komatsu Model: 605 Model series: 605 Brand of engine: H20 Approved: Yes
      Komatsu Model: FG Model series: FG20-6 Brand of engine: Nissan H20PU Approved: Yes
      Komatsu Model: FG Model series: FG20-7 Brand of engine: Nissan H20PU Approved: Yes
      Komatsu Model: FG Model series: FG20-8 Brand of engine: Nissan H20PU Approved: Yes
      Nissan Model: FD Model series: FD104 Approved: Yes
      TCM Model: FG Model series: FG 15 Brand of engine: A15 Approved: Yes
      TCM Model: FG Model series: FG 20 Approved: Yes
