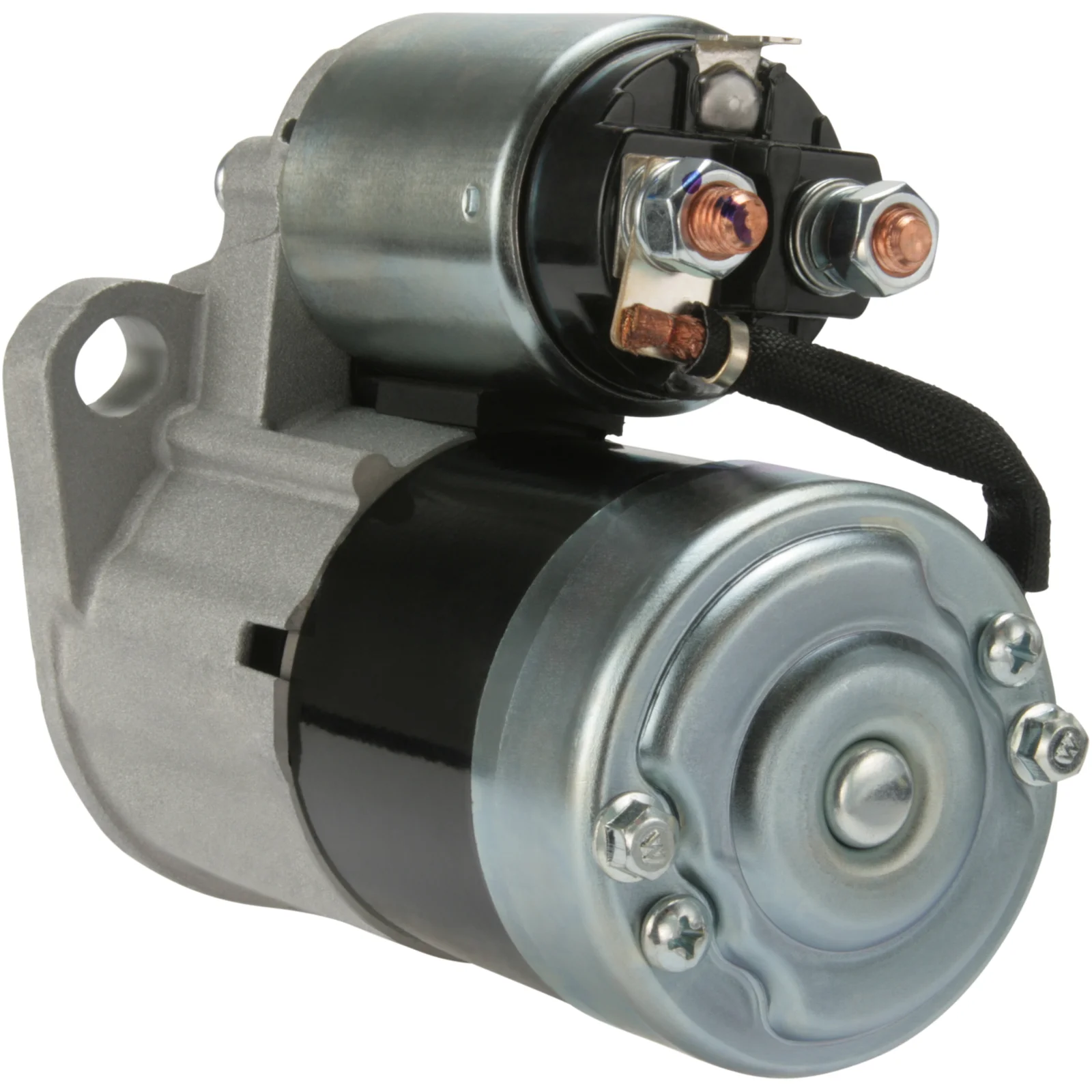

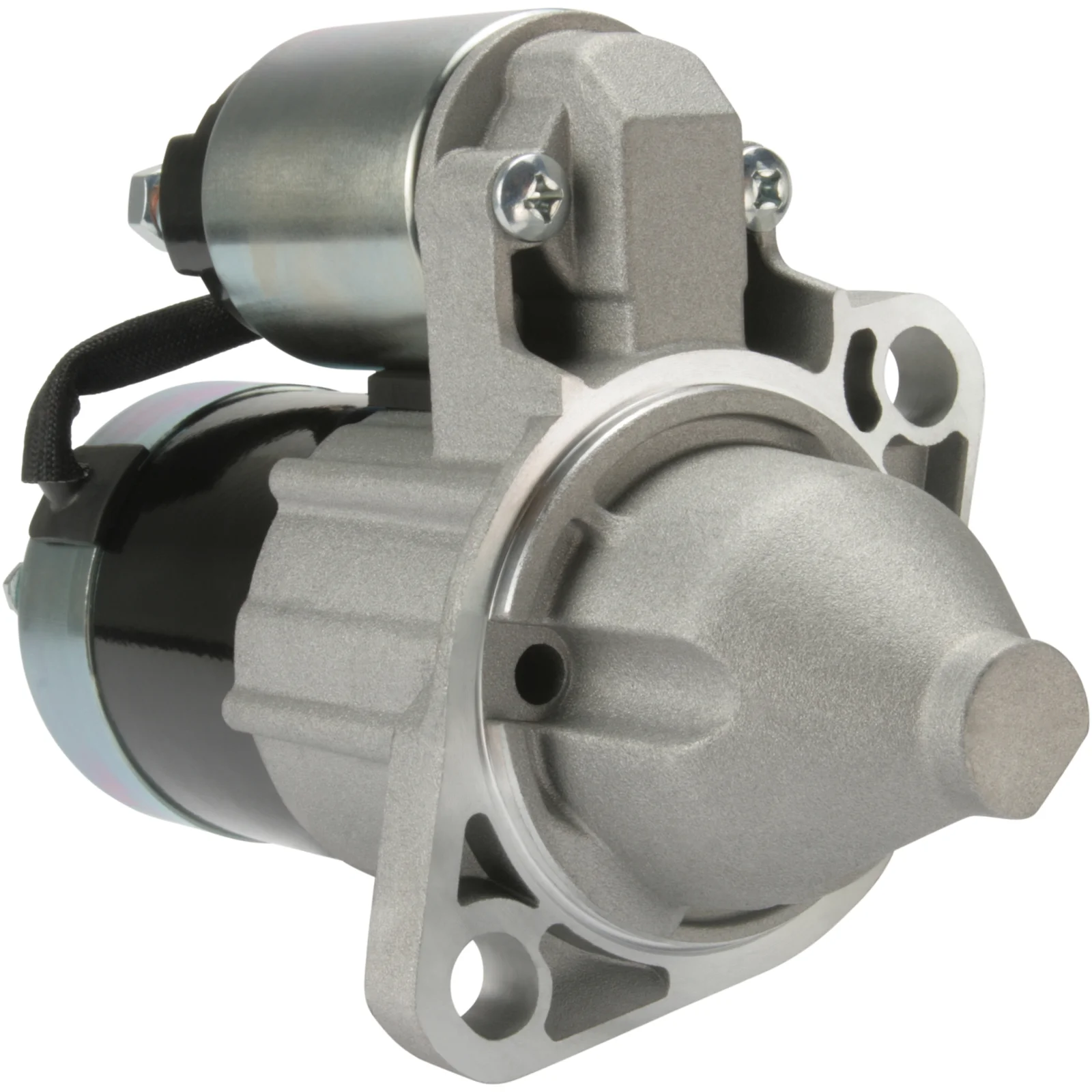

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032110182

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 0.9, No./tænder: 8, Rotation: CW

Beskrivelse

Spænding: 12
kW: 0,9
Monteringsflange: 74,00
Drevafstand: 20,00
Monteringshuls 2 mm: 11,70
Monteringshuls 1 mm: 11,70
Afstand/bag: 137,50
Afstand/forside: 56,50
Nr./tænder: 8
B+: M8
Position/50: 60
Terminal 50: 6,30
Gear type: DD/GR
Afstand mm: 105,00
Rotation: med uret
Samlet længde mm: 196,00
Drevtype: Stål
Prod. info: BN
Vandtæt: Nej
Olieforsynet: Nej
Nr./monteringshuls: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 8
Mount. flange 74.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 60
Prod. info BN
Rotation CW
Dist./back 137.50
Dist./front 56.50
Drive dist. 20.00
Drive type Steel
Gear type DD/GR
kW 0.9
Terminal 50 6.30
Voltage 12
Total length 196.00 mm
Waterproof No
Dist. 105.00 mm
Mount. hole 2 11.70 mm
Mount. hole 1 11.70 mm

  • OEM
    F032110182, FFSC-18-400, FFSC-18-400A, FFSN-18-400, js674, M000T84381, M000T84381A, M000T92581, M003T10473, M003T10475, M003T10476, M003T10476D, m0t84381, M0T84381A, M0T92581, m3t10473, m3t10475, m3t10476, m3t10476d, SE-18-400, 1986S10065, 4893-18-400, 4893-18-400A, 4893-18-400B, 4893-18-400C, 4893-18-400D, 4893-18-400E, 326875, 388040, 1534424, 2314322, 3003784, 3114995, 580040914, 918139600

  • Konkurrentreferens
    ams-181, BSO7128, CST35126, drs2831, F042000148, F042S00148, J5215011, lrs00500, LRS02510, S5261S, STR-8018, STR28011, STR8018, 2-1728-MI, 25-1157, 25-4182, 27-52.511, 140.015.082, 624.001.112, 624.015.082, 4245, 16795, 16795N, 16795N-ND, 16795R-ND, 16924, 16924N, 18096, 18096N, 19827N, 20674, 103477, 104327, 105458, 8052511, 11040321, 0986012831

  • NormaliseratArtNr
    ams181, bso7128, cst35126, drs2831, f032110182, f042000148, f042s00148, ffsc18400, ffsc18400a, ffsn18400, j5215011, js674, lrs00500, lrs02510, m000t84381, m000t84381a, m000t92581, m003t10473, m003t10475, m003t10476, m003t10476d, m0t84381, m0t84381a, m0t92581, m3t10473, m3t10475, m3t10476, m3t10476d, s5261s, se18400, str28011, str8018, 1986s10065, 4245, 16795, 16795n, 16795nnd, 16795rnd, 16924, 16924n, 18096, 18096n, 19827n, 20674, 21728mi, 103477, 104327, 105458, 251157, 254182, 326875, 388040, 1534424, 2314322, 2752511, 3003784, 3114995, 8052511, 11040321, 140015082, 489318400, 489318400a, 489318400b, 489318400c, 489318400d, 489318400e, 580040914, 624001112, 624015082, 918139600, 0986012831

  • Passar modeller
    Mitsubishi Model: FG Model series: FG25 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
    Mitsubishi Model: Various Models Model series: Various Models Approved: Yes
    Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
    Yale Model: Various Models Model series: Various Models Approved: Yes
  • Beskrivelse
    Spænding: 12
    kW: 0,9
    Monteringsflange: 74,00
    Drevafstand: 20,00
    Monteringshuls 2 mm: 11,70
    Monteringshuls 1 mm: 11,70
    Afstand/bag: 137,50
    Afstand/forside: 56,50
    Nr./tænder: 8
    B+: M8
    Position/50: 60
    Terminal 50: 6,30
    Gear type: DD/GR
    Afstand mm: 105,00
    Rotation: med uret
    Samlet længde mm: 196,00
    Drevtype: Stål
    Prod. info: BN
    Vandtæt: Nej
    Olieforsynet: Nej
    Nr./monteringshuls: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 8
    Mount. flange 74.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 60
    Prod. info BN
    Rotation CW
    Dist./back 137.50
    Dist./front 56.50
    Drive dist. 20.00
    Drive type Steel
    Gear type DD/GR
    kW 0.9
    Terminal 50 6.30
    Voltage 12
    Total length 196.00 mm
    Waterproof No
    Dist. 105.00 mm
    Mount. hole 2 11.70 mm
    Mount. hole 1 11.70 mm
  • Køretøjsmatchning

    • OEM
      F032110182, FFSC-18-400, FFSC-18-400A, FFSN-18-400, js674, M000T84381, M000T84381A, M000T92581, M003T10473, M003T10475, M003T10476, M003T10476D, m0t84381, M0T84381A, M0T92581, m3t10473, m3t10475, m3t10476, m3t10476d, SE-18-400, 1986S10065, 4893-18-400, 4893-18-400A, 4893-18-400B, 4893-18-400C, 4893-18-400D, 4893-18-400E, 326875, 388040, 1534424, 2314322, 3003784, 3114995, 580040914, 918139600

    • Konkurrentreferens
      ams-181, BSO7128, CST35126, drs2831, F042000148, F042S00148, J5215011, lrs00500, LRS02510, S5261S, STR-8018, STR28011, STR8018, 2-1728-MI, 25-1157, 25-4182, 27-52.511, 140.015.082, 624.001.112, 624.015.082, 4245, 16795, 16795N, 16795N-ND, 16795R-ND, 16924, 16924N, 18096, 18096N, 19827N, 20674, 103477, 104327, 105458, 8052511, 11040321, 0986012831

    • NormaliseratArtNr
      ams181, bso7128, cst35126, drs2831, f032110182, f042000148, f042s00148, ffsc18400, ffsc18400a, ffsn18400, j5215011, js674, lrs00500, lrs02510, m000t84381, m000t84381a, m000t92581, m003t10473, m003t10475, m003t10476, m003t10476d, m0t84381, m0t84381a, m0t92581, m3t10473, m3t10475, m3t10476, m3t10476d, s5261s, se18400, str28011, str8018, 1986s10065, 4245, 16795, 16795n, 16795nnd, 16795rnd, 16924, 16924n, 18096, 18096n, 19827n, 20674, 21728mi, 103477, 104327, 105458, 251157, 254182, 326875, 388040, 1534424, 2314322, 2752511, 3003784, 3114995, 8052511, 11040321, 140015082, 489318400, 489318400a, 489318400b, 489318400c, 489318400d, 489318400e, 580040914, 624001112, 624015082, 918139600, 0986012831

    • Passar modeller
      Mitsubishi Model: FG Model series: FG25 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
      Mitsubishi Model: Various Models Model series: Various Models Approved: Yes
      Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
      Yale Model: Various Models Model series: Various Models Approved: Yes
