Vare nr.: F032110436

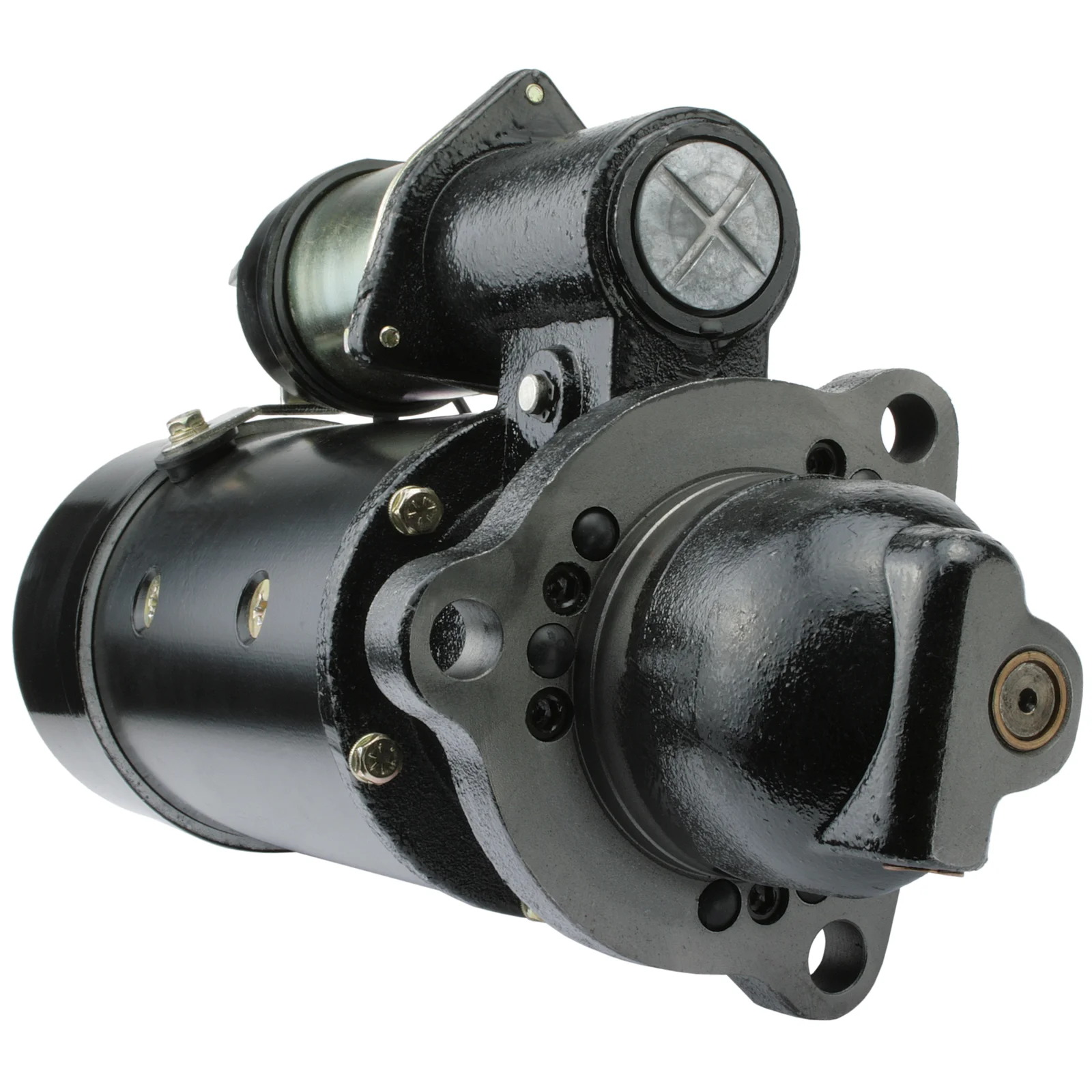

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, Antal/Tander: 12, Rotation: CW, Isoleret retur: Ja

Beskrivelse

Spænding: 12
Isoleret retur: Ja
Montering flange: 92,00
Dreven distance: 46,00
Montering hul 3 mm: 17,00
Dist./bag: 350,00
Dist./foran: 101,50
Nr./tænder: 12
B+: 1/2" UNC
Gevindlængde mm: 28,00
Position/50: 15
Terminal 50: 3/16" UNF
Geartype: DD
Dist. 2: 126,50
Dist. 3: 126,50
Dist. mm: 126,50
Rotation: CW
Position/b-: 50
B-: 1/2" UNC
Samlet længde mm: 496,00
Dreven type: Stål
Prod. info: BN
Vandtæt: Nej
Oliekapslet: Ja
Bemærkninger: Udskiftning: 42MT.
Nr./montering huller: 3 (0)

Specifikation

B+ 1/2" UNC
B- 1/2" UNC
No./teeth 12
Mount. flange 92.00
Oil sealed Yes
No./mount. holes 3 (0)
Position/50 15
Position/b- 50
Prod. info BN
Dist. 2 126.50
Remarks Replacing: 42MT.
Dist. 3 126.50
Rotation CW
Dist./back 350.00
Dist./front 101.50
Drive dist. 46.00
Drive type Steel
Gear type DD
Insulated return Yes
Terminal 50 3/16" UNF
Voltage 12
Total length 496.00 mm
Waterproof No
Dist. 126.50 mm
Thread length 28.00 mm
Mount. hole 3 17.00 mm
  • OEM

    0R2189, 0R4260, 0R4265, 0r5208, 0R5216, 0R5218, A145324, A162578, A186224, A34442, A47464, A75864, AR102188, AR46886, C8TF11000C, C8TZ11002B, D4TZ11002E, D4TZ11002F, D9PZ11002A, E2HZ11002A, E6HT11001AA, E6HZ11002A, E6HZ11002B, E6HZ11002BA, F032110436, OR2189, OR5208, OR5216, RE38633, RE41756, RE61547, RE69590, TY6730, 2n3538, 3E7864, 3R2657, 3t2655, 3t2657, 3t2659, 4N8253, 6V3948, 6V3954, 7n6503, 7t1081, 7t2265, 7T2267, 7t9254, 7T9255, 8c356, 8C359, 8C3596, 8C3643, 8c3648, 8c5580, 8l5881, 9l3597, 9w0058, 323-829, 323-830, 323-855, 157579, 185617, 197125, 202386T91, 224418, 294183M91, 521465M91, 525831M91, 526927M91, 527902M91, 527902M92, 554560, 722578M91, 1055741M91, 1113488, 1114109, 1114110, 1114114, 1114127, 1114129, 1114136, 1114138, 1114139, 1114141, 1114144, 1114151, 1114152, 1114153, 1114156, 1114158, 1114162, 1114167, 1114169, 1114174, 1114175, 1114190, 1114199, 1114703, 1114704, 1114705, 1114708, 1114714, 1114724, 1114748, 1114754, 1114802, 1114823, 1114824, 1114825, 1114826, 1114827, 1114828, 1114832, 1114833, 1114834, 1114835, 1114882, 1114883, 1114885, 1114888, 1114911, 1114967, 1114977, 0001421004, 0001421006, 1430540, 1446098M91, 1903113M91, 1903115M91, 1903123M91, 1990205, 1990219, 1990220, 1990221, 1990281, 1990290, 1990300, 1990304, 1990325, 1990353, 1990356, 1990362, 1990369, 1990370, 1990374, 1990379, 1990385, 1990387, 1990394, 1990399, 1990403, 1990425, 1990429, 1990441, 1990443, 1990452, 1990466, 1990469, 1990471, 1990476, 1990480, 1990487, 1990492, 1990496, 1990703, 1993703, 1993772, 1993775, 1993783, 1993795, 1993806, 1993811, 1993820, 1993935, 1993937, 1993938, 1993939, 1993942, 1993943, 1993961, 1993983, 3102919, 3279496, 3593752RX, 3603864, 3603864rx, 3604323RX, 3604492RX, 3604493RX, 3907622, 3910645, 3938501, 10461021, 10461032, 10461034, 10461046, 10461050, 10461051, 10478803, 10478962, 10478997, 10479052
  • Konkurrentreferens

    BSO7275, BSX1440025, BSX1440030, CST35702, CST40220, CST60123, DRS0259, DRZ5175, DS6371, F042003052, F042003125, F042S03052, F042S03125, GA21433, LES0325, LRS1741, MS76, S1053, S1135, S1222S, SDR0028, sdr0075, SR955X, STR-4202, STR20017, STR4202, STR80002, TS-1500, ts-1504, 2-2278-ND, 8ea737271-001, 25-3300, 46-7051, 46-7052, 50-100, 50-100-1, 50-100-2, 50-150, 50-150-1, 50-150-2, 91-01-4161, 91-01-4163, 201-42102, 201-42115, 810.534.123, 3339, 3339N, 3374, 3400, 3505, 3987, 3999, 4477, 6224, 6246, 6252, 6253, 6254, 6349, 6371, 6371N, 6371R, 6372, 6525, 6618, 6636, 6686, 6687, 6688, 6907n, 6907N-P, 17609, 33480, 255057, 601025
  • NormaliseratArtNr

    0r2189, 0r4260, 0r4265, 0r5208, 0r5216, 0r5218, a145324, a162578, a186224, a34442, a47464, a75864, ar102188, ar46886, bso7275, bsx1440025, bsx1440030, c8tf11000c, c8tz11002b, cst35702, cst40220, cst60123, d4tz11002e, d4tz11002f, d9pz11002a, drs0259, drz5175, ds6371, e2hz11002a, e6ht11001aa, e6hz11002a, e6hz11002b, e6hz11002ba, f032110436, f042003052, f042003125, f042s03052, f042s03125, ga21433, les0325, lrs1741, ms76, or2189, or5208, or5216, re38633, re41756, re61547, re69590, s1053, s1135, s1222s, sdr0028, sdr0075, sr955x, str20017, str4202, str80002, ts1500, ts1504, ty6730, 2n3538, 3e7864, 3r2657, 3t2655, 3t2657, 3t2659, 4n8253, 6v3948, 6v3954, 7n6503, 7t1081, 7t2265, 7t2267, 7t9254, 7t9255, 8c356, 8c359, 8c3596, 8c3643, 8c3648, 8c5580, 8ea737271001, 8l5881, 9l3597, 9w0058, 3339, 3339n, 3374, 3400, 3505, 3987, 3999, 4477, 6224, 6246, 6252, 6253, 6254, 6349, 6371, 6371n, 6371r, 6372, 6525, 6618, 6636, 6686, 6687, 6688, 6907n, 6907np, 17609, 22278nd, 33480, 50100, 50150, 157579, 185617, 197125, 202386t91, 224418, 253300, 255057, 294183m91, 323829, 323830, 323855, 467051, 467052, 501001, 501002, 501501, 501502, 521465m91, 525831m91, 526927m91, 527902m91, 527902m92, 554560, 601025, 722578m91, 1055741m91, 1113488, 1114109, 1114110, 1114114, 1114127, 1114129, 1114136, 1114138, 1114139, 1114141, 1114144, 1114151, 1114152, 1114153, 1114156, 1114158, 1114162, 1114167, 1114169, 1114174, 1114175, 1114190, 1114199, 1114703, 1114704, 1114705, 1114708, 1114714, 1114724, 1114748, 1114754, 1114802, 1114823, 1114824, 1114825, 1114826, 1114827, 1114828, 1114832, 1114833, 1114834, 1114835, 1114882, 1114883, 1114885, 1114888, 1114911, 1114967, 1114977, 0001421004, 0001421006, 1430540, 1446098m91, 1903113m91, 1903115m91, 1903123m91, 1990205, 1990219, 1990220, 1990221, 1990281, 1990290, 1990300, 1990304, 1990325, 1990353, 1990356, 1990362, 1990369, 1990370, 1990374, 1990379, 1990385, 1990387, 1990394, 1990399, 1990403, 1990425, 1990429, 1990441, 1990443, 1990452, 1990466, 1990469, 1990471, 1990476, 1990480, 1990487, 1990492, 1990496, 1990703, 1993703, 1993772, 1993775, 1993783, 1993795, 1993806, 1993811, 1993820, 1993935, 1993937, 1993938, 1993939, 1993942, 1993943, 1993961, 1993983, 3102919, 3279496, 3593752rx, 3603864, 3603864rx, 3604323rx, 3604492rx, 3604493rx, 3907622, 3910645, 3938501, 10461021, 10461032, 10461034, 10461046, 10461050, 10461051, 10478803, 10478962, 10478997, 10479052, 20142102, 20142115, 91014161, 91014163, 810534123
  • Passar modeller

    Caterpillar Model: Forklift Model series: Various Models Approved: Yes
    Caterpillar Model: Various Models Model series: Various Models Approved: Yes
    Clark Model: Various Models Model series: Various Models From date: 01-01-1968 Approved: Yes
  • Beskrivelse
    Spænding: 12
    Isoleret retur: Ja
    Montering flange: 92,00
    Dreven distance: 46,00
    Montering hul 3 mm: 17,00
    Dist./bag: 350,00
    Dist./foran: 101,50
    Nr./tænder: 12
    B+: 1/2" UNC
    Gevindlængde mm: 28,00
    Position/50: 15
    Terminal 50: 3/16" UNF
    Geartype: DD
    Dist. 2: 126,50
    Dist. 3: 126,50
    Dist. mm: 126,50
    Rotation: CW
    Position/b-: 50
    B-: 1/2" UNC
    Samlet længde mm: 496,00
    Dreven type: Stål
    Prod. info: BN
    Vandtæt: Nej
    Oliekapslet: Ja
    Bemærkninger: Udskiftning: 42MT.
    Nr./montering huller: 3 (0)
  • Specifikation
    B+ 1/2" UNC
    B- 1/2" UNC
    No./teeth 12
    Mount. flange 92.00
    Oil sealed Yes
    No./mount. holes 3 (0)
    Position/50 15
    Position/b- 50
    Prod. info BN
    Dist. 2 126.50
    Remarks Replacing: 42MT.
    Dist. 3 126.50
    Rotation CW
    Dist./back 350.00
    Dist./front 101.50
    Drive dist. 46.00
    Drive type Steel
    Gear type DD
    Insulated return Yes
    Terminal 50 3/16" UNF
    Voltage 12
    Total length 496.00 mm
    Waterproof No
    Dist. 126.50 mm
    Thread length 28.00 mm
    Mount. hole 3 17.00 mm
  • Køretøjsmatchning
    • OEM

      0R2189, 0R4260, 0R4265, 0r5208, 0R5216, 0R5218, A145324, A162578, A186224, A34442, A47464, A75864, AR102188, AR46886, C8TF11000C, C8TZ11002B, D4TZ11002E, D4TZ11002F, D9PZ11002A, E2HZ11002A, E6HT11001AA, E6HZ11002A, E6HZ11002B, E6HZ11002BA, F032110436, OR2189, OR5208, OR5216, RE38633, RE41756, RE61547, RE69590, TY6730, 2n3538, 3E7864, 3R2657, 3t2655, 3t2657, 3t2659, 4N8253, 6V3948, 6V3954, 7n6503, 7t1081, 7t2265, 7T2267, 7t9254, 7T9255, 8c356, 8C359, 8C3596, 8C3643, 8c3648, 8c5580, 8l5881, 9l3597, 9w0058, 323-829, 323-830, 323-855, 157579, 185617, 197125, 202386T91, 224418, 294183M91, 521465M91, 525831M91, 526927M91, 527902M91, 527902M92, 554560, 722578M91, 1055741M91, 1113488, 1114109, 1114110, 1114114, 1114127, 1114129, 1114136, 1114138, 1114139, 1114141, 1114144, 1114151, 1114152, 1114153, 1114156, 1114158, 1114162, 1114167, 1114169, 1114174, 1114175, 1114190, 1114199, 1114703, 1114704, 1114705, 1114708, 1114714, 1114724, 1114748, 1114754, 1114802, 1114823, 1114824, 1114825, 1114826, 1114827, 1114828, 1114832, 1114833, 1114834, 1114835, 1114882, 1114883, 1114885, 1114888, 1114911, 1114967, 1114977, 0001421004, 0001421006, 1430540, 1446098M91, 1903113M91, 1903115M91, 1903123M91, 1990205, 1990219, 1990220, 1990221, 1990281, 1990290, 1990300, 1990304, 1990325, 1990353, 1990356, 1990362, 1990369, 1990370, 1990374, 1990379, 1990385, 1990387, 1990394, 1990399, 1990403, 1990425, 1990429, 1990441, 1990443, 1990452, 1990466, 1990469, 1990471, 1990476, 1990480, 1990487, 1990492, 1990496, 1990703, 1993703, 1993772, 1993775, 1993783, 1993795, 1993806, 1993811, 1993820, 1993935, 1993937, 1993938, 1993939, 1993942, 1993943, 1993961, 1993983, 3102919, 3279496, 3593752RX, 3603864, 3603864rx, 3604323RX, 3604492RX, 3604493RX, 3907622, 3910645, 3938501, 10461021, 10461032, 10461034, 10461046, 10461050, 10461051, 10478803, 10478962, 10478997, 10479052
    • Konkurrentreferens

      BSO7275, BSX1440025, BSX1440030, CST35702, CST40220, CST60123, DRS0259, DRZ5175, DS6371, F042003052, F042003125, F042S03052, F042S03125, GA21433, LES0325, LRS1741, MS76, S1053, S1135, S1222S, SDR0028, sdr0075, SR955X, STR-4202, STR20017, STR4202, STR80002, TS-1500, ts-1504, 2-2278-ND, 8ea737271-001, 25-3300, 46-7051, 46-7052, 50-100, 50-100-1, 50-100-2, 50-150, 50-150-1, 50-150-2, 91-01-4161, 91-01-4163, 201-42102, 201-42115, 810.534.123, 3339, 3339N, 3374, 3400, 3505, 3987, 3999, 4477, 6224, 6246, 6252, 6253, 6254, 6349, 6371, 6371N, 6371R, 6372, 6525, 6618, 6636, 6686, 6687, 6688, 6907n, 6907N-P, 17609, 33480, 255057, 601025
    • NormaliseratArtNr

      0r2189, 0r4260, 0r4265, 0r5208, 0r5216, 0r5218, a145324, a162578, a186224, a34442, a47464, a75864, ar102188, ar46886, bso7275, bsx1440025, bsx1440030, c8tf11000c, c8tz11002b, cst35702, cst40220, cst60123, d4tz11002e, d4tz11002f, d9pz11002a, drs0259, drz5175, ds6371, e2hz11002a, e6ht11001aa, e6hz11002a, e6hz11002b, e6hz11002ba, f032110436, f042003052, f042003125, f042s03052, f042s03125, ga21433, les0325, lrs1741, ms76, or2189, or5208, or5216, re38633, re41756, re61547, re69590, s1053, s1135, s1222s, sdr0028, sdr0075, sr955x, str20017, str4202, str80002, ts1500, ts1504, ty6730, 2n3538, 3e7864, 3r2657, 3t2655, 3t2657, 3t2659, 4n8253, 6v3948, 6v3954, 7n6503, 7t1081, 7t2265, 7t2267, 7t9254, 7t9255, 8c356, 8c359, 8c3596, 8c3643, 8c3648, 8c5580, 8ea737271001, 8l5881, 9l3597, 9w0058, 3339, 3339n, 3374, 3400, 3505, 3987, 3999, 4477, 6224, 6246, 6252, 6253, 6254, 6349, 6371, 6371n, 6371r, 6372, 6525, 6618, 6636, 6686, 6687, 6688, 6907n, 6907np, 17609, 22278nd, 33480, 50100, 50150, 157579, 185617, 197125, 202386t91, 224418, 253300, 255057, 294183m91, 323829, 323830, 323855, 467051, 467052, 501001, 501002, 501501, 501502, 521465m91, 525831m91, 526927m91, 527902m91, 527902m92, 554560, 601025, 722578m91, 1055741m91, 1113488, 1114109, 1114110, 1114114, 1114127, 1114129, 1114136, 1114138, 1114139, 1114141, 1114144, 1114151, 1114152, 1114153, 1114156, 1114158, 1114162, 1114167, 1114169, 1114174, 1114175, 1114190, 1114199, 1114703, 1114704, 1114705, 1114708, 1114714, 1114724, 1114748, 1114754, 1114802, 1114823, 1114824, 1114825, 1114826, 1114827, 1114828, 1114832, 1114833, 1114834, 1114835, 1114882, 1114883, 1114885, 1114888, 1114911, 1114967, 1114977, 0001421004, 0001421006, 1430540, 1446098m91, 1903113m91, 1903115m91, 1903123m91, 1990205, 1990219, 1990220, 1990221, 1990281, 1990290, 1990300, 1990304, 1990325, 1990353, 1990356, 1990362, 1990369, 1990370, 1990374, 1990379, 1990385, 1990387, 1990394, 1990399, 1990403, 1990425, 1990429, 1990441, 1990443, 1990452, 1990466, 1990469, 1990471, 1990476, 1990480, 1990487, 1990492, 1990496, 1990703, 1993703, 1993772, 1993775, 1993783, 1993795, 1993806, 1993811, 1993820, 1993935, 1993937, 1993938, 1993939, 1993942, 1993943, 1993961, 1993983, 3102919, 3279496, 3593752rx, 3603864, 3603864rx, 3604323rx, 3604492rx, 3604493rx, 3907622, 3910645, 3938501, 10461021, 10461032, 10461034, 10461046, 10461050, 10461051, 10478803, 10478962, 10478997, 10479052, 20142102, 20142115, 91014161, 91014163, 810534123
    • Passar modeller

      Caterpillar Model: Forklift Model series: Various Models Approved: Yes
      Caterpillar Model: Various Models Model series: Various Models Approved: Yes
      Clark Model: Various Models Model series: Various Models From date: 01-01-1968 Approved: Yes
