Vare nr.: F032110468

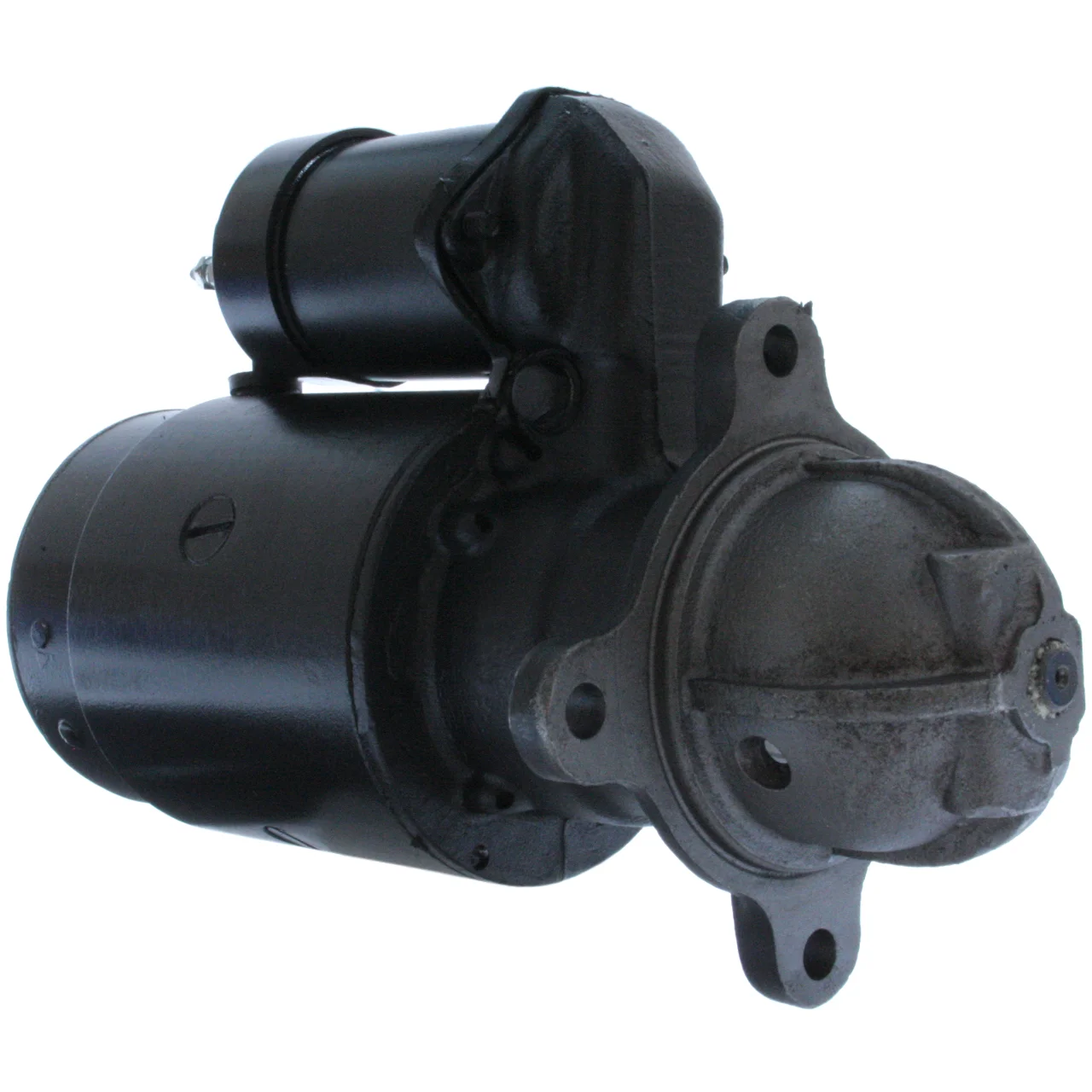

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, Antal gear: 9, Rotation: med uret, Monteringsflange: 89.00

Beskrivelse

Voltage: 12
Monteringsflange: 89,00
Driveafstand: 20,50
Monteringshul 3 mm: 11,00
Monteringshul 2 mm: 11,00
Monteringshul 1 mm: 11,00
Afstand/bagud: 226,00
Afstand/frem: 62,00
Nr./tænder: 9
B+: 3/8" UNC
Position/15a: 50
Terminal 15a: 8-32 UNC
Gedelængde mm: 18,50
Position/50: 20
Terminal 50: 8-32 UNC
Geartype: DD
Afstand 2: 90,00
Afstand 3: 127,00
Afstand mm: 90,00
Rotation: med uret
Position/b-: 5
B-: 1/4" UNC
Samlet længde mm: 307,00
Koblingstype: Vådt
Drive-type: Steel
Produktoplysninger: Reman
Vandtæt: Nej
Oliesealed: Ja
Bemærkninger: Udskiftning: 10MT.
Nr./monteringshuller: 3 (0)

Filer

Specifikation

B+ 3/8" UNC
B- 1/4" UNC
No./teeth 9
Mount. flange 89.00
Oil sealed Yes
No./mount. holes 3 (0)
Position/15a 50
Position/50 20
Clutch type Wet
Position/b- 5
Prod. info Reman
Dist. 2 90.00
Remarks Replacing: 10MT.
Dist. 3 127.00
Rotation CW
Dist./back 226.00
Dist./front 62.00
Drive dist. 20.50
Drive type Steel
Gear type DD
Terminal 50 8-32 UNC
Voltage 12
Total length 307.00 mm
Waterproof No
Dist. 90.00 mm
Thread length 18.50 mm
Terminal 15A 8-32 UNC mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032110468, 1107377, 1107378, 1108197, 1109090, 1109091, 1636179, 1998266, 1998267

  • Konkurrentreferens
    BSX1440040, CST60120, drz5122, LRS01286, lrs01797, S1211S, STR20023, 8ea730310-001, 25-2001, 91-01-4188, 600.052.092, 692.017.092, 692.104.092, 4234, 4234N, 4246, 4246R, 4302N, 4373, 33612, 60832

  • NormaliseratArtNr
    bsx1440040, cst60120, drz5122, f032110468, lrs01286, lrs01797, s1211s, str20023, 8ea730310001, 4234, 4234n, 4246, 4246r, 4302n, 4373, 33612, 60832, 252001, 1107377, 1107378, 1108197, 1109090, 1109091, 1636179, 1998266, 1998267, 91014188, 600052092, 692017092, 692104092

  • Passar modeller
    Bobcat Model: 900 Model series: 970 Approved: Yes
    Clark Model: Various Models Model series: Various Models From date: 01-01-1968 Approved: Yes
    Hyster Model: S Model series: 30, 40, 50 Brand of engine: 3.152 From date: 01-01-1971 To date: 01-12-1977 Fuel: Diesel Approved: Yes
    Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
  • Beskrivelse
    Voltage: 12
    Monteringsflange: 89,00
    Driveafstand: 20,50
    Monteringshul 3 mm: 11,00
    Monteringshul 2 mm: 11,00
    Monteringshul 1 mm: 11,00
    Afstand/bagud: 226,00
    Afstand/frem: 62,00
    Nr./tænder: 9
    B+: 3/8" UNC
    Position/15a: 50
    Terminal 15a: 8-32 UNC
    Gedelængde mm: 18,50
    Position/50: 20
    Terminal 50: 8-32 UNC
    Geartype: DD
    Afstand 2: 90,00
    Afstand 3: 127,00
    Afstand mm: 90,00
    Rotation: med uret
    Position/b-: 5
    B-: 1/4" UNC
    Samlet længde mm: 307,00
    Koblingstype: Vådt
    Drive-type: Steel
    Produktoplysninger: Reman
    Vandtæt: Nej
    Oliesealed: Ja
    Bemærkninger: Udskiftning: 10MT.
    Nr./monteringshuller: 3 (0)

    Filer

  • Specifikation
    B+ 3/8" UNC
    B- 1/4" UNC
    No./teeth 9
    Mount. flange 89.00
    Oil sealed Yes
    No./mount. holes 3 (0)
    Position/15a 50
    Position/50 20
    Clutch type Wet
    Position/b- 5
    Prod. info Reman
    Dist. 2 90.00
    Remarks Replacing: 10MT.
    Dist. 3 127.00
    Rotation CW
    Dist./back 226.00
    Dist./front 62.00
    Drive dist. 20.50
    Drive type Steel
    Gear type DD
    Terminal 50 8-32 UNC
    Voltage 12
    Total length 307.00 mm
    Waterproof No
    Dist. 90.00 mm
    Thread length 18.50 mm
    Terminal 15A 8-32 UNC mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Køretøjsmatchning

    • OEM
      F032110468, 1107377, 1107378, 1108197, 1109090, 1109091, 1636179, 1998266, 1998267

    • Konkurrentreferens
      BSX1440040, CST60120, drz5122, LRS01286, lrs01797, S1211S, STR20023, 8ea730310-001, 25-2001, 91-01-4188, 600.052.092, 692.017.092, 692.104.092, 4234, 4234N, 4246, 4246R, 4302N, 4373, 33612, 60832

    • NormaliseratArtNr
      bsx1440040, cst60120, drz5122, f032110468, lrs01286, lrs01797, s1211s, str20023, 8ea730310001, 4234, 4234n, 4246, 4246r, 4302n, 4373, 33612, 60832, 252001, 1107377, 1107378, 1108197, 1109090, 1109091, 1636179, 1998266, 1998267, 91014188, 600052092, 692017092, 692104092

    • Passar modeller
      Bobcat Model: 900 Model series: 970 Approved: Yes
      Clark Model: Various Models Model series: Various Models From date: 01-01-1968 Approved: Yes
      Hyster Model: S Model series: 30, 40, 50 Brand of engine: 3.152 From date: 01-01-1971 To date: 01-12-1977 Fuel: Diesel Approved: Yes
      Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
