Vare nr.: F032110469

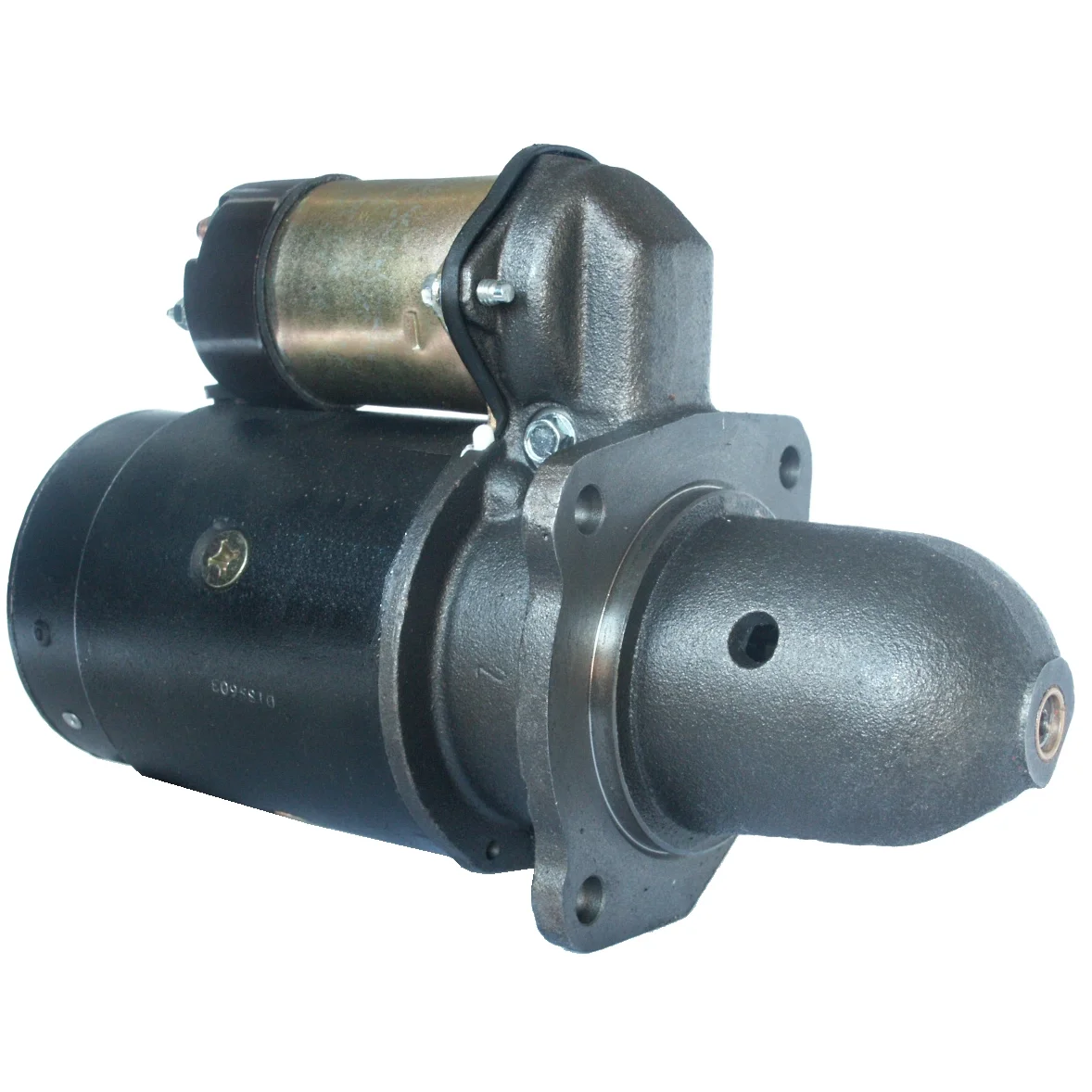

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, Antal gear: 9, Rotation: med uret, Monteringsflange: 89.00

Beskrivelse

Spænding: 12
Monteringsflange: 89,00
Drevafstand: 44,50
Monteringshul 3 mm: 10,80
Monteringshul 2 mm: 10,80
Monteringshul 1 mm: 10,80
Afstand/bag: 216,00
Afstand/frem: 89,50
Nr./tænder: 9
B+: M10
Position/15a: 50
Terminal 15a: M5
Position/50: 7
Terminal 50: M5
Gear type: DD
Afstand 2: 89,00
Afstand 3: 89,00
Afstand mm: 127,00
Rotation: med uret
Total længde mm: 306,50
Koblingstype: Tør
Drevet type: Stål
Produktoplysninger: BN
Vandtæt: Nej
Oliekapslet: Nej
Bemærkninger: Udskiftning: 10MT.
Nr./monteringshuller: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 9
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/15a 50
Position/50 7
Clutch type Dry
Prod. info BN
Dist. 2 89.00
Remarks Replacing: 10MT.
Dist. 3 89.00
Rotation CW
Dist./back 216.00
Dist./front 89.50
Drive dist. 44.50
Drive type Steel
Gear type DD
Terminal 50 M5
Voltage 12
Total length 306.50 mm
Waterproof No
Dist. 127.00 mm
Terminal 15A M5 mm
Mount. hole 3 10.80 mm
Mount. hole 2 10.80 mm
Mount. hole 1 10.80 mm

  • OEM
    F032110469, us833, 1107203, 1108421, 1109093, 1998269, 1998270, 1998281, 6599152, 6658835, 6658841, 6671014, 10455304, 10455340, 10455355

  • Konkurrentreferens
    BSO7197R, BSX1440016, CST60119, drz5123, LRS01173, S1189S, STR20021, 8ea730311-001, 25-1173, 91-01-4247, 692.002.092, 4167, 4254, 4374, 6148, 21921A, 60833

  • NormaliseratArtNr
    bso7197r, bsx1440016, cst60119, drz5123, f032110469, lrs01173, s1189s, str20021, us833, 8ea730311001, 4167, 4254, 4374, 6148, 21921a, 60833, 251173, 1107203, 1108421, 1109093, 1998269, 1998270, 1998281, 6599152, 6658835, 6658841, 6671014, 10455304, 10455340, 10455355, 91014247, 692002092

  • Passar modeller
    Bobcat Model: 400 Model series: 443 Brand of engine: D750 From date: 01-01-1982 To date: 01-01-1988 Approved: Yes
    Bobcat Model: 400 Model series: 453 Brand of engine: D750B From date: 01-01-1994 Fuel: Diesel Approved: Yes
    Bobcat Model: 500 Model series: 533 Brand of engine: Isuzu Approved: Yes
    Bobcat Model: 500 Model series: 543 Brand of engine: D950 From date: 01-01-1982 To date: 01-01-1988 Approved: Yes
    Bobcat Model: 500 Model series: 553 Brand of engine: D1005B From date: 01-01-1995 Fuel: Diesel Approved: Yes
    Bobcat Model: 600 Model series: 632 Brand of engine: 4-98 From date: 01-01-1981 Approved: Yes
    Bobcat Model: 600 Model series: 642 Brand of engine: Ford From date: 01-01-1984 Approved: Yes
    Bobcat Model: 600 Model series: 672 Approved: Yes
    Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 12
    Monteringsflange: 89,00
    Drevafstand: 44,50
    Monteringshul 3 mm: 10,80
    Monteringshul 2 mm: 10,80
    Monteringshul 1 mm: 10,80
    Afstand/bag: 216,00
    Afstand/frem: 89,50
    Nr./tænder: 9
    B+: M10
    Position/15a: 50
    Terminal 15a: M5
    Position/50: 7
    Terminal 50: M5
    Gear type: DD
    Afstand 2: 89,00
    Afstand 3: 89,00
    Afstand mm: 127,00
    Rotation: med uret
    Total længde mm: 306,50
    Koblingstype: Tør
    Drevet type: Stål
    Produktoplysninger: BN
    Vandtæt: Nej
    Oliekapslet: Nej
    Bemærkninger: Udskiftning: 10MT.
    Nr./monteringshuller: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 9
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/15a 50
    Position/50 7
    Clutch type Dry
    Prod. info BN
    Dist. 2 89.00
    Remarks Replacing: 10MT.
    Dist. 3 89.00
    Rotation CW
    Dist./back 216.00
    Dist./front 89.50
    Drive dist. 44.50
    Drive type Steel
    Gear type DD
    Terminal 50 M5
    Voltage 12
    Total length 306.50 mm
    Waterproof No
    Dist. 127.00 mm
    Terminal 15A M5 mm
    Mount. hole 3 10.80 mm
    Mount. hole 2 10.80 mm
    Mount. hole 1 10.80 mm
  • Køretøjsmatchning

    • OEM
      F032110469, us833, 1107203, 1108421, 1109093, 1998269, 1998270, 1998281, 6599152, 6658835, 6658841, 6671014, 10455304, 10455340, 10455355

    • Konkurrentreferens
      BSO7197R, BSX1440016, CST60119, drz5123, LRS01173, S1189S, STR20021, 8ea730311-001, 25-1173, 91-01-4247, 692.002.092, 4167, 4254, 4374, 6148, 21921A, 60833

    • NormaliseratArtNr
      bso7197r, bsx1440016, cst60119, drz5123, f032110469, lrs01173, s1189s, str20021, us833, 8ea730311001, 4167, 4254, 4374, 6148, 21921a, 60833, 251173, 1107203, 1108421, 1109093, 1998269, 1998270, 1998281, 6599152, 6658835, 6658841, 6671014, 10455304, 10455340, 10455355, 91014247, 692002092

    • Passar modeller
      Bobcat Model: 400 Model series: 443 Brand of engine: D750 From date: 01-01-1982 To date: 01-01-1988 Approved: Yes
      Bobcat Model: 400 Model series: 453 Brand of engine: D750B From date: 01-01-1994 Fuel: Diesel Approved: Yes
      Bobcat Model: 500 Model series: 533 Brand of engine: Isuzu Approved: Yes
      Bobcat Model: 500 Model series: 543 Brand of engine: D950 From date: 01-01-1982 To date: 01-01-1988 Approved: Yes
      Bobcat Model: 500 Model series: 553 Brand of engine: D1005B From date: 01-01-1995 Fuel: Diesel Approved: Yes
      Bobcat Model: 600 Model series: 632 Brand of engine: 4-98 From date: 01-01-1981 Approved: Yes
      Bobcat Model: 600 Model series: 642 Brand of engine: Ford From date: 01-01-1984 Approved: Yes
      Bobcat Model: 600 Model series: 672 Approved: Yes
      Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
