Vare nr.: F032110485

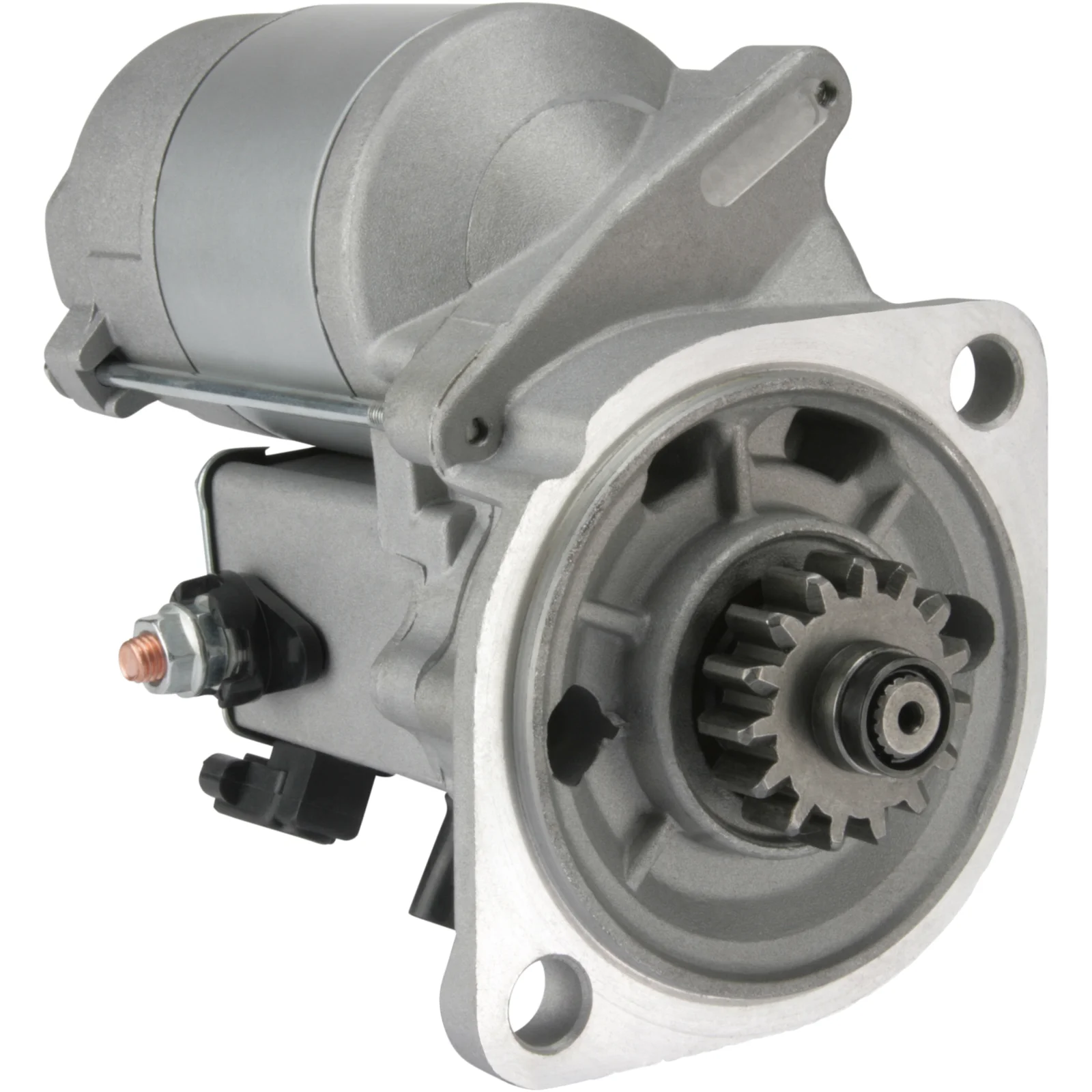

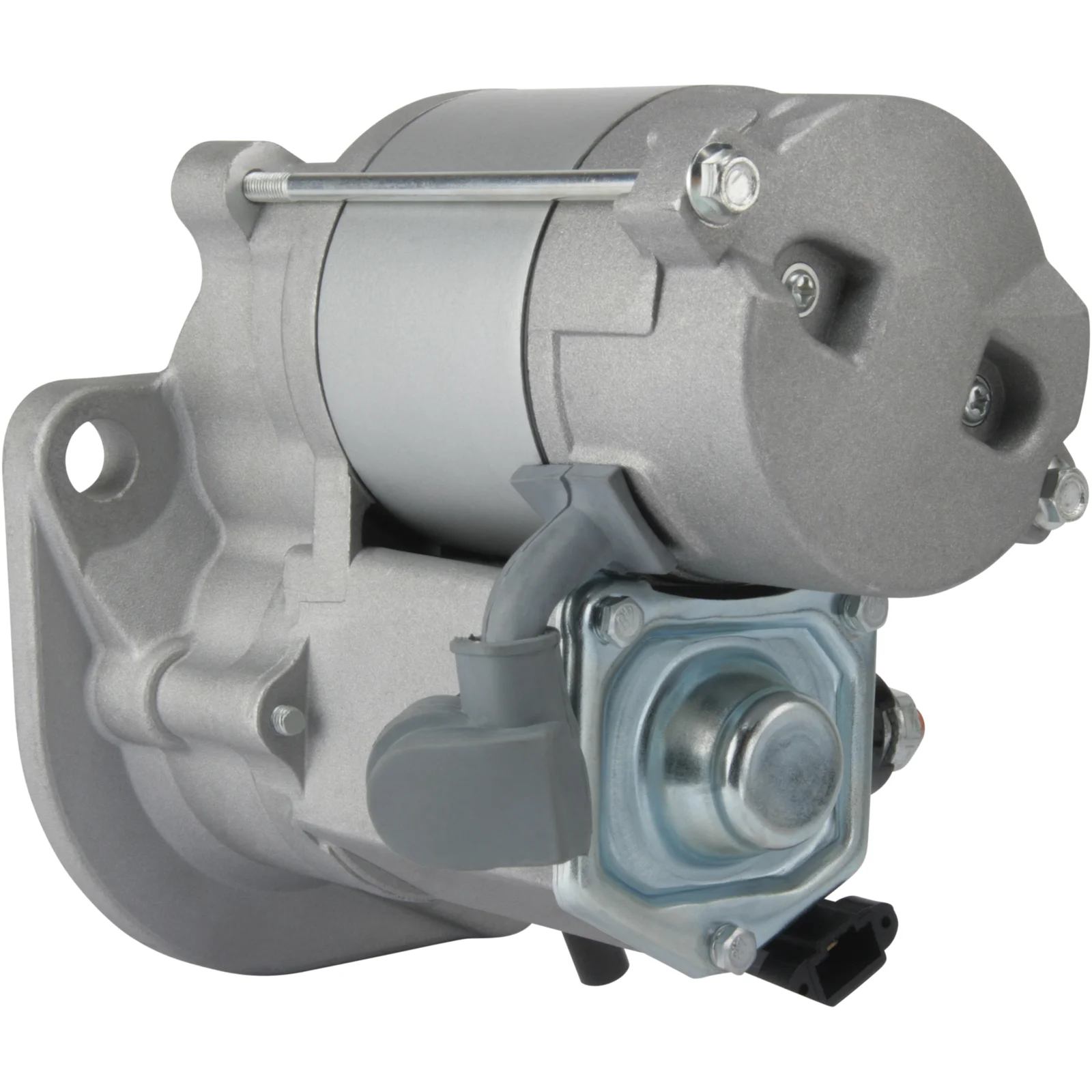

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 1.4, No./tænder: 13, Rotation: CW

Beskrivelse

Spænding: 12
kW: 1.4
Monteringsflange: 95,00
Drevafstand: 21,00
Monteringshuls 2 mm: 13,00
Monteringshuls 1 mm: 13,00
Afstand/bag: 122,00
Afstand/frem: 32,50
Nr./tænder: 13
B+: M8
Position/50: 27
Terminal 50: 8,00
Gear type: GR
Afstand mm: 120,00
Rotation: CW
Samlet længde mm: 191,00
Drevtype: Stål
Prod. info: BN
Vandtæt: Nej
Oliekapslet: Nej
Nr./monteringshuller: 2 (0)

Specifikation

B+ M8
No./teeth 13
Mount. flange 95.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 27
Prod. info BN
Rotation CW
Dist./back 122.00
Dist./front 32.50
Drive dist. 21.00
Drive type Steel
Gear type GR
kW 1.4
Terminal 50 8.00
Voltage 12
Total length 191.00 mm
Waterproof No
Dist. 120.00 mm
Mount. hole 2 13.00 mm
Mount. hole 1 13.00 mm
  • OEM

    am878415, F032110485, js1239, rg60654, s114-116, s114-450, TY6715, ty6717, 45-1312, 45-1335, 45-1718, 12741, 15586, 19279, 028000-5730, 028000-7640, 119209-77010, 119256-77010, 119285-77010, 119385-77010, 121120-77010, 121120-77011, 121120-77012, 124450-77010, 124520-77010, 124520-77011, 124772-77010, 124976-77011, 128000-0110, 128000-0111, 128000-0710, 128000-0711, 128000-0740, 128000-0741, 128000-7300, 129129-77010, 129407-77010, 129429-77010, 129429-77011, 129573-77010, 228000-0110, 228000-0111, 228000-0140, 228000-0141, 228000-0142, 228000-0250, 228000-0251, 228000-3730, 228000-3731, 228000-3732, 228000-3780, 228000-3800, 228000-3801, 228000-3802, 228000-7110, 228000-7111, 501447, 3575205RX, 10465440, 10465584
  • Konkurrentreferens

    CST20110, CST40190, CST40217, CST40245, DRS0163, DRS0183, drs3247, DSN2069, DSN2144, F042000197, F042S00197, LRS01125, LRS01292, LRS01312, LRS01626, LRS02593, s-8124, s-8872, S6093, S6097, S6097S, S6331(DENSO), s9990, sn-00163r, snd0394, SR9974X, STR23020, STR30034, STR70017, 2-1743-ND, 2-1916-hi, 2-2705-ND, 8EA738032-001, 25-0423, 25-1062, 25-1150, 25-2020, 25-2076, 25-3153, 25-4403, 91-29-5140, 91-29-5325, 91-29-5360, 673.004.152, 682.001.152, 682.017.152, 682.018.152, 682.044.152, 980.509.132, 980.539.152, 8949, 16657, 16710, 17099, 17099N, 17375, 17375N, 18013, 18013N, 18014N, 18178N, 18201, 18205, 18216, 103765, 201069, 201239, 220578, 220578A, 254339, 254411, 254905, 438483, 726913, 42118804
  • NormaliseratArtNr

    am878415, cst20110, cst40190, cst40217, cst40245, drs0163, drs0183, drs3247, dsn2069, dsn2144, f032110485, f042000197, f042s00197, js1239, lrs01125, lrs01292, lrs01312, lrs01626, lrs02593, rg60654, s114116, s114450, s6093, s6097, s6097s, s6331denso, s8124, s8872, s9990, sn00163r, snd0394, sr9974x, str23020, str30034, str70017, ty6715, ty6717, 8ea738032001, 8949, 12741, 15586, 16657, 16710, 17099, 17099n, 17375, 17375n, 18013, 18013n, 18014n, 18178n, 18201, 18205, 18216, 19279, 21743nd, 21916hi, 22705nd, 103765, 201069, 201239, 220578, 220578a, 250423, 251062, 251150, 252020, 252076, 253153, 254339, 254403, 254411, 254905, 438483, 451312, 451335, 451718, 501447, 726913, 3575205rx, 10465440, 10465584, 42118804, 91295140, 91295325, 91295360, 0280005730, 0280007640, 673004152, 682001152, 682017152, 682018152, 682044152, 980509132, 980539152, 1280000110, 1280000111, 1280000710, 1280000711, 1280000740, 1280000741, 1280007300, 2280000110, 2280000111, 2280000140, 2280000141, 2280000142, 2280000250, 2280000251, 2280003730, 2280003731, 2280003732, 2280003780, 2280003800, 2280003801, 2280003802, 2280007110, 2280007111, 11920977010, 11925677010, 11928577010, 11938577010, 12112077010, 12112077011, 12112077012, 12445077010, 12452077010, 12452077011, 12477277010, 12497677011, 12912977010, 12940777010, 12942977010, 12942977011, 12957377010
  • Passar modeller

    John Deere Model: 650 Model series: 650 Model type: Utility tractor Brand of engine: 3T90 Body: Tractor Approved: Yes
    John Deere Model: 750 Model series: 750 Model type: Utility tractor Brand of engine: 3T80 Body: Tractor Approved: Yes
    Thermo King Model: Various Models Model series: Various Models Approved: Yes
    Yanmar Model: 4JH Model series: 4JH Approved: Yes
  • Beskrivelse
    Spænding: 12
    kW: 1.4
    Monteringsflange: 95,00
    Drevafstand: 21,00
    Monteringshuls 2 mm: 13,00
    Monteringshuls 1 mm: 13,00
    Afstand/bag: 122,00
    Afstand/frem: 32,50
    Nr./tænder: 13
    B+: M8
    Position/50: 27
    Terminal 50: 8,00
    Gear type: GR
    Afstand mm: 120,00
    Rotation: CW
    Samlet længde mm: 191,00
    Drevtype: Stål
    Prod. info: BN
    Vandtæt: Nej
    Oliekapslet: Nej
    Nr./monteringshuller: 2 (0)
  • Specifikation
    B+ M8
    No./teeth 13
    Mount. flange 95.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 27
    Prod. info BN
    Rotation CW
    Dist./back 122.00
    Dist./front 32.50
    Drive dist. 21.00
    Drive type Steel
    Gear type GR
    kW 1.4
    Terminal 50 8.00
    Voltage 12
    Total length 191.00 mm
    Waterproof No
    Dist. 120.00 mm
    Mount. hole 2 13.00 mm
    Mount. hole 1 13.00 mm
  • Køretøjsmatchning
    • OEM

      am878415, F032110485, js1239, rg60654, s114-116, s114-450, TY6715, ty6717, 45-1312, 45-1335, 45-1718, 12741, 15586, 19279, 028000-5730, 028000-7640, 119209-77010, 119256-77010, 119285-77010, 119385-77010, 121120-77010, 121120-77011, 121120-77012, 124450-77010, 124520-77010, 124520-77011, 124772-77010, 124976-77011, 128000-0110, 128000-0111, 128000-0710, 128000-0711, 128000-0740, 128000-0741, 128000-7300, 129129-77010, 129407-77010, 129429-77010, 129429-77011, 129573-77010, 228000-0110, 228000-0111, 228000-0140, 228000-0141, 228000-0142, 228000-0250, 228000-0251, 228000-3730, 228000-3731, 228000-3732, 228000-3780, 228000-3800, 228000-3801, 228000-3802, 228000-7110, 228000-7111, 501447, 3575205RX, 10465440, 10465584
    • Konkurrentreferens

      CST20110, CST40190, CST40217, CST40245, DRS0163, DRS0183, drs3247, DSN2069, DSN2144, F042000197, F042S00197, LRS01125, LRS01292, LRS01312, LRS01626, LRS02593, s-8124, s-8872, S6093, S6097, S6097S, S6331(DENSO), s9990, sn-00163r, snd0394, SR9974X, STR23020, STR30034, STR70017, 2-1743-ND, 2-1916-hi, 2-2705-ND, 8EA738032-001, 25-0423, 25-1062, 25-1150, 25-2020, 25-2076, 25-3153, 25-4403, 91-29-5140, 91-29-5325, 91-29-5360, 673.004.152, 682.001.152, 682.017.152, 682.018.152, 682.044.152, 980.509.132, 980.539.152, 8949, 16657, 16710, 17099, 17099N, 17375, 17375N, 18013, 18013N, 18014N, 18178N, 18201, 18205, 18216, 103765, 201069, 201239, 220578, 220578A, 254339, 254411, 254905, 438483, 726913, 42118804
    • NormaliseratArtNr

      am878415, cst20110, cst40190, cst40217, cst40245, drs0163, drs0183, drs3247, dsn2069, dsn2144, f032110485, f042000197, f042s00197, js1239, lrs01125, lrs01292, lrs01312, lrs01626, lrs02593, rg60654, s114116, s114450, s6093, s6097, s6097s, s6331denso, s8124, s8872, s9990, sn00163r, snd0394, sr9974x, str23020, str30034, str70017, ty6715, ty6717, 8ea738032001, 8949, 12741, 15586, 16657, 16710, 17099, 17099n, 17375, 17375n, 18013, 18013n, 18014n, 18178n, 18201, 18205, 18216, 19279, 21743nd, 21916hi, 22705nd, 103765, 201069, 201239, 220578, 220578a, 250423, 251062, 251150, 252020, 252076, 253153, 254339, 254403, 254411, 254905, 438483, 451312, 451335, 451718, 501447, 726913, 3575205rx, 10465440, 10465584, 42118804, 91295140, 91295325, 91295360, 0280005730, 0280007640, 673004152, 682001152, 682017152, 682018152, 682044152, 980509132, 980539152, 1280000110, 1280000111, 1280000710, 1280000711, 1280000740, 1280000741, 1280007300, 2280000110, 2280000111, 2280000140, 2280000141, 2280000142, 2280000250, 2280000251, 2280003730, 2280003731, 2280003732, 2280003780, 2280003800, 2280003801, 2280003802, 2280007110, 2280007111, 11920977010, 11925677010, 11928577010, 11938577010, 12112077010, 12112077011, 12112077012, 12445077010, 12452077010, 12452077011, 12477277010, 12497677011, 12912977010, 12940777010, 12942977010, 12942977011, 12957377010
    • Passar modeller

      John Deere Model: 650 Model series: 650 Model type: Utility tractor Brand of engine: 3T90 Body: Tractor Approved: Yes
      John Deere Model: 750 Model series: 750 Model type: Utility tractor Brand of engine: 3T80 Body: Tractor Approved: Yes
      Thermo King Model: Various Models Model series: Various Models Approved: Yes
      Yanmar Model: 4JH Model series: 4JH Approved: Yes
