Vare nr.: F032110538

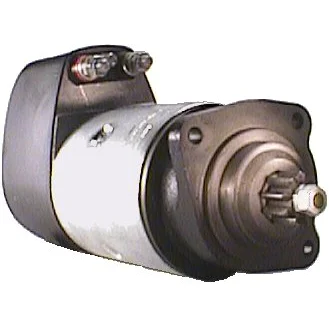

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 3,6, No./tænder: 9, Rotation: CW

Beskrivelse

Start 12V-3.6kW passer til Penta 12V - 3.6kW, 9k, isoleret 24V-udgave er 91-605-6028 For Yourex produktbestilling 91-605-8009

Voltage: 12
kW: 3.6
Isoleret retur: Ja
Ankerflange: 89,00
Drevafstand: 47,00
Montagehuls 3 mm: 11,00
Montagehuls 2 mm: 11,00
Montagehuls 1 mm: 11,00
Afstand/bag: 318,50
Afstand/frontal: 62,00
Nummer/tænder: 9
B+: M10
Position/B+: 60
Position/50: 60
Terminal 50: M6
Gear type: DD
Afstand 2: 127,00
Afstand 3: 90,00
Afstand mm: 90,00
Rotation: CW
Position/b-: 60
B-: M10
Total længde mm: 384,00
Drivtype: Stål
Produktinfo: BN
Vandtæt: Nej
Olieforseglet: Nej
Nummer/montagehuller: 3 (0)

Filer

Specifikation

B+ M10
B- M10
No./teeth 9
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 60
Position/b- 60
Position/B+ 60
Prod. info BN
Dist. 2 127.00
Dist. 3 90.00
Rotation CW
Dist./back 318.50
Dist./front 62.00
Drive dist. 47.00
Drive type Steel
Gear type DD
Insulated return Yes
kW 3.6
Terminal 50 M6
Voltage 12
Total length 384.00 mm
Waterproof No
Dist. 90.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    bng4/12cr238, F032110538, 0001 401 023, 0001 401 060, 0001 413 004, 0001 418 009, 409, 22804, 233991, 240501, 837924, 842775, 843511, 847306, 860542, 881681, 0001401023, 0001401060, 0001413004, 0001418009, 19024005

  • Konkurrentreferens
    CST10175, LRS01204, MS570, MS704, S0837S, S0856S, 8ea737247-001, 25-1270, 638.021.092, 810.101.093, 4455, 18221, 33655, 33737, 101030, 220244, 220244A, 254022

  • Bilmärken
    Volvo Penta

  • NormaliseratArtNr
    bng412cr238, cst10175, f032110538, lrs01204, ms570, ms704, s0837s, s0856s, 8ea737247001, 409, 4455, 18221, 22804, 33655, 33737, 101030, 220244, 220244a, 233991, 240501, 251270, 254022, 837924, 842775, 843511, 847306, 860542, 881681, 0001401023, 0001401060, 0001413004, 0001418009, 19024005, 638021092, 810101093

  • Passar modeller
    Volvo Penta Model: Engine Model series: Engine Size of motor: 5.5 Brand of engine: TAMD60 From date: 01-10-1976 Fuel: Diesel Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Size of motor: 6.7 Brand of engine: AQD70 From date: 01-03-1971 Fuel: Diesel Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Size of motor: 6.7 Brand of engine: TMD70 From date: 01-12-1972 Fuel: Diesel Approved: Yes
    Volvo Penta Series: Industri Model: D 42 A, A-PP (12V)
    Volvo Penta Series: Industri Model: TAD 730 G / P / VE (12V)
    Volvo Penta Series: Industri Model: TD 60 B (12V-3.6kW)
    Volvo Penta Series: Industri Model: TD 73 ES Engine type: 12V
    Volvo Penta Series: Marin Model: AQD 70 B Engine volume: 6.7 Year: 03.71-12-74
    Volvo Penta Series: Marin Model: AQD 70 BL Engine volume: 6.7 Year: 01.73-12.74
    Volvo Penta Series: Marin Model: AQD 70 C, CL Engine volume: 6.7 Year: 01.75-06.79
    Volvo Penta Series: Marin Model: MD 42 A Engine volume: 4.2 Year: 08.70-06.79
    Volvo Penta Series: Marin Model: MD 70 B Engine volume: 6.7 Year: 12.70-07.79
    Volvo Penta Series: Marin Model: TAMD 60 B Engine volume: 5.5 Year: 10.78-04.83
    Volvo Penta Series: Marin Model: TAMD 61 A (12V)
    Volvo Penta Series: Marin Model: TAMD 63 L-A, P-A (12V)
    Volvo Penta Series: Marin Model: TAMD 70 B, C, D Engine volume: 6.7 Year: 03.71-12.79
    Volvo Penta Series: Marin Model: TAMD 71 B Engine type: 12V - 3.6kW
    Volvo Penta Series: Marin Model: TAMD 73 P-A, WJ-A Engine type: 12V - 3.6kW
    Volvo Penta Series: Marin Model: TAMD 74..., 75... 12V
    Volvo Penta Series: Marin Model: THAMD 70 B Engine volume: 6.7 Year: 01.73-12.74
    Volvo Penta Series: Marin Model: TM 70 B Engine volume: 6.7 Year: 12.70-12.78
    Volvo Penta Series: Marin Model: TMD 70 B Engine volume: 6.7 Year: 12.72-07.79
