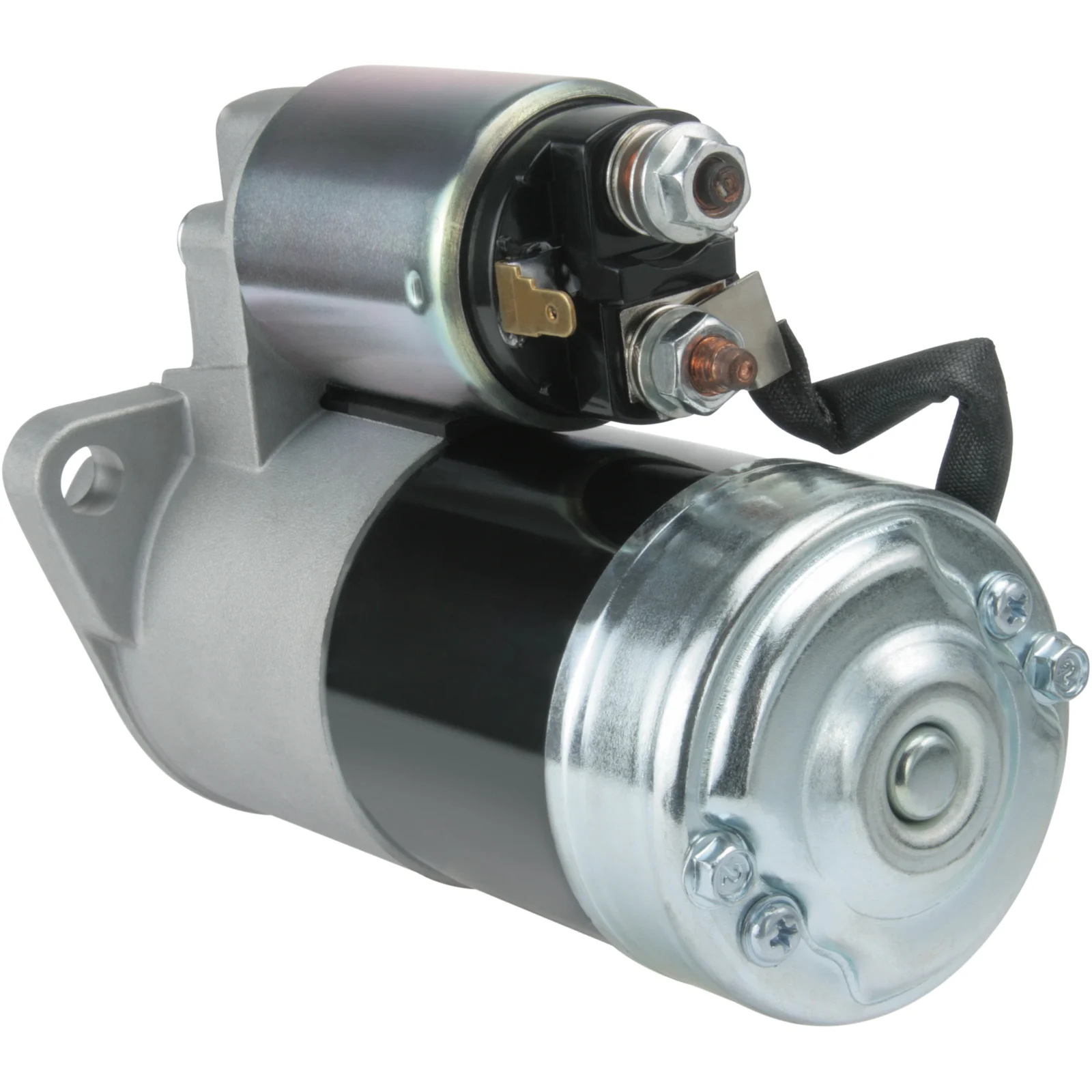

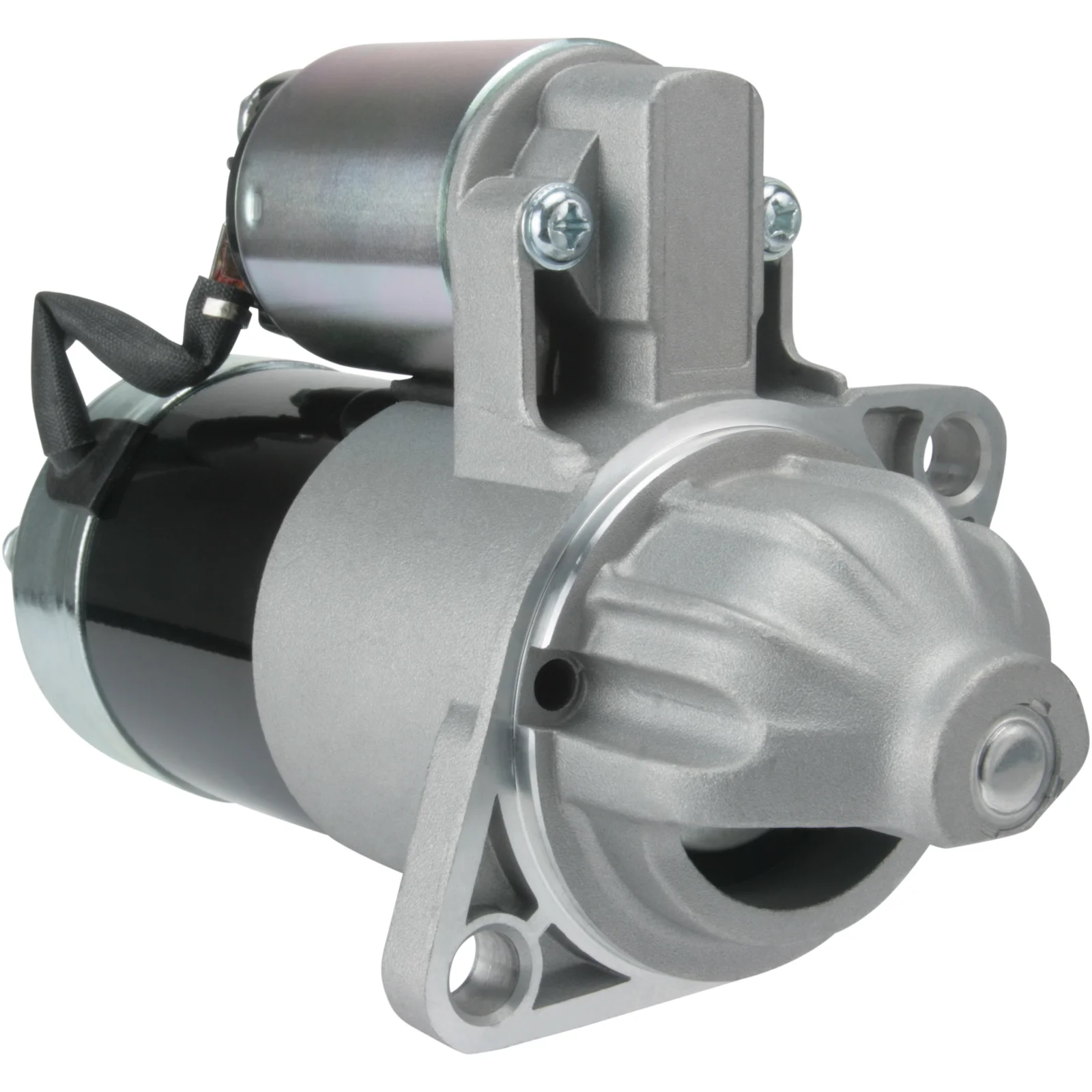

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032110572

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 1.2, Nr./tænder: 10, Rotation: CW

Beskrivelse

Spænding: 12
kW: 1,2
Monteringsflange: 77,00
Drivningsafstand: 17,50
Monteringshul 2 mm: 11,50
Monteringshul 1 mm: 11,50
Afstand/ryg: 151,50
Afstand/før: 54,00
Antal/tænder: 10
B+: M8
Position/50: 45
Terminal 50: 6,30
Koblingstype: GR
Afstand mm: 104,00
Rotation: CW
Samlet længde mm: 209,00
Drevtype: Stål
Produktoplysninger: BN
Vandtæt: Nej
Olieforseglet: Nej
Antal/montering huller: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 77.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 45
Prod. info BN
Rotation CW
Dist./back 151.50
Dist./front 54.00
Drive dist. 17.50
Drive type Steel
Gear type GR
kW 1.2
Terminal 50 6.30
Voltage 12
Total length 209.00 mm
Waterproof No
Dist. 104.00 mm
Mount. hole 2 11.50 mm
Mount. hole 1 11.50 mm

  • OEM
    F032110572, M001T79681, M001T79781, M002T58681, m1t79681, m1t79781, m2t58681, md171228, md318086, md320618, 920971

  • Konkurrentreferens
    acs-116, CST35156, DRS0774, F042001034, F042S01034, PBNS3026, s-8702, S5021, sc-0072r, smt0004, STR-3027, STR7002, 2-1996-MI, 25-2140, 91-27-3211, 150.505.102, 17110N, 17110R, 17176, 17176N, 17176R, 20915, 104165, 104330, 254895, 11040761, 20513026

  • NormaliseratArtNr
    acs116, cst35156, drs0774, f032110572, f042001034, f042s01034, m001t79681, m001t79781, m002t58681, m1t79681, m1t79781, m2t58681, md171228, md318086, md320618, pbns3026, s5021, s8702, sc0072r, smt0004, str3027, str7002, 17110n, 17110r, 17176, 17176n, 17176r, 20915, 21996mi, 104165, 104330, 252140, 254895, 920971, 11040761, 20513026, 91273211, 150505102

  • Passar modeller
    Mitsubishi Model: FG Model series: FG10 From date: 01-01-1990 Approved: Yes
    Mitsubishi Model: FG Model series: FG18 Size of motor: 1.4 From date: 01-01-1990 Approved: Yes
    Mitsubishi Model: FG Model series: FG20 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
    Mitsubishi Model: FG Model series: FG25 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
    Mitsubishi Model: FG Model series: FG30 Size of motor: 2.4 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
    Nissan Model: Various Models Model series: Various Models Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 12
    kW: 1,2
    Monteringsflange: 77,00
    Drivningsafstand: 17,50
    Monteringshul 2 mm: 11,50
    Monteringshul 1 mm: 11,50
    Afstand/ryg: 151,50
    Afstand/før: 54,00
    Antal/tænder: 10
    B+: M8
    Position/50: 45
    Terminal 50: 6,30
    Koblingstype: GR
    Afstand mm: 104,00
    Rotation: CW
    Samlet længde mm: 209,00
    Drevtype: Stål
    Produktoplysninger: BN
    Vandtæt: Nej
    Olieforseglet: Nej
    Antal/montering huller: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 10
    Mount. flange 77.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 45
    Prod. info BN
    Rotation CW
    Dist./back 151.50
    Dist./front 54.00
    Drive dist. 17.50
    Drive type Steel
    Gear type GR
    kW 1.2
    Terminal 50 6.30
    Voltage 12
    Total length 209.00 mm
    Waterproof No
    Dist. 104.00 mm
    Mount. hole 2 11.50 mm
    Mount. hole 1 11.50 mm
  • Køretøjsmatchning

    • OEM
      F032110572, M001T79681, M001T79781, M002T58681, m1t79681, m1t79781, m2t58681, md171228, md318086, md320618, 920971

    • Konkurrentreferens
      acs-116, CST35156, DRS0774, F042001034, F042S01034, PBNS3026, s-8702, S5021, sc-0072r, smt0004, STR-3027, STR7002, 2-1996-MI, 25-2140, 91-27-3211, 150.505.102, 17110N, 17110R, 17176, 17176N, 17176R, 20915, 104165, 104330, 254895, 11040761, 20513026

    • NormaliseratArtNr
      acs116, cst35156, drs0774, f032110572, f042001034, f042s01034, m001t79681, m001t79781, m002t58681, m1t79681, m1t79781, m2t58681, md171228, md318086, md320618, pbns3026, s5021, s8702, sc0072r, smt0004, str3027, str7002, 17110n, 17110r, 17176, 17176n, 17176r, 20915, 21996mi, 104165, 104330, 252140, 254895, 920971, 11040761, 20513026, 91273211, 150505102

    • Passar modeller
      Mitsubishi Model: FG Model series: FG10 From date: 01-01-1990 Approved: Yes
      Mitsubishi Model: FG Model series: FG18 Size of motor: 1.4 From date: 01-01-1990 Approved: Yes
      Mitsubishi Model: FG Model series: FG20 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
      Mitsubishi Model: FG Model series: FG25 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
      Mitsubishi Model: FG Model series: FG30 Size of motor: 2.4 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
      Nissan Model: Various Models Model series: Various Models Approved: Yes
      1 / 2
