Vare nr.: F032110590

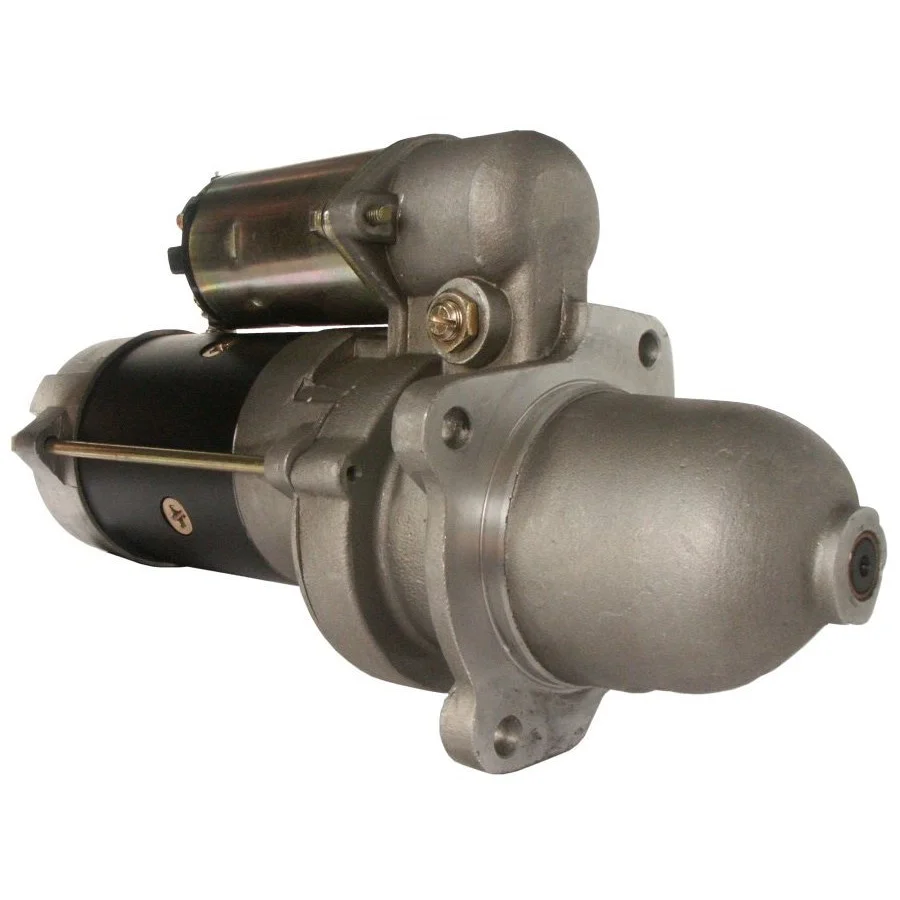

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 2.8, No./tandhjul: 10, Rotation: CW

Beskrivelse

Spenning: 12
kW: 2.8
Montageflange: 89,00
Drevafstand: 46,00
Montagehul 3 mm: 10,50
Montagehul 2 mm: 10,50
Montagehul 1 mm: 10,50
Afstand/bag: 251,00
Afstand/frem: 88,00
Nummer/tænder: 10
B+: M10
Position/50: 4
Terminal 50: M5
Gear type: GR
Afstand 2: 89,00
Afstand 3: 89,00
Afstand mm: 127,50
Rotation: med uret
Total længde mm: 339,00
Koblingstype: Tør
Drevtype: Stål
Produktoplysninger: BN
Vandtæt: Ja
Oliefyldt: Nej
Bemærkninger: Udskiftning: 22MT
Nummer/montagehuller: 3 (0)

Specifikation

B+ M10
No./teeth 10
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 4
Clutch type Dry
Prod. info BN
Dist. 2 89.00
Remarks Replacing: 22MT
Dist. 3 89.00
Rotation CW
Dist./back 251.00
Dist./front 88.00
Drive dist. 46.00
Drive type Steel
Gear type GR
kW 2.8
Terminal 50 M5
Voltage 12
Total length 339.00 mm
Waterproof Yes
Dist. 127.50 mm
Mount. hole 3 10.50 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm
  • OEM

    0-23000-1860, 0-23000-1900, F032110590, m0014502me, RE105298, RE501766, RE501767, RE505744, RE507639, RE508322, RE509903, RE540136, s2830, us843, 44-4731, 44-4751, 3185c37g01, 347198, 450732R91, 501850, 502631, 517533M93, 579937M91, 596493R92, 646218, 1107514, 1107539, 1107872, 1109192, 1109253, 1109261, 1109263, 1113281, 1113282, 1903103M91, 1903117M91, 1998330, 1998335, 1998342, 1998359, 1998376, 1998480, 3042511, 6630180, 6651210, 6651258, 6651664, 10461450, 10465049, 10465050
  • Konkurrentreferens

    BSO7212R, BSO7225, BSX1440024, BSX1440042, CST10400, CST11107, CST50109, CST50113, CST60108, drz5132, F042003090, F042003104, F042S03090, F042S03104, LRS01230, MS94, S1052, S1192S, S9070, STR-7053, STR-7071, STR7053, STR7073, 8ea730320-001, 25-1219, 25-1371, 50-8404, 600.028.102, 640.539.103, 692.009.102, 692.010.102, 4196, 4274, 4383, 4963, 6179, 6576, 6576N, 6576R, 6578N, 6578R, 8556, 18483N, 33787, 33810, 201162
  • NormaliseratArtNr

    bso7212r, bso7225, bsx1440024, bsx1440042, cst10400, cst11107, cst50109, cst50113, cst60108, drz5132, f032110590, f042003090, f042003104, f042s03090, f042s03104, lrs01230, m0014502me, ms94, re105298, re501766, re501767, re505744, re507639, re508322, re509903, re540136, s1052, s1192s, s2830, s9070, str7053, str7071, str7073, us843, 8ea730320001, 3185c37g01, 4196, 4274, 4383, 4963, 6179, 6576, 6576n, 6576r, 6578n, 6578r, 8556, 18483n, 33787, 33810, 201162, 251219, 251371, 347198, 444731, 444751, 450732r91, 501850, 502631, 508404, 517533m93, 579937m91, 596493r92, 646218, 1107514, 1107539, 1107872, 1109192, 1109253, 1109261, 1109263, 1113281, 1113282, 1903103m91, 1903117m91, 1998330, 1998335, 1998342, 1998359, 1998376, 1998480, 3042511, 6630180, 6651210, 6651258, 6651664, 10461450, 10465049, 10465050, 0230001860, 0230001900, 600028102, 640539103, 692009102, 692010102
  • Passar modeller

    Bobcat Model: 2000 Model series: 2000 From date: 01-01-1989 Approved: Yes
    Bobcat Model: 600 Model series: 641 Brand of engine: F2L511 From date: 01-01-1982 Approved: Yes
    Bobcat Model: 600 Model series: 671 Approved: Yes
    Bobcat Model: 700 Model series: 741 Brand of engine: F2L511 From date: 01-01-1982 Approved: Yes
    Bobcat Model: 900 Model series: 943 From date: 01-01-1988 Approved: Yes
    Bobcat Model: 900 Model series: 974 From date: 01-01-1989 Approved: Yes
    Bobcat Model: 900 Model series: 975 From date: 01-01-1989 Approved: Yes
    Bobcat Model: Various Models Model series: Various Models Approved: Yes
    Perkins Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
