Vare nr.: F032111005

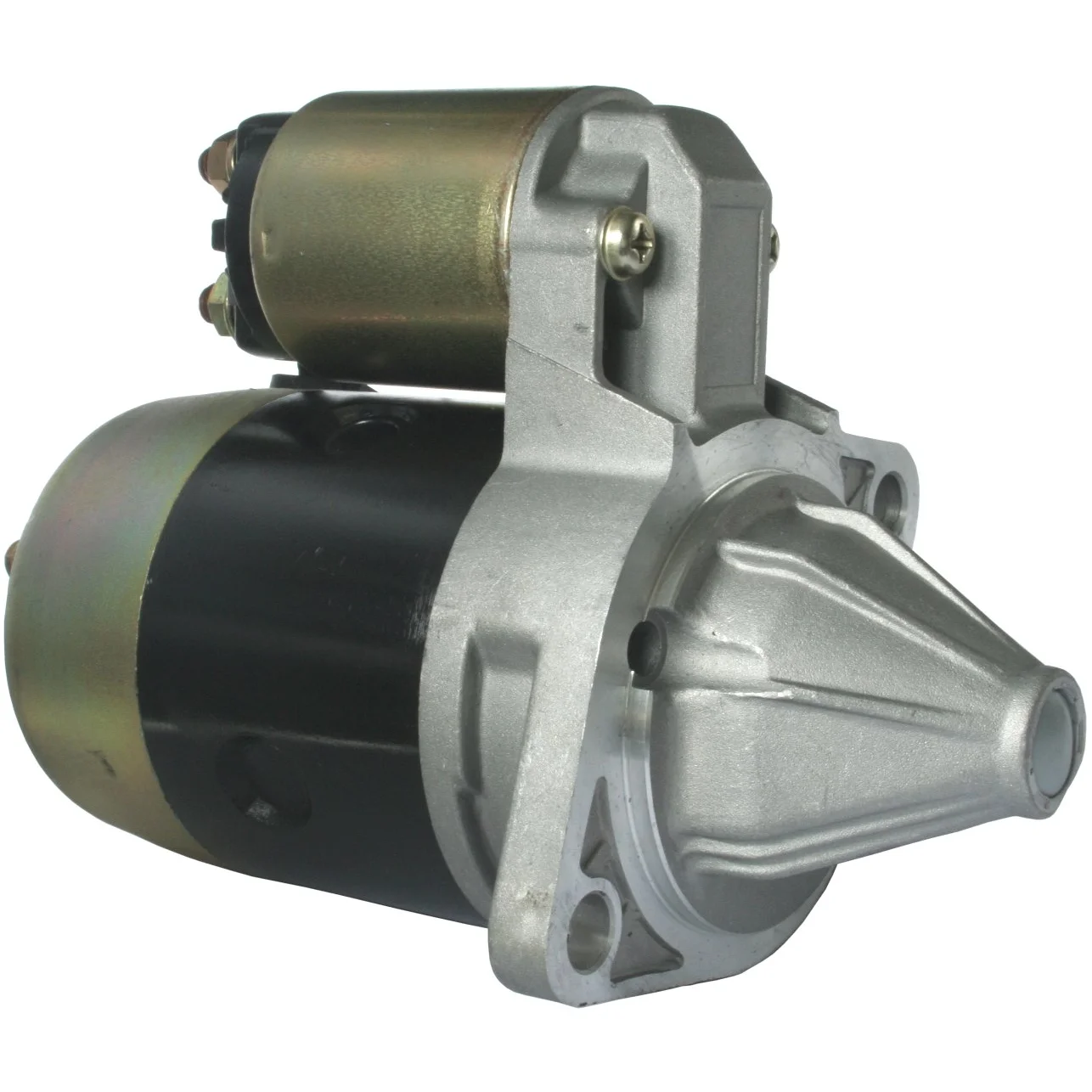

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 0.8, No./tænder: 8, Rotation: med uret

Beskrivelse

Spænding: 12
kW: 0.8
Monteringsflange: 74.00
Drevafstand: 16.50
Monteringshul 2 mm: 11.00
Monteringshul 1 mm: 11.00
Afstand/bag: 136.50
Afstand/frampå: 53.00
Nr./tænder: 8
B+: M8
Position/50: 60
Terminal 50: 6.30
Geartype: DD
Afstand mm: 104.50
Rotation: CW
Total længde mm: 190.00
Dreventype: Steel
Prod. info: Reman
Vandtæt: Nej
Oliekapslet: Nej
Nr./monteringshuller: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 8
Mount. flange 74.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 60
Prod. info Reman
Rotation CW
Dist./back 136.50
Dist./front 53.00
Drive dist. 16.50
Drive type Steel
Gear type DD
kW 0.8
Terminal 50 6.30
Voltage 12
Total length 190.00 mm
Waterproof No
Dist. 104.50 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032111005, M003T30981, m3t30981, 4780-18-400, 4780-18-400A

  • Konkurrentreferens
    CST35157, DRS0201, LRS01344, 2-2088-MI, 8ea732850-001, 25-2154, 624.001.082, 4319, 16798, 16798N, 20907, 103951

  • NormaliseratArtNr
    cst35157, drs0201, f032111005, lrs01344, m003t30981, m3t30981, 8ea732850001, 4319, 16798, 16798n, 20907, 22088mi, 103951, 252154, 478018400, 478018400a, 624001082

  • Passar modeller
    Sumitomo Model: Various Models Model series: Various Models Approved: Yes
    Yale Model: Various Models Model series: Various Models Brand of engine: DBFE Approved: Yes
  • Beskrivelse
    Spænding: 12
    kW: 0.8
    Monteringsflange: 74.00
    Drevafstand: 16.50
    Monteringshul 2 mm: 11.00
    Monteringshul 1 mm: 11.00
    Afstand/bag: 136.50
    Afstand/frampå: 53.00
    Nr./tænder: 8
    B+: M8
    Position/50: 60
    Terminal 50: 6.30
    Geartype: DD
    Afstand mm: 104.50
    Rotation: CW
    Total længde mm: 190.00
    Dreventype: Steel
    Prod. info: Reman
    Vandtæt: Nej
    Oliekapslet: Nej
    Nr./monteringshuller: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 8
    Mount. flange 74.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 60
    Prod. info Reman
    Rotation CW
    Dist./back 136.50
    Dist./front 53.00
    Drive dist. 16.50
    Drive type Steel
    Gear type DD
    kW 0.8
    Terminal 50 6.30
    Voltage 12
    Total length 190.00 mm
    Waterproof No
    Dist. 104.50 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Køretøjsmatchning

    • OEM
      F032111005, M003T30981, m3t30981, 4780-18-400, 4780-18-400A

    • Konkurrentreferens
      CST35157, DRS0201, LRS01344, 2-2088-MI, 8ea732850-001, 25-2154, 624.001.082, 4319, 16798, 16798N, 20907, 103951

    • NormaliseratArtNr
      cst35157, drs0201, f032111005, lrs01344, m003t30981, m3t30981, 8ea732850001, 4319, 16798, 16798n, 20907, 22088mi, 103951, 252154, 478018400, 478018400a, 624001082

    • Passar modeller
      Sumitomo Model: Various Models Model series: Various Models Approved: Yes
      Yale Model: Various Models Model series: Various Models Brand of engine: DBFE Approved: Yes
