Vare nr.: F032111041

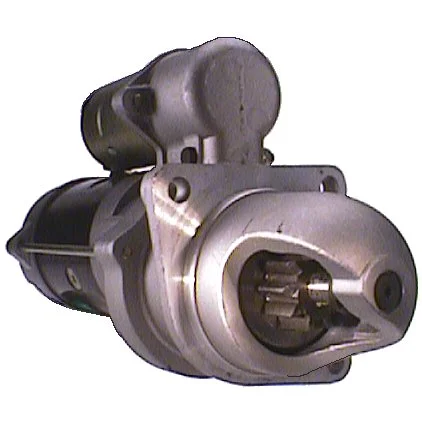

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 2.8, No./tandhjul: 10, Rotation: CW

Beskrivelse

Spænding: 12
kW: 2.8
Montageflange: 89.00
Drevafstand: 46.50
Montagehul 3 mm: 10.70
Montagehul 2 mm: 10.70
Montagehul 1 mm: 10.70
Afstand/bag: 249.00
Afstand/for: 88.50
Antal/tenner: 10
B+: M10
Position/50: 51
Terminal 50: M5
Gear type: GR
Afstand 2: 89.00
Afstand 3: 89.00
Afstand mm: 126.50
Rotation: med uret
Total længde mm: 338.50
Koblingstype: Tør
Drevtype: Rustfrit stål
Produktoplysninger: BN
Vandtæt: Nej
Oliesealed: Nej
Bemærkninger: Udskiftning: 22MT
Antal/montagehuller: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 10
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 51
Clutch type Dry
Prod. info BN
Dist. 2 89.00
Remarks Replacing: 22MT
Dist. 3 89.00
Rotation CW
Dist./back 249.00
Dist./front 88.50
Drive dist. 46.50
Drive type Steel
Gear type GR
kW 2.8
Terminal 50 M5
Voltage 12
Total length 338.50 mm
Waterproof No
Dist. 126.50 mm
Mount. hole 3 10.70 mm
Mount. hole 2 10.70 mm
Mount. hole 1 10.70 mm

  • OEM
    0-23000-1830, 0-23000-1870, F032111041, RE503093, RE503120, re507236, RE509025, RE518057, RE518112, RE523501, RE546027, RE546868, RE59010, s2810, 1107580, 1109550, 1113275, 1113278, 1313394, 0001359029, 0001359058, 0001359114, 0001362302, 1998336, 1998383, 1998387, 1998481, 3132700R91, 3132700R92, 3132700R93, 9142740, 10461446, 10461447, 10465044, 10465045, 10465046, 10465406, 12500790, 443115142740

  • Konkurrentreferens
    BSO7200R, CST10350, CST48112, CST60105, DRS0574, F042003091, F042003099, F042S03091, F042S03099, MS240, OMS125, S1054, S9289S, STR-7054, STR7054, 8ea737140-001, 50-8406, 50-8406-1, 50-8406-2, 630.022.103, 630.520.103, 4389, 4419, 6167, 6318R, 6572R, 6584, 6584N, 18469N, 19659N, 60968, 254439, 255026, 35259130, 35259690, 35259710

  • NormaliseratArtNr
    bso7200r, cst10350, cst48112, cst60105, drs0574, f032111041, f042003091, f042003099, f042s03091, f042s03099, ms240, oms125, re503093, re503120, re507236, re509025, re518057, re518112, re523501, re546027, re546868, re59010, s1054, s2810, s9289s, str7054, 8ea737140001, 4389, 4419, 6167, 6318r, 6572r, 6584, 6584n, 18469n, 19659n, 60968, 254439, 255026, 508406, 1107580, 1109550, 1113275, 1113278, 1313394, 0001359029, 0001359058, 0001359114, 0001362302, 1998336, 1998383, 1998387, 1998481, 3132700r91, 3132700r92, 3132700r93, 5084061, 5084062, 9142740, 10461446, 10461447, 10465044, 10465045, 10465046, 10465406, 12500790, 35259130, 35259690, 35259710, 0230001830, 0230001870, 630022103, 630520103, 443115142740

  • Passar modeller
    Fiat-Allis Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
    Hyster Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
    Perkins Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 12
    kW: 2.8
    Montageflange: 89.00
    Drevafstand: 46.50
    Montagehul 3 mm: 10.70
    Montagehul 2 mm: 10.70
    Montagehul 1 mm: 10.70
    Afstand/bag: 249.00
    Afstand/for: 88.50
    Antal/tenner: 10
    B+: M10
    Position/50: 51
    Terminal 50: M5
    Gear type: GR
    Afstand 2: 89.00
    Afstand 3: 89.00
    Afstand mm: 126.50
    Rotation: med uret
    Total længde mm: 338.50
    Koblingstype: Tør
    Drevtype: Rustfrit stål
    Produktoplysninger: BN
    Vandtæt: Nej
    Oliesealed: Nej
    Bemærkninger: Udskiftning: 22MT
    Antal/montagehuller: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 10
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 51
    Clutch type Dry
    Prod. info BN
    Dist. 2 89.00
    Remarks Replacing: 22MT
    Dist. 3 89.00
    Rotation CW
    Dist./back 249.00
    Dist./front 88.50
    Drive dist. 46.50
    Drive type Steel
    Gear type GR
    kW 2.8
    Terminal 50 M5
    Voltage 12
    Total length 338.50 mm
    Waterproof No
    Dist. 126.50 mm
    Mount. hole 3 10.70 mm
    Mount. hole 2 10.70 mm
    Mount. hole 1 10.70 mm
  • Køretøjsmatchning

    • OEM
      0-23000-1830, 0-23000-1870, F032111041, RE503093, RE503120, re507236, RE509025, RE518057, RE518112, RE523501, RE546027, RE546868, RE59010, s2810, 1107580, 1109550, 1113275, 1113278, 1313394, 0001359029, 0001359058, 0001359114, 0001362302, 1998336, 1998383, 1998387, 1998481, 3132700R91, 3132700R92, 3132700R93, 9142740, 10461446, 10461447, 10465044, 10465045, 10465046, 10465406, 12500790, 443115142740

    • Konkurrentreferens
      BSO7200R, CST10350, CST48112, CST60105, DRS0574, F042003091, F042003099, F042S03091, F042S03099, MS240, OMS125, S1054, S9289S, STR-7054, STR7054, 8ea737140-001, 50-8406, 50-8406-1, 50-8406-2, 630.022.103, 630.520.103, 4389, 4419, 6167, 6318R, 6572R, 6584, 6584N, 18469N, 19659N, 60968, 254439, 255026, 35259130, 35259690, 35259710

    • NormaliseratArtNr
      bso7200r, cst10350, cst48112, cst60105, drs0574, f032111041, f042003091, f042003099, f042s03091, f042s03099, ms240, oms125, re503093, re503120, re507236, re509025, re518057, re518112, re523501, re546027, re546868, re59010, s1054, s2810, s9289s, str7054, 8ea737140001, 4389, 4419, 6167, 6318r, 6572r, 6584, 6584n, 18469n, 19659n, 60968, 254439, 255026, 508406, 1107580, 1109550, 1113275, 1113278, 1313394, 0001359029, 0001359058, 0001359114, 0001362302, 1998336, 1998383, 1998387, 1998481, 3132700r91, 3132700r92, 3132700r93, 5084061, 5084062, 9142740, 10461446, 10461447, 10465044, 10465045, 10465046, 10465406, 12500790, 35259130, 35259690, 35259710, 0230001830, 0230001870, 630022103, 630520103, 443115142740

    • Passar modeller
      Fiat-Allis Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
      Hyster Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
      Perkins Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
