Vare nr.: F032111047

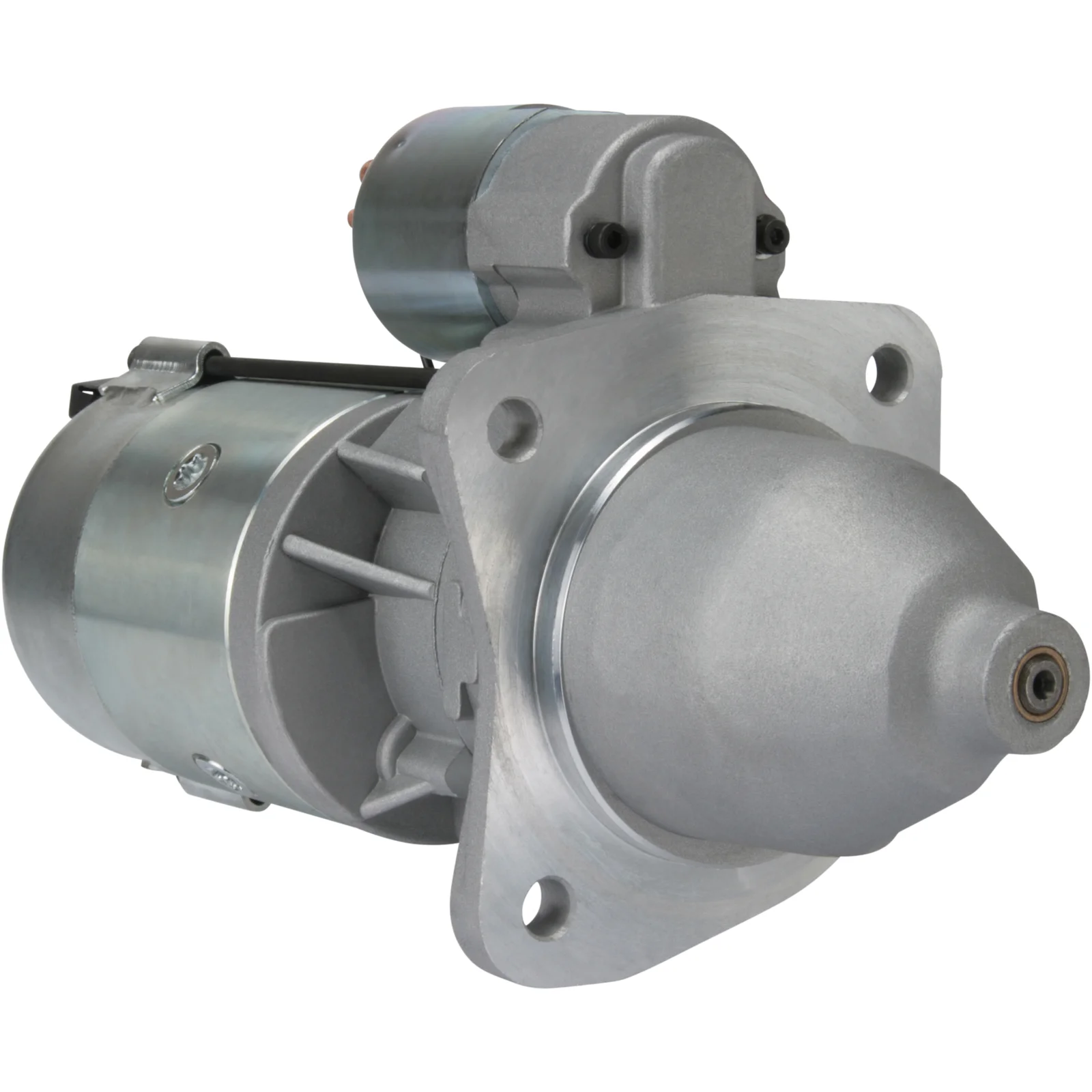

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 3.1, No./tænder: 9, Rotation: CW

Beskrivelse

Start 12V-3.0kW passer Penta 12V - 3.0kW, 11k, isoleret Alternativ : VA 184202 (OE Valeo) For Yourex produkt ordre 91-605-1280

Spænding: 12
kW: 3,1
Isoleret retur: Ja
Monteringsflange: 89,00
Drive afstand: 48,00
Montering hul 3 mm: 10,30
Montering hul 2 mm: 10,30
Montering hul 1 mm: 10,30
Afstand/bag: 197,00
Afstand/forreste: 91,00
Nr./tænder: 9
B+: M8
Position/50: 15
Terminal 50: M5
Gear type: GR
Afstand 2: 90,00
Afstand 3: 90,00
Afstand mm: 127,00
Rotation: CW
Position/b-: 37
B-: M8
Samlet længde mm: 303,50
Drive type: Stål
Prod. info: BN
Vandtæt: Nej
Oliesejlet: Nej
Nr./monteringshuller: 3 (0)

Filer

Specifikation

B+ M8
B- M8
No./teeth 9
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 15
Position/b- 37
Prod. info BN
Dist. 2 90.00
Dist. 3 90.00
Rotation CW
Dist./back 197.00
Dist./front 91.00
Drive dist. 48.00
Drive type Steel
Gear type GR
Insulated return Yes
kW 3.1
Terminal 50 M5
Voltage 12
Total length 303.50 mm
Waterproof No
Dist. 127.00 mm
Mount. hole 3 10.30 mm
Mount. hole 2 10.30 mm
Mount. hole 1 10.30 mm

  • OEM
    cs1035, D11E167, d11e167t, D9R 116, D9R 144, d9r116, d9r144, F032111047, MS41, 1322, 829527, 859252, 0001359119, 1359119, 0001367049, 1367049, 1516806R, 1542195, 1545417, 3581774, 3803118, 3803200, 3803386, 5001759, 8599252, 22175633, 7701499545

  • Konkurrentreferens
    CST15155, DRS0904, DRS2780, DRS3744, LES0237, LRS01100, LRS01250, MS263, MS41, nd147, S3042, STR54022, 2-2248-PR, 8ea737252-001, 25-0462, 25-1420, 88-12.780, 638.001.092, 638.016.112, 638.046.092, 810.020.113, 810.021.093, 4460, 8697, 10783, 16464, 17316, 17316N, 31141R, 33629, 33630, 101035, 106479, 184202, 203003, 220792, 220792A, 455537, 484202, 11012780, 11017130, 943252233, 0986012780, 0986012781, 0986012783, 0986017131, 943252233010

  • Bilmärken
    Volvo Penta

  • NormaliseratArtNr
    cs1035, cst15155, d11e167, d11e167t, d9r116, d9r144, drs0904, drs2780, drs3744, f032111047, les0237, lrs01100, lrs01250, ms263, ms41, nd147, s3042, str54022, 8ea737252001, 1322, 4460, 8697, 10783, 16464, 17316, 17316n, 22248pr, 31141r, 33629, 33630, 101035, 106479, 184202, 203003, 220792, 220792a, 250462, 251420, 455537, 484202, 829527, 859252, 0001359119, 1359119, 0001367049, 1367049, 1516806r, 1542195, 1545417, 3581774, 3803118, 3803200, 3803386, 5001759, 8599252, 8812780, 11012780, 11017130, 22175633, 638001092, 638016112, 638046092, 810020113, 810021093, 943252233, 0986012780, 0986012781, 0986012783, 0986017131, 7701499545, 943252233010

  • Passar modeller
    Renault Model: Laguna Model series: Laguna Type of engine: Diesel Size of motor: 2.2 Brand of engine: G8T706 Type description: B56F Body: Hatchback From date: 01-11-1993 To date: 01-03-2001 Fuel: Diesel Approved: Yes
    Renault Model: Laguna Model series: Laguna Type of engine: Diesel Size of motor: 2.2 Brand of engine: G8T752 Type description: B56F Body: Hatchback From date: 01-11-1993 To date: 01-03-2001 Fuel: Diesel Approved: Yes
    Renault Model: Laguna Model series: Laguna Type of engine: Diesel Size of motor: 2.2 Brand of engine: G8T790 Type description: B56F Body: Hatchback From date: 01-11-1993 To date: 01-03-2001 Fuel: Diesel Approved: Yes
    Renault Model: Laguna Model series: Laguna Type of engine: Diesel Size of motor: 2.2 Brand of engine: G8T794 Type description: B56F Body: Hatchback From date: 01-11-1993 To date: 01-03-2001 Fuel: Diesel Approved: Yes
    Volvo Model: F Series Model series: F 408 Size of motor: 3.6 Brand of engine: TD40A Body: Platform / Chassis From date: 01-04-1978 To date: 01-02-1986 Fuel: Diesel Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Size of motor: 3.6 Brand of engine: TMD41B From date: 01-01-1986 To date: 01-12-1997 Fuel: Diesel Approved: Yes
    Volvo Penta Model: Engine Model series: Various Models Approved: Yes
    Volvo Penta Series: Industri Model: D 40
    Volvo Penta Series: Industri Model: TD 40
    Volvo Penta Series: Marin Model: AQD 41
    Volvo Penta Series: Marin Model: AQDA 41
    Volvo Penta Series: Marin Model: KAD 300, DP-G
    Volvo Penta Series: Marin Model: KAD 32 P-A
    Volvo Penta Series: Marin Model: KAD 43, P-A
    Volvo Penta Series: Marin Model: KAMD 44, P-A
    Volvo Penta Series: Marin Model: MC 5 C / MS 2
    Volvo Penta Series: Marin Model: MD 30
    Volvo Penta Series: Marin Model: TAMD 30
    Volvo Penta Series: Marin Model: TAMD 31, D
    Volvo Penta Series: Marin Model: TAMD 41 B
    Volvo Penta Series: Marin Model: TAMD 61 B
    Volvo Penta Series: Marin Model: TMD 30
    Volvo Penta Series: Marin Model: TMD 41 B
