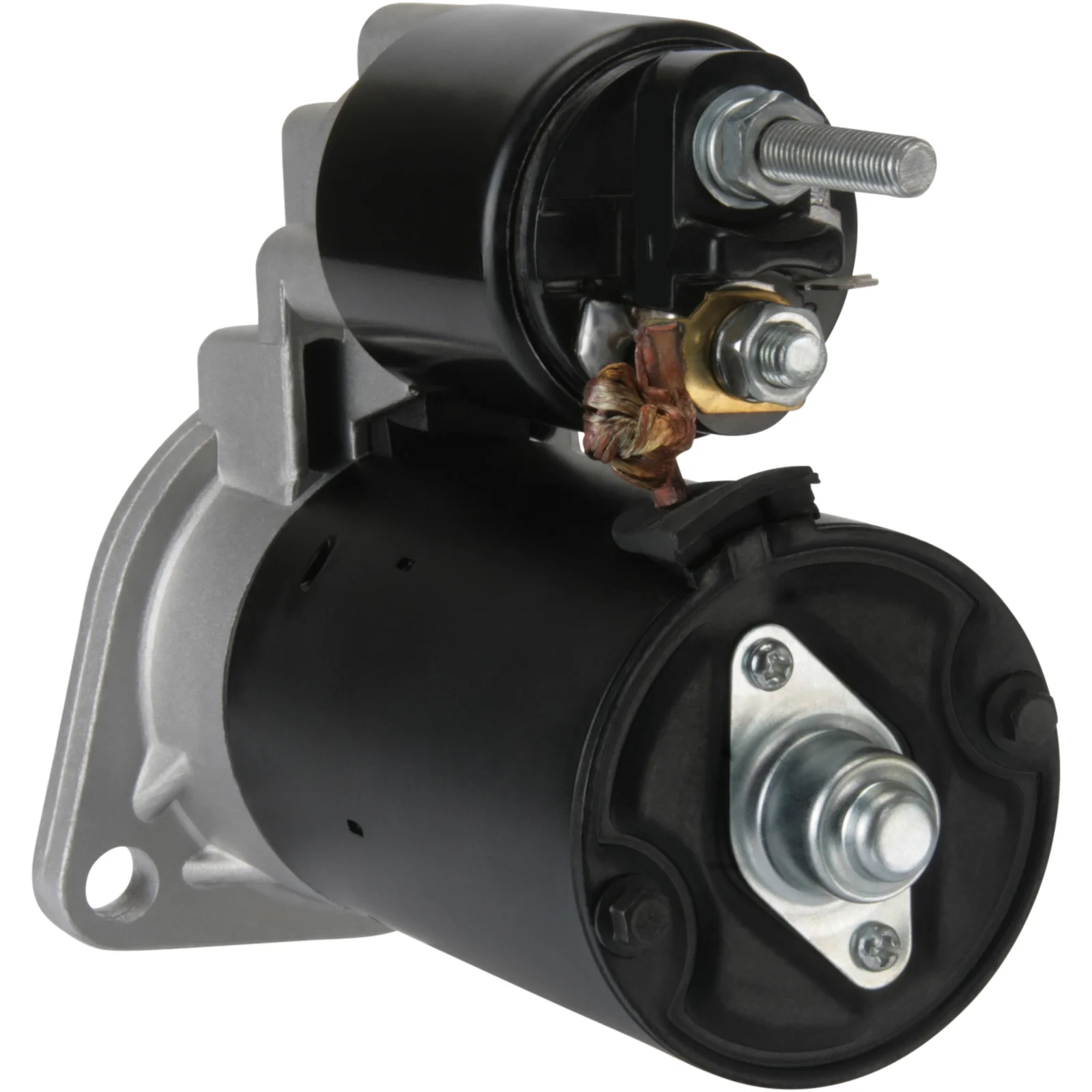

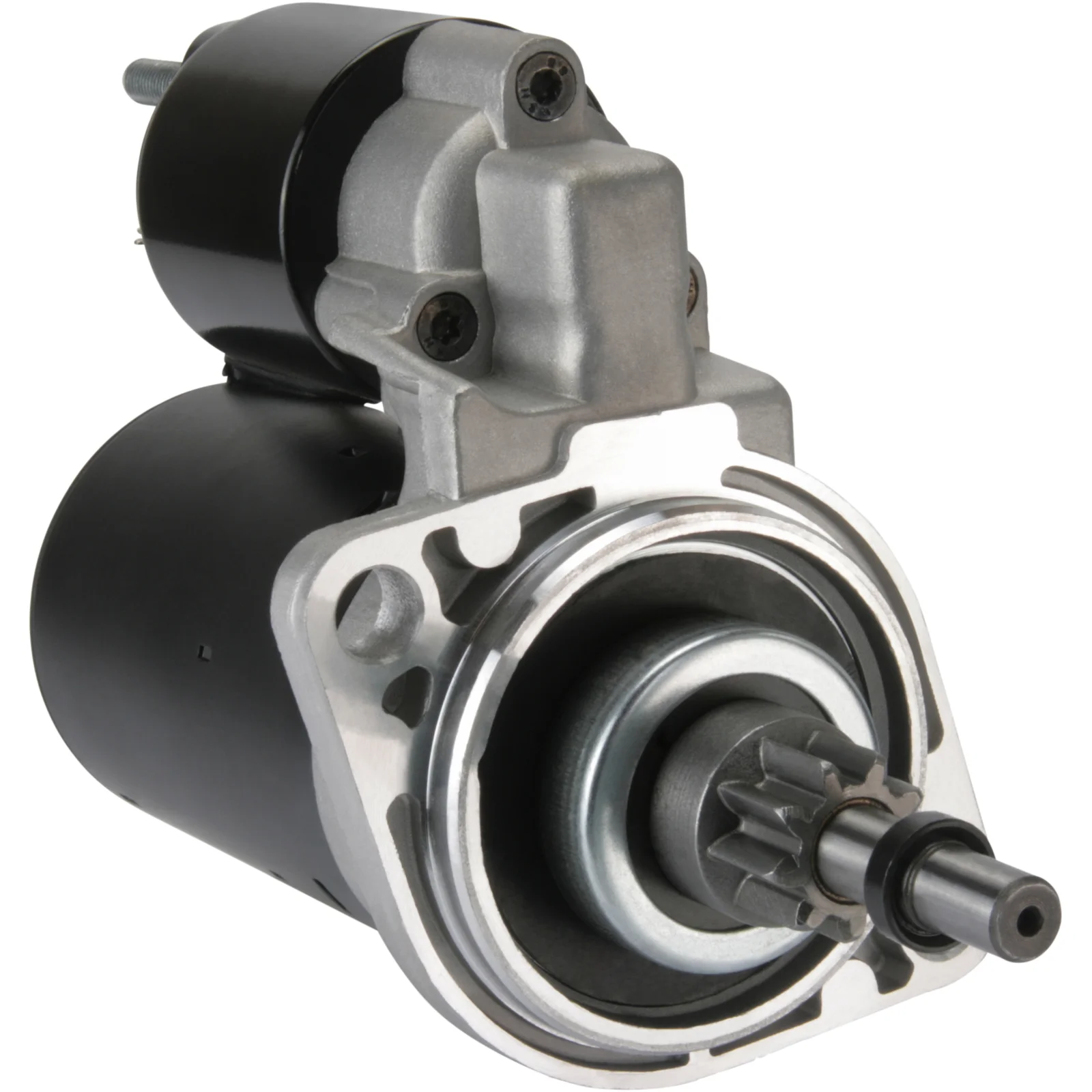

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032111061

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 0.8, Antal/ tænder: 9, Rotation: modsatrettet uret

Beskrivelse

Spenning: 12
kW: 0,8
Mount. bøsning: 76,00
Drevafstand: 44,50
Mount. hul 2 mm: 11,80
Mount. hul 1 mm: 10,50
Afstand/bag: 143,00
Afstand/for: 78,00
Nr./tænder: 9
B+: M8
Position/50: 15
Terminal 50: 6,30
Geartype: DD/GR
Drev. mm: 105,00
Rotation: mod uret
Total længde mm: 230,00
Drevtype: Stål
Produktoplysninger: BN
Vandtæt: Nej
Oliesealed: Nej
Bemærkninger: Bøsning D.E. (koblingshus): HC-CARGO 140008.
Nr./mount. huller: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 76.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 15
Prod. info BN
Remarks Bushing D.E. (clutch house): HC-CARGO 140008.
Rotation CCW
Dist./back 143.00
Dist./front 78.00
Drive dist. 44.50
Drive type Steel
Gear type DD/GR
kW 0.8
Terminal 50 6.30
Voltage 12
Total length 230.00 mm
Waterproof No
Dist. 105.00 mm
Mount. hole 2 11.80 mm
Mount. hole 1 10.50 mm

  • OEM
    cs298, F032111061, 0001211251, 0001211252, 0001211253, 0001211254, 1516725R, 091911023a, 091911023ax, 091911023b, 091911023bx

  • Konkurrentreferens
    drs0470, lrs00559, QS1476, SR19X, STR50053, 2-1359-BO, 2-1449-BO, 8ea726057-001, 25-0457, 41-10.470, 311.003.092, 1141, 3639, 10298, 11397, 16722R, 103391, 220356, 220356A, 433335, 8010470, 11010470, 66925378, 943221670, 943251670, 0986010470, 0986010477, 943251670010, 944280104700

  • NormaliseratArtNr
    cs298, drs0470, f032111061, lrs00559, qs1476, sr19x, str50053, 8ea726057001, 1141, 3639, 10298, 11397, 16722r, 21359bo, 21449bo, 103391, 220356, 220356a, 250457, 433335, 0001211251, 0001211252, 0001211253, 0001211254, 1516725r, 4110470, 8010470, 11010470, 66925378, 091911023a, 091911023ax, 091911023b, 091911023bx, 311003092, 943221670, 943251670, 0986010470, 0986010477, 943251670010, 944280104700

  • Passar modeller
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 1.6 Brand of engine: CT Body: Bus From date: 01-05-1979 To date: 01-12-1982 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 1.6 Brand of engine: CT Body: Van From date: 01-05-1979 To date: 01-12-1982 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 1.9 Brand of engine: DF Body: Bus From date: 01-08-1982 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 1.9 Brand of engine: DF Body: Van From date: 01-10-1982 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 1.9 Brand of engine: DG Body: Bus From date: 01-08-1982 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 1.9 Brand of engine: DG Body: Van From date: 01-10-1982 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 1.9 Brand of engine: DH Body: Bus From date: 01-01-1983 To date: 01-07-1985 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 1.9 Brand of engine: DH Body: Platform / Chassis From date: 01-10-1984 To date: 01-02-1989 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 1.9 Brand of engine: DH Body: Van From date: 01-10-1984 To date: 01-02-1989 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 1.9 Brand of engine: GW Body: Bus From date: 01-08-1983 To date: 01-07-1985 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 1.9 Brand of engine: GW Body: Van From date: 01-08-1983 To date: 01-02-1989 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 2.0 Brand of engine: CU Body: Bus From date: 01-05-1979 To date: 01-12-1982 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 2.0 Brand of engine: CU Body: Platform / Chassis From date: 01-05-1979 To date: 01-04-1986 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 2.0 Brand of engine: CU Body: Van From date: 01-05-1979 To date: 01-04-1986 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 2.1 Brand of engine: DJ Body: Bus From date: 01-08-1984 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 2.1 Brand of engine: DJ Body: Platform / Chassis From date: 01-03-1986 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 2.1 Brand of engine: DJ Body: Van From date: 01-03-1986 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 2.1 Brand of engine: MV Body: Bus From date: 01-06-1989 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 2.1 Brand of engine: MV Body: Bus From date: 01-08-1985 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 2.1 Brand of engine: MV Body: Platform / Chassis From date: 01-08-1985 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 2.1 Brand of engine: MV Body: Van From date: 01-08-1985 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 2.1 Brand of engine: SS Body: Bus From date: 01-07-1989 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Size of motor: 1.9 Brand of engine: DG Body: Bus From date: 01-02-1985 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Size of motor: 1.9 Brand of engine: DG Body: Platform / Chassis From date: 01-12-1984 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Size of motor: 1.9 Brand of engine: DG Body: Van From date: 01-11-1984 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Size of motor: 2.1 Brand of engine: DJ Body: Bus From date: 01-01-1986 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Size of motor: 2.1 Brand of engine: DJ Body: Platform / Chassis From date: 01-03-1986 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Size of motor: 2.1 Brand of engine: DJ Body: Van From date: 01-03-1986 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Size of motor: 2.1 Brand of engine: MV Body: Bus From date: 01-08-1985 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Size of motor: 2.1 Brand of engine: MV Body: Platform / Chassis From date: 01-08-1985 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Size of motor: 2.1 Brand of engine: MV Body: Van From date: 01-08-1985 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
