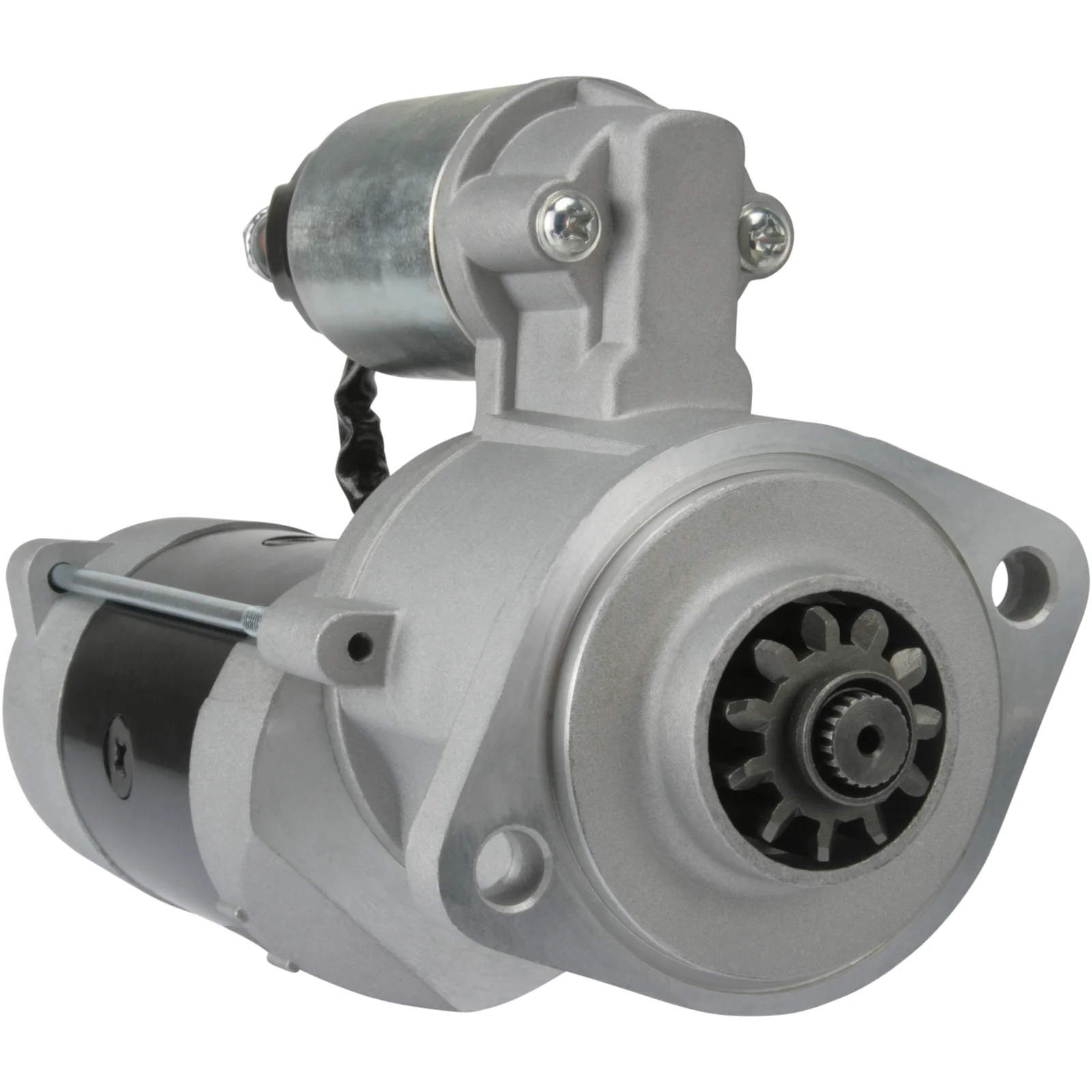

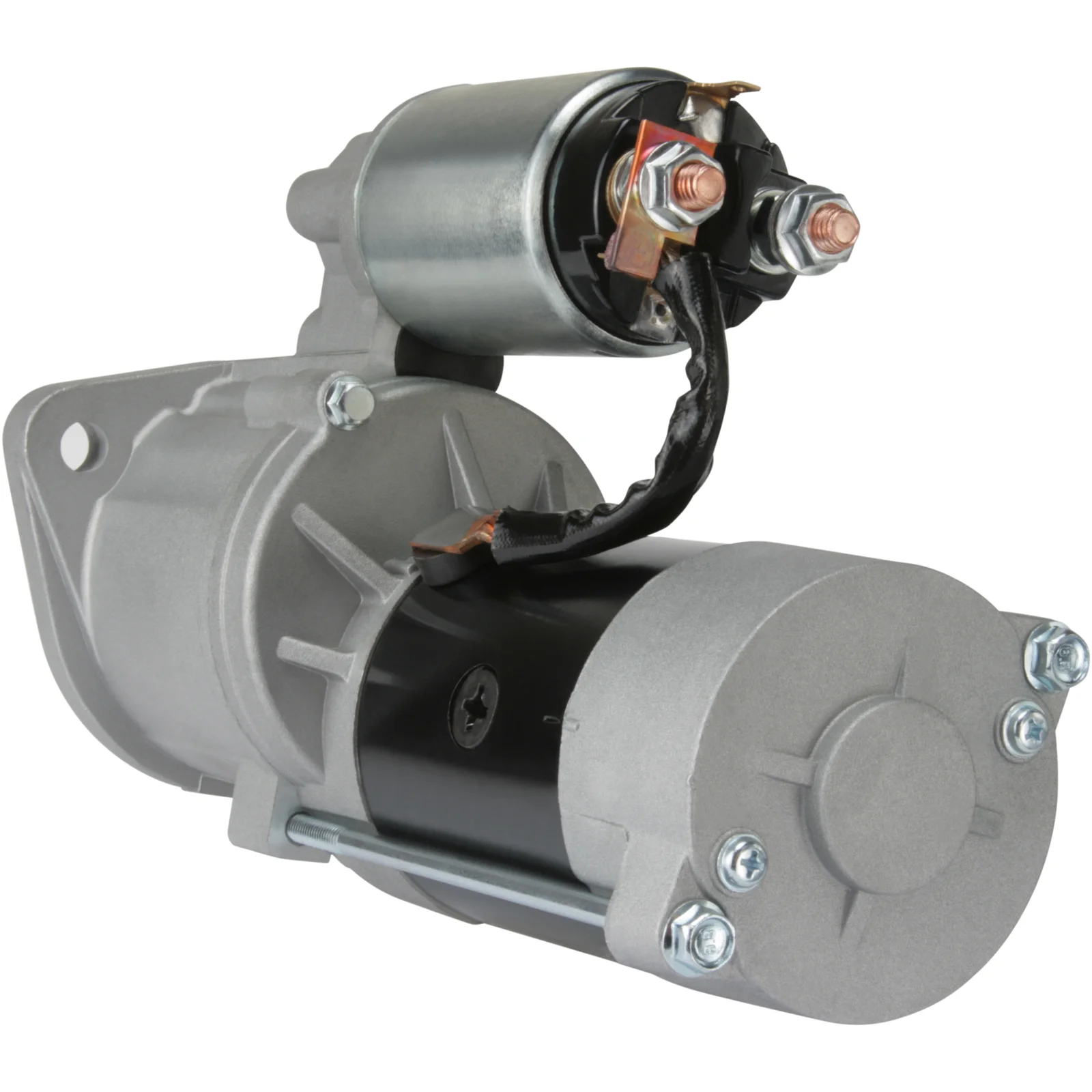

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032111275

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 2,0, Antal/tænder: 11, Rotation: CW

Beskrivelse

Spænding: 12
kW: 2.0
Mont. flange: 82,50
Drevafstand: 23,50
Mont. hul 2 mm: 10,50
Mont. hul 1 mm: 10,50
Afstand/bag: 218,00
Afstand/frem: 30,00
Nr./tænder: 11
B+: M8
Position/50: 60
Terminal 50: M5-6,30
Gear type: GR
Afstand mm: 104,50
Rotation: CW
Samlet længde mm: 250,00
Drevtype: Steel
Prod. info: BN
Vandtæt: Nej
Olieforseglet: Nej
Nr./mont. huller: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 11
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (0)
Position/50 60
Prod. info BN
Rotation CW
Dist./back 218.00
Dist./front 30.00
Drive dist. 23.50
Drive type Steel
Gear type GR
kW 2.0
Terminal 50 M5-6.30
Voltage 12
Total length 250.00 mm
Waterproof No
Dist. 104.50 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    F032111275, M002T54671, M002T56471, M002T56472, M002T56475, M002T60271, M002T61371, M003T64172, M005T23172, m2t54671, m2t56471, m2t56472, m2t56475, m2t60271, m2t61371, m3t64172, m5t23172, 34466-03200, 34466-15202, 34466-20201

  • Konkurrentreferens
    CST35206, DRS3283, F042001166, F042S01166, S5414S, STR-6048, STR6048, 2-1963-MI, 8ea737261-001, 25-3032, 27-52.515, 626.008.112, 4467, 17081, 17081N, 104139, 201007, 8213270, 11040336

  • NormaliseratArtNr
    cst35206, drs3283, f032111275, f042001166, f042s01166, m002t54671, m002t56471, m002t56472, m002t56475, m002t60271, m002t61371, m003t64172, m005t23172, m2t54671, m2t56471, m2t56472, m2t56475, m2t60271, m2t61371, m3t64172, m5t23172, s5414s, str6048, 8ea737261001, 4467, 17081, 17081n, 21963mi, 104139, 201007, 253032, 2752515, 8213270, 11040336, 626008112, 3446603200, 3446615202, 3446620201

  • Passar modeller
    Ford Model: 1000 Series Model series: 1710 Approved: Yes
    Mitsubishi Model: FD Model series: FD20 From date: 01-01-1983 Approved: Yes
    Mitsubishi Model: FD Model series: FD23 From date: 01-01-1983 To date: 01-01-1991 Approved: Yes
    Mitsubishi Model: FD Model series: FD25 From date: 01-01-1983 To date: 01-01-1991 Approved: Yes
    Mitsubishi Model: FD Model series: FD28 From date: 01-01-1983 To date: 01-01-1991 Approved: Yes
    Mitsubishi Model: FD Model series: FD30 From date: 01-01-1983 Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 12
    kW: 2.0
    Mont. flange: 82,50
    Drevafstand: 23,50
    Mont. hul 2 mm: 10,50
    Mont. hul 1 mm: 10,50
    Afstand/bag: 218,00
    Afstand/frem: 30,00
    Nr./tænder: 11
    B+: M8
    Position/50: 60
    Terminal 50: M5-6,30
    Gear type: GR
    Afstand mm: 104,50
    Rotation: CW
    Samlet længde mm: 250,00
    Drevtype: Steel
    Prod. info: BN
    Vandtæt: Nej
    Olieforseglet: Nej
    Nr./mont. huller: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 11
    Mount. flange 82.50
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 60
    Prod. info BN
    Rotation CW
    Dist./back 218.00
    Dist./front 30.00
    Drive dist. 23.50
    Drive type Steel
    Gear type GR
    kW 2.0
    Terminal 50 M5-6.30
    Voltage 12
    Total length 250.00 mm
    Waterproof No
    Dist. 104.50 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 10.50 mm
  • Køretøjsmatchning

    • OEM
      F032111275, M002T54671, M002T56471, M002T56472, M002T56475, M002T60271, M002T61371, M003T64172, M005T23172, m2t54671, m2t56471, m2t56472, m2t56475, m2t60271, m2t61371, m3t64172, m5t23172, 34466-03200, 34466-15202, 34466-20201

    • Konkurrentreferens
      CST35206, DRS3283, F042001166, F042S01166, S5414S, STR-6048, STR6048, 2-1963-MI, 8ea737261-001, 25-3032, 27-52.515, 626.008.112, 4467, 17081, 17081N, 104139, 201007, 8213270, 11040336

    • NormaliseratArtNr
      cst35206, drs3283, f032111275, f042001166, f042s01166, m002t54671, m002t56471, m002t56472, m002t56475, m002t60271, m002t61371, m003t64172, m005t23172, m2t54671, m2t56471, m2t56472, m2t56475, m2t60271, m2t61371, m3t64172, m5t23172, s5414s, str6048, 8ea737261001, 4467, 17081, 17081n, 21963mi, 104139, 201007, 253032, 2752515, 8213270, 11040336, 626008112, 3446603200, 3446615202, 3446620201

    • Passar modeller
      Ford Model: 1000 Series Model series: 1710 Approved: Yes
      Mitsubishi Model: FD Model series: FD20 From date: 01-01-1983 Approved: Yes
      Mitsubishi Model: FD Model series: FD23 From date: 01-01-1983 To date: 01-01-1991 Approved: Yes
      Mitsubishi Model: FD Model series: FD25 From date: 01-01-1983 To date: 01-01-1991 Approved: Yes
      Mitsubishi Model: FD Model series: FD28 From date: 01-01-1983 To date: 01-01-1991 Approved: Yes
      Mitsubishi Model: FD Model series: FD30 From date: 01-01-1983 Approved: Yes
      1 / 2
