Vare nr.: F032111565

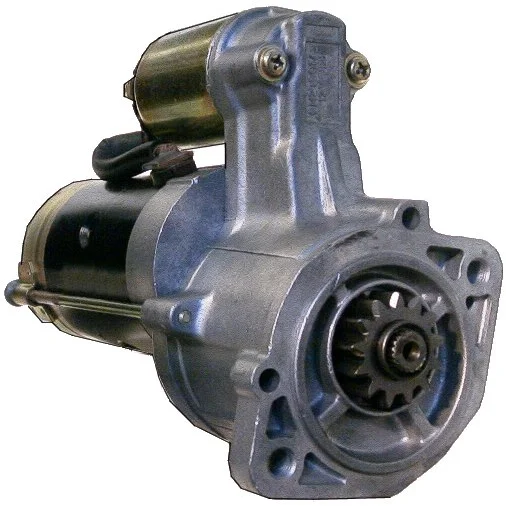

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 2.2, No./tænder: 13, Rotation: CW

Beskrivelse

Spænding: 12
kW: 2.2
Mount. flange: 77.00
Drive dist.: 9.00
Dist./back: 224.00
Dist./front: 15.50
No./tænder: 13
B+: M8
Position/50: 60
Terminal 50: 6.30
Gear type: GR
Dist. mm: 103.50
Rotation: CW
Total length mm: 239.50
Koblingstype: Tør
Drive type: Stål
Prod. info: BN
Vandtæt: Nej
Olieslukket: Nej
No./mount. huller: 2 (2)

Filer

Specifikation

B+ M8
No./teeth 13
Mount. flange 77.00
Oil sealed No
No./mount. holes 2 (2)
Position/50 60
Clutch type Dry
Prod. info BN
Rotation CW
Dist./back 224.00
Dist./front 15.50
Drive dist. 9.00
Drive type Steel
Gear type GR
kW 2.2
Terminal 50 6.30
Voltage 12
Total length 239.50 mm
Waterproof No
Dist. 103.50 mm

  • OEM
    F032111565, hq808670, js892, M002T60185, M002T61171, M002T62771, M002T63171, m2t60185, m2t61171, m2t62771, m2t63171, md121581, md156987, md164978, MD177596, md191437, mg122202, TM000A18601, 36100-47650

  • Konkurrentreferens
    CST35103, drs3343, drs3344, F042S0H029, QS2615, S5102, STR-H029, STR71013, 8EA012528-441, 8ea732845-001, 25-0466, 25-2005, 27-52.520, 326.004.102, 326.013.102, 326.020.132, 626.030.102, 4304, 20892, 30897N, 30897R, 105337, 220594, 220594A, 458579, 600011, 8213225, 11040100, 0986017611, 944280525200

  • NormaliseratArtNr
    cst35103, drs3343, drs3344, f032111565, f042s0h029, hq808670, js892, m002t60185, m002t61171, m002t62771, m002t63171, m2t60185, m2t61171, m2t62771, m2t63171, md121581, md156987, md164978, md177596, md191437, mg122202, qs2615, s5102, str71013, strh029, tm000a18601, 8ea012528441, 8ea732845001, 4304, 20892, 30897n, 30897r, 105337, 220594, 220594a, 250466, 252005, 458579, 600011, 2752520, 8213225, 11040100, 326004102, 326013102, 326020132, 626030102, 0986017611, 3610047650, 944280525200

  • Passar modeller
    Hyundai Model: Galloper Model series: Galloper Model type: Intercooler Type of engine: Diesel Size of motor: 2.5 Brand of engine: D4BH Type description: JK-01 From date: 01-08-1998 To date: 01-12-2003 Fuel: Diesel Approved: Yes
    Hyundai Model: Galloper Model series: Galloper Model type: Intercooler Type of engine: TCi Size of motor: 2.5 Brand of engine: D4BH Type description: JK-01 From date: 01-08-1998 To date: 01-12-2003 Fuel: Diesel Approved: Yes
    Hyundai Model: Galloper Model series: Galloper Model type: Intercooler Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T From date: 01-08-1991 To date: 01-07-1998 Fuel: Diesel Approved: Yes
    Hyundai Model: Galloper Model series: Galloper Type of engine: TD Size of motor: 2.5 Brand of engine: D4BA Type description: JK-01 From date: 01-08-1998 To date: 01-12-2003 Fuel: Diesel Approved: Yes
    Hyundai Model: Galloper Model series: Galloper Type of engine: V6 Size of motor: 3.0 Brand of engine: G6AT Type description: JK-01 From date: 01-08-1998 To date: 01-12-2003 Fuel: Gasoline Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Type of engine: Diesel Size of motor: 2.5 Brand of engine: D4BH Body: Platform / Chassis From date: 01-06-2000 To date: 01-10-2006 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Type of engine: TD Size of motor: 2.5 Brand of engine: D4BH Body: Van From date: 01-03-2000 To date: 01-10-2006 Fuel: Diesel Approved: Yes
    Kia Model: K2500 Model series: K2500 Type of engine: TCi Size of motor: 2.5 Brand of engine: D4BH Type description: SD Body: Platform / Chassis From date: 01-01-2003 Fuel: Diesel Approved: Yes
    Kia Model: Pregio Model series: Pregio Type of engine: TCi Size of motor: 2.5 Brand of engine: D4BH Body: Van From date: 01-09-2002 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Canter Model series: 2,5 Size of motor: 2.5 Brand of engine: 4D56(8V) Type description: FE3, FE4 Body: Platform / Chassis From date: 01-09-1992 To date: 01-09-1996 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Galloper Model series: Galloper Model type: Intercooler Type of engine: Diesel Size of motor: 2.5 Brand of engine: D4BH From date: 01-09-1998 To date: 01-12-2003 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Galloper Model series: Galloper Type of engine: TD Size of motor: 2.5 Brand of engine: D4BF Type description: JK-01 From date: 01-09-1998 To date: 01-12-2003 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Galloper Model series: Galloper Type of engine: V6 Size of motor: 3.0 Brand of engine: G6AT From date: 01-09-1998 To date: 01-12-2003 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L044G Body: Convertible From date: 01-11-1989 To date: 01-11-1990 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L044G From date: 01-04-1987 To date: 01-12-1991 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L044G From date: 01-11-1989 To date: 01-11-1990 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Type description: V24C,W Body: Convertible From date: 01-12-1990 To date: 01-04-2000 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Type description: V24C,W From date: 01-12-1990 To date: 01-10-1999 Fuel: Diesel Approved: Yes
    1 / 4
  • Beskrivelse
    Spænding: 12
    kW: 2.2
    Mount. flange: 77.00
    Drive dist.: 9.00
    Dist./back: 224.00
    Dist./front: 15.50
    No./tænder: 13
    B+: M8
    Position/50: 60
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 103.50
    Rotation: CW
    Total length mm: 239.50
    Koblingstype: Tør
    Drive type: Stål
    Prod. info: BN
    Vandtæt: Nej
    Olieslukket: Nej
    No./mount. huller: 2 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 13
    Mount. flange 77.00
    Oil sealed No
    No./mount. holes 2 (2)
    Position/50 60
    Clutch type Dry
    Prod. info BN
    Rotation CW
    Dist./back 224.00
    Dist./front 15.50
    Drive dist. 9.00
    Drive type Steel
    Gear type GR
    kW 2.2
    Terminal 50 6.30
    Voltage 12
    Total length 239.50 mm
    Waterproof No
    Dist. 103.50 mm
  • Køretøjsmatchning

    • OEM
      F032111565, hq808670, js892, M002T60185, M002T61171, M002T62771, M002T63171, m2t60185, m2t61171, m2t62771, m2t63171, md121581, md156987, md164978, MD177596, md191437, mg122202, TM000A18601, 36100-47650

    • Konkurrentreferens
      CST35103, drs3343, drs3344, F042S0H029, QS2615, S5102, STR-H029, STR71013, 8EA012528-441, 8ea732845-001, 25-0466, 25-2005, 27-52.520, 326.004.102, 326.013.102, 326.020.132, 626.030.102, 4304, 20892, 30897N, 30897R, 105337, 220594, 220594A, 458579, 600011, 8213225, 11040100, 0986017611, 944280525200

    • NormaliseratArtNr
      cst35103, drs3343, drs3344, f032111565, f042s0h029, hq808670, js892, m002t60185, m002t61171, m002t62771, m002t63171, m2t60185, m2t61171, m2t62771, m2t63171, md121581, md156987, md164978, md177596, md191437, mg122202, qs2615, s5102, str71013, strh029, tm000a18601, 8ea012528441, 8ea732845001, 4304, 20892, 30897n, 30897r, 105337, 220594, 220594a, 250466, 252005, 458579, 600011, 2752520, 8213225, 11040100, 326004102, 326013102, 326020132, 626030102, 0986017611, 3610047650, 944280525200

    • Passar modeller
      Hyundai Model: Galloper Model series: Galloper Model type: Intercooler Type of engine: Diesel Size of motor: 2.5 Brand of engine: D4BH Type description: JK-01 From date: 01-08-1998 To date: 01-12-2003 Fuel: Diesel Approved: Yes
      Hyundai Model: Galloper Model series: Galloper Model type: Intercooler Type of engine: TCi Size of motor: 2.5 Brand of engine: D4BH Type description: JK-01 From date: 01-08-1998 To date: 01-12-2003 Fuel: Diesel Approved: Yes
      Hyundai Model: Galloper Model series: Galloper Model type: Intercooler Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T From date: 01-08-1991 To date: 01-07-1998 Fuel: Diesel Approved: Yes
      Hyundai Model: Galloper Model series: Galloper Type of engine: TD Size of motor: 2.5 Brand of engine: D4BA Type description: JK-01 From date: 01-08-1998 To date: 01-12-2003 Fuel: Diesel Approved: Yes
      Hyundai Model: Galloper Model series: Galloper Type of engine: V6 Size of motor: 3.0 Brand of engine: G6AT Type description: JK-01 From date: 01-08-1998 To date: 01-12-2003 Fuel: Gasoline Approved: Yes
      Hyundai Model: H-1 Model series: H-1 Type of engine: Diesel Size of motor: 2.5 Brand of engine: D4BH Body: Platform / Chassis From date: 01-06-2000 To date: 01-10-2006 Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Model series: H-1 Type of engine: TD Size of motor: 2.5 Brand of engine: D4BH Body: Van From date: 01-03-2000 To date: 01-10-2006 Fuel: Diesel Approved: Yes
      Kia Model: K2500 Model series: K2500 Type of engine: TCi Size of motor: 2.5 Brand of engine: D4BH Type description: SD Body: Platform / Chassis From date: 01-01-2003 Fuel: Diesel Approved: Yes
      Kia Model: Pregio Model series: Pregio Type of engine: TCi Size of motor: 2.5 Brand of engine: D4BH Body: Van From date: 01-09-2002 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Canter Model series: 2,5 Size of motor: 2.5 Brand of engine: 4D56(8V) Type description: FE3, FE4 Body: Platform / Chassis From date: 01-09-1992 To date: 01-09-1996 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Galloper Model series: Galloper Model type: Intercooler Type of engine: Diesel Size of motor: 2.5 Brand of engine: D4BH From date: 01-09-1998 To date: 01-12-2003 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Galloper Model series: Galloper Type of engine: TD Size of motor: 2.5 Brand of engine: D4BF Type description: JK-01 From date: 01-09-1998 To date: 01-12-2003 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Galloper Model series: Galloper Type of engine: V6 Size of motor: 3.0 Brand of engine: G6AT From date: 01-09-1998 To date: 01-12-2003 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L044G Body: Convertible From date: 01-11-1989 To date: 01-11-1990 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L044G From date: 01-04-1987 To date: 01-12-1991 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L044G From date: 01-11-1989 To date: 01-11-1990 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Type description: V24C,W Body: Convertible From date: 01-12-1990 To date: 01-04-2000 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Type description: V24C,W From date: 01-12-1990 To date: 01-10-1999 Fuel: Diesel Approved: Yes
      1 / 4
