Vare nr.: F032111622

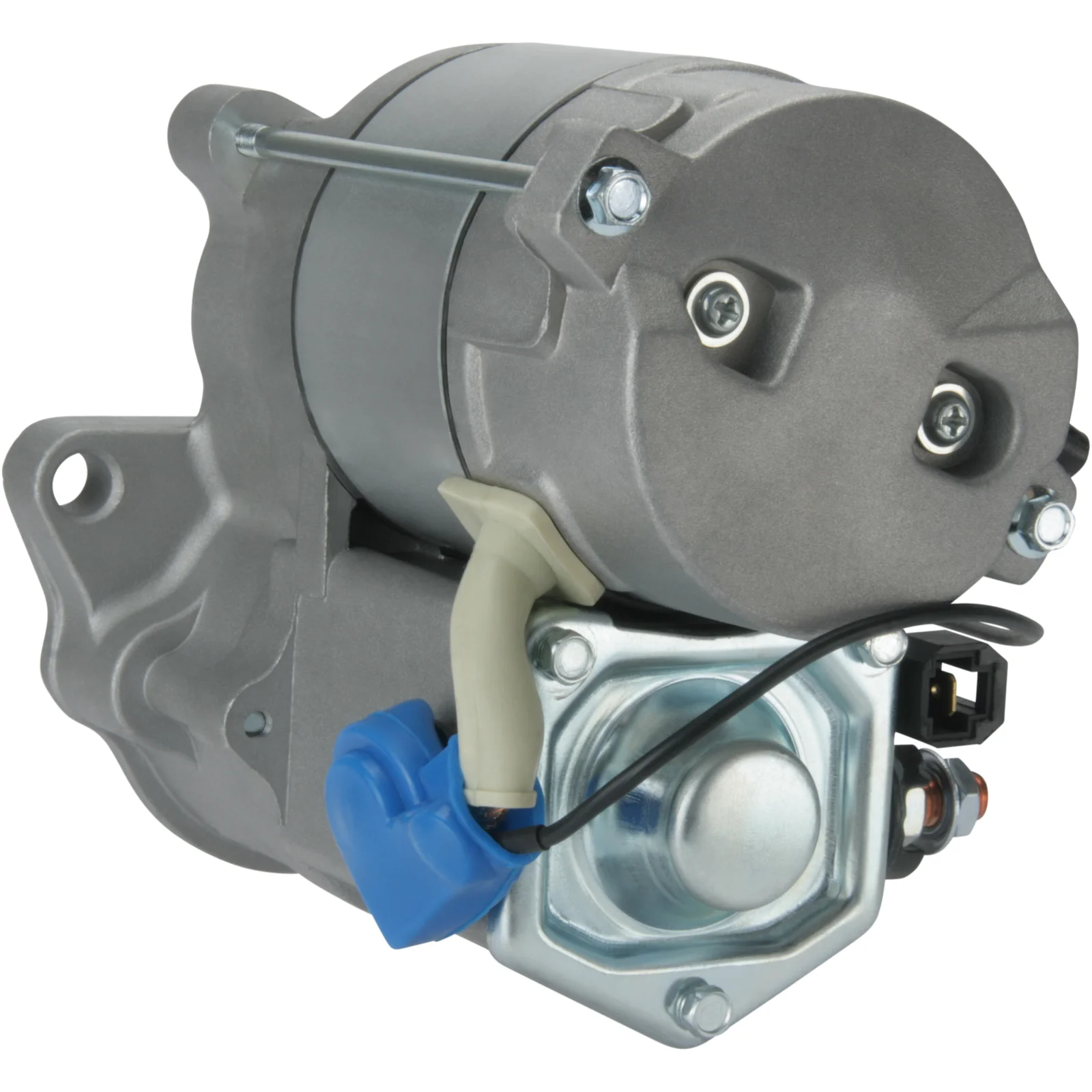

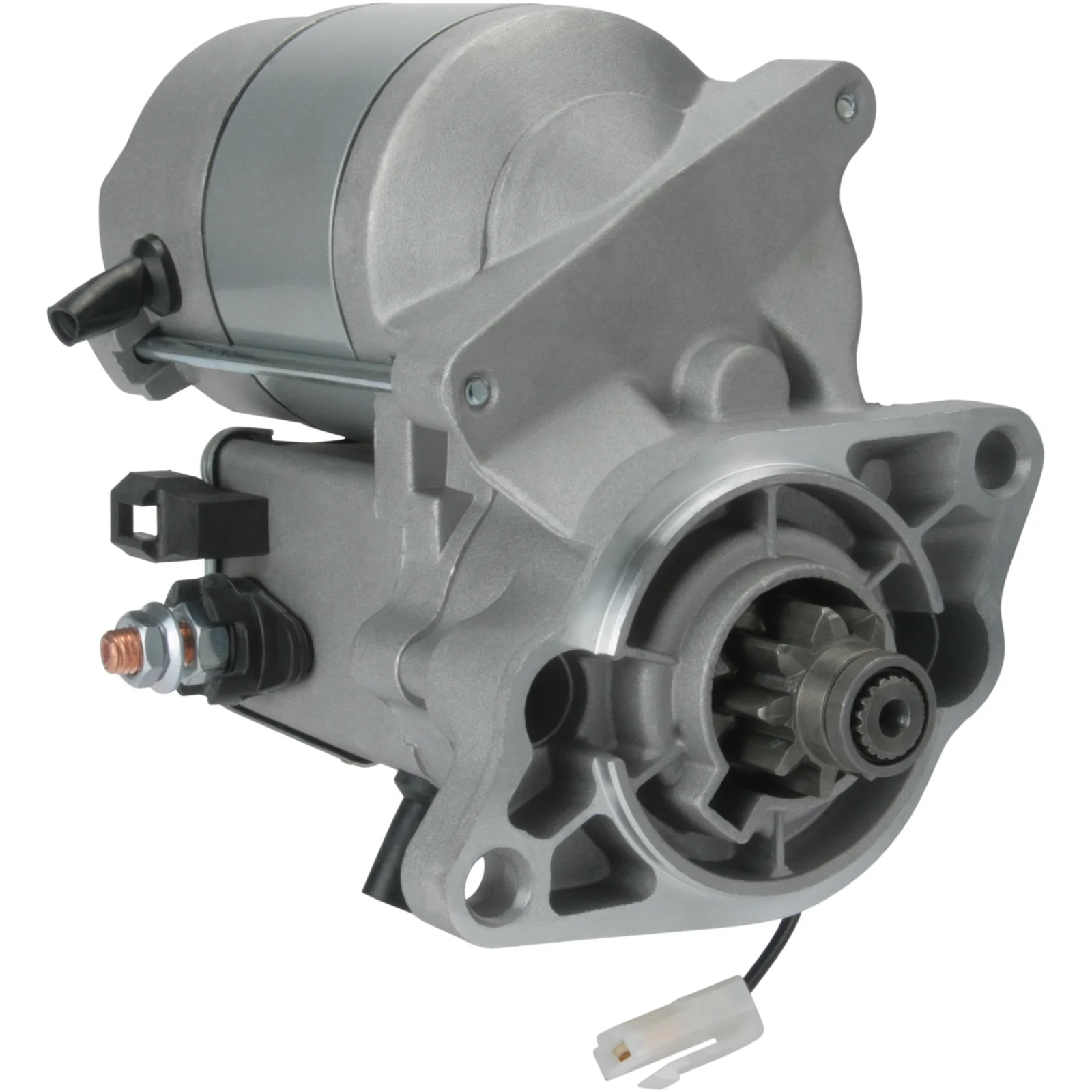

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 1.2, No./tænder: 9, Rotation: CW

Beskrivelse

Spænding: 12
kW: 1.2
Monteringsflange: 66.00
Drevafstand: 18.00
Monteringshull 2 mm: 9.00
Monteringshull 1 mm: 9.00
Afstand/bag: 150.50
Afstand/frem: 29.00
Antal/tænder: 9
B+: M8
Position/50: 12
Terminal 50: 6.30
Koblingstype: GR
Afstand mm: 110.50
Rotation: CW
Total længde mm: 183.00
Koblingstype: Vådt
Drevtype: Stål
Produktoplysninger: BN
Vandtæt: Nej
Olieførsegl: Nej
Antal/monteringshuller: 2 (0)

Specifikation

B+ M8
No./teeth 9
Mount. flange 66.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 12
Clutch type Wet
Prod. info BN
Rotation CW
Dist./back 150.50
Dist./front 29.00
Drive dist. 18.00
Drive type Steel
Gear type GR
kW 1.2
Terminal 50 6.30
Voltage 12
Total length 183.00 mm
Waterproof No
Dist. 110.50 mm
Mount. hole 2 9.00 mm
Mount. hole 1 9.00 mm
  • OEM

    F032111622, 16285-63011, 16285-63012, 228000-0950, 228000-0951
  • Konkurrentreferens

    CST40144, DSN2065, S6336(DENSO), S6388(DENSO), STR30020, 25-3001, 104370
  • NormaliseratArtNr

    cst40144, dsn2065, f032111622, s6336denso, s6388denso, str30020, 104370, 253001, 1628563011, 1628563012, 2280000950, 2280000951
  • Passar modeller

    Kubota Model: Engine Model series: Engine Brand of engine: V1405 Approved: Yes
    Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
  • Beskrivelse
    Spænding: 12
    kW: 1.2
    Monteringsflange: 66.00
    Drevafstand: 18.00
    Monteringshull 2 mm: 9.00
    Monteringshull 1 mm: 9.00
    Afstand/bag: 150.50
    Afstand/frem: 29.00
    Antal/tænder: 9
    B+: M8
    Position/50: 12
    Terminal 50: 6.30
    Koblingstype: GR
    Afstand mm: 110.50
    Rotation: CW
    Total længde mm: 183.00
    Koblingstype: Vådt
    Drevtype: Stål
    Produktoplysninger: BN
    Vandtæt: Nej
    Olieførsegl: Nej
    Antal/monteringshuller: 2 (0)
  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 66.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 12
    Clutch type Wet
    Prod. info BN
    Rotation CW
    Dist./back 150.50
    Dist./front 29.00
    Drive dist. 18.00
    Drive type Steel
    Gear type GR
    kW 1.2
    Terminal 50 6.30
    Voltage 12
    Total length 183.00 mm
    Waterproof No
    Dist. 110.50 mm
    Mount. hole 2 9.00 mm
    Mount. hole 1 9.00 mm
  • Køretøjsmatchning
    • OEM

      F032111622, 16285-63011, 16285-63012, 228000-0950, 228000-0951
    • Konkurrentreferens

      CST40144, DSN2065, S6336(DENSO), S6388(DENSO), STR30020, 25-3001, 104370
    • NormaliseratArtNr

      cst40144, dsn2065, f032111622, s6336denso, s6388denso, str30020, 104370, 253001, 1628563011, 1628563012, 2280000950, 2280000951
    • Passar modeller

      Kubota Model: Engine Model series: Engine Brand of engine: V1405 Approved: Yes
      Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
