Vare nr.: F032111709

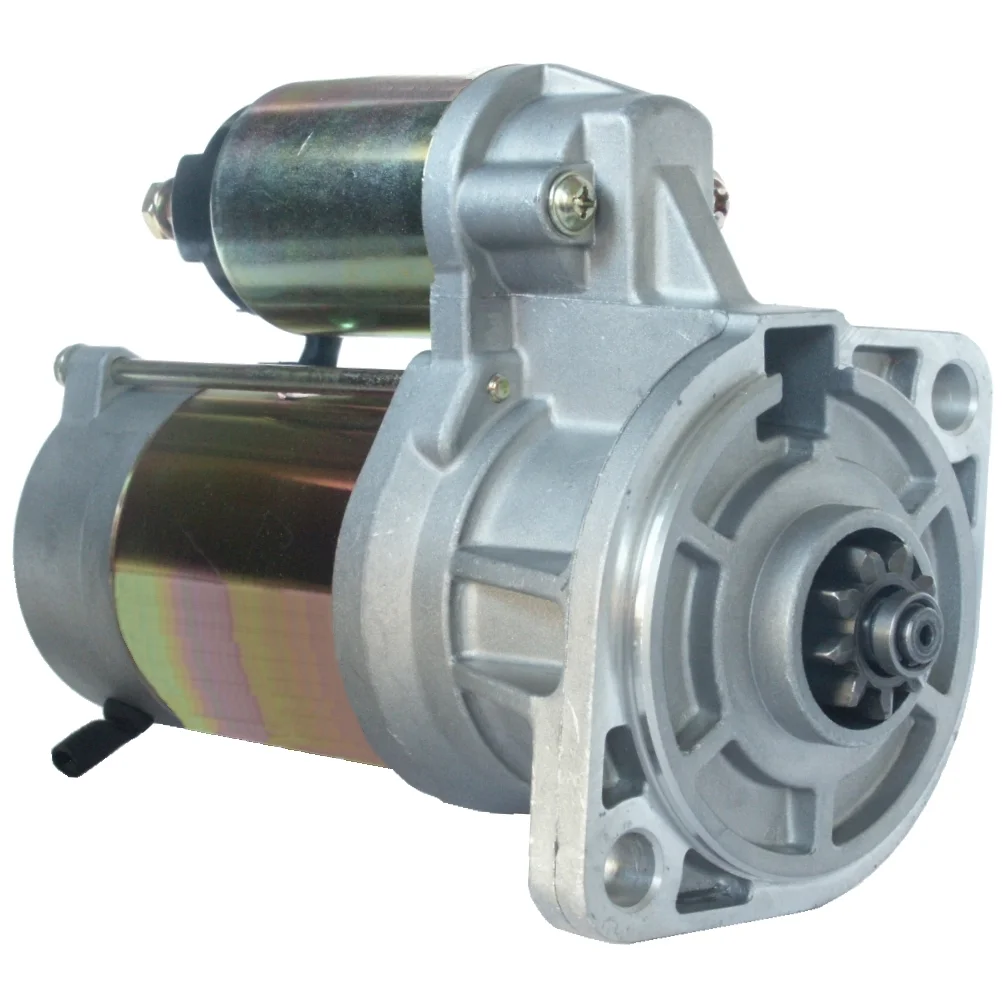

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 2.2, No./tandhjul: 9, Rotation: CW

Beskrivelse

Spænding: 12
kW: 2.2
Montageramme: 95.00
Drevafstand: 20.00
Montagehul 2 mm: 13.00
Montagehul 1 mm: 13.00
Afstand/bagud: 203.50
Afstand/frem: 24.00
Num./tænder: 9
B+: M8
Position/B+: 15
Position/50: 30
Terminal 50: 6.30
Koblingstype: GR
Afstand mm: 120.00
Rotation: med uret
Total længde mm: 233.50
Koblingstype: Vådt
Drevetype: Stål
Produktinfo: BN
Vandtæt: Nej
Olieforseglet: Nej
Num./montagehuller: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 95.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 30
Clutch type Wet
Position/B+ 15
Prod. info BN
Rotation CW
Dist./back 203.50
Dist./front 24.00
Drive dist. 20.00
Drive type Steel
Gear type GR
kW 2.2
Terminal 50 6.30
Voltage 12
Total length 233.50 mm
Waterproof No
Dist. 120.00 mm
Mount. hole 2 13.00 mm
Mount. hole 1 13.00 mm

  • OEM
    F032111709, 110002

  • Konkurrentreferens
    CST46110, STR43000, 8213380

  • NormaliseratArtNr
    cst46110, f032111709, str43000, 110002, 8213380

  • Passar modeller
    Daewoo Model: Various Models Model series: Various Models Approved: Yes
    Isuzu Model: KBD Model series: 26 Type of engine: Diesel Size of motor: 2.0 From date: 01-01-1981 To date: 01-01-1995 Fuel: Diesel Approved: Yes
    Isuzu Model: KBD Model series: 27 Type of engine: Diesel Size of motor: 2.2 From date: 01-01-1985 To date: 01-01-1988 Fuel: Diesel Approved: Yes
    Isuzu Model: KBD Model series: 41 Type of engine: Diesel Size of motor: 2.0 From date: 01-01-1981 To date: 01-01-1985 Fuel: Diesel Approved: Yes
    Isuzu Model: KBD Model series: 47 Type of engine: Diesel Size of motor: 2.2 From date: 01-01-1985 To date: 01-01-1988 Fuel: Diesel Approved: Yes
    Isuzu Model: Trooper Model series: UBS52 Type of engine: Diesel Size of motor: 2.2 From date: 01-01-1984 To date: 01-01-1989 Fuel: Diesel Approved: Yes
    TCM Model: FC Model series: FC 3024 Approved: Yes
