Vare nr.: F032111724

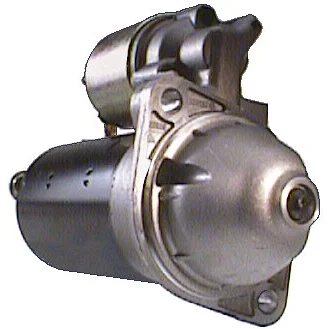

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 2.0, No./tænder: 9, Rotation: CW

Beskrivelse

HC-Cargo startrelæ 12V - 2.0 kW, 9k

Spænding: 12
kW: 2.0
Monteringsflange: 82,50
Driveafstand: 21,00
Monteringshul 2 mm: 10,50
Monteringshul 1 mm: 10,40
Afstand/bag: 175,00
Afstand/frem: 54,00
Antal/tandsæt: 9
B+: M8
Gængelængde mm: 14,00
Position/50: 15
Terminal 50: M6
Geartype: GR
Afstand mm: 105,00
Rotation: med uret
Samlet længde mm: 242,00
Drevtype: Stål
Produktoplysninger: BN
Vandtæt: Nej
Oljetæt: Nej
Antal/monteringshuller: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (0)
Position/50 15
Prod. info BN
Rotation CW
Dist./back 175.00
Dist./front 54.00
Drive dist. 21.00
Drive type Steel
Gear type GR
kW 2.0
Terminal 50 M6
Voltage 12
Total length 242.00 mm
Waterproof No
Dist. 105.00 mm
Thread length 14.00 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.40 mm

  • OEM
    C5530016A, CS1071, cs1071, F032111724, R1040038, 0001 109 033, 111724, 0001109033, 6202048, 9512765, 91154217, 93175883, 93175901

  • Konkurrentreferens
    CST10252, DRS3808, F042002081, F042S02081, lrs01417, QS2528, S0604, STR-2233, STR2233, 8ea737460-001, 25-2316, 328.041.092, 4537, 9546, 31344R, 101071, 220102, 220102A, 11019860, 0986019860, 0986019863

  • Bilmärken
    Opel

  • NormaliseratArtNr
    c5530016a, cs1071, cst10252, drs3808, f032111724, f042002081, f042s02081, lrs01417, qs2528, r1040038, s0604, str2233, 8ea737460001, 4537, 9546, 31344r, 101071, 111724, 220102, 220102a, 252316, 0001109033, 6202048, 9512765, 11019860, 91154217, 93175883, 93175901, 328041092, 0986019860, 0986019863

  • Passar modeller
    Opel Model: Frontera Model series: Frontera A Model type: Sport Type of engine: TDS Size of motor: 2.5 Brand of engine: 25TDS Type description: 5MWL4 Body: Convertible From date: 01-09-1996 To date: 01-10-1998 Fuel: Diesel Approved: Yes
    Opel Model: Frontera Model series: Frontera A Type of engine: TDS Size of motor: 2.5 Brand of engine: 25TDS Type description: 5MWL4 From date: 01-09-1996 To date: 01-10-1998 Fuel: Diesel Approved: Yes
    Opel Series: Frontera A Model: 2.5 TDS Engine volume: 2.5 Engine type: 25TD Year: 09.96-10.98
    Opel Series: Frontera A Sport Model: 2.5 TDS Engine volume: 2.5 Engine type: 25TD/25TDS (VM41B) Year: 09.96-10.98
    Vauxhall Model: Frontera Model series: Frontera A Model type: 4x4 Long Type of engine: TD Size of motor: 2.5 Brand of engine: 25TDS From date: 01-11-1991 To date: 01-06-1998 Fuel: Diesel Approved: Yes
    Vauxhall Model: Frontera Model series: Frontera A Model type: 4x4 Sport Type of engine: TD Size of motor: 2.5 Brand of engine: 25TDS Body: Convertible From date: 01-09-1996 To date: 01-10-1998 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    HC-Cargo startrelæ 12V - 2.0 kW, 9k

    Spænding: 12
    kW: 2.0
    Monteringsflange: 82,50
    Driveafstand: 21,00
    Monteringshul 2 mm: 10,50
    Monteringshul 1 mm: 10,40
    Afstand/bag: 175,00
    Afstand/frem: 54,00
    Antal/tandsæt: 9
    B+: M8
    Gængelængde mm: 14,00
    Position/50: 15
    Terminal 50: M6
    Geartype: GR
    Afstand mm: 105,00
    Rotation: med uret
    Samlet længde mm: 242,00
    Drevtype: Stål
    Produktoplysninger: BN
    Vandtæt: Nej
    Oljetæt: Nej
    Antal/monteringshuller: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 82.50
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 15
    Prod. info BN
    Rotation CW
    Dist./back 175.00
    Dist./front 54.00
    Drive dist. 21.00
    Drive type Steel
    Gear type GR
    kW 2.0
    Terminal 50 M6
    Voltage 12
    Total length 242.00 mm
    Waterproof No
    Dist. 105.00 mm
    Thread length 14.00 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 10.40 mm
  • Køretøjsmatchning

    • OEM
      C5530016A, CS1071, cs1071, F032111724, R1040038, 0001 109 033, 111724, 0001109033, 6202048, 9512765, 91154217, 93175883, 93175901

    • Konkurrentreferens
      CST10252, DRS3808, F042002081, F042S02081, lrs01417, QS2528, S0604, STR-2233, STR2233, 8ea737460-001, 25-2316, 328.041.092, 4537, 9546, 31344R, 101071, 220102, 220102A, 11019860, 0986019860, 0986019863

    • Bilmärken
      Opel

    • NormaliseratArtNr
      c5530016a, cs1071, cst10252, drs3808, f032111724, f042002081, f042s02081, lrs01417, qs2528, r1040038, s0604, str2233, 8ea737460001, 4537, 9546, 31344r, 101071, 111724, 220102, 220102a, 252316, 0001109033, 6202048, 9512765, 11019860, 91154217, 93175883, 93175901, 328041092, 0986019860, 0986019863

    • Passar modeller
      Opel Model: Frontera Model series: Frontera A Model type: Sport Type of engine: TDS Size of motor: 2.5 Brand of engine: 25TDS Type description: 5MWL4 Body: Convertible From date: 01-09-1996 To date: 01-10-1998 Fuel: Diesel Approved: Yes
      Opel Model: Frontera Model series: Frontera A Type of engine: TDS Size of motor: 2.5 Brand of engine: 25TDS Type description: 5MWL4 From date: 01-09-1996 To date: 01-10-1998 Fuel: Diesel Approved: Yes
      Opel Series: Frontera A Model: 2.5 TDS Engine volume: 2.5 Engine type: 25TD Year: 09.96-10.98
      Opel Series: Frontera A Sport Model: 2.5 TDS Engine volume: 2.5 Engine type: 25TD/25TDS (VM41B) Year: 09.96-10.98
      Vauxhall Model: Frontera Model series: Frontera A Model type: 4x4 Long Type of engine: TD Size of motor: 2.5 Brand of engine: 25TDS From date: 01-11-1991 To date: 01-06-1998 Fuel: Diesel Approved: Yes
      Vauxhall Model: Frontera Model series: Frontera A Model type: 4x4 Sport Type of engine: TD Size of motor: 2.5 Brand of engine: 25TDS Body: Convertible From date: 01-09-1996 To date: 01-10-1998 Fuel: Diesel Approved: Yes
