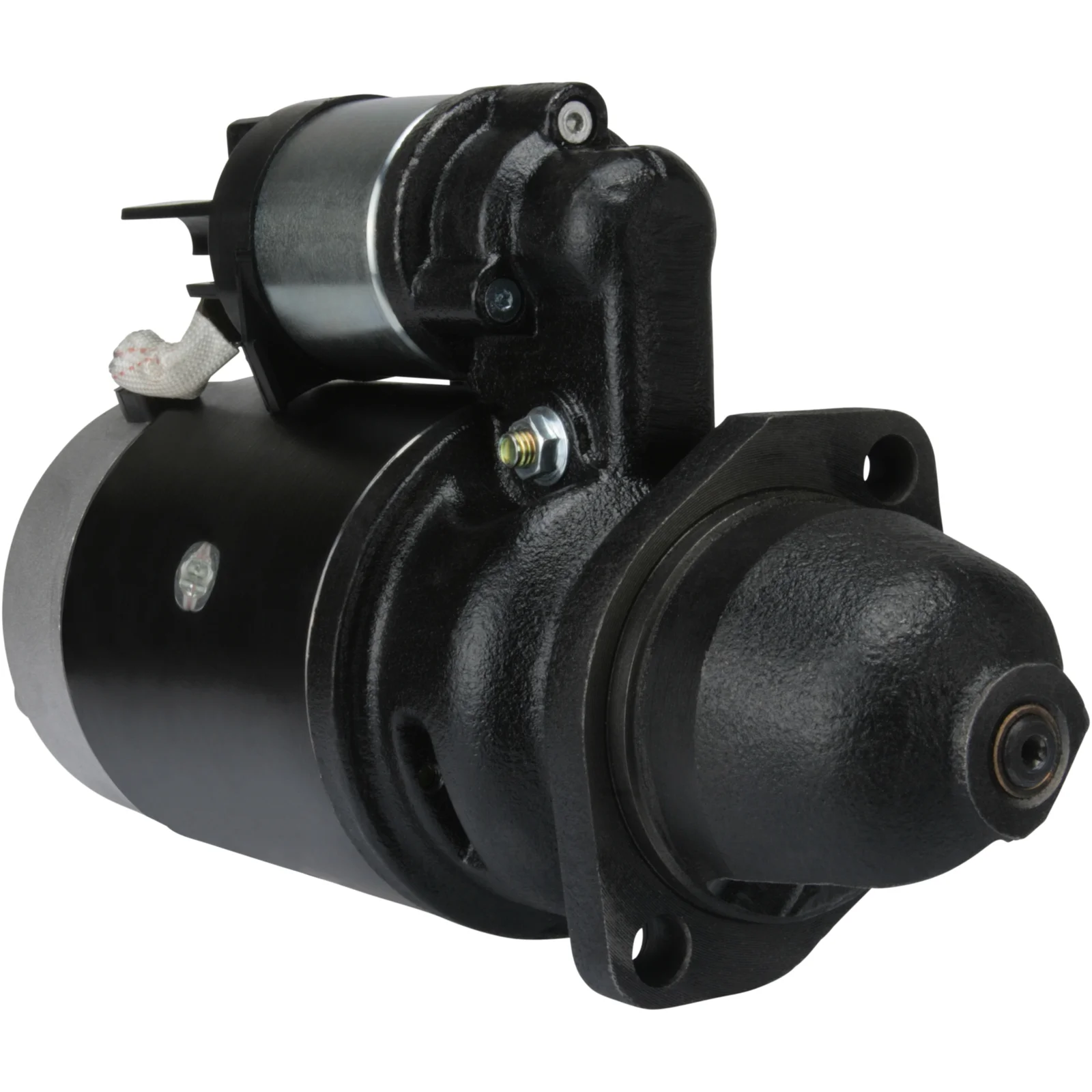

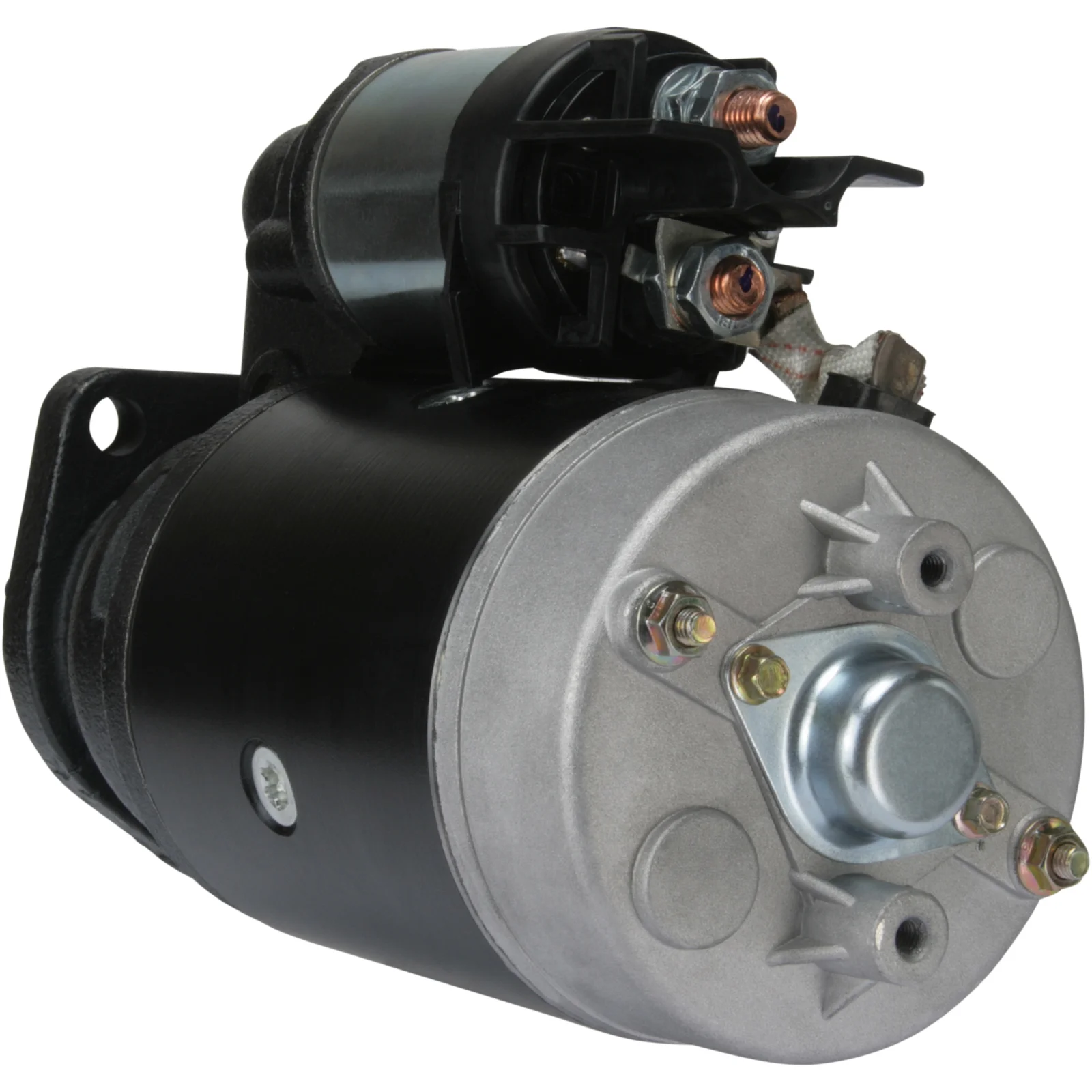

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032112249

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 2.7, Nr./tænder: 9, Rotation: CW

Beskrivelse

Spænding: 12
kW: 2.7
monteringsflange: 82.50
Drevafstand: 21.50
monteringshul 2 mm: 11.00
monteringshul 1 mm: 11.00
Afstand / bagud: 225.00
Afstand / front: 67.00
Nr./tænder: 9
B+: M10
Position/50: 15
Terminal 50: M4
Geartype: DD/GR
Afstand mm: 105.00
Rotation: CW
Total længde mm: 295.00
Drevetype: Stål
Produktion info: BN
Vandtæt: Nej
Olieforseglet: Nej
Nr./monteringshuller: 2 (0)

Filer

Specifikation

B+ M10
No./teeth 9
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (0)
Position/50 15
Prod. info BN
Rotation CW
Dist./back 225.00
Dist./front 67.00
Drive dist. 21.50
Drive type Steel
Gear type DD/GR
kW 2.7
Terminal 50 M4
Voltage 12
Total length 295.00 mm
Waterproof No
Dist. 105.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    A0001515201, A0011519101, A0031512101, A003151210180, azj3155, azj3197, F032112249, meo6005, mt71rb, mt74ba, 11.130.531, 11.130.620, 29-50096, 30-00308-00, 45-220, 45-267, 45-338, 46-2663, 3041c58g01, 870346, 0001354031, 0001354088, 0001354095, 0001366014, 0001366025, 0001515201, 0011519101, 0031512101, 40000600, 63217116, 152396501, 210090010, 296193300, 003151210180, 9000143200, 130800090017, 605720100008

  • Konkurrentreferens
    CST10261, CST21102, CST21173, CST21200, CST40152, DRS0520, DRS1190, DRS3305, is0531, is0548, is0620, lrs00820, MS109, MS274, MS330, MSR739, S0591, S0663S, STR50171, STR50207, 25-0089, 88-11.190, 625.003.092, 5092, 8057, 16363, 18467, 33338, 33410, 254072, 254108, 11011190, 943252039, 943252281, 0986011190, 0986011193, 943252281010

  • NormaliseratArtNr
    a0001515201, a0011519101, a0031512101, a003151210180, azj3155, azj3197, cst10261, cst21102, cst21173, cst21200, cst40152, drs0520, drs1190, drs3305, f032112249, is0531, is0548, is0620, lrs00820, meo6005, ms109, ms274, ms330, msr739, mt71rb, mt74ba, s0591, s0663s, str50171, str50207, 3041c58g01, 5092, 8057, 16363, 18467, 33338, 33410, 45220, 45267, 45338, 250089, 254072, 254108, 462663, 870346, 0001354031, 0001354088, 0001354095, 0001366014, 0001366025, 0001515201, 2950096, 8811190, 11011190, 11130531, 11130620, 0011519101, 0031512101, 40000600, 63217116, 152396501, 210090010, 296193300, 300030800, 625003092, 943252039, 943252281, 0986011190, 0986011193, 003151210180, 9000143200, 130800090017, 605720100008, 943252281010

  • Passar modeller
    Mercedes-Benz Model: 180 Model series: 180 D Size of motor: 1.8 From date: 01-01-1960 To date: 01-01-1962 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 180 Model series: 180 D Size of motor: 2.0 From date: 01-01-1963 To date: 01-01-1963 Fuel: Diesel Approved: Yes
    Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
  • Beskrivelse
    Spænding: 12
    kW: 2.7
    monteringsflange: 82.50
    Drevafstand: 21.50
    monteringshul 2 mm: 11.00
    monteringshul 1 mm: 11.00
    Afstand / bagud: 225.00
    Afstand / front: 67.00
    Nr./tænder: 9
    B+: M10
    Position/50: 15
    Terminal 50: M4
    Geartype: DD/GR
    Afstand mm: 105.00
    Rotation: CW
    Total længde mm: 295.00
    Drevetype: Stål
    Produktion info: BN
    Vandtæt: Nej
    Olieforseglet: Nej
    Nr./monteringshuller: 2 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 9
    Mount. flange 82.50
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 15
    Prod. info BN
    Rotation CW
    Dist./back 225.00
    Dist./front 67.00
    Drive dist. 21.50
    Drive type Steel
    Gear type DD/GR
    kW 2.7
    Terminal 50 M4
    Voltage 12
    Total length 295.00 mm
    Waterproof No
    Dist. 105.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Køretøjsmatchning

    • OEM
      A0001515201, A0011519101, A0031512101, A003151210180, azj3155, azj3197, F032112249, meo6005, mt71rb, mt74ba, 11.130.531, 11.130.620, 29-50096, 30-00308-00, 45-220, 45-267, 45-338, 46-2663, 3041c58g01, 870346, 0001354031, 0001354088, 0001354095, 0001366014, 0001366025, 0001515201, 0011519101, 0031512101, 40000600, 63217116, 152396501, 210090010, 296193300, 003151210180, 9000143200, 130800090017, 605720100008

    • Konkurrentreferens
      CST10261, CST21102, CST21173, CST21200, CST40152, DRS0520, DRS1190, DRS3305, is0531, is0548, is0620, lrs00820, MS109, MS274, MS330, MSR739, S0591, S0663S, STR50171, STR50207, 25-0089, 88-11.190, 625.003.092, 5092, 8057, 16363, 18467, 33338, 33410, 254072, 254108, 11011190, 943252039, 943252281, 0986011190, 0986011193, 943252281010

    • NormaliseratArtNr
      a0001515201, a0011519101, a0031512101, a003151210180, azj3155, azj3197, cst10261, cst21102, cst21173, cst21200, cst40152, drs0520, drs1190, drs3305, f032112249, is0531, is0548, is0620, lrs00820, meo6005, ms109, ms274, ms330, msr739, mt71rb, mt74ba, s0591, s0663s, str50171, str50207, 3041c58g01, 5092, 8057, 16363, 18467, 33338, 33410, 45220, 45267, 45338, 250089, 254072, 254108, 462663, 870346, 0001354031, 0001354088, 0001354095, 0001366014, 0001366025, 0001515201, 2950096, 8811190, 11011190, 11130531, 11130620, 0011519101, 0031512101, 40000600, 63217116, 152396501, 210090010, 296193300, 300030800, 625003092, 943252039, 943252281, 0986011190, 0986011193, 003151210180, 9000143200, 130800090017, 605720100008, 943252281010

    • Passar modeller
      Mercedes-Benz Model: 180 Model series: 180 D Size of motor: 1.8 From date: 01-01-1960 To date: 01-01-1962 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 180 Model series: 180 D Size of motor: 2.0 From date: 01-01-1963 To date: 01-01-1963 Fuel: Diesel Approved: Yes
      Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
