HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032112442

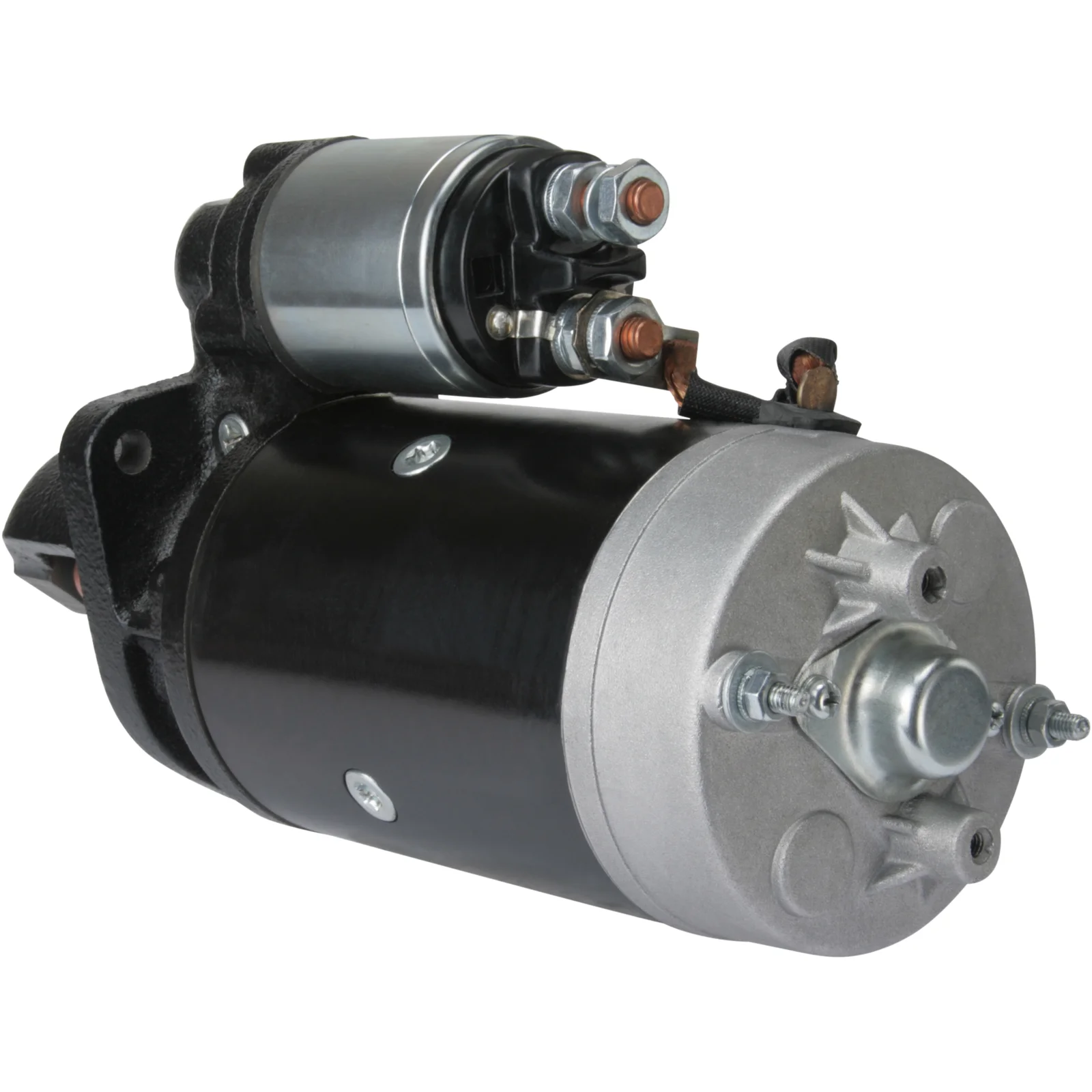

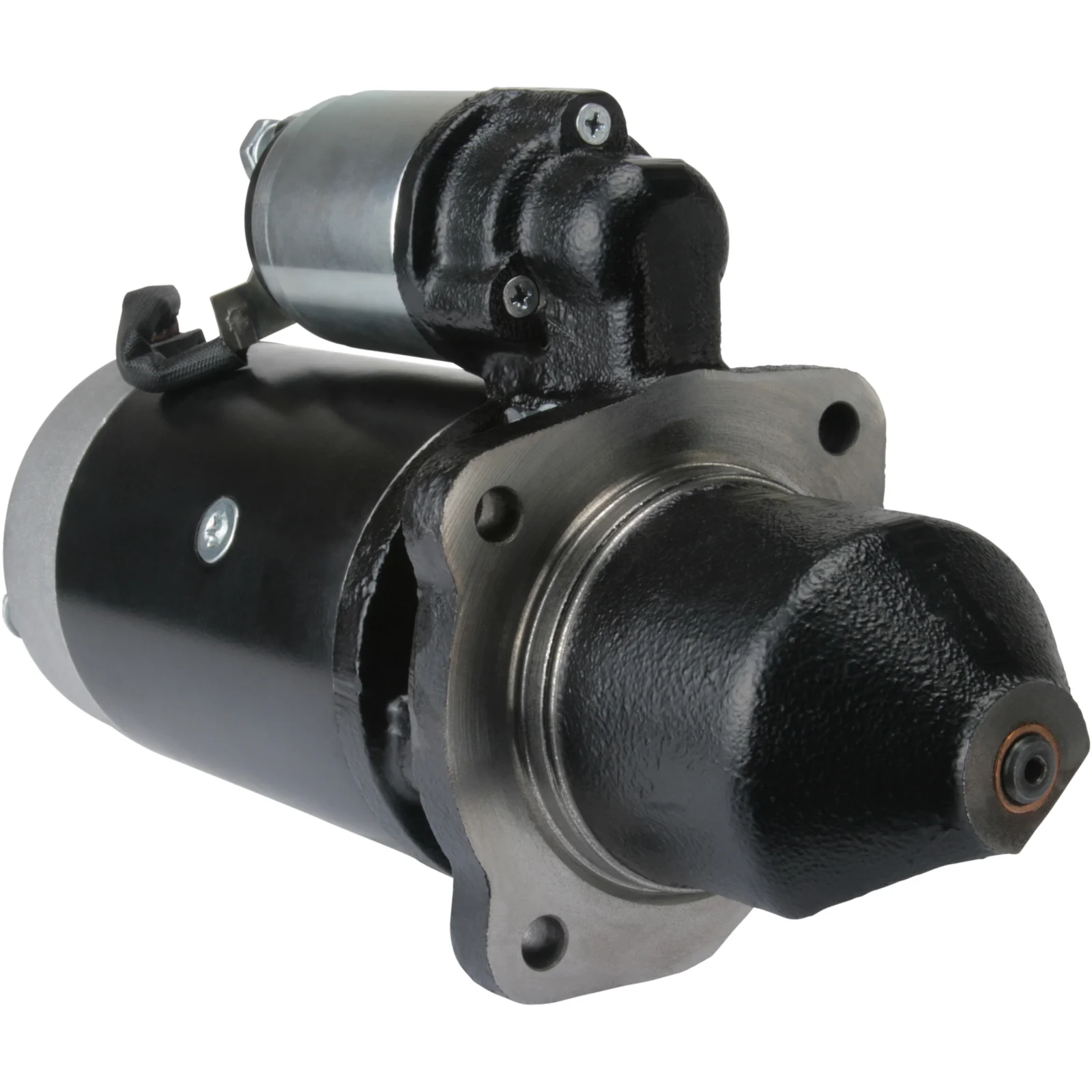

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 3,0, Antal/tenner: 10, Rotation: CW

Beskrivelse

Spænding: 12
kW: 3.0
Montageflange: 89.00
Driveafstand: 48.00
Montagehuls 3 mm: 11.00
Montagehuls 2 mm: 11.00
Montagehuls 1 mm: 11.00
Afstand/bag: 235.00
Afstand/for: 96.00
Nr./tandhjul: 10
B+: M10
Position/50: 15
Terminal 50: M4
Gear type: DD
Afstand 2: 90.00
Afstand 3: 90.00
Afstand mm: 127.00
Rotation: CW
Total længde mm: 340.00
Koblingstype: Tør
Drive type: Stål
Produktion info: BN
Vandtæt: Nej
Olieforseglet: Nej
Info: GR Starter HC-CARGO 115609.
Antal monteringshuller: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 10
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 15
Clutch type Dry
Prod. info BN
Dist. 2 90.00
Dist. 3 90.00
Rotation CW
Dist./back 235.00
Dist./front 96.00
Drive dist. 48.00
Drive type Steel
Gear type DD
Info GR Starter HC-CARGO 115609.
kW 3.0
Terminal 50 M4
Voltage 12
Total length 340.00 mm
Waterproof No
Dist. 127.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    AL70852, al81154, cs1205, F032112442, 501856, 0001367077, 9142745

  • Konkurrentreferens
    ALT10391, CST10228, DRS3818, LRS01622, S0250, S9060, STR22096, 25-3148, 630.009.103, 686.005.102, 18361, 18631N, 19655N, 19655R, 101205, 101376, 0986024000, 0986024003

  • NormaliseratArtNr
    al70852, al81154, alt10391, cs1205, cst10228, drs3818, f032112442, lrs01622, s0250, s9060, str22096, 18361, 18631n, 19655n, 19655r, 101205, 101376, 253148, 501856, 0001367077, 9142745, 630009103, 686005102, 0986024000, 0986024003

  • Passar modeller
    John Deere Model: 6000 Series Model series: 6205 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6505 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6506 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6510 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6520 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6610 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6620 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6810 Size of motor: 10.0 From date: 01-08-1991 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6820 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6910 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6920 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivelse
    Spænding: 12
    kW: 3.0
    Montageflange: 89.00
    Driveafstand: 48.00
    Montagehuls 3 mm: 11.00
    Montagehuls 2 mm: 11.00
    Montagehuls 1 mm: 11.00
    Afstand/bag: 235.00
    Afstand/for: 96.00
    Nr./tandhjul: 10
    B+: M10
    Position/50: 15
    Terminal 50: M4
    Gear type: DD
    Afstand 2: 90.00
    Afstand 3: 90.00
    Afstand mm: 127.00
    Rotation: CW
    Total længde mm: 340.00
    Koblingstype: Tør
    Drive type: Stål
    Produktion info: BN
    Vandtæt: Nej
    Olieforseglet: Nej
    Info: GR Starter HC-CARGO 115609.
    Antal monteringshuller: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 10
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 15
    Clutch type Dry
    Prod. info BN
    Dist. 2 90.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 235.00
    Dist./front 96.00
    Drive dist. 48.00
    Drive type Steel
    Gear type DD
    Info GR Starter HC-CARGO 115609.
    kW 3.0
    Terminal 50 M4
    Voltage 12
    Total length 340.00 mm
    Waterproof No
    Dist. 127.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Køretøjsmatchning

    • OEM
      AL70852, al81154, cs1205, F032112442, 501856, 0001367077, 9142745

    • Konkurrentreferens
      ALT10391, CST10228, DRS3818, LRS01622, S0250, S9060, STR22096, 25-3148, 630.009.103, 686.005.102, 18361, 18631N, 19655N, 19655R, 101205, 101376, 0986024000, 0986024003

    • NormaliseratArtNr
      al70852, al81154, alt10391, cs1205, cst10228, drs3818, f032112442, lrs01622, s0250, s9060, str22096, 18361, 18631n, 19655n, 19655r, 101205, 101376, 253148, 501856, 0001367077, 9142745, 630009103, 686005102, 0986024000, 0986024003

    • Passar modeller
      John Deere Model: 6000 Series Model series: 6205 From date: 01-01-1994 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6505 From date: 01-01-1994 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6506 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6510 From date: 01-01-1994 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6520 From date: 01-01-1994 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6610 From date: 01-01-1994 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6620 From date: 01-01-1994 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6810 Size of motor: 10.0 From date: 01-08-1991 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6820 From date: 01-01-1994 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6910 From date: 01-01-1994 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6920 From date: 01-01-1994 Fuel: Diesel Approved: Yes
      1 / 3
