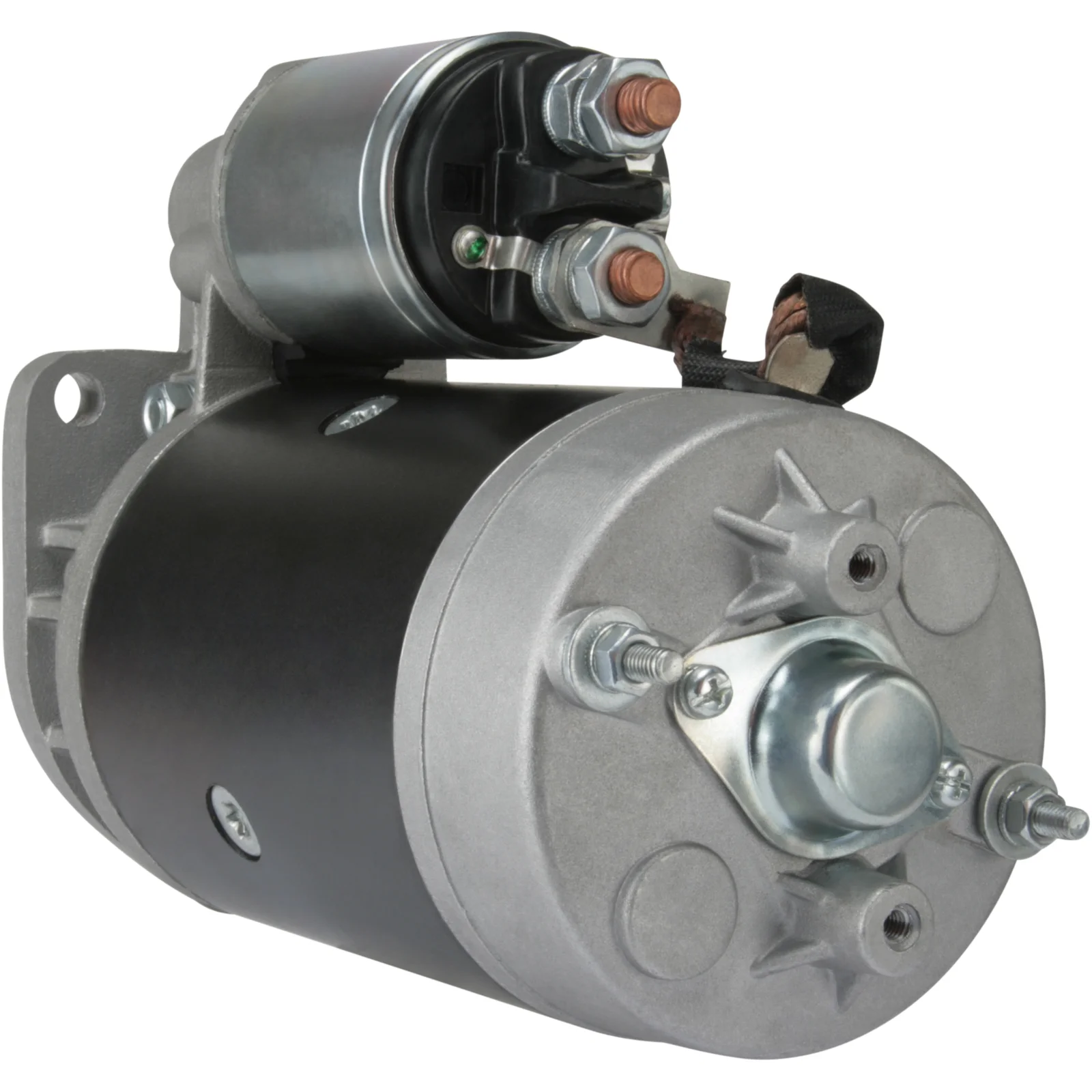

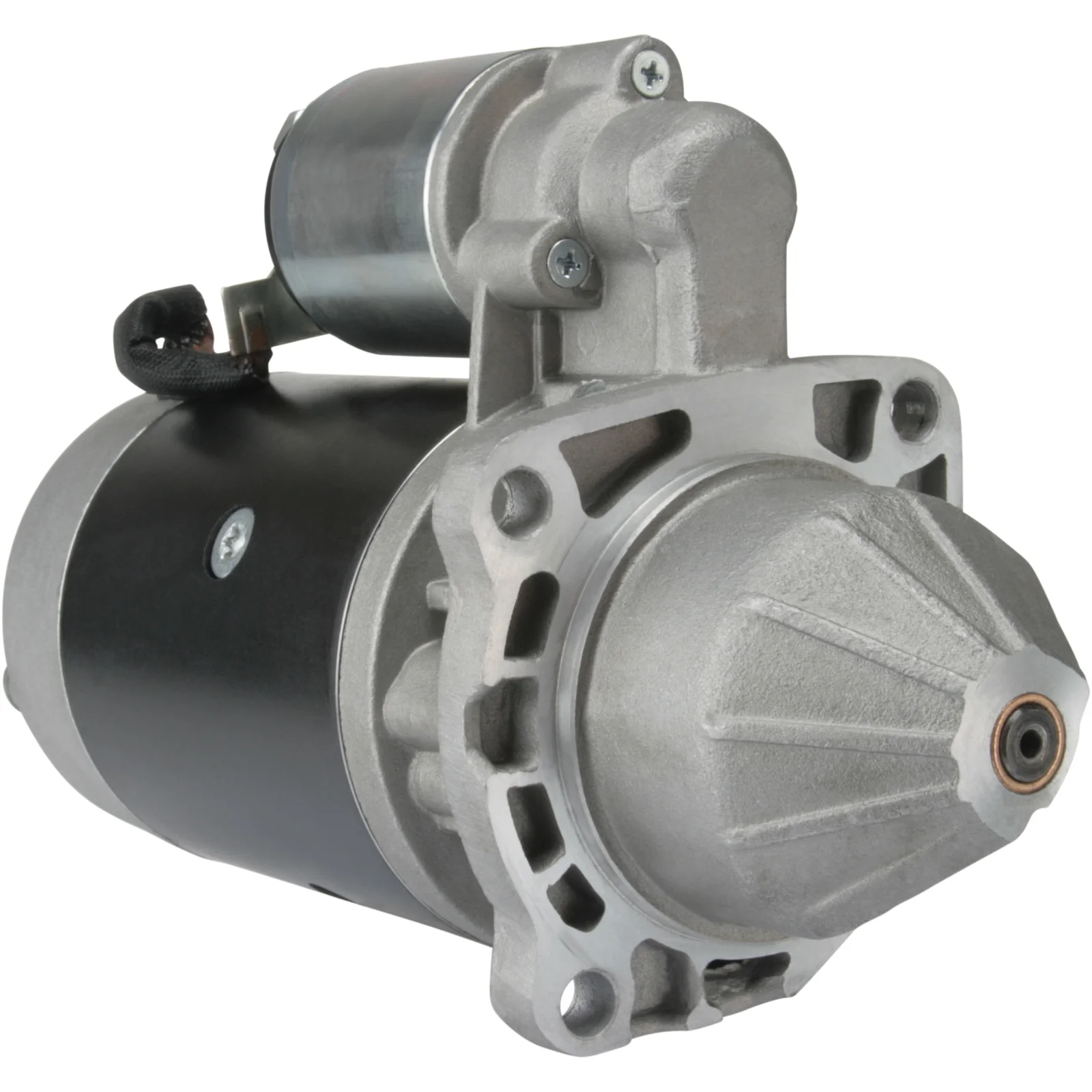

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032112555

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 3.1, No./tænder: 9, Rotation: CW

Beskrivelse

Spænding: 12
kW: 3.1
Monteringsflange: 89.00
Drevafstand: 28.50
Monteringshul 3 mm: 10.50
Monteringshul 2 mm: 10.50
Monteringshul 1 mm: 10.50
Afstand/bag: 229.50
Afstand/front: 73.00
Antal/tenner: 9
B+: M10
Position/50: 15
Terminal 50: M4
Gear type: DD
Drev 2: 90.00
Drev 3: 90.00
Drev mm: 127.00
Rotation: CW
Total længde mm: 303.00
Koblingstype: Tør
Drevetype: Stål
Prod. info: BN
Vandtæt: Nej
Olieseal: Nej
Antal/monteringshuller: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 9
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 15
Clutch type Dry
Prod. info BN
Dist. 2 90.00
Dist. 3 90.00
Rotation CW
Dist./back 229.50
Dist./front 73.00
Drive dist. 28.50
Drive type Steel
Gear type DD
kW 3.1
Terminal 50 M4
Voltage 12
Total length 303.00 mm
Waterproof No
Dist. 127.00 mm
Mount. hole 3 10.50 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    azj3179, C000900060120, cs887, F032112555, F119900060010, F716903060040, 11.130.567, 01179318, 1179318, 01179319, 1179319, 01180805, 1180805, 0001230014, 0001369014, 0001369024, 05712907, 9142803

  • Konkurrentreferens
    BSO7181, CST10361, drs6550, DRS6550N, DRS9020, is0567, lrs00987, MS308, S0174, SR994ZX, STR22060, 2-1889-BO, 8ea737086-001, 25-2110, 88-16.550, 688.015.092, 4150, 10887, 18026, 18026N, 18232N, 33885, 101130, 104790, 220787, 220787A, 11016550, 42016550, 943252299, 0986016550, 0986016557

  • NormaliseratArtNr
    azj3179, bso7181, c000900060120, cs887, cst10361, drs6550, drs6550n, drs9020, f032112555, f119900060010, f716903060040, is0567, lrs00987, ms308, s0174, sr994zx, str22060, 8ea737086001, 4150, 10887, 18026, 18026n, 18232n, 21889bo, 33885, 101130, 104790, 220787, 220787a, 252110, 01179318, 1179318, 01179319, 1179319, 01180805, 1180805, 0001230014, 0001369014, 0001369024, 05712907, 8816550, 9142803, 11016550, 11130567, 42016550, 688015092, 943252299, 0986016550, 0986016557

  • Passar modeller
    Bosch Model: DDOD Model series: DDOD 27 Size of motor: 2.8 Brand of engine: F3L912 From date: 01-04-1982 To date: 01-01-1999 Fuel: Diesel Approved: Yes
    Bosch Model: DDOD Model series: DDOD 36 Size of motor: 4.0 Brand of engine: F4L912 From date: 01-04-1982 To date: 01-01-1999 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: D Series Model series: D 6807 Size of motor: 3.8 Brand of engine: F4L912 From date: 01-06-1986 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: D Series Model series: D 7007 Size of motor: 3.8 Brand of engine: F4L912 From date: 01-06-1986 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 3.10 Size of motor: 2.8 Brand of engine: F3L912 From date: 01-06-1986 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 3.30 Size of motor: 2.8 Brand of engine: F3L912 From date: 01-06-1986 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 3.50 Size of motor: 3.1 Brand of engine: F3L913 From date: 01-06-1986 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 3.60 Size of motor: 3.8 Brand of engine: F4L912 From date: 01-06-1986 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 3.70 Size of motor: 3.8 Brand of engine: F4L912 From date: 01-06-1986 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 3.80 Size of motor: 4.1 Brand of engine: F4L913 From date: 01-06-1986 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 3.90 Size of motor: 4.1 Brand of engine: F4L913 From date: 01-06-1986 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 4.10 Size of motor: 3.8 Brand of engine: F4L912 From date: 01-06-1986 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 4.30 Size of motor: 4.1 Brand of engine: F4L913 From date: 01-06-1986 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 4.31 Size of motor: 4.1 Brand of engine: F4L913 From date: 01-01-1991 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 4.50 Size of motor: 4.1 Brand of engine: BF4L913 From date: 01-06-1986 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 4.51 Size of motor: 4.1 Brand of engine: BF4L913 From date: 01-01-1990 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 4.70 Size of motor: 4.1 Brand of engine: BF4L913 From date: 01-06-1986 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 6.05 Size of motor: 5.7 Brand of engine: F6L912 From date: 01-06-1986 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 6.30 Size of motor: 6.1 Brand of engine: F6L913 From date: 01-06-1986 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 6.31 Size of motor: 6.0 Brand of engine: BF6L913 From date: 01-01-1990 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 6.50 Size of motor: 6.1 Brand of engine: BF6L913 From date: 01-06-1986 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 6.60 Size of motor: 6.0 Brand of engine: BF6L913 From date: 01-10-1988 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 7.10 Size of motor: 6.1 Brand of engine: BF6L913 From date: 01-06-1986 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: Intrac Model series: Intrac 6.30 Size of motor: 6.0 Brand of engine: BF6L913 From date: 01-01-1989 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: M Series Model series: M 1080 Size of motor: 4.7 Brand of engine: F5L912 From date: 01-01-1981 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: M Series Model series: M 1202 Size of motor: 5.7 Brand of engine: F6L912 From date: 01-01-1980 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: M Series Model series: M 2385 Size of motor: 5.7 Brand of engine: F6L912 From date: 01-01-1982 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: M Series Model series: M 3330 Size of motor: 2.8 Brand of engine: F3L912 From date: 01-03-1987 To date: 01-03-2002 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: M Series Model series: M 3360 Size of motor: 3.8 Brand of engine: F4L912 From date: 01-03-1987 To date: 01-03-2002 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: M Series Model series: M 980 Size of motor: 3.8 Brand of engine: F4L912 From date: 01-01-1981 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: Various Models Model series: Various Models Approved: Yes
    Fendt Model: Farmer Model series: 200 Series Size of motor: 2.8 Brand of engine: F3L912 From date: 01-02-1974 Fuel: Diesel Approved: Yes
    Fendt Model: Farmer Model series: 204 Size of motor: 3.8 Brand of engine: F4L 912 From date: 01-02-1979 Fuel: Diesel Approved: Yes
    Fendt Model: Various Models Model series: Various Models Approved: Yes
    Irmer Model: Various Models Model series: Various Models Approved: Yes
    Jenbacher Werke Model: Various Models Model series: Various Models Approved: Yes
    KHD Model: Engine Model series: Engine Size of motor: 2.8 Brand of engine: F3L912.. From date: 01-07-1986 Fuel: Diesel Approved: Yes
    KHD Model: Engine Model series: Engine Size of motor: 3.8 Brand of engine: F4L912 From date: 01-07-1989 Fuel: Diesel Approved: Yes
    KHD Model: Engine Model series: Engine Size of motor: 5.7 Brand of engine: F6L912 From date: 01-05-1990 Fuel: Diesel Approved: Yes
    Kramer Model: Various Models Model series: Various Models Approved: Yes
    Linde Model: H Model series: H 20, 25, 30 Brand of engine: F3L913 Approved: Yes
    Linde Model: H Model series: H 35, 40 Brand of engine: F4L 912 Approved: Yes
    Linde Model: H Model series: H 70 Brand of engine: F6L912 Approved: Yes
    1 / 9
  • Beskrivelse
    Spænding: 12
    kW: 3.1
    Monteringsflange: 89.00
    Drevafstand: 28.50
    Monteringshul 3 mm: 10.50
    Monteringshul 2 mm: 10.50
    Monteringshul 1 mm: 10.50
    Afstand/bag: 229.50
    Afstand/front: 73.00
    Antal/tenner: 9
    B+: M10
    Position/50: 15
    Terminal 50: M4
    Gear type: DD
    Drev 2: 90.00
    Drev 3: 90.00
    Drev mm: 127.00
    Rotation: CW
    Total længde mm: 303.00
    Koblingstype: Tør
    Drevetype: Stål
    Prod. info: BN
    Vandtæt: Nej
    Olieseal: Nej
    Antal/monteringshuller: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 9
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 15
    Clutch type Dry
    Prod. info BN
    Dist. 2 90.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 229.50
    Dist./front 73.00
    Drive dist. 28.50
    Drive type Steel
    Gear type DD
    kW 3.1
    Terminal 50 M4
    Voltage 12
    Total length 303.00 mm
    Waterproof No
    Dist. 127.00 mm
    Mount. hole 3 10.50 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 10.50 mm
  • Køretøjsmatchning

    • OEM
      azj3179, C000900060120, cs887, F032112555, F119900060010, F716903060040, 11.130.567, 01179318, 1179318, 01179319, 1179319, 01180805, 1180805, 0001230014, 0001369014, 0001369024, 05712907, 9142803

    • Konkurrentreferens
      BSO7181, CST10361, drs6550, DRS6550N, DRS9020, is0567, lrs00987, MS308, S0174, SR994ZX, STR22060, 2-1889-BO, 8ea737086-001, 25-2110, 88-16.550, 688.015.092, 4150, 10887, 18026, 18026N, 18232N, 33885, 101130, 104790, 220787, 220787A, 11016550, 42016550, 943252299, 0986016550, 0986016557

    • NormaliseratArtNr
      azj3179, bso7181, c000900060120, cs887, cst10361, drs6550, drs6550n, drs9020, f032112555, f119900060010, f716903060040, is0567, lrs00987, ms308, s0174, sr994zx, str22060, 8ea737086001, 4150, 10887, 18026, 18026n, 18232n, 21889bo, 33885, 101130, 104790, 220787, 220787a, 252110, 01179318, 1179318, 01179319, 1179319, 01180805, 1180805, 0001230014, 0001369014, 0001369024, 05712907, 8816550, 9142803, 11016550, 11130567, 42016550, 688015092, 943252299, 0986016550, 0986016557

    • Passar modeller
      Bosch Model: DDOD Model series: DDOD 27 Size of motor: 2.8 Brand of engine: F3L912 From date: 01-04-1982 To date: 01-01-1999 Fuel: Diesel Approved: Yes
      Bosch Model: DDOD Model series: DDOD 36 Size of motor: 4.0 Brand of engine: F4L912 From date: 01-04-1982 To date: 01-01-1999 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: D Series Model series: D 6807 Size of motor: 3.8 Brand of engine: F4L912 From date: 01-06-1986 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: D Series Model series: D 7007 Size of motor: 3.8 Brand of engine: F4L912 From date: 01-06-1986 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: DX Model series: DX 3.10 Size of motor: 2.8 Brand of engine: F3L912 From date: 01-06-1986 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: DX Model series: DX 3.30 Size of motor: 2.8 Brand of engine: F3L912 From date: 01-06-1986 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: DX Model series: DX 3.50 Size of motor: 3.1 Brand of engine: F3L913 From date: 01-06-1986 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: DX Model series: DX 3.60 Size of motor: 3.8 Brand of engine: F4L912 From date: 01-06-1986 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: DX Model series: DX 3.70 Size of motor: 3.8 Brand of engine: F4L912 From date: 01-06-1986 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: DX Model series: DX 3.80 Size of motor: 4.1 Brand of engine: F4L913 From date: 01-06-1986 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: DX Model series: DX 3.90 Size of motor: 4.1 Brand of engine: F4L913 From date: 01-06-1986 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: DX Model series: DX 4.10 Size of motor: 3.8 Brand of engine: F4L912 From date: 01-06-1986 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: DX Model series: DX 4.30 Size of motor: 4.1 Brand of engine: F4L913 From date: 01-06-1986 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: DX Model series: DX 4.31 Size of motor: 4.1 Brand of engine: F4L913 From date: 01-01-1991 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: DX Model series: DX 4.50 Size of motor: 4.1 Brand of engine: BF4L913 From date: 01-06-1986 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: DX Model series: DX 4.51 Size of motor: 4.1 Brand of engine: BF4L913 From date: 01-01-1990 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: DX Model series: DX 4.70 Size of motor: 4.1 Brand of engine: BF4L913 From date: 01-06-1986 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: DX Model series: DX 6.05 Size of motor: 5.7 Brand of engine: F6L912 From date: 01-06-1986 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: DX Model series: DX 6.30 Size of motor: 6.1 Brand of engine: F6L913 From date: 01-06-1986 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: DX Model series: DX 6.31 Size of motor: 6.0 Brand of engine: BF6L913 From date: 01-01-1990 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: DX Model series: DX 6.50 Size of motor: 6.1 Brand of engine: BF6L913 From date: 01-06-1986 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: DX Model series: DX 6.60 Size of motor: 6.0 Brand of engine: BF6L913 From date: 01-10-1988 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: DX Model series: DX 7.10 Size of motor: 6.1 Brand of engine: BF6L913 From date: 01-06-1986 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: Intrac Model series: Intrac 6.30 Size of motor: 6.0 Brand of engine: BF6L913 From date: 01-01-1989 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: M Series Model series: M 1080 Size of motor: 4.7 Brand of engine: F5L912 From date: 01-01-1981 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: M Series Model series: M 1202 Size of motor: 5.7 Brand of engine: F6L912 From date: 01-01-1980 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: M Series Model series: M 2385 Size of motor: 5.7 Brand of engine: F6L912 From date: 01-01-1982 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: M Series Model series: M 3330 Size of motor: 2.8 Brand of engine: F3L912 From date: 01-03-1987 To date: 01-03-2002 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: M Series Model series: M 3360 Size of motor: 3.8 Brand of engine: F4L912 From date: 01-03-1987 To date: 01-03-2002 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: M Series Model series: M 980 Size of motor: 3.8 Brand of engine: F4L912 From date: 01-01-1981 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: Various Models Model series: Various Models Approved: Yes
      Fendt Model: Farmer Model series: 200 Series Size of motor: 2.8 Brand of engine: F3L912 From date: 01-02-1974 Fuel: Diesel Approved: Yes
      Fendt Model: Farmer Model series: 204 Size of motor: 3.8 Brand of engine: F4L 912 From date: 01-02-1979 Fuel: Diesel Approved: Yes
      Fendt Model: Various Models Model series: Various Models Approved: Yes
      Irmer Model: Various Models Model series: Various Models Approved: Yes
      Jenbacher Werke Model: Various Models Model series: Various Models Approved: Yes
      KHD Model: Engine Model series: Engine Size of motor: 2.8 Brand of engine: F3L912.. From date: 01-07-1986 Fuel: Diesel Approved: Yes
      KHD Model: Engine Model series: Engine Size of motor: 3.8 Brand of engine: F4L912 From date: 01-07-1989 Fuel: Diesel Approved: Yes
      KHD Model: Engine Model series: Engine Size of motor: 5.7 Brand of engine: F6L912 From date: 01-05-1990 Fuel: Diesel Approved: Yes
      Kramer Model: Various Models Model series: Various Models Approved: Yes
      Linde Model: H Model series: H 20, 25, 30 Brand of engine: F3L913 Approved: Yes
      Linde Model: H Model series: H 35, 40 Brand of engine: F4L 912 Approved: Yes
      Linde Model: H Model series: H 70 Brand of engine: F6L912 Approved: Yes
      1 / 9
